Our Guide to Embedded Computers
Embedded computers have transformed the way we live and work. Small yet powerful, these systems are often purpose-built to deliver a set of predetermined functions when integrated within a larger system or machine. Functions may include controlling processes, managing data, or enabling communication.
Unlike personal computers, embedded computers are designed specifically to carry out a single function, it’s this concept which renders them highly efficient, cost effective and reliable. In this guide, we will look at what embedded computers are in more detail, covering how they work, and how to choose the right type of embedded computer for your application or solution.
What are Embedded Computers?
You might be researching ‘what is an embedded computer’ because you’ve been having problems with consumer-grade tower PCs or small form factor units and have been recommended to replace your infrastructure with embedded solutions that are more fit for purpose. Embedded computers are often referred to by many names including Fanless Box PCs, Single Board Computers, Vehicle Controllers, Industrial PCs and so on.
In simple terms, an embedded computer is a computer system that has been designed to perform specific tasks within a larger device or system. They are typically self-contained, meaning they don’t require any external components such as keyboards and monitors. Instead, these devices use special hardware and software to operate without the need for user input. Despite their small size, and low power consumption, embedded computers provide powerful computing capabilities with dedicated processors, memory, I/O ports, communication interfaces and more.
What Are Embedded Computers Used For?
Embedded computers are becoming increasingly popular and versatile in many different industries. They provide a wide range of services from controlling machinery and data acquisition to communication with other systems, they are essential components of modern technology. In fact, across our everyday lives, we have become highly reliant on these small yet resilient computers as they can be found in all sorts of everyday consumer products such as smartphones, cars, and appliances to specialist medical monitoring devices, digital signage, industrial automation and much more, embedded computers work hard behind the scenes to ensure optimal performance is delivered and maintained no matter what.
The applications for embedded computers are growing rapidly due to their ability to perform specialized tasks with minimal power consumption and cost. From consumer products to industrial automation applications and other specialized fields, embedded computers work hard to silently power our everyday lives.
Examples of Embedded Computers
In the domestic space, industrial embedded computers can be found in a variety of everyday items such as traffic light systems, CCTV solutions, digital signage controllers, epos systems and kiosks. These embedded computers allow these solutions to offer advanced features, such as internet connectivity and automated scheduling.
Industrial Automation
In the industrial sector, embedded computers are utilized in a vast range of ways. In the field of factory automation, embedded computers are utilized to control production processes, monitoring systems, and robotics. Embedded computers are becoming increasingly important in the healthcare sector as they provide reliable, secure and high-performance computing capabilities needed for various applications such as enabling us to monitor vital signs, assist in medical treatments, provide remote diagnosis, and other medical equipment that requires accurate data processing. To ensure the safety and reliability of these embedded computers, manufacturers must obtain certifications such as ISO 13485 or IEC 60601 to guarantee that their medical grade embedded computer products meet all quality requirements set by regulatory bodies. Manufacturers such as Axiomtek, Arbor Technology, AValue, Winmate and many more provide a range of Certified Embedded Computers and Certified Panel PCs.
Renewable Energy Sources
Embedded computers are playing a key role in the advances in the renewable energy sector, as they can control and monitor a range of processes to maximize efficiency. For example, by using embedded computers, it is possible to monitor solar panels and wind turbines, ensuring that they are working properly and efficiently. They can also be used to automate various tasks such as adjusting the angle of the solar panel or turbine blades for maximum power output. As a result, embedded computers have the potential to reduce costs associated with energy production while also increasing reliability and performance. Manufacturers such as Neousys, ASRock, AAEON, Cincoze offer a range of systems that can be engineered for use within the energy sector such as DIN Rail Computers, Industrial Panel PCs and Rugged Embedded Computers.
Military Embedded Computers
Embedded computers are an integral part of many military systems and applications, from weapons control systems to communications networks they can provide an efficient way for soldiers to interact with their environment whilst ensuring data accuracy and security. For these embedded computers to be used by the military they must meet certification requirements needed in a secure military environment. The most common requirement is MIL-STD-810G which covers environmental engineering considerations such as temperature extremes, humidity levels, shock resistance, vibration tolerance and electromagnetic compatibility (EMC). Other certifications may also include protection against tampering or malicious hacking attempts. By meeting these stringent requirements, embedded computers can provide valuable services to the armed forces without compromising security or reliability. With manufacturers such as Winmate, Arbor Technology, Cincoze and Neousys, embedded computer engineers are able to deliver complex military computing solutions for use in many military applications.

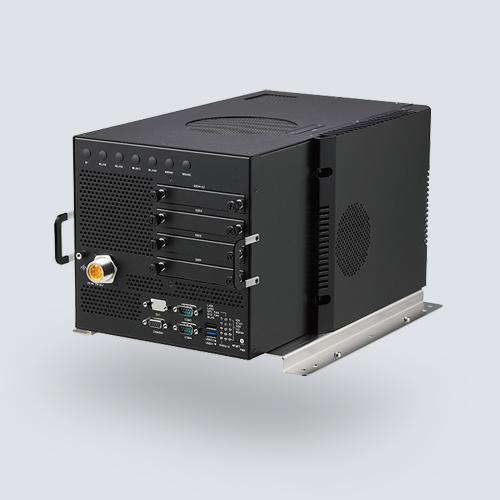

Railway Certified Embedded Computers
Embedded computers have revolutionized railway applications in recent years, providing a range of benefits that can make rail travel safer, more efficient and cost-effective. They provide sophisticated analytics that help operators identify problems and optimize performance, as well as enabling enhanced communication between components such as sensors and controllers for improved reliability. Furthermore, these powerful devices can reduce maintenance costs while also helping to increase safety margins for passengers and staff alike. However, for them to work effectively on rail networks, embedded computers need certain certifications in place that can guarantee their suitability for use. One such certification is EN50155, which sets the standard for embedded computer systems used in rolling stock and other rail applications. This comprehensive set of requirements helps to ensure that computers are suitable for use in potentially harsh environments, including extreme temperatures and vibration levels. Additionally, it covers various performance parameters such as power management and fault tolerance to provide maximum reliability while also guaranteeing compatibility with other components on the network. By adhering to this rigorous standard, manufacturers can be confident their products meet the highest safety and quality standards when used in railway applications.
Another certification is EN 45545 which is a European standard that specifies the requirements for fire protection on railway vehicles. It was developed to ensure that all railway vehicles comply with the same safety standards and provide a safe environment for passengers, crew members and other personnel in the event of an emergency. The standard covers areas such as interior materials, structures, electrical equipment, cabins, windows, and external surfaces. It also includes specific tests to evaluate how well these components can withstand flames or heat. EN 45545 ensures that all trains are designed with sufficient fire protection measures so they can be evacuated quickly if necessary. By having this common European standard applied throughout Europe it makes sure that there is no risk of inadequate protection due to differences between countries’ regulations or manufacturers’ implementations of their own standards.

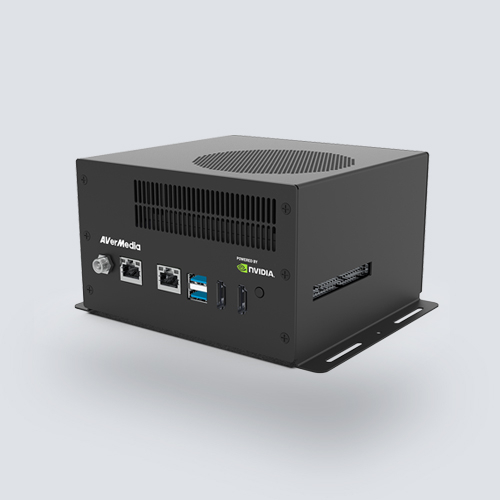

AI Systems
AI (Artificial Intelligence) is transforming the way machines interact with their environment and making our lives easier and more efficient than ever before. Embedded AI computers are one of the most important tools in this transformation, allowing for powerful processors and machine learning algorithms to be combined into a small device which can process substantial amounts of data quickly and accurately. NVIDIA Jetson is an example of this, enabling developers to create, train and deploy machine learning models on edge devices with unprecedented efficiency. With its advanced processor architecture and software stack featuring frameworks, it is no wonder that NVIDIA Jetson is transforming many industries by automating processes that were previously done manually or not at all.
As technology continues to evolve, embedded computers are now essential for a variety of industries and applications, enabling them to function efficiently and reliably.
What are the Main Types of Embedded Computers?
Although embedded computers are highly customisable, fundamentally they can be categorized into four main types based on function:
1. General-Purpose Embedded Computers:
General-purpose embedded computers are used to provide basic computing power to devices. These computers are typically less powerful than stand-alone systems, but they deliver the necessary CPU, memory, and other components needed to drive the device’s functionality. Common examples include smart TVs and home automation systems.
2. Stand-Alone Embedded Computers:
Stand-alone embedded computers are designed to operate independently of external systems or networks and have dedicated hardware and software resources. Common examples of standalone embedded computers include industrial robots, medical devices, and military equipment.
3. Real-Time Embedded Computers:
Real-time embedded computers are designed for applications that need to respond to a stimulus within a set time frame. The main purpose of these systems is to analyze signals or input and react in real time to changes in the environment or device. Common examples include aircraft flight systems, telecommunications networks, and robotic systems.
4. Networked Embedded Computers:
Networked embedded computers are specifically designed to communicate with one another, sending and receiving information over a dedicated network. These types of computers are used to connect multiple embedded devices together, enabling them to work together as one unit. Common examples of networked embedded computers include building automation systems and security systems.
The Benefits of Using an Embedded Computer
Embedded computer systems offer numerous advantages over traditional consumer-grade computers. Below are the main benefits of using an embedded computer, no matter what the application may be:
Small Form Factor Design
A standout feature of nearly all embedded computers is their compact size and weight. Utilizing small form factor motherboards such as Mini-ITX, an embedded computer can be installed, in places where a typical desktop or tower PC would never fit. When designed with flexible mounting options, integration is possible in virtually any position or orientation. If size is one of your most significant constraints, consider Pico-ITX or Single Board Computers.
Fanless Cooling
A potential point of failure when using fan-based technology to cool computers is the build up of particulate matter such as dust. Typical consumer-grade computers have openings in the case and utilize fans to create airflow. This method circulates cooler air over the components within which allows dust to also enter the system. Removing the fan for cooling purposes decreases failure rates, eliminates noise and provides more space for integral parts.
You might be thinking how do embedded computers keep cool? While some embedded computers still utilize fans typically for expansion modules or graphics cards, the majority use thermal pads on the CPU and external heat sink technology to dissipate the heat given off from core components such as the processor. All heat-generating components are segregated evenly on the PCB to avoid heat-soak. Embedded computer cases also use an external heat sink design either on top or down the side to further help dissipate built up heat from components. These passive cooling techniques allow many industrial computers to remain sealed against the elements (and can be IP65 rated) while still effectively dissipating heat without the need for fans.
Low Maintenance & Reliability
Embedded computers are normally required to run 24/7 and must also withstand factors present in demanding applications. Therefore reliability and robustness are critical. For example, if you deploy a consumer-grade PC with moving parts in a vibration prone environment, you can expect components such as the hard drive to fail. Embedded computer manufacturers on the other hand design and manufacture the hardware to meet specific criteria and certification rendering them extremely low maintenance, more reliable and rugged than more general-purpose computers.
In fact, wide temperature components are often used to tackle operating temperature ranges wider than 0-60C and conformal coatings can also be applied upon request to protect the system against moisture, dust, corrosion and electrical or thermal conduction
Long-term Availability
Another key benefit of using an embedded computer is the life cycle support of the technology. Unless specifically stated by the manufacturer, most consumer grade computers offer a very limited procurement life cycle. They are typically subject to discontinuation in six to twelve months which poses a big problem for embedded and industrial applications. Unwanted side effects often come when computer components change. Software that was proven to work on one system may not operate correctly on different hardware or operating software. Embedded and industrial computer customers prefer to lock down an operating system image to deploy on all systems in the field. When hardware components change, the operating system image is no longer compatible, and this requires a new software image to be created when hardware changes take place. Managing different software deployments on multiple hardware platforms complicates IT infrastructure, adds cost, labor and is never desirable. With purpose built embedded systems this risk is reduced or removed.
To recap:
General Consumer Grade Desktop Computers are superseded in: 6-12 Months
Apple Mac Mini’s are superseded in: 24-36 Months (typically)
Embedded computers have long term support lasting: 2-12 years (variable depending on model and manufacturer)
Cost Effective
One huge advantage of embedded computers is their cost-effectiveness. Embedded computers are much more affordable than traditional computers, yet they can still provide a comparable level of performance and processing power. This means that businesses don’t have to invest in costly hardware upgrades when they want to upgrade their systems capabilities. Embedded systems also allow users to take advantage of the latest technology without having to worry about compatibility issues.
Security
Embedded computers also offer a much greater security than traditional computers since they are designed to be extremely reliable and difficult to hack into. This makes them great for protecting sensitive data such as customer records or financial information. Additionally, embedded computers can be configured to support a variety of different operating systems without having to replace any hardware.
Overall, embedded computers provide a host of benefits for businesses and individuals alike. Their affordability, versatility, security features, and size make them an invaluable tool in any industry, so if you are looking for a reliable and cost-effective way to control and monitor your data, embedded computers are an excellent choice. With embedded systems, you will be able to take advantage of the latest technology without breaking the bank.
How do I Choose an Embedded Computer System for my Application?
When selecting an embedded computer for your application, it is important to understand the physical constraints of its surrounding environment. Consider the exact dimensions that are needed to fit in the allotted space, and make sure all necessary ports and power sources can be connected securely. Additionally, take into account any other physical limitations such as temperature range and vibration levels that will need to be addressed before installation.
You also need to consider the embedded computers performance requirements such as processor speed, memory size and storage capacity. Processors come in many varieties, with different clock speeds and cores available, so it is important to research the best fit for your application and make sure the chosen processor can handle the workload that it will be expected to process.
Finally, consider the embedded computer’s power requirements, as this is a crucial element in any application. It is important to understand how much power your chosen embedded computer needs and whether or not the provided power source can provide that amount of power. Additionally, research which type of power connectors are needed and make sure the necessary cables or adapters can be secured before installation.
By taking these factors into account, you can ensure that your embedded computer is an ideal fit for your application and its environment. With careful consideration of the physical limitations, performance requirements, and power needs of your embedded computer choice you can move forward with the assurance that you have made the best possible decision for your application, and it will provide the reliability and performance needed. By working with our experienced team of embedded computer professionals here at Assured Systems, we can ensure that all of these factors are taken into account and your embedded computer selection is optimized for success.
Assured Systems offer a wide range of embedded computers and can preconfigure devices to your exact requirements. If nothing is available ‘off the shelf’ we can also create custom cases and configurations to fit your application’s limitations – we design and build completely tailored solutions from the ground up in-house at our design centre.
Contact us today for product options, support requests, ideas or just to chat about your project and get some advice.
