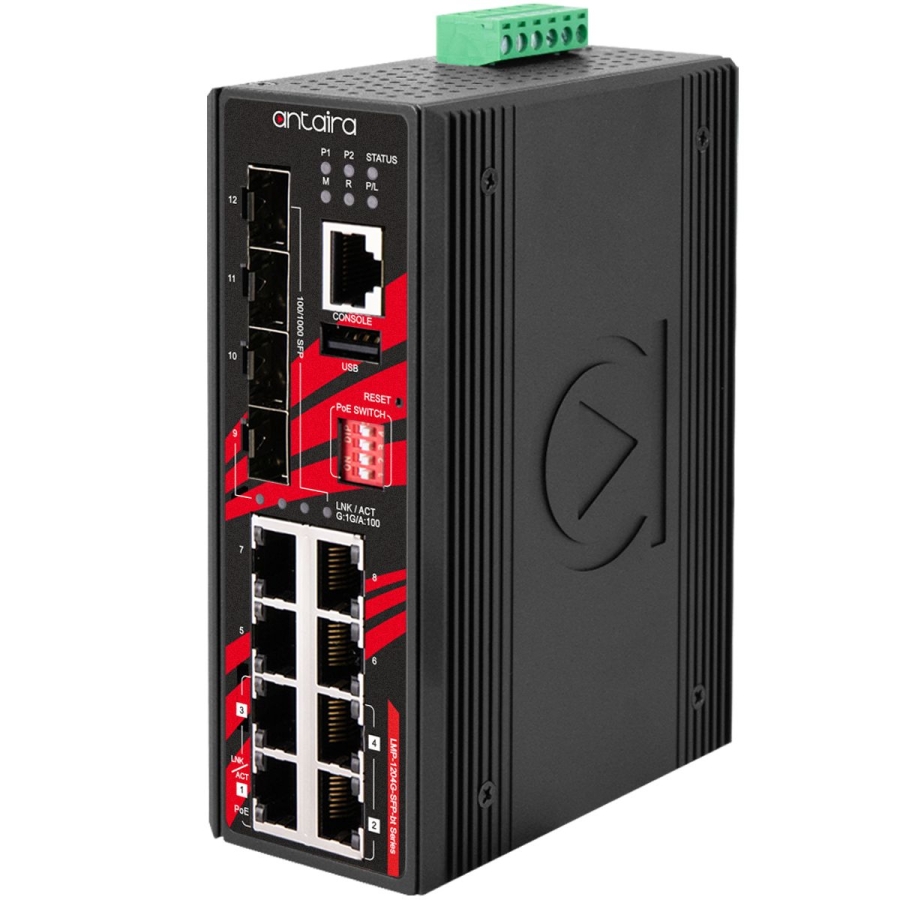

Antaira LMP-1204G-SFP-bt-T 12-Port PoE++ 90W Managed Ethernet Switch with EOT

Antaira LMP-1204G-SFP-bt-T 12-Port PoE++ 90W Managed Ethernet Switch with EOT

LMP-1204G-SFP-bt-T Price: $POA

  • Supports 4*10/100/1000Tx IEEE 802.3bt Compliant with 90W/Port, 4*10/100/1000Tx IEEE 802.3af/at Compliant with 30W/Port, and 4*100/1000 SFP Slots
  • Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS v1/v2 (Recovery Time <50ms)
  • Configuration: Web Console, Telnet, CLI Command
  • Supports IGMP v1/v2/v3, up to 1024 Groups
  • Supports QoS (IEEE 802.1p) and CoS/ToS
  • Supports IEEE 802.1Q VLAN, SNMP v1/v2c
  • Power Input: 48~55VDC in 6-Pin Terminal Block
  • Reverse Polarity Protection
  • IP30 Protection
  • DIN-Rail or Wall Mountable
  • Operating Temperature Range – EOT: -40°C to 75°C
  • 5-Year Warranty

For more information please click “Add to Inquiry”. Alternatively you can contact our US sales team on +1 347 719 4508.



Antaira Technologies’ LMP-1204G-SFP-bt-T is a 12-port industrial Gigabit PoE++ managed Ethernet switch embedded with 4*10/100/1000Tx Ethernet ports that support IEEE 802.3bt for a maximum of 90W/port, 4*10/100/1000Tx Ethernet ports with IEEE 802.3af/at support for a maximum of 30W/Port, and 4*100/1000 dual rate SFP slots for fiber connection. The LMP-1204G-SFP-bt-T is a fully-manageable Light Layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks. The LMP-1204G-SFP-bt-T is IP30 rated and DIN-rail mountable. There are also an extended temperature range (EOT: -40°C to 75°C). It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment.

Ordering Info

LMP-1204G-SFP-bt 12-Port Industrial Gigabit IEEE 802.3bt PoE++ Light Layer 3 Managed Ethernet Switch, with 4*10/100/1000Tx (90W/Port), 4*10/100/1000Tx (30W/Port), and 4*100/1000 SFP Slots
LMP-1204G-SFP-bt-T 12-Port Industrial Gigabit IEEE 802.3bt PoE++ Light Layer 3 Managed Ethernet Switch, with 4*10/100/1000Tx (90W/Port), 4*10/100/1000Tx (30W/Port), and 4*100/1000 SFP Slots; EOT: -40°C to 75°C


Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?


L2 Switching Port/MAC/Protocol/IP Subnet-based VLAN,GARP/GVRP, Loop Guard, Link Aggregationstatic/LACP, BPDU guard, Error disablerecovery, IGMP snooping v1/v2/v3, MLDsnooping v1/v2, IGMP filtering, IPMC throttling /filtering leave proxy, DHCP snooping, G.8032v1/v2
L3 Switching DHCP option82, static routes
QoS 802.1p Queueing, Input priority mapping, Stormcontrol for Unicast/Multicast/Broadcast,Port/Queue/ACL policer, Port egress shaper,Queue egress shaper, DiffServ (DSCP), Tagremarking, Scheduler mode
Power Saving ActiPHY, PerfectReach, IEEE 802.3az EEEpower management
Network Redundancy STP/RSTP/MSTP, port trunk with LACP, ERPSv1/v2 (<50ms)
Configuration Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
System/ Diagnostics Dual Image Protection, PING, PING6
Switch Architecture Back-Plane (Switching Fabric): 24Gbps
Protocols IPv4/IPv6, SNMP v1/v2c/v3, LLDP, LLDPMED, HTTP, HTTPS, SSHv2 telnet, DHCPclient, DHCPv6 client, DHCP server, PortMirror, DNS client/proxy, IP based AccessFilter, ICMPv6, syslog, Time Zone /DaylightSaving, NTP client, RMON, sFlow, Loopdetection, Console Port, USB configurationbackup/restore, Power lost warning, relaytrigger
Priority Queues 8
Processing Type Store and Forward
Flow Control IEEE 802.3x for full duplex mode, backpressure for half duplex mode
Transfer Rate 14,880pps for Ethernet Port148,800pps for Fast Ethernet Port1,488,000pps for Gigabit Ethernet Port
Packet Buffer 4Mbits
Jumbo Frame 9.6Kbytes
MAC Table Size 8K
VLAN Group 4095
IGMP Group 1024
Ethernet Port 8*10/100/1000Base-TX (90W/Port for Port 1~4,30W/Port for Port 5~8), auto negotiation speed,Full/Half duplex mode, and auto MDI/MDI-Xconnection
SFP Port 4*100/1000 SFP Slots
RS232 Serial Console 1*RS232 in RJ45
LED Indicators System: Power 1, Power 2, Master (M), Ring(R), Status, PoE Load (P/L)Ethernet ports: Speed/Link/ActivePoE: On-connected to PD devicesSFP: Link/Active
Network Cable 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5cable EIA/TIA-568 100-ohm (100m)100Base-TX: 2-pair UTP/STP Cat. 5cable EIA/TIA-568 100-ohm (100m)1000Base-TX: 4-pair UTP/STP Cat.5/5Ecable; EIA/TIA-568 100-ohm (100m)
Housing Metal, IP30 protection
Dimensions 54 x 142 x 99mm (W x H x D)
Weight Unit: 2.38 lbsShipping: 3.07 lbs

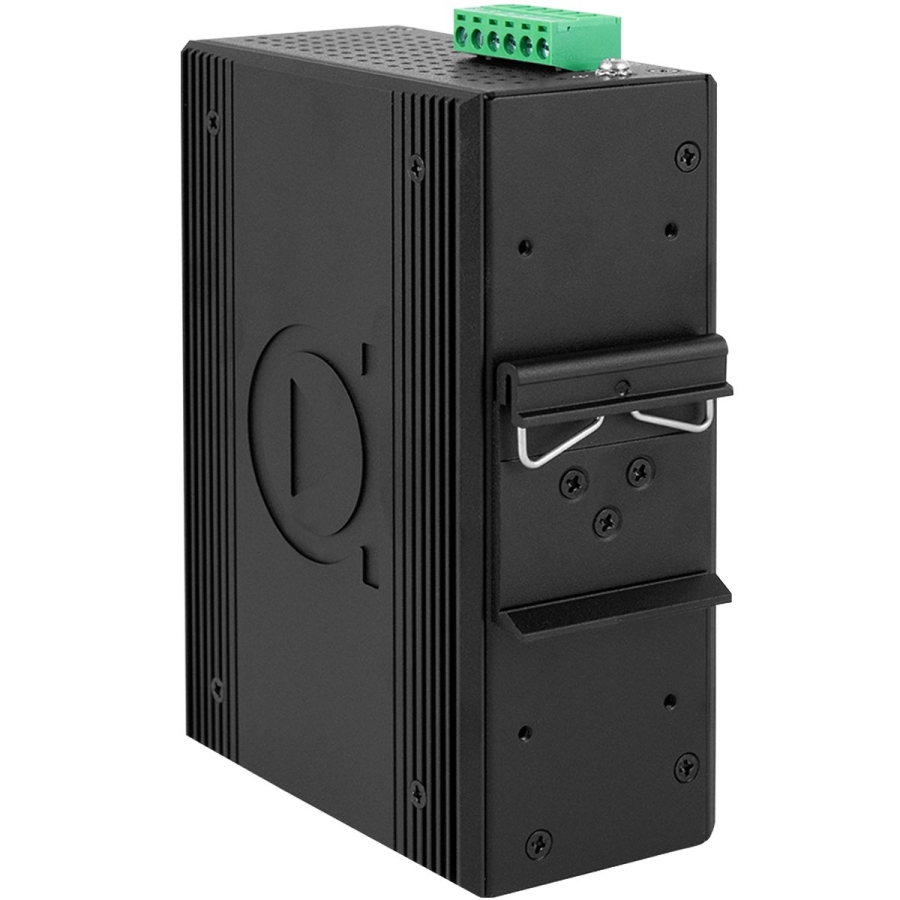

Mounting DIN-Rail Mounting, Wall Mounting
Input Voltage 48-55VDC Redundant Power Inputs
Power Connection Removable 6-Contact Terminal Block
Relay Content 24VDC, 1A resistive
PoE Pin Assignment V-, V-, V+, V+ for pin 1, 2, 3, 6;V+, V+, V-, V- for pin 4, 5, 7, 8*Support Modes: Mode A, Mode B, 4-Pair Mode
Overload Current Protection Present
Reverse Polarity Protection Present
System Power Consumption 12.5W
PoE Power Budget 240W @48~55VDC
Operating Temperature STD: -10°C to 65°CEOT: -40°C to 75°C
Storage Temperature  -40°C to 85°C
Ambient Relative Humidity 5% to 95%, (non-condensing)
EMI  FCC Part 15 Subpart B Class A,CE EN55032/EN61000-6-4 Class A
EMS CE EN55035/EN61000-6-2 Class A:IEC61000-4-2,3,4,5,6,8
Free Fall IEC60068-2-32
Shock IEC60068-2-27
Vibration IEC60068-2-6
Green RoHS Compliant
Certifications FCC, CE
Warranty 5 Years
