BCO-500-ADL-2L-N97

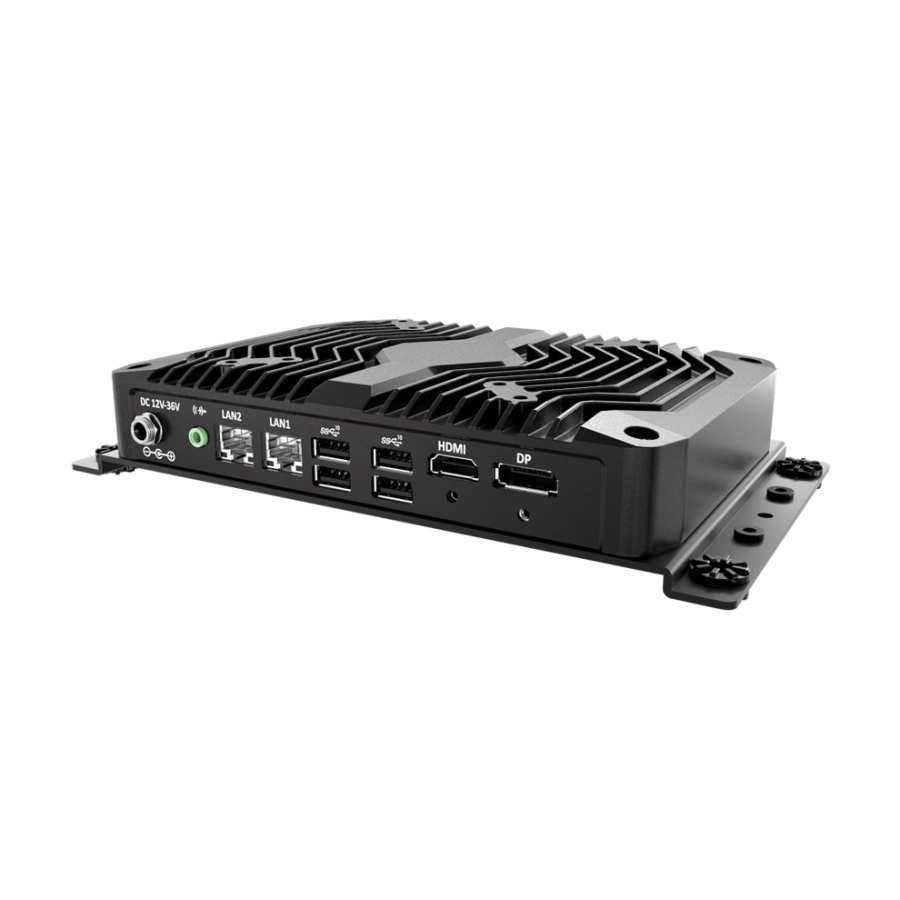

C&T Solution BCO-500-ADL-2L-N97 Intel Alder Lake N97 Semi-Rugged Fanless Mini Computer

BCO-500-ADL-2L-N97

Support Intel Alder Lake N97/i3-N305 Processor
1x 262-Pin DDR5 4800MT/s SO-DIMM. Max. up to 16GB
Dual Independent Display by 1x Display Port, 1x HDMI
2x Intel I225-V 2.5GbE LAN
1x M.2 B-Key, 1x M.2 E-Key
2x COM, 4x USB 3.2, 1x Line-out
12 to 36VDC Wide Range Power Input Supporting AT/ATX Mode
Wide Operating Temperature N97 CPU/12W (-10°C to 50°) and N305 CPU/15W (-10°C to 45°)
TPM 2.0 Supported
UL 61010-1, UL 61010-2-201, CE, FCC Class A, UKCA, VCCI, RCM

Choose BCO-500-ADL Series Model:

Available

Product Code: BCO-500-ADL-2L-N97

Categories: C&T Solution, C&T Solution BCO-500-ADL Series, C&T Solution Fanless Embedded Computers, Fanless Industrial PCs, Industrial Mini PCs, Industrial PCs, Semi-Industrial Computers

Range: C&T Solution - C&T Solution BCO-500-ADL Series

Details

The BCO-500-ADL is a fanless mini embedded computer that brings robust performance and connectivity to the most space constrained applications. Powered by 12th Generation Intel Alder Lake N, the BCO-500-ADL provides an industrial alternative to consumer-grade Intel NUCs. It’s mini form factor allows the computer to seamlessly retrofit into space-constrained applications and integrate with IoT devices and sensors.

Downloads

Datasheet (BCO-500-ADL-2L-N97) (PDF)

0.41MB
