R19IB3S-SPM1-B

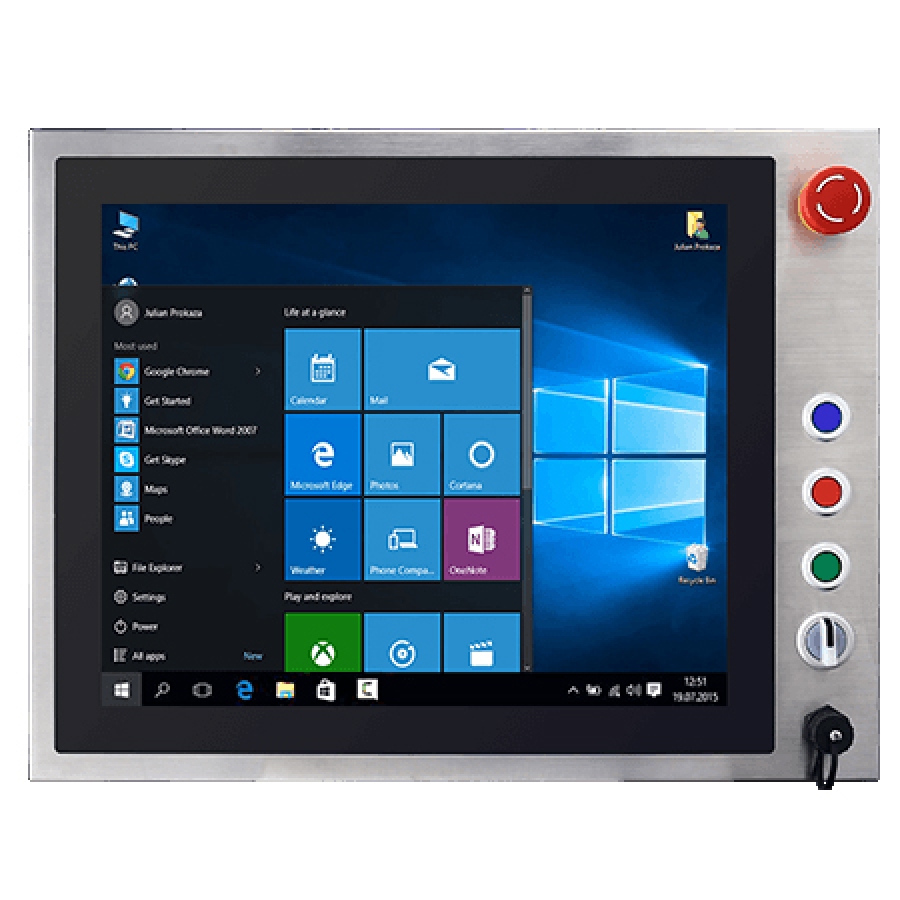

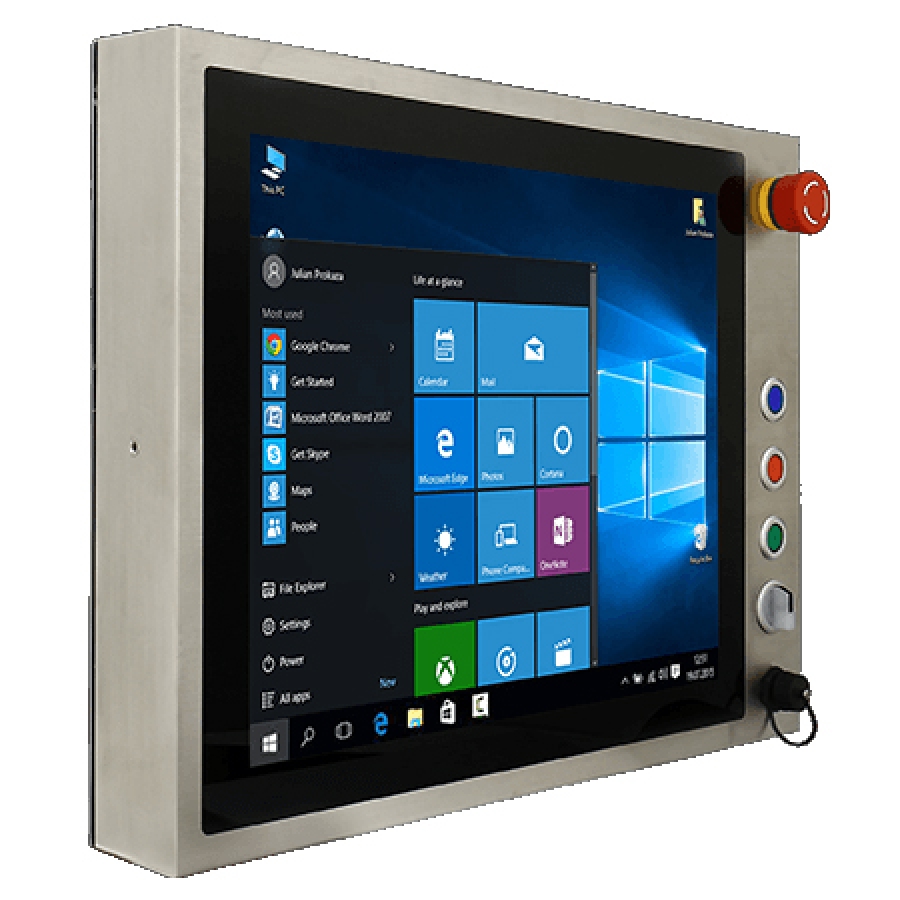

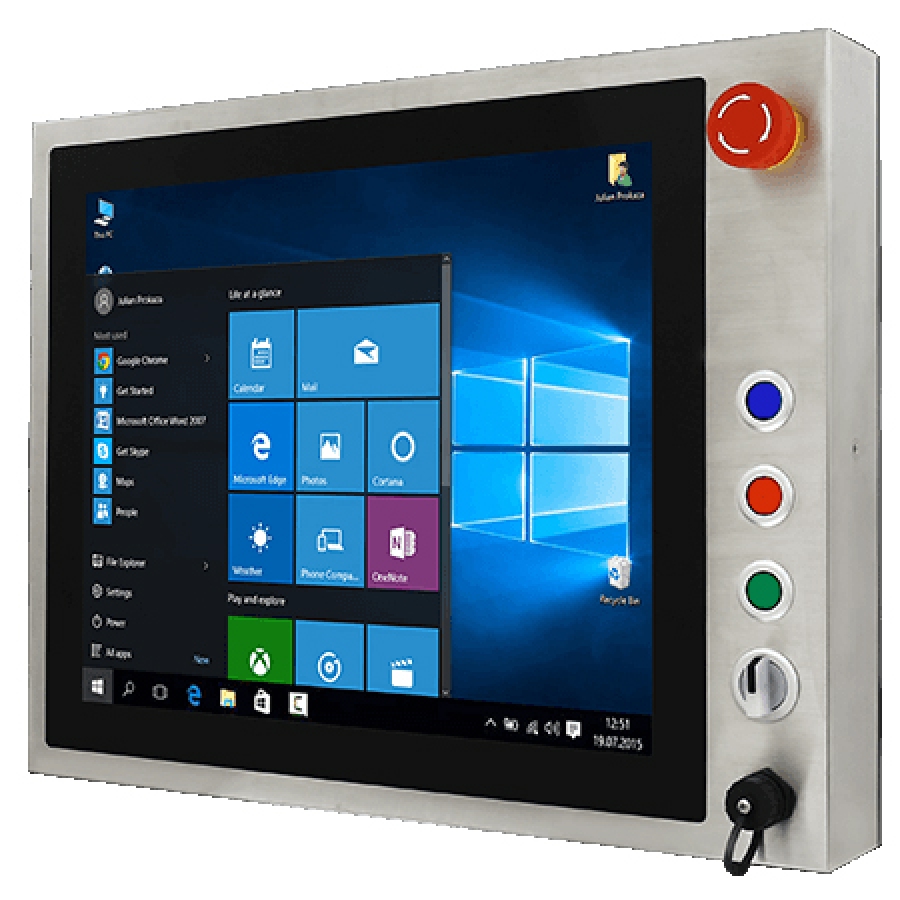

Winmate R19IB3S-SPM1-B 19″ Intel Celeron N2930 IP65 Stainless Steel Touch Panel PC

R19IB3S-SPM1-B

  • Intel Celeron N2930 (2M Cache, up to 2.16 GHz)
  • Fanless cooling system
  • SUS 316/ AISI 316 stainless steel for food and chemical industries
  • Full IP65 waterproof enclosure, good corrosion resistance
  • A true flat, easy-to-clean front surface with edge-to-edge design
  • Supports VESA mount
  • Rotary switch adjust different touch mode for Hand/Rain/Glove application
  • Emergency and Flat buttons for automation device control
-
+

Details

The Winmate R19IB3S-SPM1-B is a 19", full IP65 stainless steel panel PC powered by Intel Celeron N2930 processor. This touchscreen panel PC contains PCAP touch technology with a panel brightness of 250nits and a resolution of 1280 x 1024. The R19IB3S-SPM1-B supports VESA mounting and contains a rotary switch to adjust different touch mode for hand, rain or glove application and alongside the full IP65 stainless steel design which ensures good corrosion resistance this panel PC is perfect for industrial application such as the food and chemical industries.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

Size 19″
Contrast Ratio 1000 : 1 (typ.)
Panel Brightness 250 cd/m2 (typ.)
Viewing Angle -85~85(H);-80~80(V)
Recommend Resolution 1280 x 1024
Touch Screen PCAP touchscreen
Maximum Colors 16.7M
Processor Intel® Celeron Bay Trail-M N2930(2M Cache, up to 2.16 GHz)
Chipset Intel® SoC Integrated
Memory 1 x SODIMM, Max 8GB DDR3 1600 MHz, default 4GB
BIOS AMI BIOS
Ethernet Intel® Ethernet Controller I210-AT
Audio Realtek HD codec
Expansion Slots 1 x mPCIe slot(for half size Wifi module)
OS Windows 10 IoT Enterprise
DC-Input 1 x M12 waterproof connector for 12V DC
USB Port 1 x M12 waterproof connector for 2 x USB2.0 1 x Front waterproof connector for USB2.0 type-A
Ethernet 1 x waterproof Giga LAN RJ45 connector
COM Port 1 x M12 waterproof connector for RS232
Operating Temperature 0~45°C
Storage Temperature -20~60°C
Operating Humidity 10% to 90% (non-condensing)
Mounting VESA Mount
Dimension (W x H x D) 516 x 395 x 69mm
IP Proof IP65
Power Input Default 12V DC input
9~36V DC input for optional
Power Adapter 100~240V AC to DC Adapter with waterproof connector
LED Indicator 1 x LED Indicator for power
1 x LED Indicator for storage
Buttons Rear side: 1 x Power Button, 1 x Reset Button Front side: 1 x Emergency Button & 3 x Flat Buttons for CN1 & CN2 M12 connector, 1 x Rotary Switch for touch mode
Certification CE, FCC
Touch Technology Projected Capacitive
Ingress Protection IP65
Stainless Steel Yes
Brightness 250nit, Standard
Resolution 1280x1024, Special/Other
GPU Integrated GPU
Memory Capacity Up to 4GB, Up to 8GB
Cooling Type Fanless, Yes
Serial Ports (COM) 1 Port, RS-232
USB Ports 2 Ports, 2 Ports, USB 2.0
Ethernet Ports (LAN) 1x 1G
Wireless Wi-Fi
Audio Yes
Storage Type 1, mSATA
Expansion Type 1, Any Expansion Type, Mini PCI Express
Input Voltage 12 VDC, 9-36 VDC
Mounting Options VESA-mount
Operating Temperature 0°C to 45°C, Standard
Certifications CE/FCC
OS Support Windows 10, Windows 10 IoT, Windows 10 Pro
