Name: Winmate R15IT3S-SPC3-R 15" Intel Core i5-1135G7 Stainless R Series Panel PC with Full IP65
SKU: R15IT3S-SPC3-R

Winmate

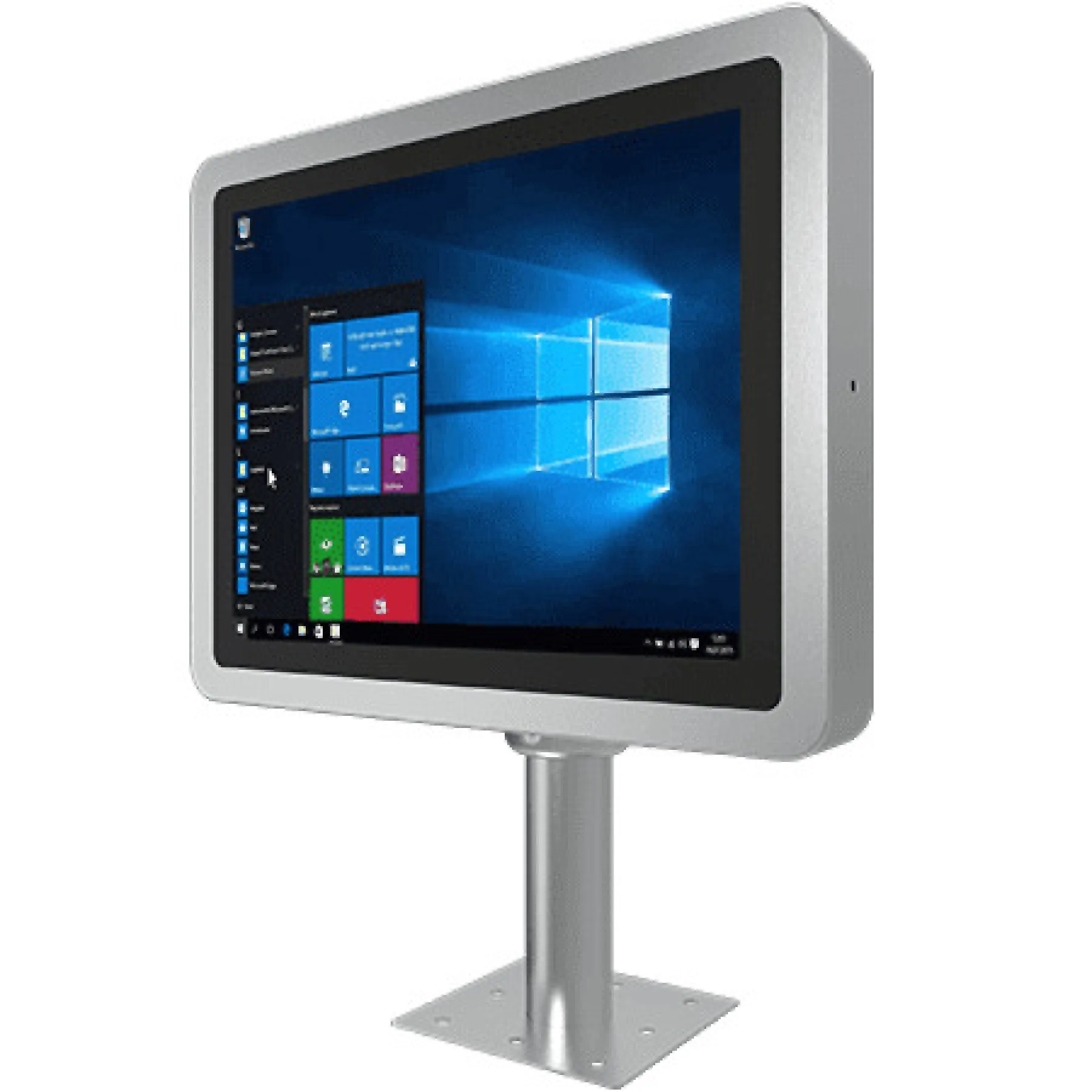

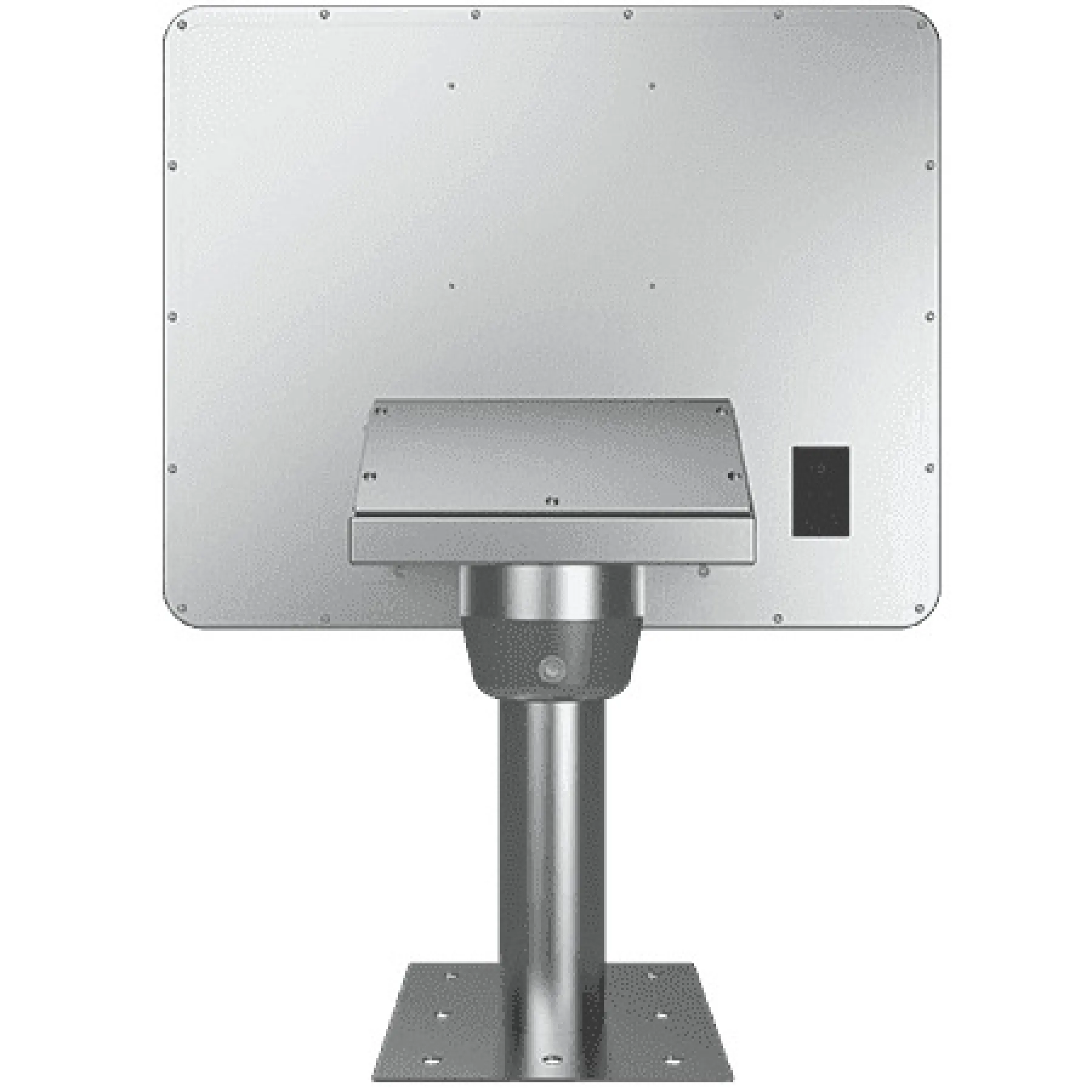

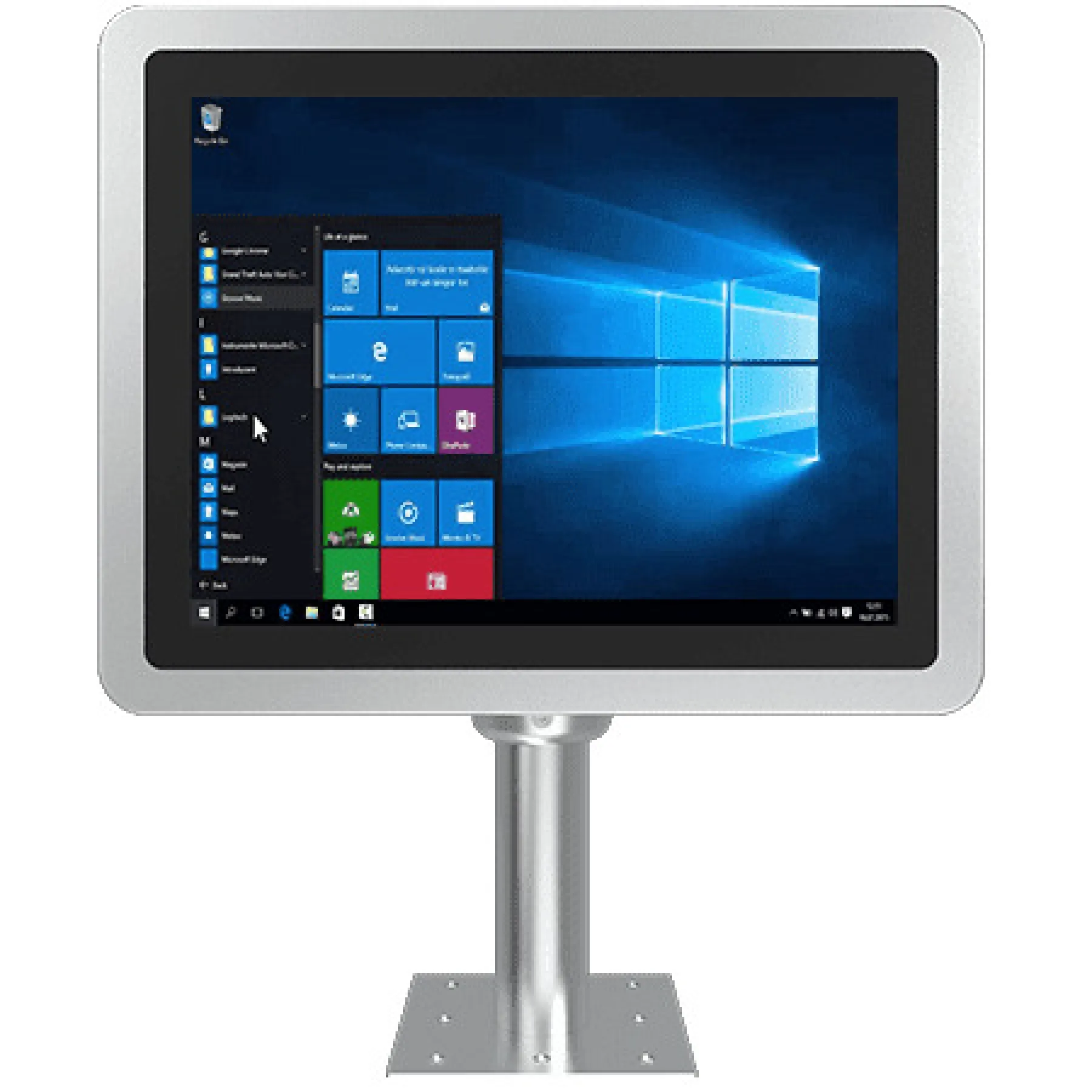

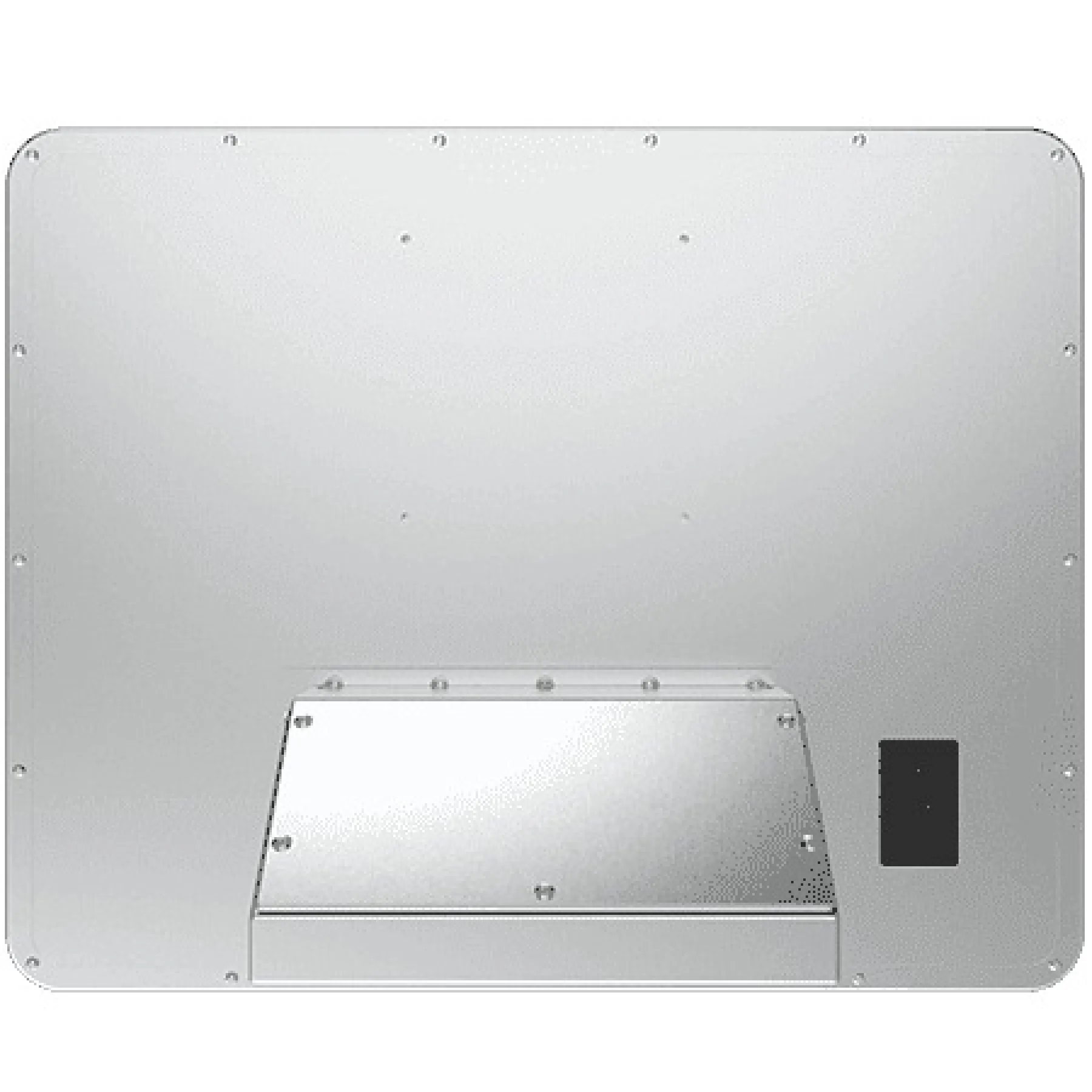

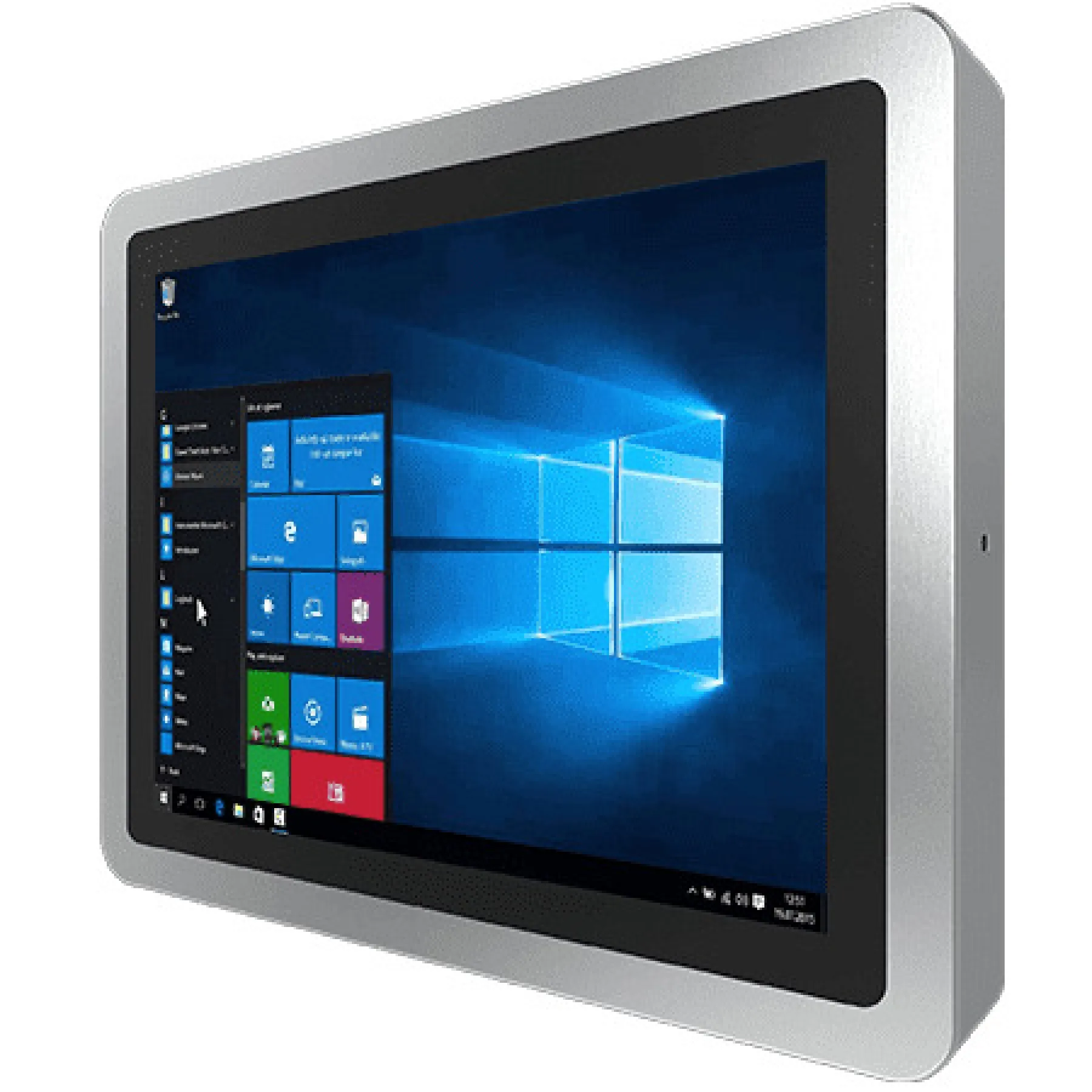

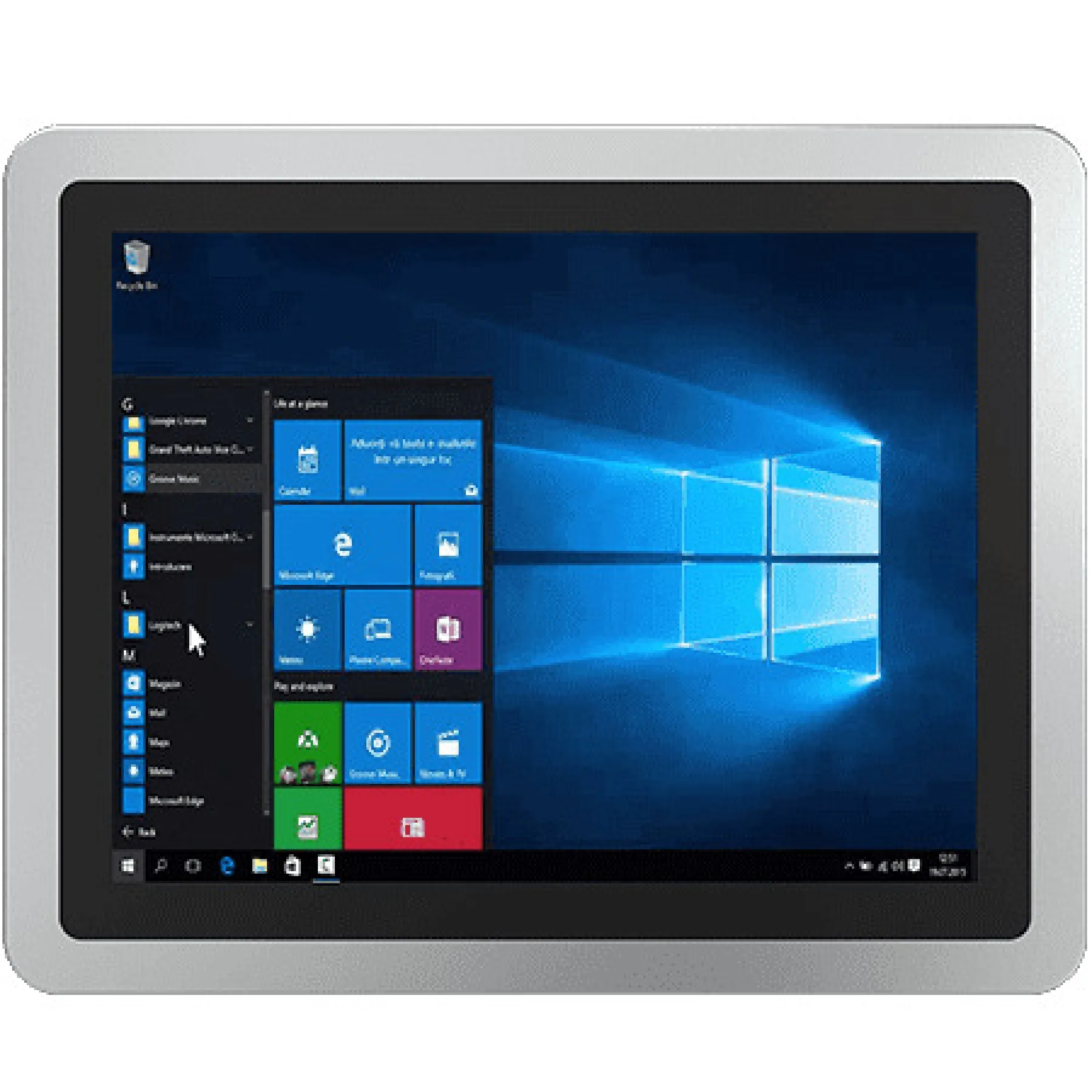

Winmate R15IT3S-SPC3-R 15″ Intel Core i5-1135G7 Stainless R Series Panel PC with Full IP65

R15IT3S-SPC3-R

11th Generation Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
Round corner design
A true flat, easy-to-clean front surface with an edge-to-edge design
Sealed to IP65 for protection against water and dust
Support Glove / Rain mode
SUS 316 / AISI 316 stainless steel for food and chemical industries
Various mounting solutions
Optical bonding (optional)

Product Code: R15IT3S-SPC3-R

Categories: Industrial Touchscreen Computers, IP65 Panel PCs, Stainless Steel Panel PCs, Winmate

Range: Winmate - Winmate

Details

The Winmate R15IT3S-SPC3-R is a Stainless R Series Panel PC powered by Intel with up to 32GB Memory. The I/O includes 1x COM, 1x LAN and 2x USB ports alongside an operating temperature of 0ºC ~ 45ºC and stores within -20°C – 60°C.

Downloads

Datasheet (R15IT3S-SPC3-R) (PDF)

0.46MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Touch Technology	Projected Capacitive
Ingress Protection	IP65
Stainless Steel	Yes
Brightness	300nit, Standard
Resolution	1024x768, Special/Other
GPU	Integrated GPU
Memory Capacity	Up to 32GB
Cooling Type	Fanless, Yes
Serial Ports (COM)	1 Port, RS-232
USB Ports	2 Ports, 2 Ports, USB 2.0
Ethernet Ports (LAN)	1 Port, 1GB
Storage Type	1, 1, 2, M.2, SATA
Input Voltage	12 VDC
Mounting Options	Arm Mount, VESA-mount, Yoke-mount
Operating Temperature	0°C to 45°C, Standard
Certifications	CE/FCC
OS Support	Linux, Windows 10, Windows 10 IoT, Windows 11, Windows 11 IoT, Windows 11 Pro
