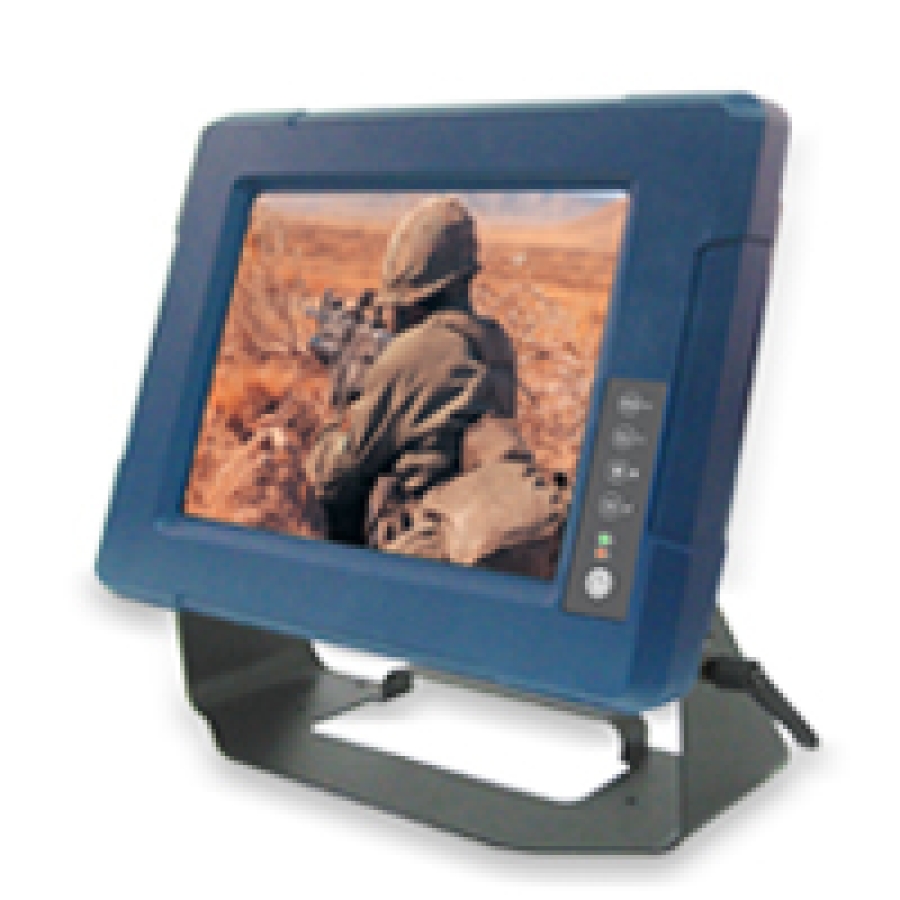

Winmate R10IB3S-MLT2 10.4″Intel N2930 Military Panel PC, 1024×768
R10IB3S-MLT2
- Military grade power connector
- Ultra Low Power but High Performance Intel® Bay Trail N2930 1.83GHz
- Fanless Design
- High Quality 10.4″ Panel, 1024×768 Resolution
- Full IP65 Dust/water resistant Protection (Except I/O parts)
- Aluminum Housing with Anti-Corrosion Treatments
- Anti-Shock and Vibration Standard according to MIL810F/G & IEC60068-2-27
- Wide Range 9 to 36V DC Input Acceptable
- 5 Wire Resistive Touchscreen / Anti-Reflection Protection Glass (Optional)
- 802.11b/g/n Wireless LAN with Antenna(Optional)
R10IB3S-MLT2
Certified Panel PCs, Industrial Touchscreen Computers, Military Panel Computers, Panel PCs Old, Rugged Military Displays, Specialist Monitors, Winmate
Details
Winmate’s military grade display and panel PC are designed for use in extremely harsh environments and rough weather condition. This ultra-tough design was developed to survive both military and industrial applications. These systems are both MIL-STD 810F vibration and shock certification.Downloads
Assured Systems Datasheet (PDF)
A PDF edition of this page with supporting manufacturer datasheets
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| Model Name | R10IB3S-MLT2 |
| Size | 10.4″ |
| Resolution | 1024 x 768 |
| Contrast Ratio | 1200:1 (typ.) |
| Brightness | 350 (typ.) |
| Display Color | 16.2M |
| Viewing Angle | -88~88 (H); -88~88 (V) |
| Touch | 4 Wire Resistive/ 5 Wire Resistive |
| Mesh Film Coating | Optional |
| Processor | Intel® Bay Trail N2930 1.83GHz |
| BIOS | AMI 16 Mbit |
| Chipset | Intel® SoC Integrated |
| Memory | 1 x DDR3L 1066 / 1333 MHz SO-DIMM (default 4GB, max.8GB) |
| Lan Controller | Intel® I210-AT GbE |
| Storage | mSATA SSD (default 64GB) |
| Expansion Slot | 1 x Mini PCIe for wireless |
| Back Panel I/O Port | 2 x RJ-45(10/100/1000 Mpbs), 1 x HDMI, 1 x Military Grade Lockable Power Connector, 1x USB 2.0, 1x USB 3.0, 1x RS232/422/485 WLAN antenna SMA in top(Optional) |
| Control Button | Power On/ Off Reset Brightness Up Brightness Down |
| Led indicator | Power On/ Off HDD Status |
| Dimensions (W x L x H) | 315 x 250 x 67 mm |
| Power Input | 12V DC IN / MIL-grade connector |
| Operation Humidity | 10% to 95% (non-condensing) |
| Shock* | Operating: 30g for 18ms, 300m/s2 |
| Vibration* | Operating: 1.60/ 1.96/ 2.18 g rms for XYZ / 5-500Hz |
| Certifications | CE, FCC Class B, MIL-STD-810F/G, IEC60068-2-27 for Vibration /Shock |
| Storage Temperature | -20℃ ~ 70℃ |
| Operating Temperature | -20℃ ~ 70℃ |
| Mounting Bracket and Kits | One robust bracket with locking handle (Can adjust from -5° to 90°) |
| OS | Windows Embedded 7 Windows Embedded 8 Windows 10 IoT Enterprise |
| EMI ITO Glass | 3 mm Anti-reflective Protection Glass (w/o Touch) |
| Wide Power Input Range | 9V to 36V wide range acceptable for optional |
| Video Ports | >>> 1 Port |
|---|---|
| Screen Size | 1" to 10", 10.4" |
| Touch Technology | Resisitive |
| Brightness | 350nit, Standard |
| Touch Technology | Resistive |
| Brightness | 350nit, Standard |
| Resolution | 1024x768, Special/Other |
| GPU | Integrated GPU |
| Memory Capacity | Up to 4GB, Up to 8GB |
| Cooling Type | Fanless, Yes |
| Serial Ports (COM) | 1 Port, RS-232/422/485 |
| USB Ports | 1 Port, 1 Port, 2 Ports, USB 2.0, USB 3.0 |
| Ethernet Ports (LAN) | 2 Ports, 2 Ports |
| Wireless | Wi-Fi |
| Video Ports | 1x HDMI |
| Storage Type | 1, mSATA |
| Input Voltage | 12 VDC, 9-36 VDC |
| Mounting Options | VESA-mount |
| Operating Temperature | -20°C to 60°C, Wide |
| Certifications | CE/FCC |
| OS Support | Linux, Windows 10, Windows 10, up to Windows 10 IoT, Windows 10 Pro |
