Syslogic RPC/RSL-A3 NVIDIA Jetson AGX Xavier,IP67/IP69 E-mark AI Rugged Computer

Name: Syslogic RPC/RSL-A3 NVIDIA Jetson AGX Xavier,IP67/IP69 E-mark AI Rugged Computer
SKU: RPC/RSL-A3
Availability: InStock

Syslogic

Syslogic RPC/RSL-A3 NVIDIA Jetson AGX Xavier,IP67/IP69 E-mark AI Rugged Computer

RPC/RSL-A3

NVIDIA Jetson Xavier AGX Outdoor AI Edge Computer with IP67/IP69 Waterproof Extended Temperature Passively Cooled Chassis with Agriculture ISOBUS, NVMe SSD Storage, LTE/UMTS/GSM

Ultra rugged
IP67 Protection
Shock and vibration resistant
Milled aluminum housing
Extended AI Computing
Maintenance free
512-core NVIDIA Volta GPU with 64 Tensor Cores
8-Core ARM v8.2 64-bit NVIDIA Carmel CPU
32GB 256-Bit LPDDR4x RAM soldered on board
Storage options: M.2 2280 & CFast

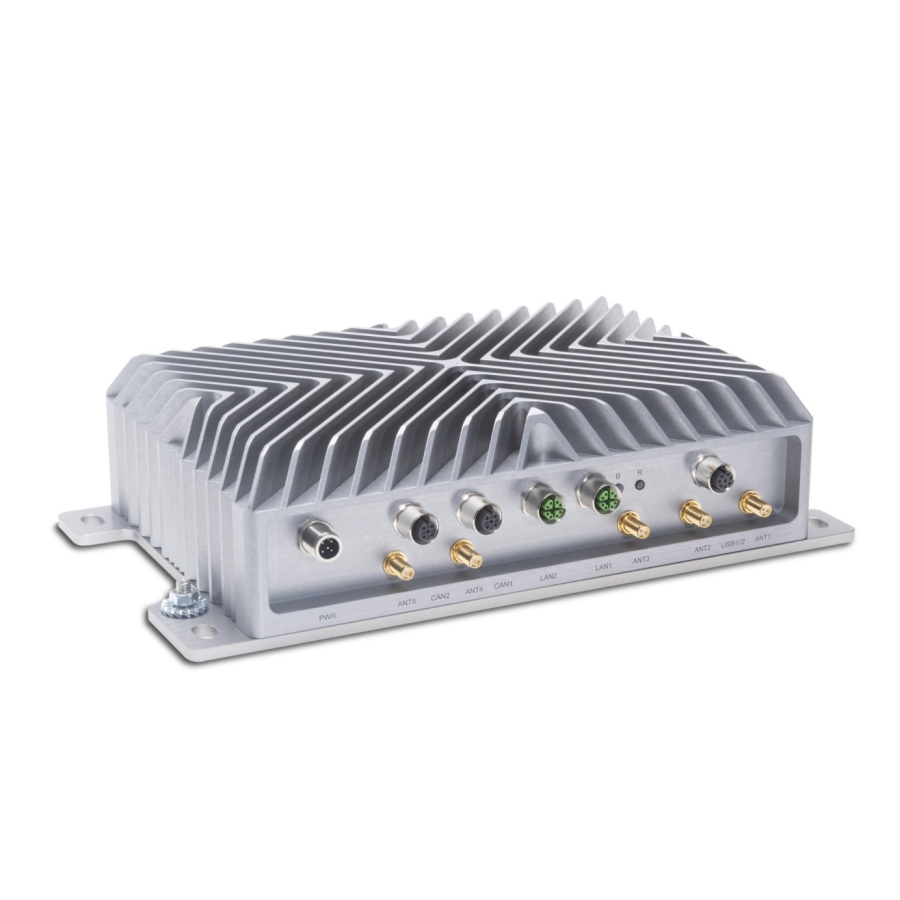

Ethernet, USB, Passive or Active CAN

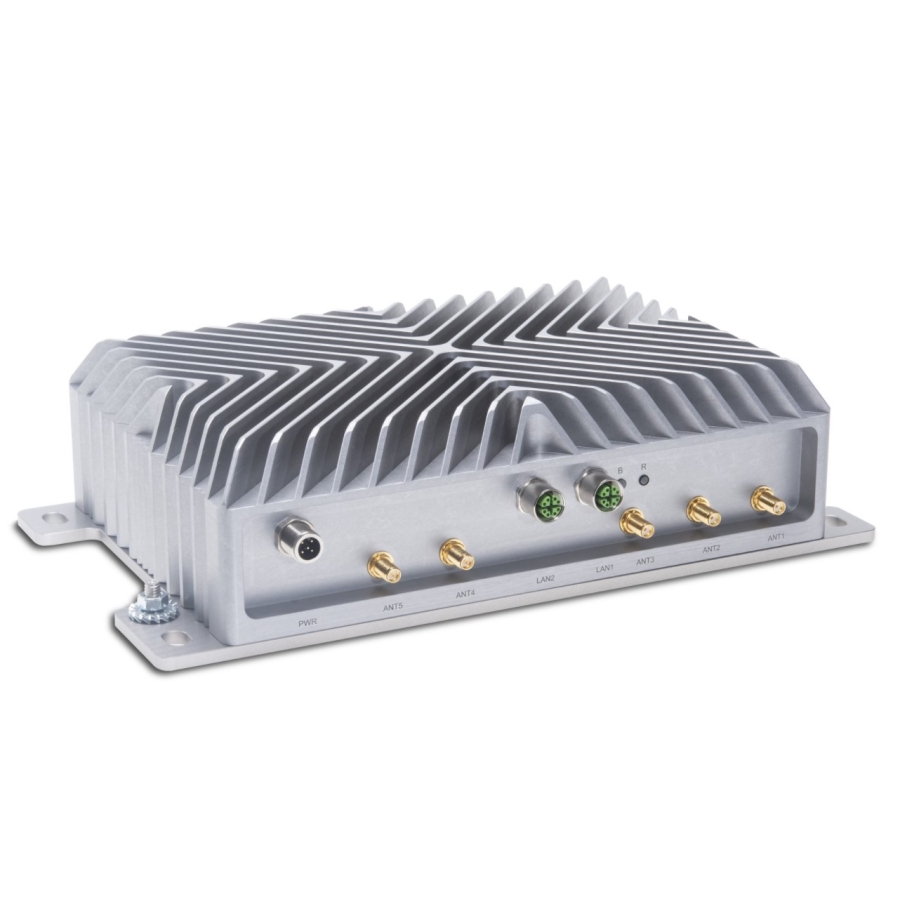

Rugged M12 connectors

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: RPC/RSL-A3

Categories: Edge AI & GPU Computers, Embedded NVIDIA Jetson Systems, NVIDIA Jetson AGX Xavier Systems, NVIDIA Jetson Systems, Syslogic

Range: Syslogic

Details

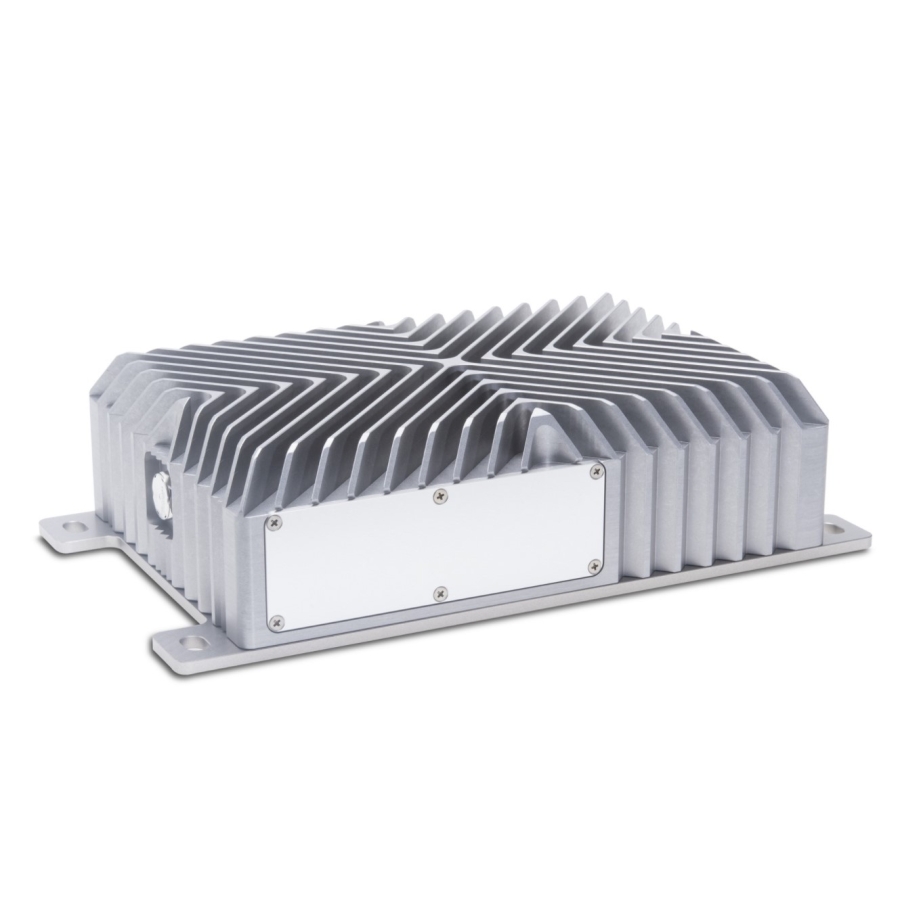

The AI Rugged Computer RSL A3 is IP67 and IP69 rated, making it one of the robust embedded systems based on Jetson AGX Xavier. Syslogic combines the NVIDIA module with its own carrier board that has been developed to meet high shock and vibration requirements. To protect the electronics against moisture, water and dust, the Rugged PC has an extremely robust housing and screwable M12 connectors. In addition, a GORE ventilation element ensures pressure equalization in the device. Through the combination of a NVIDIA Volta-GPU and ARM-CPU the AI Rugged Computer is suitable for demanding intelligent vision applications. These include object recognition, traffic monitoring, environmental perception and behavior planning for cognitive robots or intelligent control of autonomous machines or vehicles. The computer is also suitable for machine learning. The AI Rugged PC is shipped with a pre-installed NVIDIA Jetpack SDK (Software Development Kit), which includes the Linux operating system (L4T) and AI libraries for deep learning, machine vision, accelerated computing and multimedia. This enables a quick start into the world of AI.

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

Syslogic RPC/RSL-A3 Datasheet (PDF)

0.48MB

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

(Order Code)	RPC/RSLA3K22-B102S	RPC/RSLA3K22-C102S
Processor module/ Performance
Processor module	NVIDIA Jetson AGX Xavier (32GB) \| 512-Core NVIDIA Volta GPU with 64 Tensor Cores8-Core ARM v8.2 64-bit NVIDIA Carmel CPU
AI Performance	32 TOPs
Memory/ Storage
Data L3 Cache Size	4MB
256-Bit LPDDR4x RAM soldered on board	32GB
eMMC 5.1 Flash Storage on board	32GB
microSD Card socket	1
CFast socket with retention frame	1
M.2 2280 socket	1
Features
Inertial measurement unit (IMU) (STMicroelectronics ISM330DHCXTR)	Yes
Real time clock (RTC) with battery backup (Renata CR2477 (950mAh)	Yes
Real time clock (RTC) with goldcap backup(charge holds 48h)	Optional
Hardware Watchdog & Temperature supervisor	Yes
Buzzer	Yes
Communication Interfaces
Graphic Interface	DisplayPort 1.2
USB Version 2.0	2 x (Type A)
Internal USB version 2.0 OTG(Behind the cover)	1 x (Micro USB Type AB)
Ethernet 10/100/1000Mbit	2 x (M12 female x-coded LAN)
Power Over Ethernet – IEEE802.3at 10/100/1000Mbit (M12 female x-coded)(requires taller housing: h103mm)	Optional	None
Serial RS232/ RS422/ RS485 (DSUB9)	Optional	None
Digital I/O’s, 24VDC (up to 4 inputs & 4 outputs)	Optional	None
Analog input, 16bit resolution, voltage input: -10 …+10V / 0 … 30V (Accuracy: +/- 0.1%) (4 Inputs)	Optional	None
Analog input, 16bit resolution, current: 0-20mA (4 Inputs)	Optional	None
I2C bus	1
MIPI CSI-2/ GMSL2/ FPDLink III Camera Interface	On request
Wireless Connectivity
Cellular 4G Module (LTE/UMTS/GSM) with dual nano SIM support(Sierra Wireless MC7455 – M2M only!) (Full size Mini PCIe Slot)	2x SMA	None
Wireless LAN IEEE 802.11a/b/g/n/ac dual-band 2×2 MIMO & (Sparklan WPEB 263ACNI(BT)) (Half Size Mini PCIe Slot)	2x RP-SMA	None
GNSS Positioning Module (GPS, Galileo, Glonass, Beidou)(u-blox NEO-M8U incl. acceleration sensor and gyroscope)	1x SMA	None
High Accuracy GNSS Positioning Module w/ RTK support (u-blox ZED F9P)	Optional	None
Technical Data
Dimensions mm (housing, excl. mounting)	w250 x h75 x d170 mm
Net weight in gram	~2300
Non isolated input voltage, with Ignition controller, reverse polarity protected (M12 5P male a-coded)	9… 36VDC
Power consumption typ. in Watt @ 24V without Add-Ins, idle	~14
Environmental Conditions
Operating Temperature	–25°C … +65°C
Storage temperature	–25°C … +80°C
Ingress protection standard	IP67/IP69
Conformal coating	on request
Road vehicles	UNECE-R10 (E-mark)
Agriculture ISOBUS incl. environmental conditions: ISO 15003	hardware ready
Shock	EN60068-2-27
Vibration	EN60068-2-64
EMI-Conformity	EN55032 / EN55035
Safety (designed to meet)	EN62368-1
Radio and Telecommunication (designed to meet)	RED
MTBF @ 25°C ambient(according to Telcordia SR-332, Environment GB, excluding battery and optional interfaces)	~325 000h	~435 000h

Processor Type	NVIDIA Jetson AGX Xavier, RISC
GPU	Integrated GPU
AI Engine	NVIDIA AI Solutions, NVIDIA Jetson AGX Xavier
Memory Capacity	Up to 32GB
Cooling Type	Fanless
Serial Ports (COM)	1 Port, 1x RS-232/422/485
USB Ports	4x USB 2.0
Ethernet Ports (LAN)	2x 1G
Power Over Ethernet (PoE)	PoE Ports
Wireless	Cellular, Wi-Fi
CAN Bus	Yes
Video Ports	1x DisplayPort, DisplayPort
Storage Type	1, 1x MicroSD, 1
Expansion Type	2x Mini PCI Express
Input Voltage	9-45 VDC
Operating Temperature	-25°C to 65°C, -40°C to 70°C
OS Support	Linux
