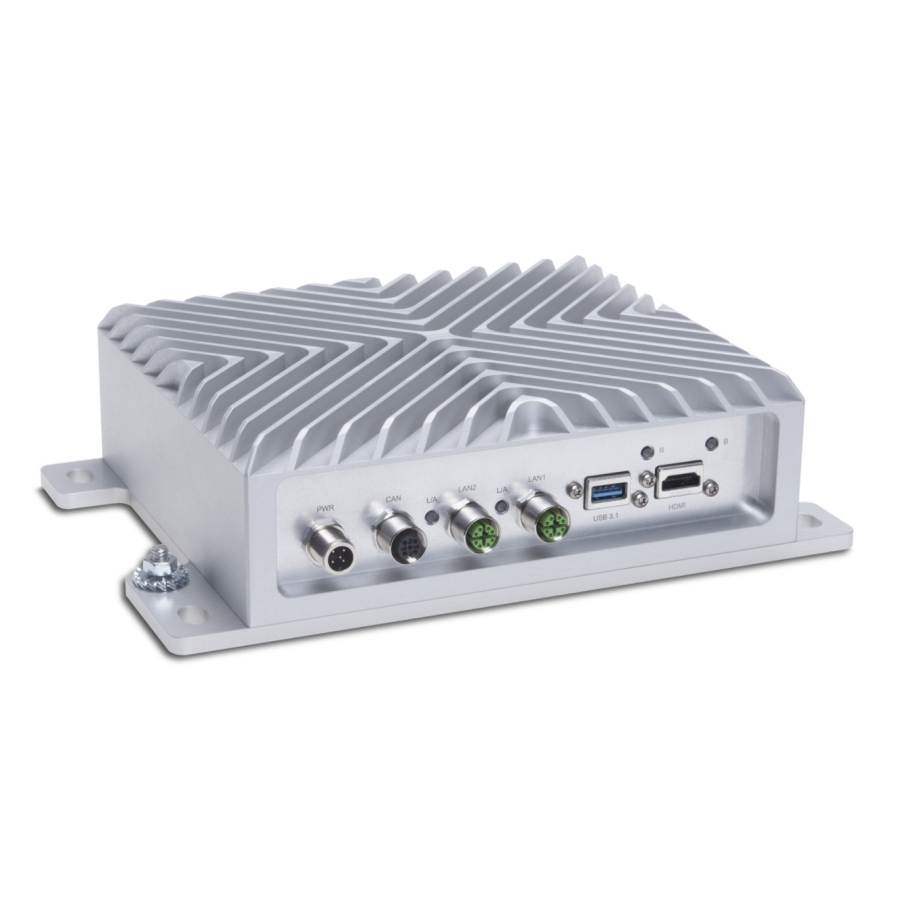

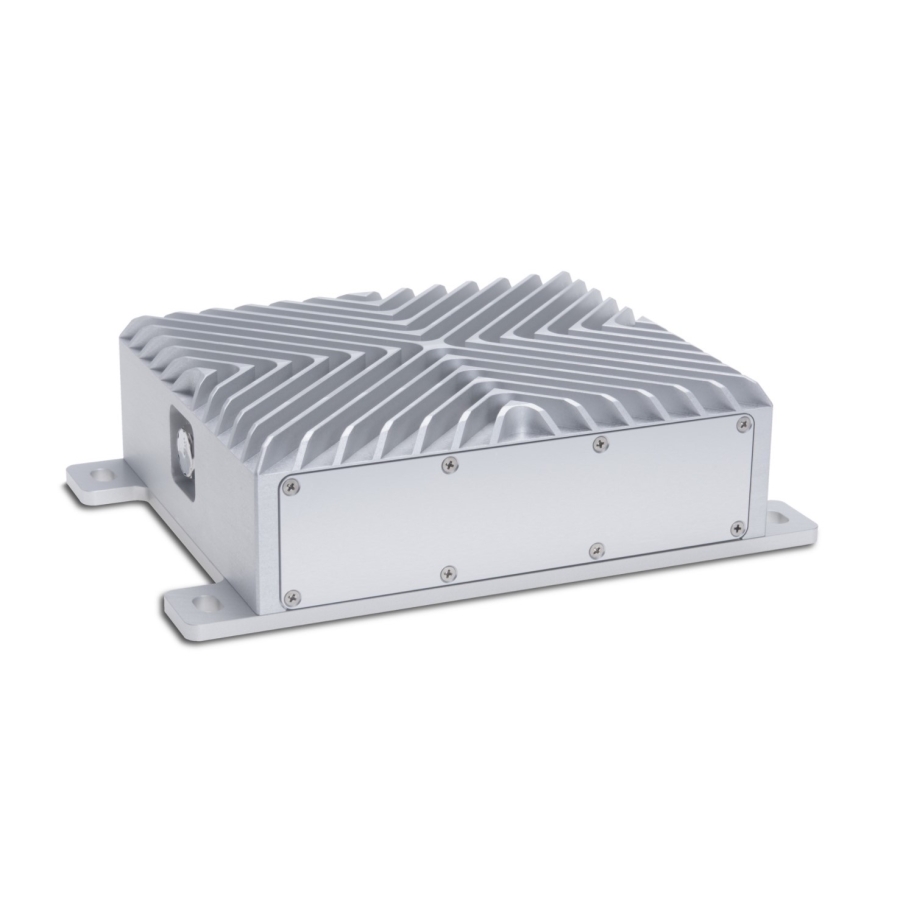

Syslogic RPC/RS-A3N NVIDIA Jetson Xavier NX, IP67 AI Rugged Embedded Computer

Syslogic RPC/RS-A3N NVIDIA Jetson Xavier NX, IP67 AI Rugged Embedded Computer


NVIDIA Jetson Xavier NX Outdoor AI Edge Computer with IP67/IP69 Waterproof and Extended Temperature Passively Cooled Chassis, 2 LAN, 2 CAN, USB, Dual SIM LTE/UMTS/GSM and WiFi

  • 384-core NVIDIA Volta GPU
  • with 48 Tensor Cores
  • 6-Core ARM v8.2 64-bit NVIDIA Carmel CPU
  • 8GB or 16 GB 128-bit LPDDR4x RAM
  • M.2 NVMe slot for storage expansion up to 2TB
  • USB 3.1 and HDMI 2.0 ports with dust covers
  • Ethernet, active / passive CAN
  • Optional LTE & WiFi extensions
  • Aluminum housing

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.



The AI Rugged Computer RS A3N is based on NVIDIA’s Jetson Xavier NX, which brings supercomputer performance in a small form factor to the edge. With up to 21 TOPS accelerated computing power data from several high-resolution sensors are processed and neural networks are executed in parallel. The AI Rugged Computer RSL A3N is IP67/IP69 rated, making it one of the most robust embedded system based on Jetson Xavier NX. The electronics, housing and interfaces have been consequently designed for rugged computing. As such, the AI rugged computer is often used in extreme situations. Be that in construction machines, agricultural vehicles or in harsh outdoor applications. The AI Rugged Computer is shipped with a pre-installed NVIDIA Jetpack SDK (Software Development Kit), which includes the Linux operating system (L4T) and AI libraries for deep learning, machine vision, accelerated computing and multimedia. This provides a quick entry into the world of artificial intelligence.


Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Processor Type NVIDIA Jetson Xavier NX, RISC
GPU Integrated GPU
AI Engine NVIDIA AI Solutions, NVIDIA Jetson Xavier NX
Memory Capacity Up to 8GB
Cooling Type Fanless
Serial Ports (COM) 1 Port, 1x RS-232
USB Ports 1x USB 3.1, 4x USB 2.0
Ethernet Ports (LAN) 2x 1G
Wireless Cellular, Wi-Fi
CAN Bus Yes
Video Ports 1x HDMI, 1x DisplayPort, DisplayPort
Storage Type 1, 1, 1x MicroSD
Expansion Type 2x Mini PCI Express
Input Voltage 9-45 VDC
Operating Temperature -20°C to 70°C
OS Support Linux
