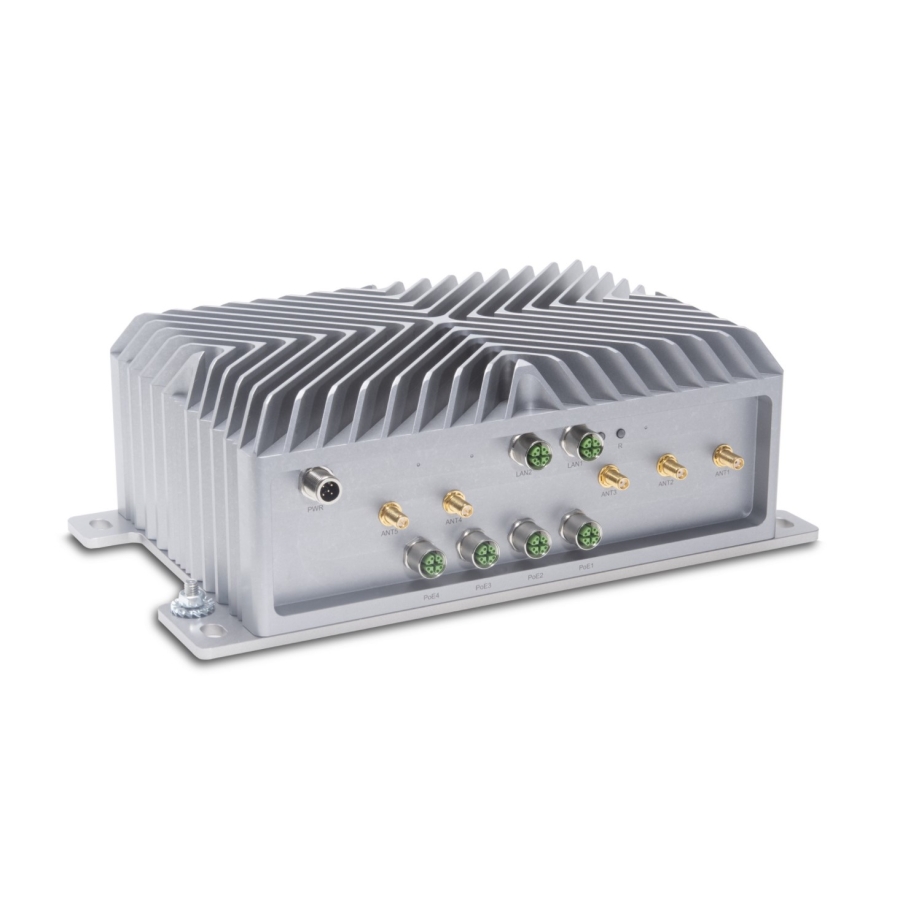

Syslogic RPC/RML-A3N NVIDIA Jetson Xavier NX AI Embedded Rugged Computer w/ PoE

Name: Syslogic RPC/RML-A3N NVIDIA Jetson Xavier NX AI Embedded Rugged Computer w/ PoE
SKU: RPC/RML-A3N
Availability: InStock

Syslogic

Syslogic RPC/RML-A3N NVIDIA Jetson Xavier NX AI Embedded Rugged Computer w/ PoE

RPC/RML-A3N

NVIDIA Jetson Xavier NX Computer with IP67 Ultra Rugged Sealed Housing, M12 Lockable Connectors, 6 Gigabit Ethernet (4 PoE), Optional: Serial, Analog/Digital I/O, GMSL2 / FPDLink

NVIDIA Jetson Xavier NX
384-core NVIDIA Volta™ GPU with 48 Tensor Cores
AI Performance: 21 TOPs
6-Core ARM v8.2 64-bit NVIDIA Carmel CPU
8GB 128-bit LPDDR4x RAM soldered on board
16GB eMMC 5.1 Flash Storage on board
microSD Card socket
M.2 socket
HDMI 2.0
Graphic interface DisplayPort 1.4
2x USB version 2.0 (Type A )
Internal USB version 2.0 OTG behind the cover (micro USB Type AB)
2x Ethernet 10/100/1000Mbit (M12 female x-coded)
Mini PCIe socket
I2C bus
Buzzer
Power over Ethernet (PoE+) IEEE802.3at
IP67/69 according to EN60529 / ISO20653
Shock and vibration resistant (EN60068-2-27 and EN60068-2-64
Expansion possibilities (CAN, USB, I/O’s serial COM etc.)

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: RPC/RML-A3N

Categories: Edge AI & GPU Computers, Embedded NVIDIA Jetson Systems, NVIDIA Jetson Systems, NVIDIA Jetson Xavier NX Systems, Syslogic

Range: Syslogic

Details

The AI Rugged Computer RML A3N is IP67/IP69 rated, making it one of the most robust embedded system based on Jetson AGX Xavier. Syslogic combines the NVIDIA module with its own carrier board that has been developed to meet high shock and vibration requirements. To protect the electronics against moisture, water and dust, the Rugged PC has an extremely robust housing and screwable M12 connectors. In addition, a GORE ventilation element ensures pressure equalization inside the device. The AI Rugged Computer is shipped with a pre-installed NVIDIA Jetpack SDK (Software Development Kit), which includes the Linux operating system (L4T) and AI libraries for deep learning, machine vision, accelerated computing and multimedia. This provides a quick entry into the world of artificial intelligence. The AI Rugged Computer RML A3N is used in tractors, buses, trucks, or special vehicles. With up to 21 TOPS accelerated computing power, several high-resolution camera feeds can be processed, or demanding robotics applications can be executed.

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

Syslogic RPC/RML-A3N Datasheet (PDF)

0.43MB

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

(Order Code)	IPC/RMA3NI19-TBD
Processor module/ Performance
Processor module	NVIDIA Jetson Xavier NX \| 384-core NVIDIA Volta™ GPU with 48 Tensor Cores 6-Core ARM v8.2 64-bit NVIDIA Carmel CPU
AI Performance	21 TOPs
Memory/ Storage
Data Cache Size	2MB
128-bit LPDDR4x RAM soldered on board	8GB
eMMC 5.1 Flash Storage on board	16GB
M.2 2280 slot 2 for SSD storage up to 2TB	1
microSD Card socket	1
Features
Intertial Measurement unit (IMU) (STMicroelectronics ISM330DHCXTR)	Yes
Real time clock (RTC) with battery backup (Renata CR2477N (950mAh)	Yes
Hardware Watchdog & Temperature supervisor	Yes
Intelligent power management	Yes
Buzzer	Yes
Communication Interfaces
Internal USB version 2.0 OTG (behind the cover)	1 x (Micro USB Type AB)
USB version 2.0 (behind the cover)	2 x (Type A)
DisplayPort 1.4 interface (behind the cover)	1
HDMI 2.0 interface	1
Gbit Ethernet (1x native, 1x I210-IT)	2 x (M12 female x-coded)
Gbit PoE+ IEEE802.3at 10/100/1000Mbit (4x I210-IT) (max Power at PSEs/PDs: 45W/39W)	4 x (M12 female x-coded)
USB version 3.0	1 x (Type A)
CAN active/passive, isolated	1 x (M12 female a-coded)
Mini PCIe socket	2
I2C bus	1
USB version 2.0 (M12 female a-coded)	optional
Digital I/O, 24VDC (4 inputs, 4 outputs – M12 female a-coded)	optional
Analog input, current: 0-20mA (4 inputs – M12 female a-coded)	optional
1-4 PEAK CAN (SJA1000 compatible) isolated (M12 female a-coded)	optional
Serial Interface RS232 / RS422/485 (M12 female a-coded)	optional
MIPI CSI-2 / GMSL2 / FPDLinkIII Camera interface	on request
Wireless Connectivity
Cellular Module (LTE/UMTS/GSM) with GNSS positioning functionality(Sierra Wireless MC7455 – M2M only!)	3x SMA (Optional)
Wireless LAN IEEE 802.11a/b/g/n/ac dual-band 2×2 MIMO & Bluetooth 4.1	2x RP-SMA (Optional)
Technical Data
Dimensions mm (housing, excl. mounting)	w250 x h105 x d170 mm
Net weight in gram	~4000
Non isolated input voltage, with Ignition controller, reverse polarity protected (M12 4P male A-coded)	9… 45VDC
Current consumption typ. in mA @ 24V without Add-Ins, idle	~400
Power consumption typ. in Watt @ 24V without Add-Ins, idle	~10
Environmental Conditions
Operating Temperature	–25°C … +65°C
Storage temperature	–25°C … +85°C
Ingress protection standard	IP67/IP69
Conformal coating	on request
Road vehicles	UN/ECE R10 (E-mark)
Shock	EN60068-2-27
Vibration	EN60068-2-64
EMI-Conformity	EN55032 / EN55035
Safety (designed to meet)	EN62368-1
Radio and Telecommunication (designed to meet)	RED
MTBF @ 25°C	tbd

Processor Type	NVIDIA Jetson Xavier NX, RISC
GPU	Integrated GPU
AI Engine	NVIDIA AI Solutions, NVIDIA Jetson Xavier NX
Memory Capacity	Up to 8GB
Cooling Type	Fanless
Serial Ports (COM)	1 Port, 1x RS-232/422/485
USB Ports	1x USB 3.0, 5x USB 2.0
Ethernet Ports (LAN)	6 Ports
Power Over Ethernet (PoE)	PoE Ports
Wireless	Cellular, Wi-Fi
CAN Bus	Yes
Video Ports	1x HDMI, 1x DisplayPort, DisplayPort
Digital I/O	8 DIO
Storage Type	1x M.2 SATA, 1x M.2 PCIe, 1x MicroSD, 1
Expansion Type	2x Mini PCI Express
Input Voltage	9-45 VDC
Operating Temperature	-25°C to 65°C
OS Support	Linux
