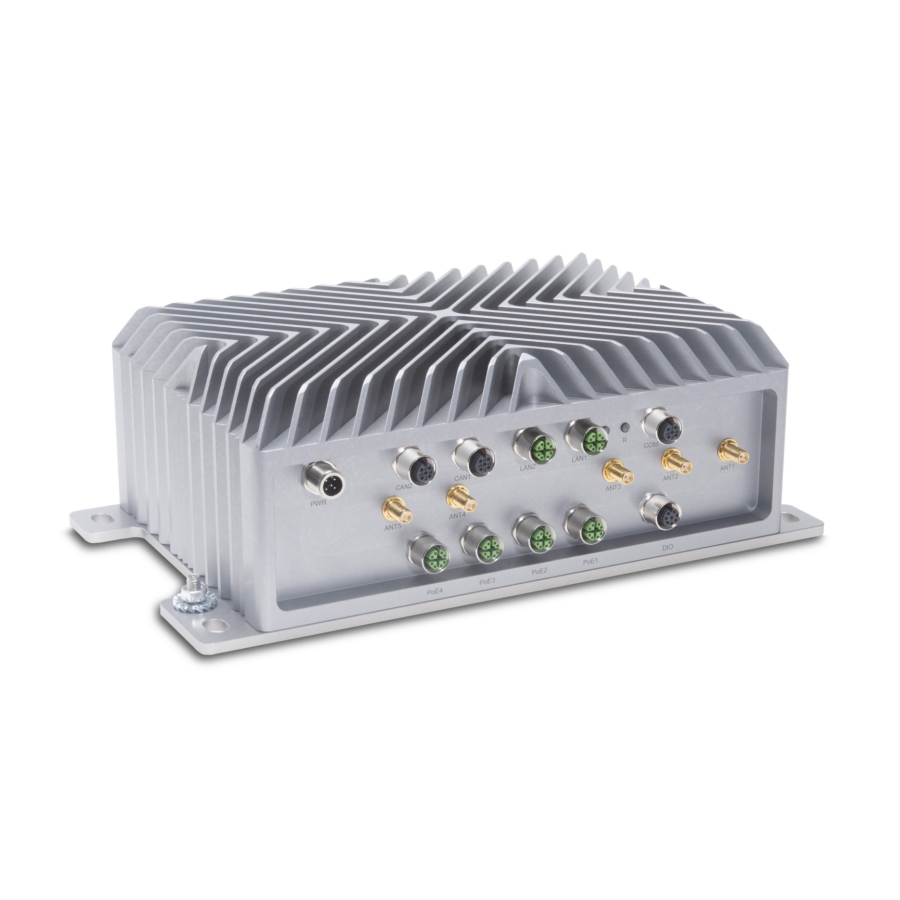

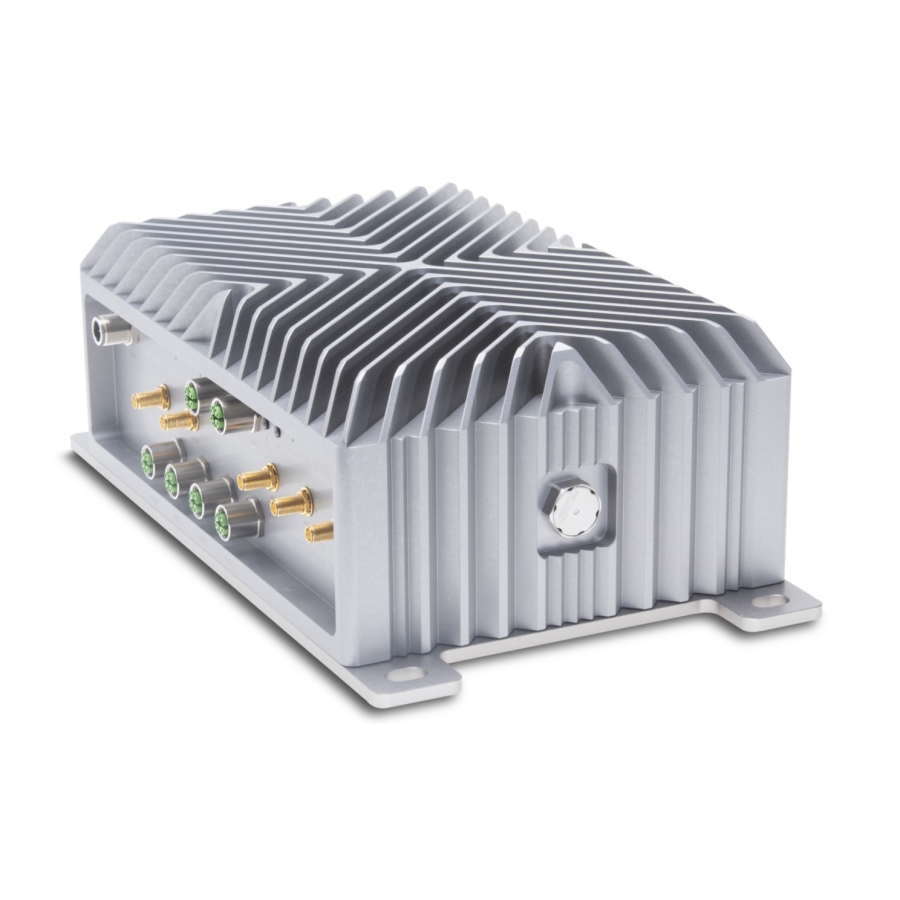

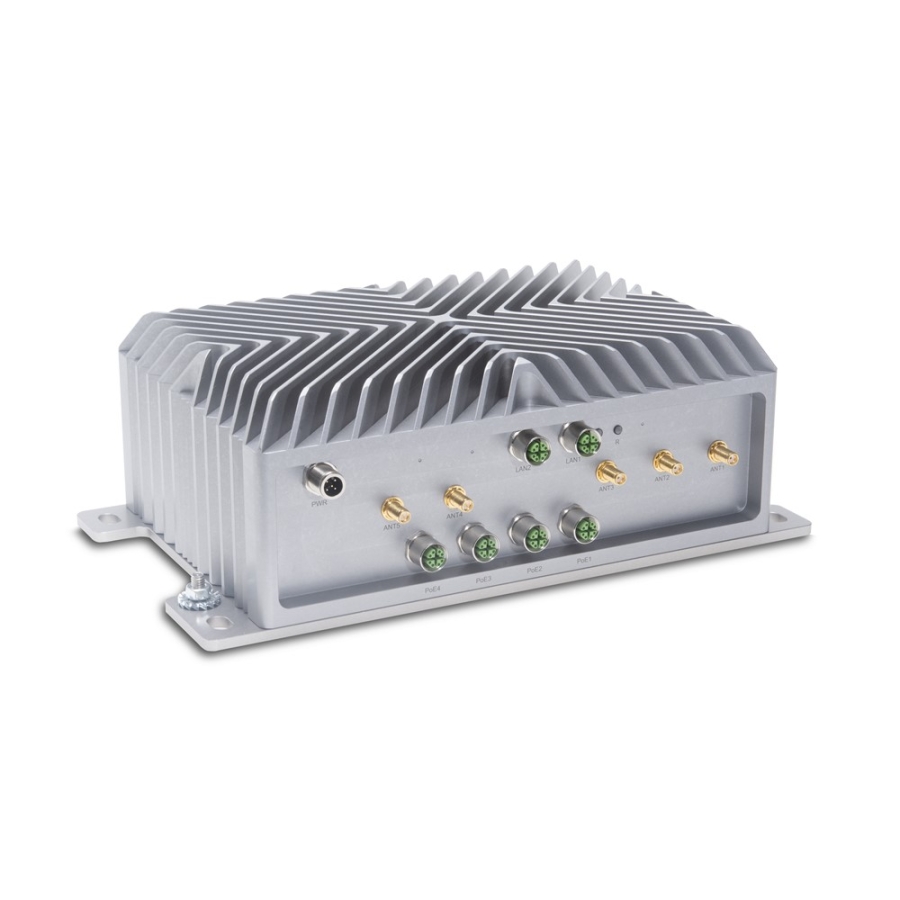

Syslogic RPC/RML-A3 Industrial IP67 Jetson AGX Xavier Computer

Name: Syslogic RPC/RML-A3 Industrial IP67 Jetson AGX Xavier Computer
SKU: RPC/RML-A3
Availability: InStock

Syslogic RPC/RML-A3 Industrial IP67 Jetson AGX Xavier Computer

RPC/RML-A3

NVIDIA Jetson AGX Xavier Computer with IP67 Ultra Rugged Sealed Housing, M12 Lockable Connectors, 6 Gigabit Ethernet (4 PoE), Optional: Serial, Analog/Digital I/O, GMSL2 / FPDLink

Ultra rugged
Sealed housing (protection class IP67)
Maintenance free
Goldcap or battery RTC backup
No moving parts / passive cooling
ARM CPU core
Hardware watchdog
Temperature supervision
ESD- protection on all interfaces
Long term availability (fixed BOM)

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: RPC/RML-A3

Categories: Edge AI & GPU Computers, Embedded Box PCs, Embedded NVIDIA Jetson Systems, NVIDIA Jetson AGX Xavier Systems, NVIDIA Jetson Systems, Rugged AI Computers, Syslogic

Range: Syslogic

Details

NVIDIA’s powerful Jetson AGX Xavier serves as the platform for Syslogic’s RML A3 AI rugged computer. Jetson AGX Xavier is the world’s first platform specifically designed for autonomous machines. This makes it suitable for demanding AI applications at the edge such as intelligent video analysis of up to 30 parallel HD streams, object detection and classification, autonomous driving, autonomous mobile robots or predictive maintenance. As a leading provider of AI-enabled processor technology, NVIDIA provides a wide range of AI tools and workflows that enable developers to quickly train and deploy neural networks.

Syslogic combines NVIDIA’s clever processor technology with over thirty years of experience in the development and manufacturing of reliable and durable embedded systems. The AI rugged Rugged Computer (Jetson AGX Xavier) features IP67 protection and is one of the most robust embedded systems on the market. This makes it particularly suitable for vehicle or outdoor applications. Typical applications are transportation technology, construction and agricultural machinery, off-highway applications or rolling stock.

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

Syslogic RPC/RML-A3 Datasheet (PDF)

0.51MB

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

(Order Code)	RPC/RMLA3K22-A202S	RPC/RMLA3K22-B202S	RPC/RMLA3K22-C202S
Processor module/ Performance
Processor module	NVIDIA Jetson AGX Xavier (32GB) \| 512-core NVIDIA Volta GPU with 64 Tensor Cores8-Core ARM v8.2 64-bit NVIDIA Carmel CPU
AI Performance	32 TOPs
Memory/ Storage
Data L3 Cache Size	4MB
256-Bit LPDDR4x RAM soldered on board	32GB
eMMC 5.1 Flash Storage on board	32GB
microSD Card socket	1
M.2 2280 socket	1
CFast socket with retention frame	1
Features
Inertial measurement unit (IMU) (STMicroelectronics ISM330DHCXTR)	Yes
Real time clock (RTC) with battery backup (Renata CR2477 (950 mAh))	Yes
Real time clock (RTC) with goldcap backup(charge holds 48h)	Optional
Hardware Watchdog & Temperature supervisor	Yes
Buzzer	Yes
Communication Interfaces
Graphic Interface(Behind the cover)	Display Port 1.2
Internal USB version 2.0 OTG(Behind the cover)	1 x (Micro USB Type AB)
USB Version 2.0(Behind the cover)	2 x (Type A)
Ethernet 10/100/1000Mbit	2 x (M12 female x-coded LAN)
Active/passive-CAN ESD protected, isolated	none	2 x (M12 female a-coded CAN)
Mini PCIe socket	1
Power over Ethernet – IEEE802.3at 10/100/1000Mbit PSE – Power sourcing equipment, producing 48VDC out	4 x (M12 female x-coded PoE)total max power: 39W
USB version 2.0 (M12 female a-coded)	Optional		On Request
Serial RS232 / RS422/RS485 (M12 female a-coded)	Optional		On Request
Digital I/O’s, 24VDC (up to 4in & 4out)	Optional		On Request
Analog input, 16bit resolutionVoltage input: -10 …+10V / 0 … 30V (4 inputs)(Accuracy: +/- 0.1%)	Optional		On Request
Analog input, 16bit resolutionCurrent: 0-20mA (4 inputs)	Optional		On Request
I2C bus	1
MIPI CSI-2 / GMSL2 / FPDLinkIII Camera interface	On Request
Wireless Connectivity
Cellular 4G Module (LTE/UMTS/GSM) – (Sierra Wireless MC7455 – M2M only!) with dual nano SIM support (full size Mini PCIe Slot)	2 x SMA		None
Wireless LAN IEEE 802.11a/b/g/n/ac dual-band 2×2 MIMO (Sparklan WPEB-263ACNI)(half size Mini PCIe Slot)	2x RP-SMA		None
GNSS Positioning Module (GPS, Galileo, Glonass, Beidou) (u-blox NEO-M8U Module)	1 x SMA		None
High Accuracy GNSS Positioning Module w/ RTK support(u-blox ZED F9P)	Optional		None
Technical Data
Dimensions mm (housing, excl. mounting)	w250 x h105 x d170
Net weight in gram	~4400
Non isolated input voltage, with Ignition controller, reverse polarity protected (M12 5P male a-coded)	9 … 36VDC
Power consumption typ. in Watt @ 24V without Add-Ins, idle	~15
Environmental Conditions
Operating Temperature	–25°C … +60°C
Storage temperature	–25°C … +80°C
Ingress protection standard according to EN60529 (ISO 20653)	IP67 / IP69
Conformal coating	On Request
Road vehicles	UN/ECE R10 (E-mark)
Shock	EN60068-2-27
Vibration	EN60068-2-64
EMI-Conformity	EN55032 / EN55035
Safety (designed to meet)	EN62368-1
Radio and Telecommunication (designed to meet)	RED
MTBF @ 25°C ambient(according to Telcordia SR-332, Environment GB, excluding battery and optional interfaces)	~280 000h		~390 000h

Processor Type	NVIDIA Jetson AGX Xavier, RISC
GPU	Integrated GPU
AI Engine	NVIDIA AI Solutions, NVIDIA Jetson AGX Xavier
Memory Capacity	Up to 32GB
Cooling Type	Fanless
Serial Ports (COM)	1 Port, 1x RS-232/422/485
USB Ports	3x USB 2.0
Ethernet Ports (LAN)	6 Ports
Power Over Ethernet (PoE)	PoE Ports
Wireless	Cellular, Wi-Fi
CAN Bus	Yes
Video Ports	1x DisplayPort, DisplayPort
Storage Type	1x M.2 PCIe, 1x MicroSD, 1, 1, 1x M.2 SATA, CFast
Expansion Type	1x Mini PCI Express
Input Voltage	9-36 VDC
Operating Temperature	-25°C to 55°C
Market Certifications	EN 45545
OS Support	Linux
