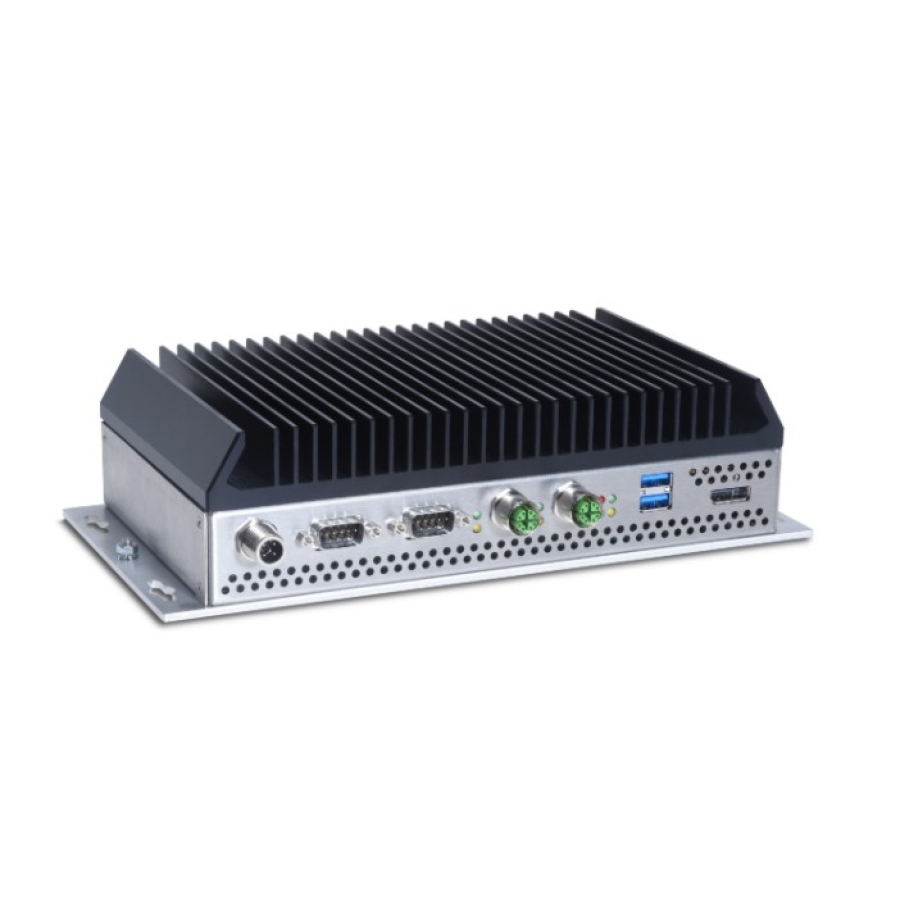

Syslogic IPC/RSL-A3 NVIDIA Jetson AGX Xavier AI Railway Computer w/ 2xUSB& 2xCAN

Name: Syslogic IPC/RSL-A3 NVIDIA Jetson AGX Xavier AI Railway Computer w/ 2xUSB&amp; 2xCAN
SKU: IPC/RSL-A3
Availability: InStock

Syslogic

Syslogic IPC/RSL-A3 NVIDIA Jetson AGX Xavier AI Railway Computer w/ 2xUSB& 2xCAN

IPC/RSL-A3

NVIDIA Jetson AGX Xavier Volta GPU Rail Computer with EN50155, EN45545, EN61373 Certification, Conformal Coating, Isolated CAN and 45V DS Input Voltage Supporting Ignition Control

NVIDIA Jetson AGX Xavier
512-core NVIDIA Volta GPU with 64 Tensor Cores
NVIDIA L4T (Linux for Tegra) based on Ubuntu 18.04
32 TOPs AI Performance
2x USB 3.0 (Type A)
Ethernet 10/100/1000Mbit
2x Active-passive-CAN ESD protected, isolated (DSUB9)
Mini PCIe socket
I2C bus
Buzzer
EN50155 & EN 45545 (Railway)
EN61373 (Shock/Vibration)

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: IPC/RSL-A3

Categories: Certified Computers, Edge AI & GPU Computers, Embedded Box PCs, Embedded NVIDIA Jetson Systems, NVIDIA Jetson AGX Xavier Systems, NVIDIA Jetson Systems, Railway Certified Computers, Syslogic

Range: Syslogic

Details

The Syslogic AI Railway Computer RSL A3 is based on the AGX Xavier module from NVIDIA’s Jetson series. The Railway/Transportation-Computer is purposefully designed for the requirements of railway vehicles. Through the combination of a NVIDIA Volta-GPU and ARM-CPU the Railway-Computer is suitable for demanding computer vision applications in the areas of inference and perception. Be it semi-autonomous driving, intelligent assistance systems (ADAS), the acquisition and processing of telemetry data (Train Contol Unit) or machine-learning-supported maintenance – the railroad computer can be used in various different ways.

The AI Railway Computer RSL A3 meets all current railroad standards, including EN50155 and the fire protection standard EN45545 as well as the EMC compatibility according to EN-50121-3-2. Furthermore, the AI Computer has a galvanically isolated power supply input. The boards of the computer are protected against condensation by conformal coating..

With the AI Railway Computer, Syslogic has brought NVIDIA Jetson technology to the railway industry. The device is designed for demanding railroad operations. For a quick introduction to AI applications, the railway computer is delivered with a pre-installed NVIDIA Jetpack SDK (Software Development Kit) including the Linux operating system (L4T).

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

Syslogic RSL-A3 Datasheet (PDF)

0.9MB

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Processor module/ Performance	NVIDIA Jetson AGX Xavier (32GB) \| 512-Core NVIDIA Volta™ GPU with 64 Tensor Cores8-Core ARM v8.2 64-bit NVIDIA Carmel CPU32 TOPs AI Performance
Memory/ Storage	4MB Data L3 Cache Size32GB 256-Bit LPDDR4x RAM soldered on board32GB Emmc 5.1 Flash Storage on board1x microSD Card socket1x M.2 2280 socket1x Cfast socket with retention frame
Communication Interfaces	Display Port 1.2 for Graphic Interface2x USB version 3.1 (type A)1x Internal USB version 2.0 (micro USB Type AB)2x Ethernet 10/100/1000Mbit (M12 female x-coded)2x Active/passive-CAN ESD protected, isolatedOptional – PoE (RJ45/M12 female x-coded)Optional – Serial RS232/ RS422/ RS485 Optional – up to 4 Digital Inputs and 4 Digital Outputs, 24VDCOptional – up to 4 Analog inputs12C busMIPI CSI-2 / GMSL2 / FPDLinkIII Camera interface
Wireless Connecivity	2x SMA Cellular 4G Module (LTE/UMTS/GSM) – full size miniPCIe SlotDual SIM Support (nanoSIM to mCPIe slot)2x RP-SMA Wireless LAN IEE 802.11 a/b/g/n/ac dual-band 2×2 MIMO – half miniPCIe Slot1x SMA GNSS Positioning ModuleOptional – High Accuracy GNSS Positioning Module
Technical Data	w255 x h63 x d125 mm 2300 grams16.8 … 45VDS Isolated input voltage with ignition controller and reverse polarity protection >10ms Interruption of voltage supply time: EN50155 Class S2
Environmental Conditions	–25°C … +55°C Operating Temperature–25°C … +80°C Storage TemperatureIP20PCX Conformal CoatingE-mark certification Shock – EN61373 / EN60068-2-27Vibration – EN61373 / EN60068-2-64EMI-Conformity – EN50121-3-2Safety – EN62368-1Fire Protection – EN45545-2 HL3Radio and Telecommunication – REDMTBF @ 25°C ambient – 325000h or 435000h

Processor Type	NVIDIA Jetson AGX Xavier, RISC
GPU	Integrated GPU
AI Engine	NVIDIA AI Solutions, NVIDIA Jetson AGX Xavier
Memory Capacity	Up to 32GB
Cooling Type	Fanless
Serial Ports (COM)	1 Port, 1x RS-232/422/485
USB Ports	2x USB 3.1
Ethernet Ports (LAN)	2x 1G
Power Over Ethernet (PoE)	PoE Ports
Wireless	Cellular, Wi-Fi
CAN Bus	Yes
Video Ports	1x DisplayPort, DisplayPort
Storage Type	1x M.2 SATA, 1x M.2 PCIe, 1x MicroSD, 1, 1, CFast
Input Voltage	16.8-45 VDC
Operating Temperature	-25°C to 55°C
Market Certifications	EN 45545
OS Support	Linux
