Syslogic IPC/RML-A3 NVIDIA Jetson AGX Xavier AI Vehicle Computer w/ 6x LAN Ports

Name: Syslogic IPC/RML-A3 NVIDIA Jetson AGX Xavier AI Vehicle Computer w/ 6x LAN Ports
SKU: IPC/RML-A3
Availability: InStock

Syslogic

Syslogic IPC/RML-A3 NVIDIA Jetson AGX Xavier AI Vehicle Computer w/ 6x LAN Ports

IPC/RML-A3

NVIDIA Jetson AGX Xavier AI Vehicle Computer with e-Mark Certification, 6 M12/RJ45 Gigabit Ethernet, 2 USB3.1, 2 CAN, Optional Analog/Digital I/O, Goldcap RTC Battery Backup

Power over Ethernet (PoE+):
24/7 continuous operation
Extended AI Computing
Passively cooled, no moving parts
Long term availability with fixed BOM
E-mark certified
512-Core NVIDIA Volta GPU with 64 Tensor Cores
8-Core ARM v8.2 64-bit NVIDIA Carmel CPU
Storage options: M.2 2280 & CFast
Ethernet, USB, CAN (J1939)

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: IPC/RML-A3

Categories: Edge AI & GPU Computers, Embedded NVIDIA Jetson Systems, NVIDIA Jetson AGX Xavier Systems, NVIDIA Jetson Systems, Syslogic

Range: Syslogic

Details

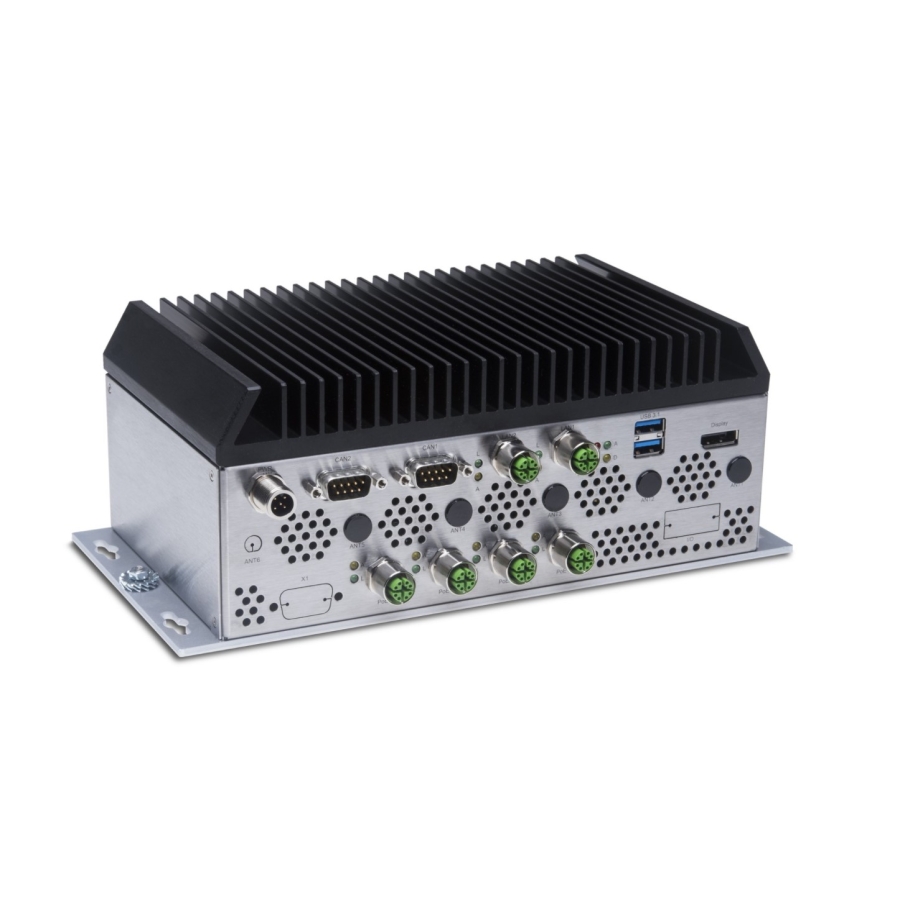

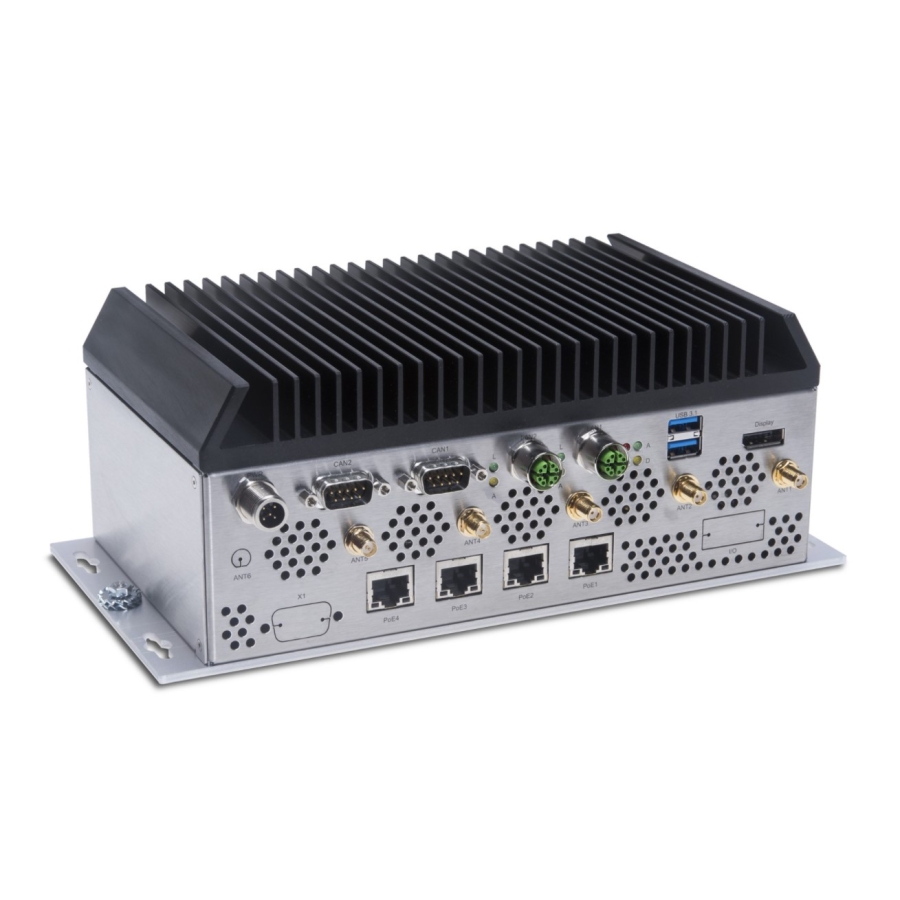

The Syslogic AI Inference Computer IPC/RML-A3 is an extended version of the AI Vehicle Computer IPC/RSL-A3 Powered by the NVIDIA Jetson AGX Xavier processor. It has four PoE-Gbit (Power over Ethernet) ports. This allows four sensors, such as GigE Vision cameras or IP cameras, to be connected without requiring their own power supply. The PoE ports can be had as either as x-coded M12 or standard RJ45 connectors. Digital I/Os, analog inputs, CAN or RS-232/422/485 interfaces can also be added. The AI Inference Computer RML A3 is suited for smartcity use. Typical applications are control of autonomous machines and robots, traffic monitoring, object recognition such as vehicle or license plate recognition or CCTV.

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

Syslogic IPC/RML-A3 Datasheet (M12 Connectors) (PDF)

0.56MB

Syslogic IPC/RML-A3 Datasheet (RJ45 Connectors) (PDF)

0.58MB

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

(Order Code)	IPC/RMLA3K22-B203S	IPC/RMLA3K22-C203S	IPC/RMLA3K22-A203S	IPC/RMLA3K22-D203S1
Processor module/ Performance
Processor module	NVIDIA Jetson AGX Xavier (32GB) \| 512-Core NVIDIA Volta GPU with 64 Tensor Cores8-Core ARM v8.2 64-bit NVIDIA Carmel CPU
AI Performance	32 TOPs
Memory/ Storage
Data L3 Cache Size	4MB
256-Bit LPDDR4x RAM soldered on board	32GB
eMMC 5.1 Flash Storage on board	32GB
microSD Card socket	1
CFast socket with retention frame	1
M.2 socket	1
Features
Inertial measurement unit (IMU) (STMicroelectronics ISM330DHCXTR)	Yes
Real time clock (RTC) with battery backup (Renata CR2450N (950mAh)	Yes
Real time clock (RTC) with goldcap backup(charge holds 48h)	Optional
Hardware Watchdog & Temperature supervisor	Yes
Buzzer	Yes
Communication Interfaces
Graphic Interface	DisplayPort 1.2
USB Version 3.1	2 x (Type A)
Internal USB version 2.0 OTG(Behind the cover)	1 x (Micro USB Type AB)
Ethernet 10/100/1000Mbit (1x native, 1x I210-IT)	2 x (M12 female x-coded LAN)
Active/passive-CAN ESD protected, isolated	2 x (DSUB9)
Power Over Ethernet – IEEE802.3at 10/100/1000Mbit (RJ45/ M12 female x-coded)(requires taller housing: h103mm)	4 x RJ45		4 x M12 female x-coded
Serial RS232/ RS422/ RS485 (DSUB9)	Optional	None	Optional	None
Digital I/O’s, 24VDC (up to 4 inputs & 4 outputs)	Optional	None	Optional	None
Analog input, 16bit resolution, voltage input: -10 …+10V / 0 … 30V (Accuracy: +/- 0.1%) (4 Inputs)	Optional	None	Optional	None
Analog input, 16bit resolution, current: 0-20mA (4 Inputs)	Optional	None	Optional	None
I2C bus	1
MIPI CSI-2/ GMSL2/ FPDLink III Camera Interface	On request
Wireless Connectivity
Cellular 4G Module (LTE/UMTS/GSM) with dual nano SIM support(Sierra Wireless MC7455 – M2M only!) (Full size Mini PCIe Slot)	2x SMA	None	2x SMA	None
Wireless LAN IEEE 802.11a/b/g/n/ac dual-band 2×2 MIMO & (Sparklan WPEB 263ACNI(BT)) (Half Size Mini PCIe Slot)	2x RP-SMA	None	2x RP-SMA	None
GNSS Positioning Module (GPS, Galileo, Glonass, Beidou)(u-blox NEO-M8U incl. acceleration sensor and gyroscope)	1x SMA	None	1x SMA	None
High Accuracy GNSS Positioning Module (u-blox ZED F9P)	Optional	None	Optional	None
Technical Data
Dimensions mm (housing, excl. mounting)	w255 x h103 x d125 mm
Net weight in gram	~2300
Non isolated input voltage, with Ignition controller, reverse polarity protected (M12 5P male a-coded)	9… 36VDC
Power consumption typ. in Watt @ 24V without Add-Ins, idle	~15
Environmental Conditions
Operating Temperature	–25°C … +60°C
Storage temperature	–25°C … +80°C
Ingress protection standard	IP20
Conformal coating	on request
Road vehicles	UNECE-R10 (E-mark)
Shock	EN60068-2-27
Vibration	EN60068-2-64
EMI-Conformity	EN55032 / EN55035
Safety (designed to meet)	EN62368-1
Radio and Telecommunication (designed to meet)	RED
MTBF @ 25°C ambient(according to Telcordia SR-332, Environment GB, excluding battery and optional interfaces)	~325 000h	~435 000h	~325 000h	~435 000h

Processor Type	NVIDIA Jetson AGX Xavier, RISC
GPU	Integrated GPU
AI Engine	NVIDIA AI Solutions, NVIDIA Jetson AGX Xavier
Memory Capacity	Up to 32GB
Cooling Type	Fanless
Serial Ports (COM)	1x RS-232/422/485, 1 Port
USB Ports	1x USB 2.0, 2x USB 3.1
Ethernet Ports (LAN)	6 Ports
Power Over Ethernet (PoE)	PoE Ports
Wireless	Cellular, Wi-Fi
CAN Bus	Yes
Video Ports	1x DisplayPort, DisplayPort
Storage Type	1, 1, 1x M.2 SATA, 1x M.2 PCIe, 1x MicroSD, CFast
Input Voltage	9-36 VDC
Operating Temperature	-25°C to 60°C
OS Support	Linux
