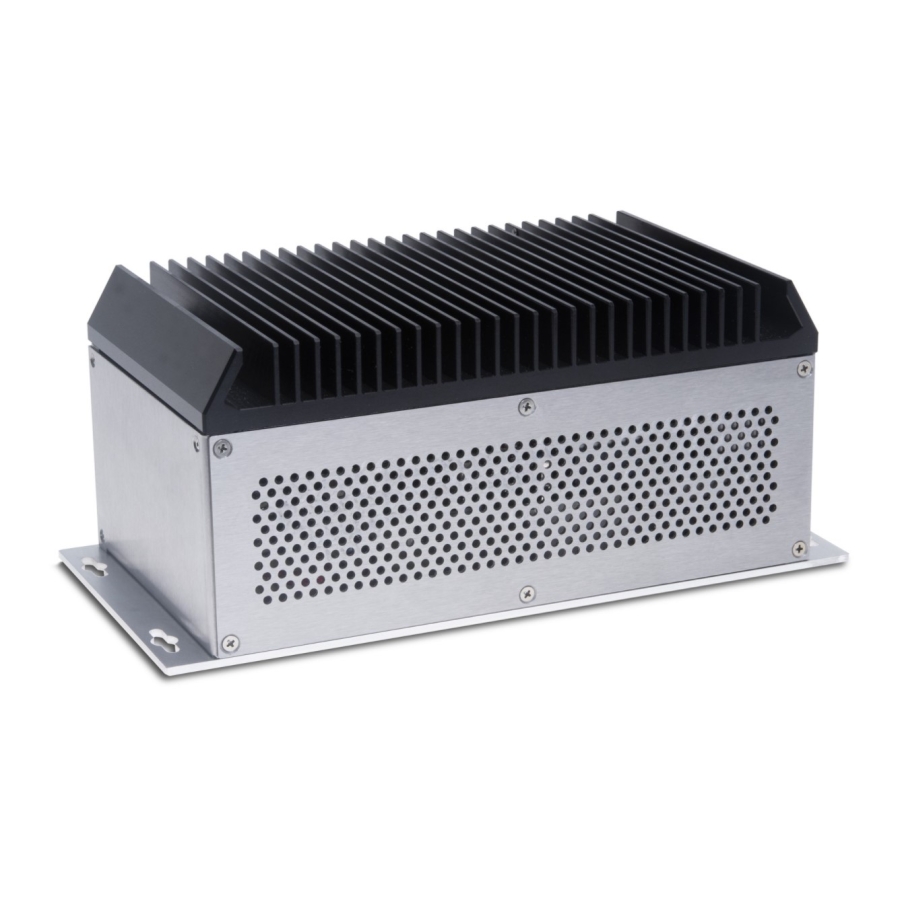

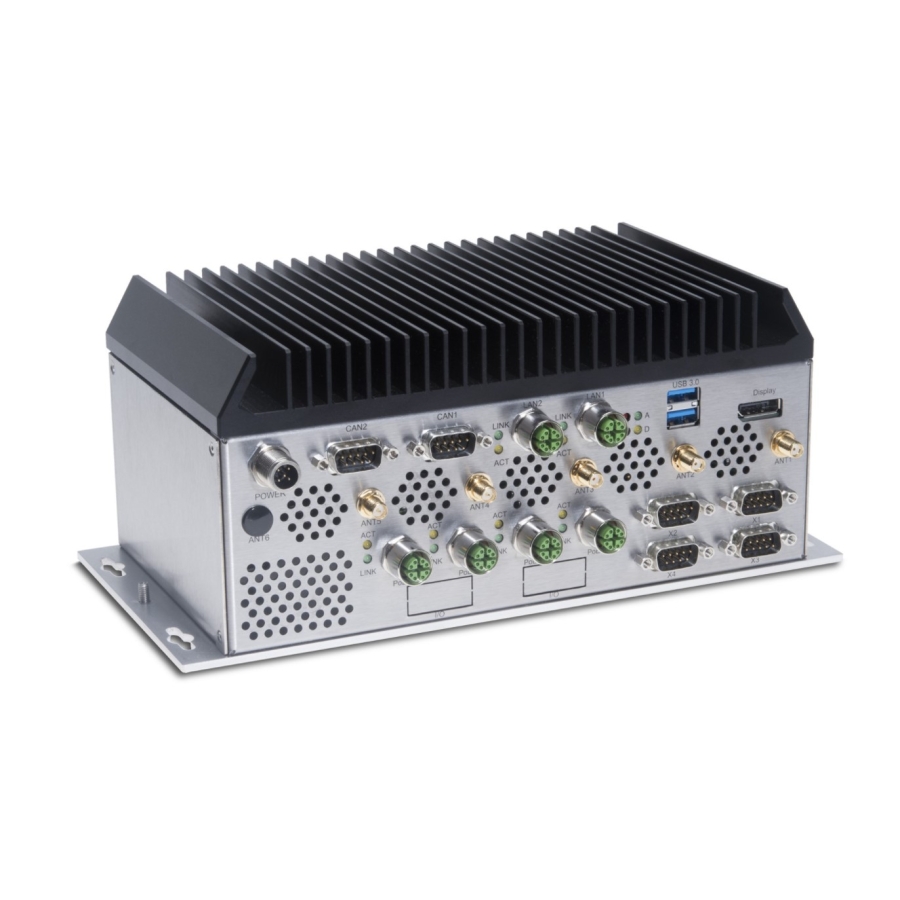

Syslogic IPC/RML-A3-DEV NVIDIA Jetson AGX Xavier AI Vehicle Computer with 4x PoE

Name: Syslogic IPC/RML-A3-DEV NVIDIA Jetson AGX Xavier AI Vehicle Computer with 4x PoE
SKU: IPC/RML-A3-DEV
Availability: InStock

Syslogic

Syslogic IPC/RML-A3-DEV NVIDIA Jetson AGX Xavier AI Vehicle Computer with 4x PoE

IPC/RML-A3-DEV

NVIDIA Jetson Xavier AGX Extended AI Rolling Stock Rail Computer with 4 PoE, 6 CAN, Dead Reckoning, Intelligent Power Management with EMI Conformity, 16.8 to 45V DC Isolated Input

24/7 continuous operation
Highly customizable interface options
Extended AI Computing
Power over Ethernet (PoE+), 48VDC out
High Accuracy GNSS option
Shock and Vibration resistant
ESD -protection on all surfaces
8-Core ARM v8.2 64-bit NVIDIA Carmel CPU
32GB 256-Bit LPDDR4x RAM soldered on board
Socket for CFast
Ethernet, USB, Passive or Active CAN
Aluminum & Stainless steel housing

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: IPC/RML-A3-DEV

Categories: Edge AI & GPU Computers, Embedded NVIDIA Jetson Systems, NVIDIA Jetson AGX Xavier Systems, NVIDIA Jetson Systems, Syslogic

Range: Syslogic

Details

With the AI Embedded Computer RML A3 DEV, Syslogic offers application developers a device that can be flexibly adapted. The AI Embedded Computer RML A3 DEV is therefore always used when no suitable standard device is available. The AI computer comes with a large number of common interfaces, which can also be quickly adapted to customer requirements. For example, the amount of CAN and serial interfaces are freely configurable. To guarantee fast availability, Syslogic always keeps the RMLA A3 DEV in stock. All NVIDIA-based industrial computers from Syslogic come with the NVIDIA Jetpack SDK (Software Development Kit) pre-installed. This includes the Linux4Tegra Board Support Package, the CUDA parallel computing platform and real-time operating system support. In addition, Jetpack SDK with CUDA-X includes libraries for deep learning and computer vision, and drivers for various sensors are also supported.

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

Syslogic IPC/RML-A3-DEV Datasheet (PDF)

0.63MB

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

(Order Code)	IPC/RMLA3K22-DEV1	IPC/RMLA3K22-DEV2
Processor module/ Performance
Processor module	NVIDIA Jetson AGX Xavier (32GB) \| 512-Core NVIDIA Volta GPU with 64 Tensor Cores8-Core ARM v8.2 64-bit NVIDIA Carmel CPU
AI Performance	32 TOPs
Memory/ Storage
Data L3 Cache Size	4MB
256-Bit LPDDR4x RAM soldered on board	32GB
eMMC 5.1 Flash Storage on board	32GB
microSD Card socket	1
CFast socket with retention frame	1
M.2 socket	1
Features
Real time clock (RTC) with battery backup (Renata CR2450N (950mAh)	Yes
Real time clock (RTC) with goldcap backup(charge holds 48h)	Optional
Hardware Watchdog & Temperature supervisor	Yes
Intelligent power management	Yes
Communication Interfaces
Graphic Interface	DisplayPort 1.2
USB Version 3.0	2 x (Type A)
Internal USB version 2.0 OTG(Behind the cover)	1 x (Micro USB Type AB)
Ethernet 10/100/1000Mbit (1x native, 1x I210-IT)	2 x (M12 female x-coded LAN)
Active/passive-CAN ESD protected, isolated	2 x (DSUB9)
Power Over Ethernet – IEEE802.3at 10/100/1000Mbit (M12 female x-coded)(requires taller housing: h103mm)	4
1-4 additional Active/passive-CAN ESD protected, isolated (DSUB9)	Optional
Serial RS232/ RS422/ RS485 (DSUB9)	Optional
Digital I/O’s, 24VDC (up to 4 inputs & 4 outputs)	Optional
Analog input, 16bit resolution, voltage input: -10 …+10V / 0 … 30V (Accuracy: +/- 0.1%) (4 Inputs)	Optional
Analog input, 16bit resolution, current: 0-20mA (4 Inputs)	Optional
Mini PCIe socket	1
I2C bus	Yes
Buzzer	Yes
Wireless Connectivity
Cellular 4G Module (LTE/UMTS/GSM) with dual nano SIM support( Telit or Sierra Wireless MC7455 – M2M only!)	2x SMA
Dual SIM Support (nanoSIM to mPCIe slot)	Yes
Positioning Wireless Module (GPS, Galileo, Glonass, Beidou) u-blox NEO-M8U Module incl. acceleration sensor	1 x SMA
Wireless LAN IEEE 802.11a/b/g/n/ac dual-band 2×2 MIMO	2x RP-SMA
Acceleration/ Motion Sensor (STMicroelectronics ISM330DLC)	Yes
High Accuracy GNSS Positioning Module (u-blox ZED F9P)	Optional	None
Technical Data
Dimensions mm (housing, excl. mounting)	w230 x h110 x d127 mm
Net weight in gram	tbd
Input voltage and reverse polarity protected (M12 5P male a-coded)	16.8 … 45VDC (isolated)	9 … 36VDC
Interruption of voltage supply time: EN50155 Class S2	> 10ms	n/a
Current consumption typ. in mA @ 24V without Add-Ins, idle	~400
Power consumption typ. in Watt @ 24V without Add-Ins, idle	~10
Environmental Conditions
Operating Temperature	–25°C … +60°C
Storage temperature	–25°C … +80°C
Ingress protection standard	IP20
Conformal coating	on request
Shock	EN61373	EN60068-2-27
Vibration	EN61373	EN60068-2-64
EMI-Conformity	EN50121-3-2	EN55032 / EN55035
Safety (designed to meet)	EN62368-1
Radio and Telecommunication (designed to meet)	RED
MTBF @ 25°C ambient(according to Telcordia SR-332, Environment GB, excluding battery and optional interfaces)	~280 000h

Processor Type	NVIDIA Jetson AGX Xavier, RISC
GPU	Integrated GPU
AI Engine	NVIDIA AI Solutions, NVIDIA Jetson AGX Xavier
Memory Capacity	Up to 32GB
Cooling Type	Fanless
Serial Ports (COM)	1x RS-232/422/485, 1 Port
USB Ports	1x USB 2.0, 2x USB 3.0
Ethernet Ports (LAN)	6 Ports
Power Over Ethernet (PoE)	PoE Ports
Wireless	Cellular, Wi-Fi
CAN Bus	Yes
Video Ports	1x DisplayPort, DisplayPort
Storage Type	1, 1x M.2 SATA, 1x M.2 PCIe, 1x MicroSD, 1, CFast
Expansion Type	1x Mini PCI Express
Input Voltage	16.8-45 VDC, 9-36 VDC
Operating Temperature	-25°C to 60°C
OS Support	Linux
