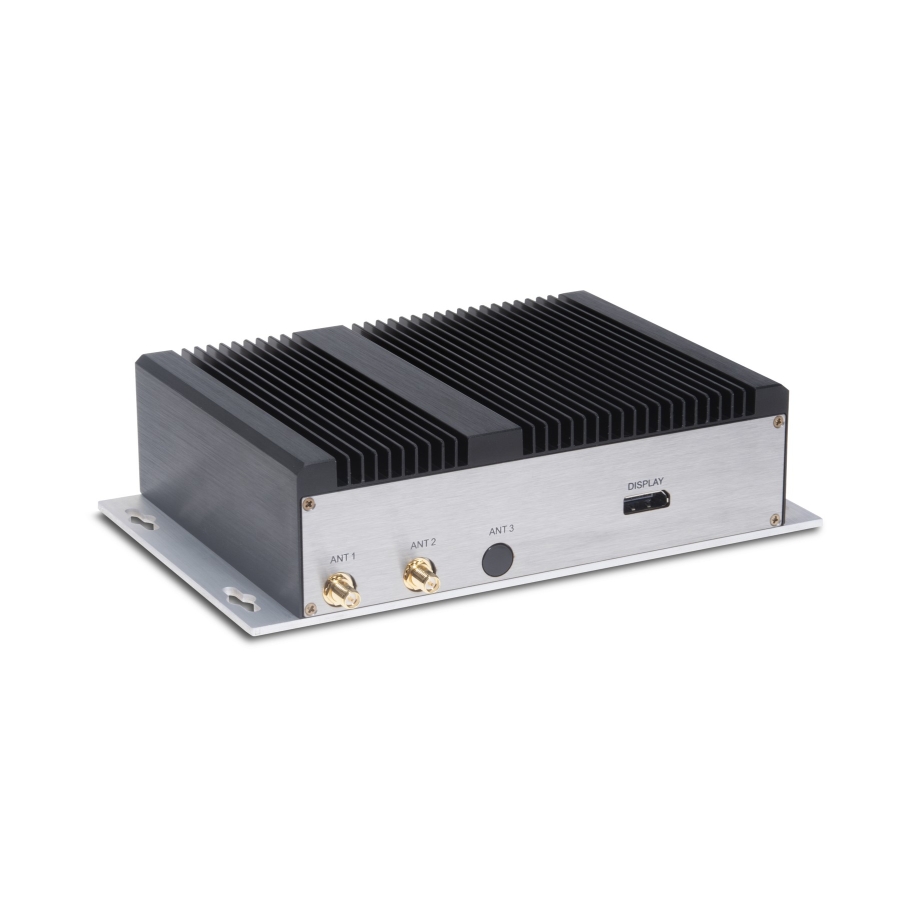

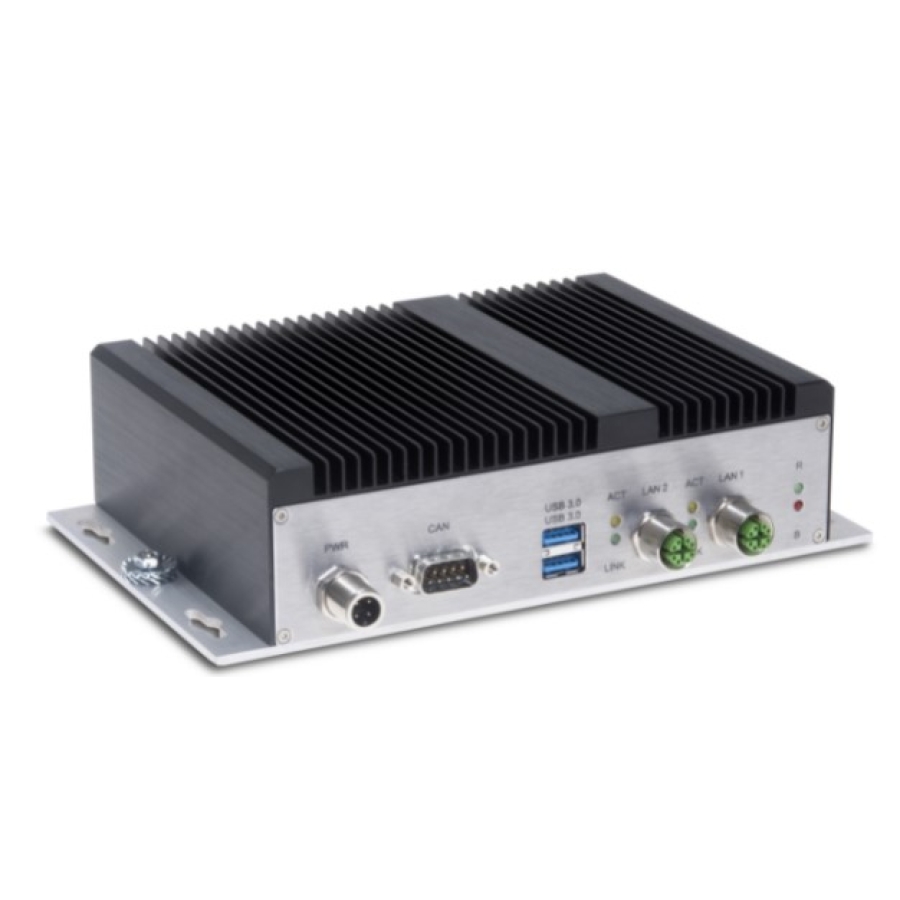

Syslogic IPC/COMPACT A2-RS NVIDIA Jetson TX2/TX2i AI Railway Computer

Name: Syslogic IPC/COMPACT A2-RS NVIDIA Jetson TX2/TX2i AI Railway Computer
SKU: IPC/COMPACT A2-RS
Availability: InStock

Syslogic

Syslogic IPC/COMPACT A2-RS NVIDIA Jetson TX2/TX2i AI Railway Computer

IPC/COMPACT A2-RS

24/7 continuous operation
Extended AI Computing
Temperature according to EN50155 OT4
Fully railway approved (EN50155 & EN45545)
EN50155 Class S2 power supply
256-core NVIDIA Pascal GPU
Dual-Core NVIDIA Denver 2 64-Bit CPU
Quad-Core ARM Cortex-A57 MPCore
8GB 128-bit LPDDR4 RAM soldered on board
Socket for CFast
Ethernet, USB, Passive or Active CAN
Optional WiFi extensions
Aluminum & Stainless steel housing
Protection class IP40
EN50155 certified (OT4)

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: IPC/COMPACT A2-RS

Categories: Certified Computers, Embedded Box PCs, Railway Certified Computers, Syslogic

Range: Syslogic

Details

The AI Railway Computer RS A2 is based on an NVIDIA Jetson TX2 module. The box PC for transportation and railroad applications is shipped with a pre-installed NVIDIA Jetpack SDK (Software Development Kit) including the Linux operating system (L4T).

The AI Railway Computer RS A2 is designed for use in railway or low-floor vehicles such as busses and trams. It meets high requirements for shock and vibration. In addition, the railway computer is designed for the extended temperature range of -40 to +70 degrees. It meets the railroad standard EN50155, class OT4. For use in rail vehicles, the rolling stock computer has a galvanically isolated power supply and the electronic components are protected against condensation with conformal coating.

The NVIDIA Jetson-based rail computer is used by rolling stock manufacturers and rail operators alike. Typical applications include semi-autonomous driving, DAS (driver advisory systems), RCS (rail control systems), real-time passenger information systems (RTPI), and condition-based monitoring.

Downloads

Syslogic IPC/COMPACT A2-RS Datasheet (PDF)

0.54MB

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

	IPC/RSA2I19-A101E	IPC/RSA2I20-A101S
Processor module/Performance
NVIDIA Jetson TX2i \| 256-core NVIDIA Pascal GPU		optional
NVIDIA Jetson TX2 \| 256-core NVIDIA Pascal GPU	n/a
NVIDIA Jetson TX2 4GB \| 256-core NVIDIA Pascal GPU	n/a
Dual-Core NVIDIA Denver 2 64-Bit CPU and Quad-Core ARM Cortex-A57 MPCore
AI Performance	1.3 TOPs
Memory / Storage
Data Cache Size	2MB
4ch x 32-bit LPDDR4 RAM soldered on board	8GB
eMMC 5.1 Flash Storage on board	32GB
microSD Card socket	1
CFast socket with retention frame	1
Features
Real time clock (RTC) with goldcap backup holds harge for 48h
Hardware Watchdog & Temperature supervisor
Intelligent power management
Inertial measurement unit (IMU) STMicroelectronics ISM330DLC
Communication Interfaces
Graphic interface	Display Port 1.2	Display Port 1.2
USB version 3.0 (Type A )	2	2
Internal USB version 2.0 OTG behind the cover – (micro USB Type AB )	1	1
Ethernet 10/100/1000Mbit (1x native, 1x I210-IT) (M12 female x-coded)	2	2
Active/passive-CAN ESD protected, isolated (1x DSUB9)	2	2
RS232 / RS422/485 ESD protected (DSUB9)	optional	optional
Mini PCIe socket	1	1
I2C bus
Buzzer
MIPI CSI-2 Camera Interface
Wireless Connectivity
Wireless LAN IEEE 802.11a/b/g/n/ac dual-band 2×2 MIMO & Bluetooth 4.1 (2x RP-SMA)	optional	optional
Cellular Module (LTE/UMTS/GSM) with GNSS positioning functionality Sierra Wireless MC7455 – M2M only! (3x SMA)	optional	optional
Dual SIM Support (nanoSIM to mPCIe slot 2)
Technical Data
Dimensions w174 x h52 x d127 mm (housing without mounting bracket)
Net weight in gram	~950	~950
Isolated input voltage, with Ignition controller, reverse polarity protected (M12 4P male a-coded)	16.8 … 45VDC	16.8 … 45VDC
16.8… 137.5VDC Input voltage, isolated and reverse polarity protected 3 (M12 4P male a-coded)	optional	optional
Interruption of voltage supply time: EN50155 Class S2	>10ms	>10ms
Current consumption typ. in mA @ 24V without Add-Ins, idle	~400	~400
Power consumption typ. in Watt @ 24V without Add-Ins, idle	~10	~10
Environmental Conditions
Operating temperature	–40°C … +70°C	–25°C … +70°C
Operating temperature class according to EN50155	OT4	OT3
Storage temperature	–40°C … +85°C	–25°C … +80°C
Ingress protection standard according to EN60529	IP40	IP40
Conformal coating	PCX	PCX
UN/ECE R10 (E-mark) certification	on request	on request
Shock	EN61373	EN61373
Vibration	EN61373	EN61373
EMI-Conformity	EN50121-3-2	EN50121-3-2
Safety (designed to meet)	EN62368-1	EN62368-1
Fire protection	EN45545-2 HL3	EN45545-2 HL3
Radio and Telecommunication (designed to meet)	RED	RED
MTBF @ 25°C ambient according to Telcordia SR-332, Environment GB, excluding battery	~715 000h	~700 000h
