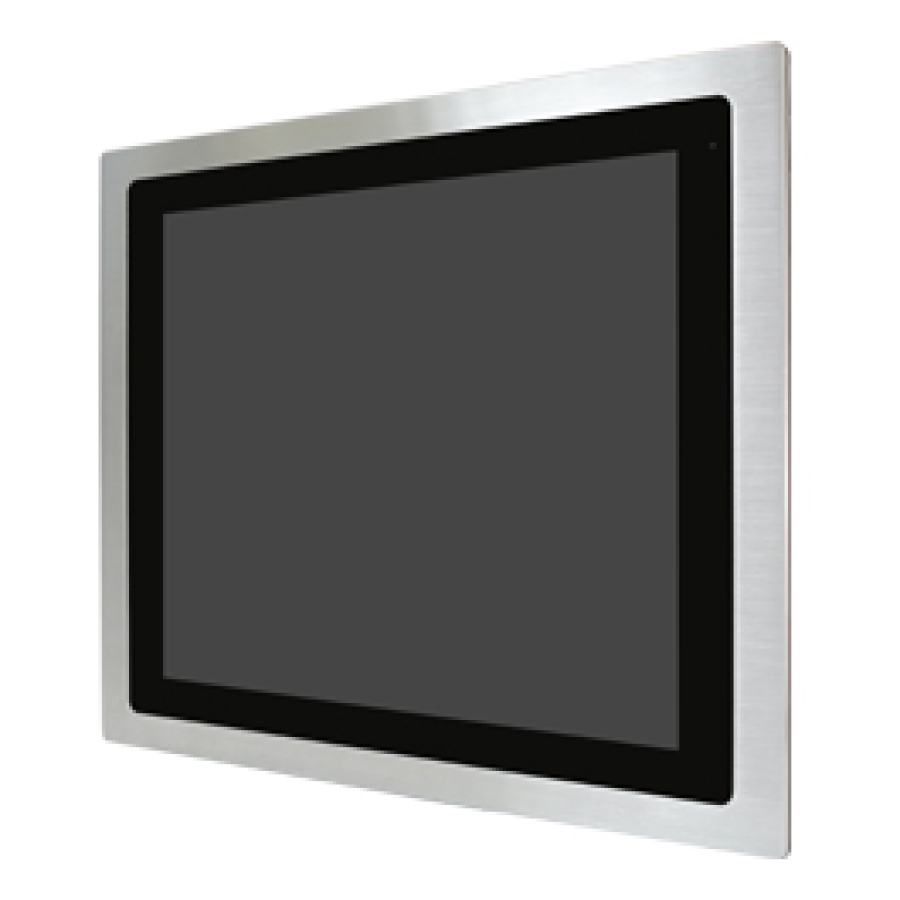

Aplex Technology FABS-117 17" Flat Front Panel IP66/IP69K Stainless Monitor

Aplex Technology Official Distributor
Aplex Technology Official Distributor
Model No:
FABS-117
Highlights:
  • Stainless steel front bezel Display
  • Flat front panel touch screen
  • Projected Capacitive Touch or Glass (Option)
  • Wide range DC 9~36V power input
  • IP66 compliant front panel / IP69K for option
  • VGA, DP, DVI/HDMI input
  • OSD on the rear side
  • System Power LED light



QTY:
Overview

The Aplex Technology FABS-117 is a 17" Flat Front Panel IP66/IP69K Stainless Steel Monitor. This product has a Standard Operating Temperature at 0-50°C and a Wide range DC 9-36V. In addition to this, the FABS-110 comes with many options available such as: Projected Capacitive Touch, Glass-AR and High Brightness.

Main Features
VGA   1
DVI   1 x DVI-D
HDMI   1
DP  1
OSD Control Membrane  OSD at rear side On board controller, extendable key pad from connector
Others  1 x USB type B for touch control, 1 x Audio line-in phone jack, Optional I/O: 1 x Speaker
Power   1 x 3-pin terminal block for DC 9~36V power input
LCD Size  17” TFT LCD
Max. resolution  1280 x 1024
Max. color  16.7M
Luminance(cd/m²)  350 (1000 Option)
Viewangle(H°/V°) 170(H) / 160(V)
Contrast  1000:01:00
Backlight lifetime(hrs)  50,000 hrs
Interface  USB Interface
Light transmission(%)  Over 90%
Power input  DC 9~36V
Construction  Aluminum die-casting chassis
IP rating  IP66 compliant front panel / IP69K(option)
Mounting  Panel mount / VESA mount 100 x 100
Dimension(mm)  449.4 x 358.4 x 63.8
Operating temperature(°C)  0~50°C
Storage temperature(°C)  -30~70˚C
Storage humidity  10 to 90% @ 40°C, Non-condensing
Certification  CE/FCC, Class A
Ordering Info
FABS-117P: Projected Capacitive Touch
FABS-117G: Glass AR
FABS-117PH: Projected Capacitive Touch and High Brightness
FABS-117GH: Glass AR and High Brightness
