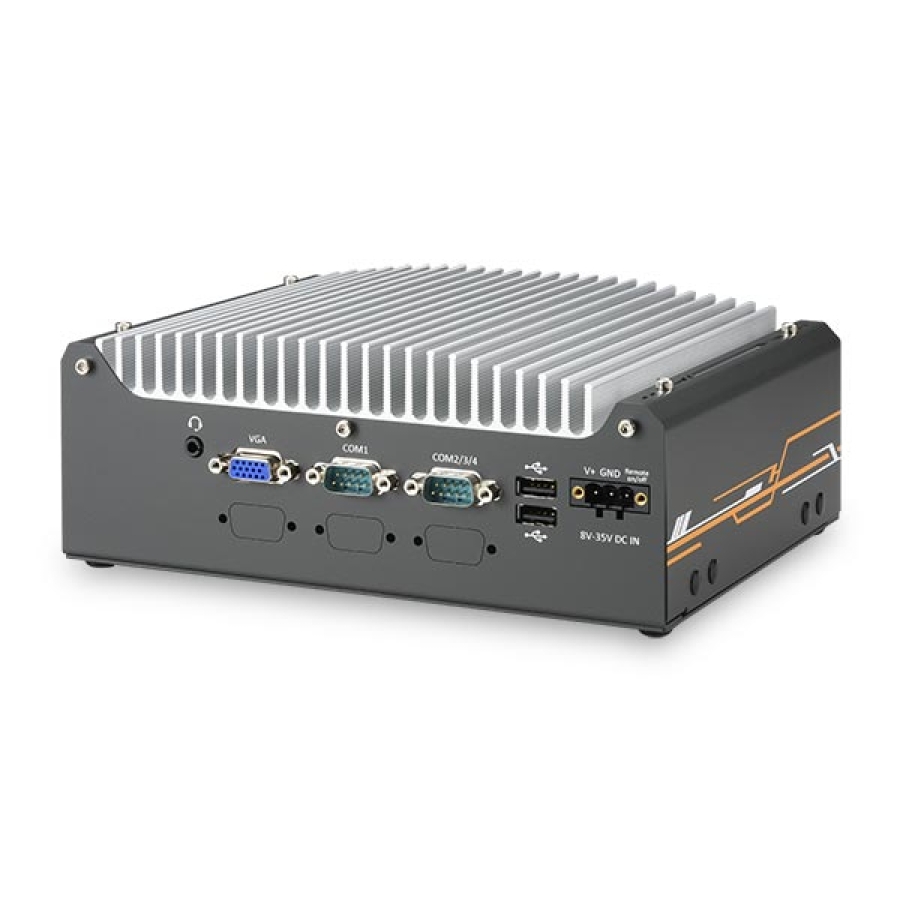

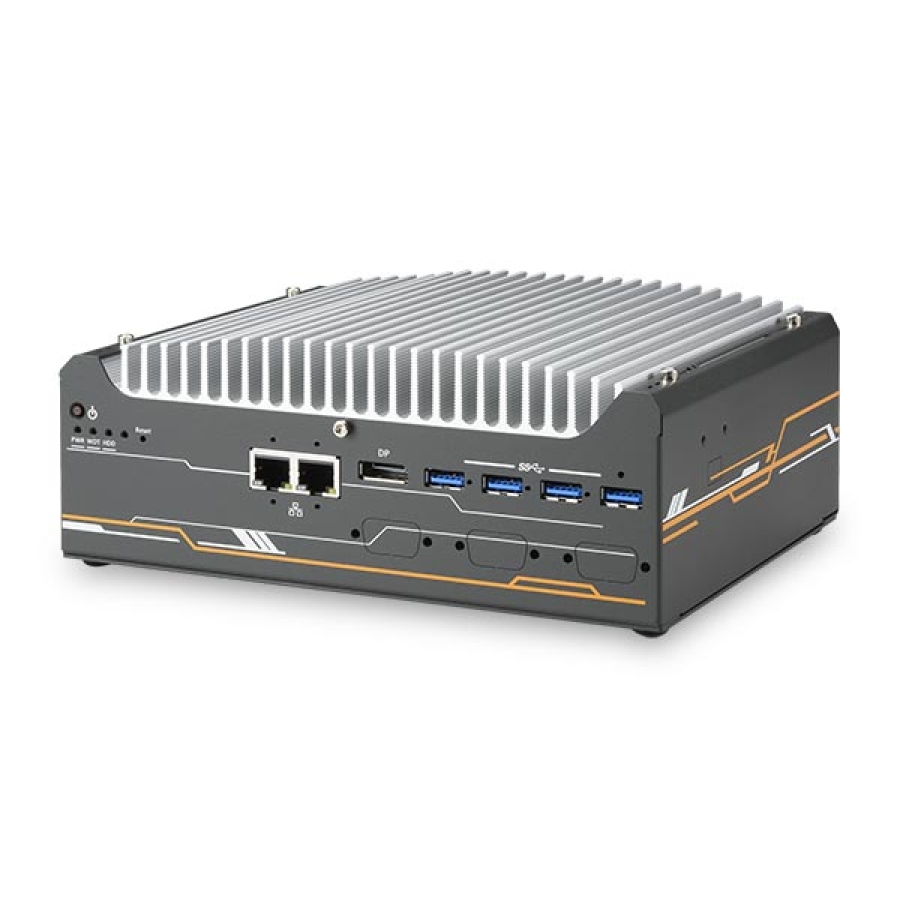

Neousys Nuvo-9505D Intel Core 13th/12th Gen Processor Rugged Embedded Fanless Computer with 2x 2.5GbE, 4x USB3.2 and 8x isolated DIO Optional Accessories

Name: Neousys Nuvo-9505D Intel Core 13th/12th Gen Processor Rugged Embedded Fanless Computer with 2x 2.5GbE, 4x USB3.2 and 8x isolated DIO Optional Accessories
SKU: Nuvo-9505D
Availability: InStock

Neousys

Neousys Nuvo-9505D Intel Core 13th/12th Gen Processor Rugged Embedded Fanless Computer with 2x 2.5GbE, 4x USB3.2 and 8x isolated DIO Optional Accessories

Nuvo-9505D

Intel 13th/12th-Gen Core 35W/ 65W LGA1700 CPU
Compact 212 x 165 x 80 mm footprint
Rugged, -25°C to 60°C fanless operation (Nuvo-9505D only)
Up to 32GB DDR4 3200 SODIMM
2x 2.5GbE and 4x USB3.2 Gen 1 with screw-lock
Supports 1x M.2 2280 Gen4 x4 NVMe and 1x 3.5″/2.5″ SATA HDD/SSD storage
4-CH isolated DI and 4-CH isolated DO (Nuvo-9505D only)
VGA + DP dual display outputs

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: Nuvo-9505D

Categories: Embedded Box PCs, Neousys, Rugged Embedded Computers

Range: Neousys

Details

Nuvo-9505D is an excellent choice for those seeking a cost-effective and powerful embedded computer for industrial applications. It is built on the advanced Intel 7 process, offering Intel 13th Gen processors with up to 24 cores/32 threads, delivering up to 2x the performance compared to the previous Intel 10th or 11th Gen platforms.

This compact fanless embedded computer provides essential I/O connectivity for general industrial needs, including dual 2.5GbE ports, dual display ports, and four USB3.2 ports. The Gen4 x4 M.2 NVMe slot enables the use of the latest NVMe SSDs with read/write speeds of up to 7000 MB/s. The Nuvo-9505D also supports a 2.5” or 3.5” HDD storage for high-capacity storage needs such as data collection or surveillance applications.

With two mPCIe and one M.2 E key slots, the Nuvo-9505D enables the installation of WiFi or 5G/4G wireless communication modules. This feature makes it possible to connect to various networks in a range of environments.

In summary, the Nuvo-9505D is a cost-effective, compact, and yet powerful fanless embedded computer that offers the ultimate computing for various industrial applications. It delivers excellent computing performance and offers essential necessary I/O connectivity to meet customers’ needs and cost.

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

Datasheet (Nuvo-9501) (PDF)

0.23MB

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Processor Type	Intel Core, Up to 24 Cores
GPU	Integrated GPU
Memory Capacity	Up to 32GB
Cooling Type	Fanless
Serial Ports (COM)	1x RS-422/485, 1x RS-232/422/485, 3x RS-232, 4 Ports
USB Ports	2x USB 2.0, 4x USB 3.2
Ethernet Ports (LAN)	2 Ports, 2.5G
Wireless	Cellular
Video Ports	1x VGA, 1x DisplayPort, DisplayPort, VGA
Digital I/O	8 DIO
Audio	Yes
Storage Type	1, 1, 1x 2.5", 2.5", 3.5"
Expansion Type	1x M.2, 1x Mini PCI Express
Input Voltage	8-35 VDC
Mounting Options	DIN-mount, Wall-mount
Operating Temperature	-25°C to 60°C
Market Certifications	CE/FCC, MIL-STD
