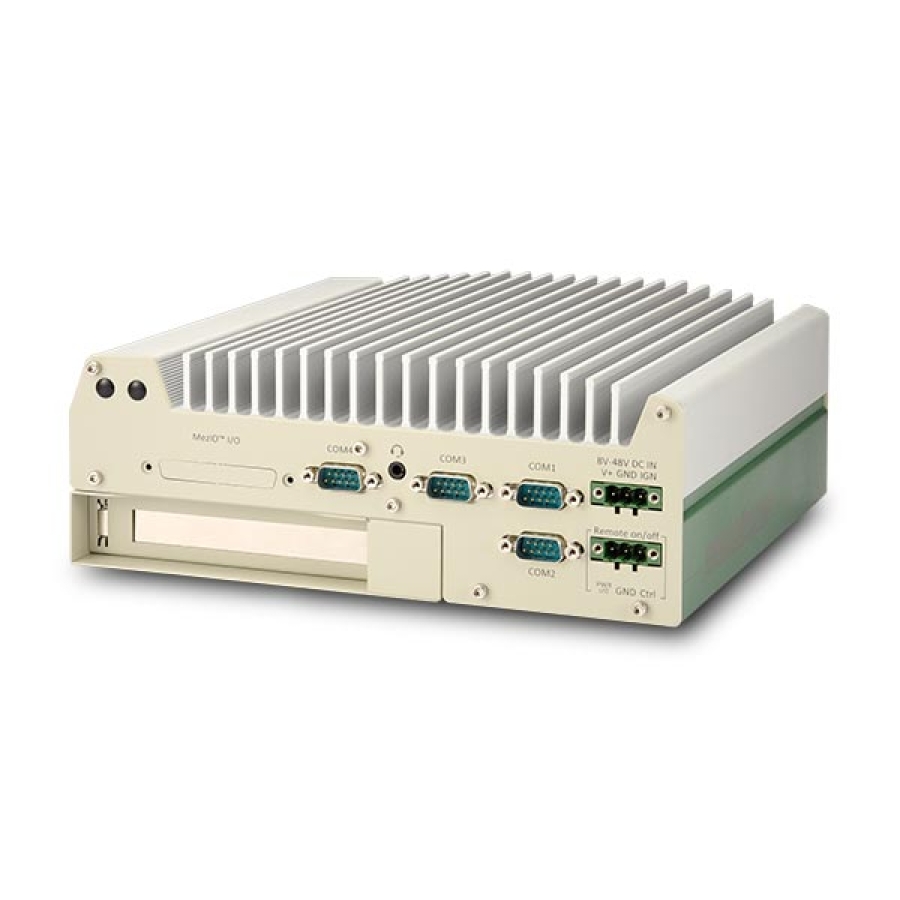

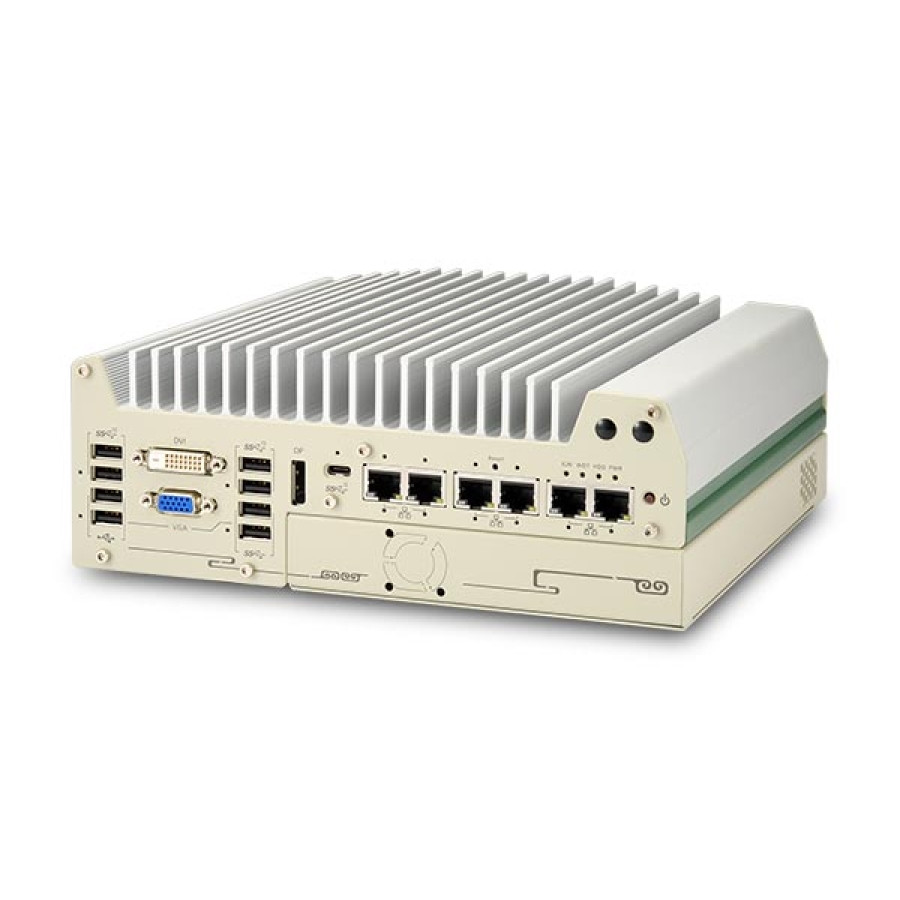

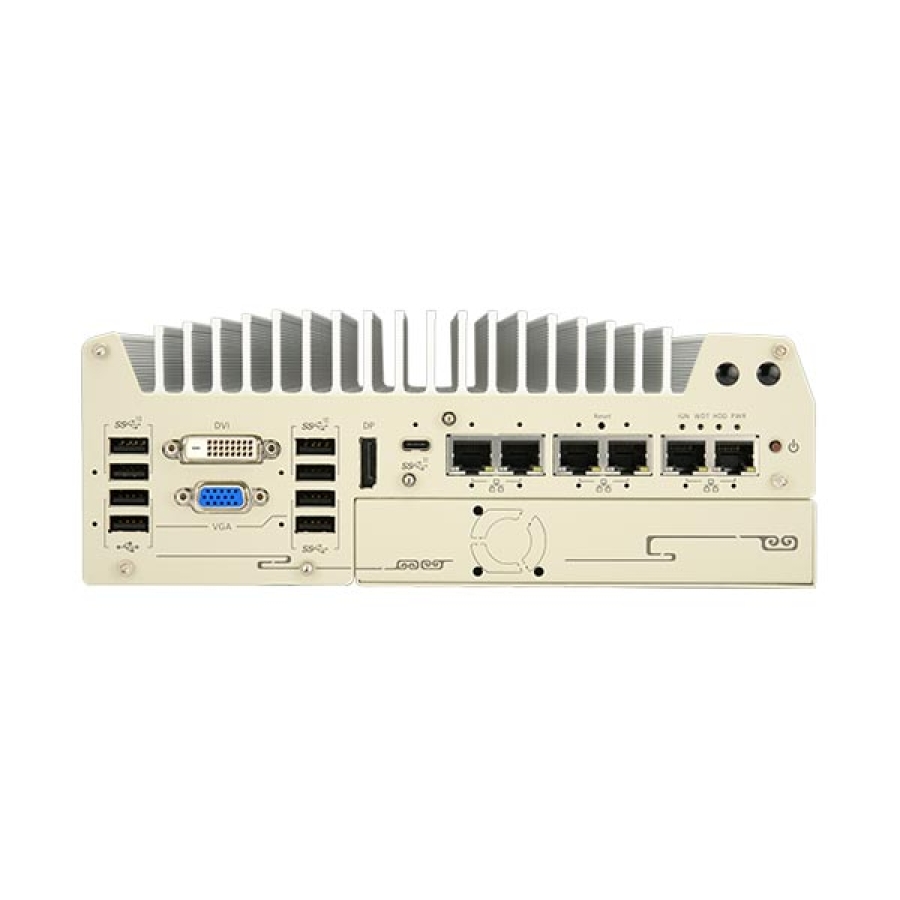

Nuvo-9000 Series

  • Supports Intel 12th-Gen Alder Lake Core 16C/ 24T 35W/ 65W CPU
  • Patented Cassette for PCI/PCIe add-on card accommodation
  • Rugged, -25°C to 70°C fanless operation
  • Up to 6x GigE ports with optional PoE+, supporting 9.5 KB jumbo frame
  • 1x USB 3.2 Gen2x2 type-C and 6x USB 3.2 Gen2x1 type-A ports
  • Supports M.2 Gen4x4 NVMe and 2x SATA ports
  • MezIO interface for easy function expansion
  • VGA/ DVI/ DP triple independent display, supporting 4K2K resolution

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.



Nuvo-9000 series is Neousys’ new rugged embedded computer based on Intel 12th-Gen Alder Lake platform. Benefiting from cutting-edge Intel 7 photolithography, the latest Core desktop processor comes with up to 16 cores and 24 threads and presents an incredible boost of computational performance. Combining the increase of DDR5 memory bandwidth and PCIe Gen4 NVMe high-speed disk read/write, users can expect an overall system performance improvement of up to 1.8x when compared to previous 10th or 11th-Gen platforms.

Nuvo-9000 series inherits Neousys’ patented expansion Cassette design to provide great versatility by allowing additional installation of PCIe or PCI add-on cards. There are three expansion Cassette options available for Nuvo-9000 series, the Nuvo-9000E features a single x16 Gen3 PCIe slot; Nuvo-9000DE has dual x16 PCIe slots, and Nuvo-9000P has a single PCI slot. For users who need more flexible storage, Nuvo-9000LP has a 2.5″ HDD tray instead of an expansion Cassette to support a hot-swappable 2.5″ HDD/SSD.

I/O functions are also comprehensively enhanced. In addition to six gigabit Ethernet ports with PoE+ PSE option, Nuvo-9000 series features a USB 3.2 Gen2x2 type-C port offering 20 Gbps bandwidth for data exchange with external devices, plus another six USB 3.2 Gen2x1 type-A ports for USB3 camera connectivity. It also has an upgraded M.2 Gen4x4 slot to support the latest NVMe SSD to boost disk read/write speed up to 7000 MB/s. For unfulfilled I/O requirements, users can utilize the expansion Cassette to add on function-specific PCIe/ PCI card, the proprietary MezIO interface, and internal mini-PCIe/M.2 interfaces.

With its field-proven thermal design, significant CPU and I/O upgrades, and multiple expansion methods, the Neousys Nuvo-9000 series fits your need for ruggedness, performance, and versatility for a variety of applications.

Ordering Info

Optional Accessories
DINRAIL-O DIN-rail mount assembly for Nuvo-9000 series
Dmpbr Nuvo5000_7000 Neousys’ patented damping brackets assembly for Nuvo-9000 Series
PA-160W-OW 160W AC/DC power adapter 20V/8A;18AWGx4C/120cm, cord end terminals for terminal block, operating temperature : -30°C to 70°C.



Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?


Model Name Nuvo-9000 Series
Processor Supporting Intel 12th-Gen Alder Lake Core CPU (LGA1700 socket, 35W/ 65W TDP) – Intel Core i9-12900E/ i9-12900TE – Intel Core i7-12700E/ i7-12700TE – Intel Core i5-12500E/ i5-12500TE – Intel Core i3-12100E/ i3-12100TE – Intel Pentium G7400E/ G7400TE – Intel Celeron G6900E/ G6900TE
Chipset Intel Q670E platform controller hub
Graphics Integrated Intel UHD Graphics 770 (32EU)
Memory Up to 64 GB DDR5 4800 SDRAM (two SODIMM slots)
AMT Supports Intel vPro/ AMT 16.0
TPM Supports dTPM 2.0
Ethernet Port 1x 2.5G Ethernet by I225 and 1x Gigabit Ethernet by I219 (Nuvo-9002E/ P/ DE) with screw-lock 5x 2.5G Ethernet by I225 and 1x Gigabit Ethernet by I219 (Nuvo-9006E/ P/ DE) with screw-lock
PoE+ Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6 100 W total power budget
USB 1x USB 3.2 Gen2x2 (20 Gbps) port in type-C connector with screw-lock 6x USB 3.2 Gen2x1 (10 Gbps) ports in type-A connectors 2x USB 2.0 ports
Video Port (Integrated Graphics) 1x VGA, supporting 1920 x 1200 resolution 1x DVI-D, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution
Serial Port 2x software-programmable RS-232/ 422/ 485 ports (COM1/ COM2) 2x RS-232 ports (COM3/ COM4)
Audio 1x 3.5 mm jack for mic-in and speaker-out
SATA HDD 2x internal SATA port for 2.5″ HDD/ SSD installation, supporting RAID 0/ 1
M.2 NVMe 1x M.2 2280 M key NVMe socket (PCIe Gen4x4) for NVMe SSD
PCI/PCI Express  1 x PCIe x16 slot @Gen3, 16-lanes PCIe signals in Cassette (Nuvo-9002E/ 9006E)

2 x PCIe x16 slot @Gen3, 8-lanes PCIe signals in Cassette (Nuvo-9002DE/ 9006DE)

1 x PCI slot in Cassette (Nuvo-9002P/ 9006P)


Mini PCI Express 1x full-size mini PCI Express socket
M.2 1x M.2 2242/3052 B key socket with SIM slot for M.2 5G/ 4G module
Expandable I/O 1x MezIO expansion port for Neousys MezIO modules
DC Input 1x 3-pin pluggable terminal block for 8 to 48V DC input
Remote Ctrl. & LED Output 1x 3-pin pluggable terminal block for remote control and PWR LED output
Dimension 240 mm (W) x 225 mm (D) x 90 mm (H) (Nuvo-9000E/ P series)

240 mm (W) x 225 mm (D) x 110.5 mm (H) (Nuvo-9000DE series)


Weight 4.4 kg (Nuvo-9000E/ P series)
Mounting Wall-mount (standard) or DIN-rail mount (optional)
Operating Temperature with 35W CPU           -25°C ~ 70°C **

with 65W CPU          -25°C ~ 70°C */** (configured as 35W TDP)

                              -25°C ~ 50°C */** (configured as 65W TDP)

Storage Temperature -40°C ~ 85°C
Humidity 10%~90% , non-condensing
Vibration Operating, MIL-STD-810G, Method 514.6, Category 4
Shock Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC CE/FCC Class A, according to EN 55032 & EN 55024
Processor Type Intel Celeron, Intel Core, Intel Pentium
GPU Integrated GPU
Memory Capacity Up to 64GB
Cooling Type Fanless
Serial Ports (COM) 2x RS-232, 2x RS-232/422/485, 4 Ports, 6x RS-232/422/485, 12 Ports
USB Ports 2x USB 2.0, 4x USB 3.1, 7x USB 3.2, 13 Ports
Power Over Ethernet (PoE) PoE Ports
Wireless Cellular
Video Ports 1x VGA, 1x DisplayPort, 1x DVI, DisplayPort, DVI, VGA
Digital I/O 16 DIO, 32 DIO
Audio Yes
Storage Type 1x M.2, 2x 2.5", 2.5"
Expansion Type 1x Mini PCI Express, 1x M.2, 1x PCI, 3x PCI Express
Input Voltage 20 VDC, 24 VDC, 8-48 VDC
Ignition Control Yes
Mounting Options DIN-mount, Wall-mount
Operating Temperature -25°C to 70°C
Market Certifications CE/FCC, MIL-STD
OS Support Linux, Windows 10, Windows 11
