Cincoze GM-1000 8/9th Gen Intel Xeon/Core Embedded GPU PC w/ 1x MXM 3.1 GPU Slot

Name: Cincoze GM-1000 8/9th Gen Intel Xeon/Core Embedded GPU PC w/ 1x MXM 3.1 GPU Slot
SKU: GM-1000
Availability: InStock

Cincoze

Cincoze GM-1000 8/9th Gen Intel Xeon/Core Embedded GPU PC w/ 1x MXM 3.1 GPU Slot

GM-1000

Supports 9th/8th Gen Intel Xeon/Core Processor up to 8 cores
Supports 1x MXM 3.1 Type A/B form factor GPU module expansion
2x DDR4 SO-DIMM sockets, up to 2666MHz, 64GB
Supports wide operating temperature (-40°C – 70°C) and vibration/shock tolerance (5G/50G)
260 mm x 200 mm x 85 mm compact footprint
Flexible functionality expansions: – M.2 E key (CNVi), full-size Mini-PCIe and M.2 M Key (NVMe SSD) – Proprietary CMI interface for various I/O expandability – Proprietary CFM interface for PoE+ or Power Ignition Sensing

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: GM-1000

Categories: Cincoze, Edge AI & GPU Computers, Edge AI GPU Computing Platforms, Embedded Box PCs, Fanless Embedded PCs, Industrial Computers, Rugged AI Computers, Rugged Embedded Computers

Range: Cincoze

Details

Many computers struggle to handle the high-speed image capture and processing demands of machine vision applications. Both CPU computing power and GPU graphics acceleration are needed because the combination provides the fastest and most accurate results for image processing and data analysis, improving productivity and efficiency. Machine vision is an essential element of automatic inspection, process control, and robot guidance.

The Cincoze GM-1000 is a machine vision computer designed for machine vision applications, but with enough extra for artificial intelligence and image processing. All this in a tough, compact, and reliable package.

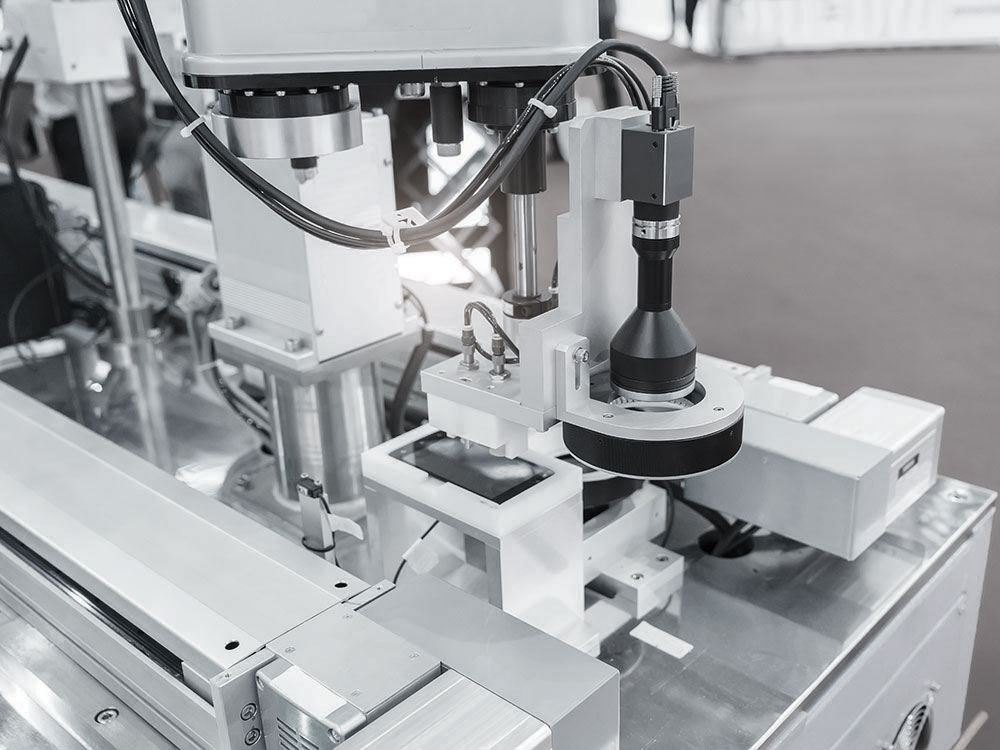

Machine Vision and Inspection
Industrial Automation
Video Surveillance

Intel Xeon and Core (8/9th gen) CPU options with up to 8 cores, deliver 34% more performance than previous generations and support up to 64 GB of DDR4 memory.

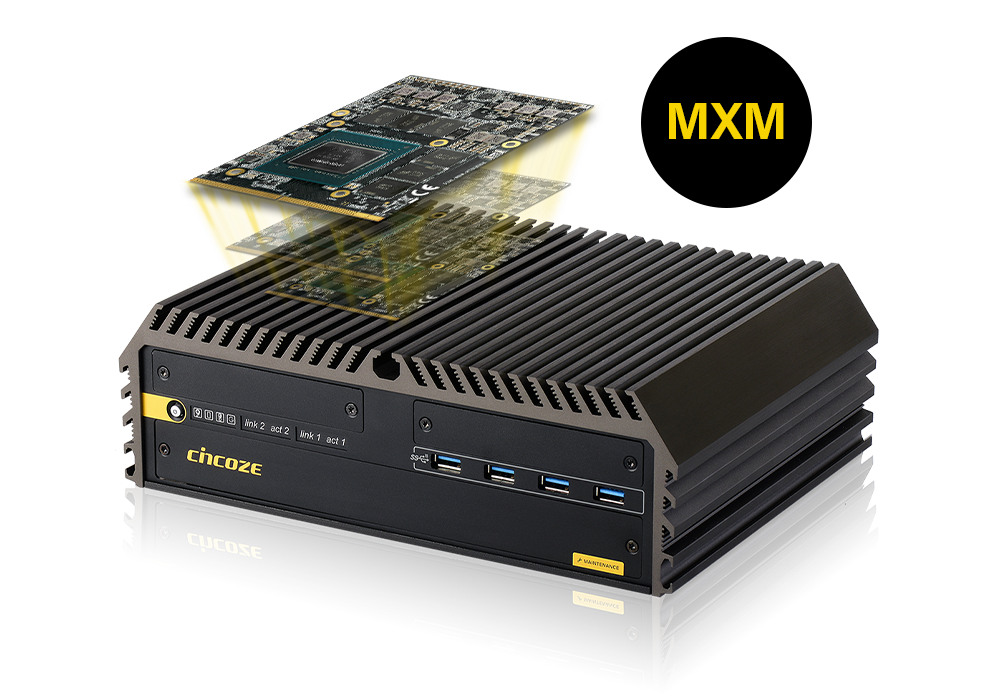

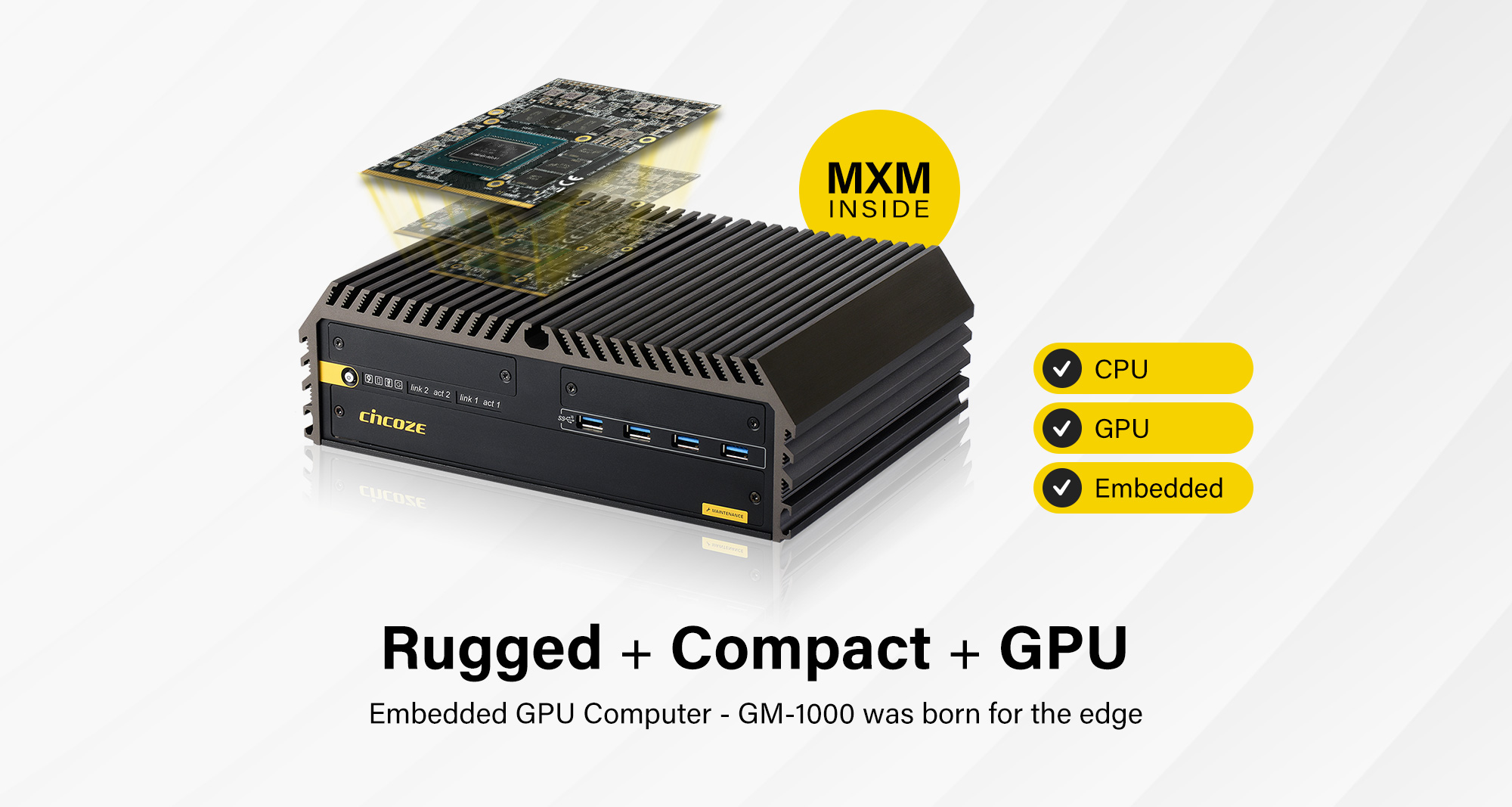

GPUs are the key to super-fast image processing. The MXM 3.1 Type A/B expansion slot supports modern MXM GPUs. Standard options are an Nvidia Quadro RTX3000/T1000/P2000 or AMD Radeon E9174 GPU, but upgrades to even faster MXM GPUs (up to 160 W) can further accelerate performance.

The specialized power design of the GM-1000 provides a 360W power budget that counters the typical limitations of fanless embedded systems. A unique thermal design, combining independent cooling systems for CPU and GPU and extruded aluminum case with integrated copper heat piping, ensure operational reliability in the field.

Generous 360W Power Budget

High-speed vision cameras require high-speed connections for near-instantaneous data transfer for image processing and analysis. GM-1000 provides high-speed I/O interfaces, including USB3.2 Gen2 and GbE LAN. PoE, additional LAN, and 10GbE are available through proprietary modules.

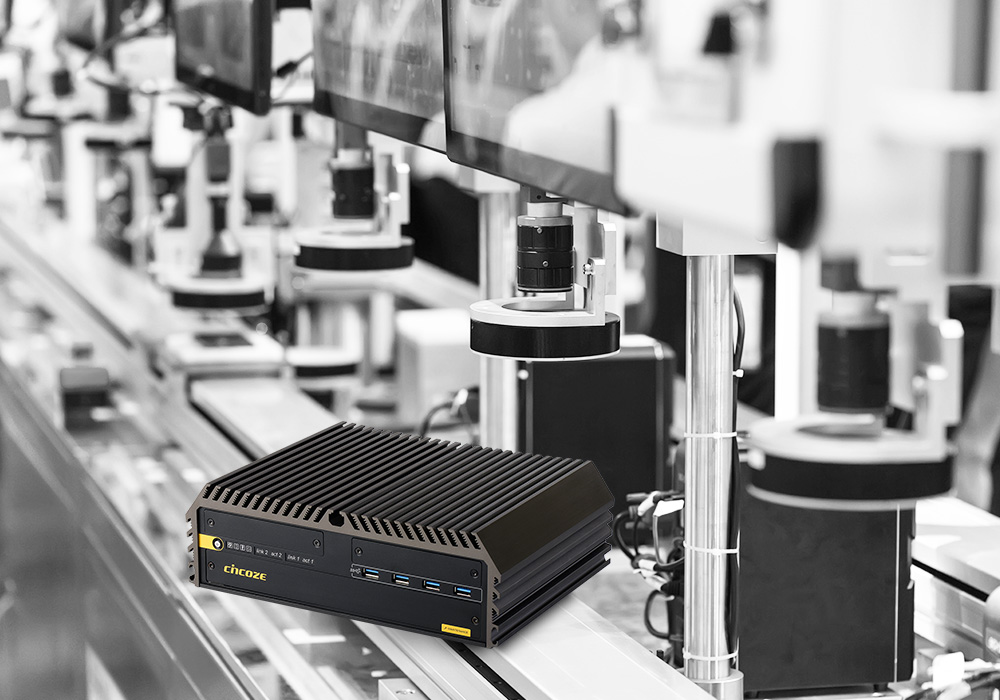

The compact GM-1000 is a diminutive 260x200x85 mm (WxLxH) but still includes essential I/O out-the-box, making it a compelling choice for space-constrained applications like robotic arms and AOI equipment.

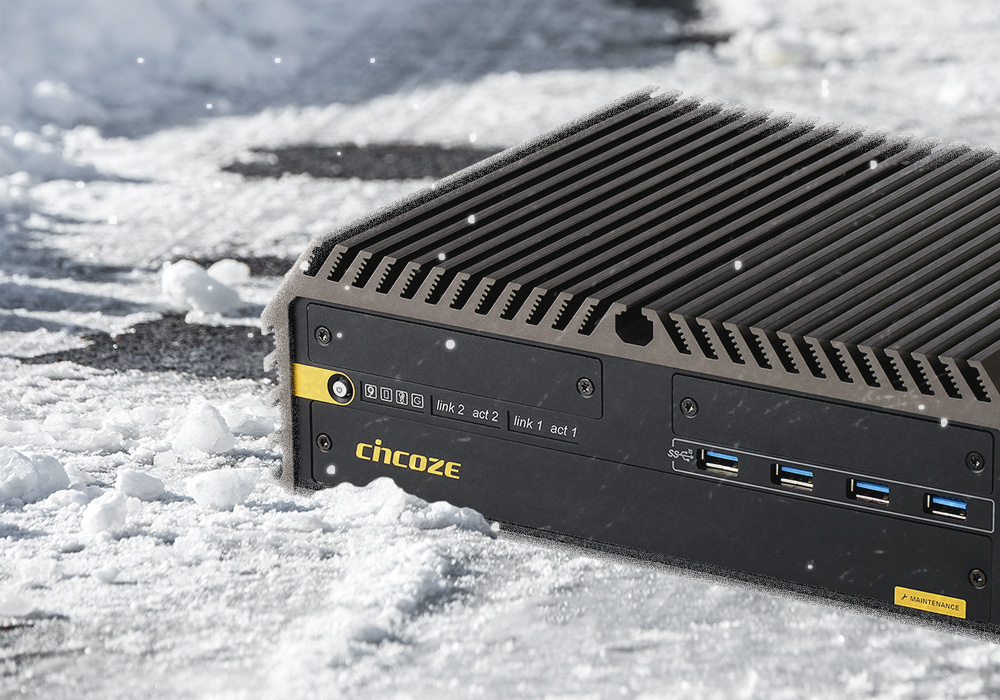

The GM-1000 can operate in extreme industrial temperatures from -40 to 70°C. It has 50G/5G anti-shock and vibration resistance, wide-range voltage input from 9 to 48 VDC, as well as over-voltage, over-current, and ESD protection for applications in the harshest conditions.

Ordering Info

Package Checklist
√ GM-1000 GPU Computer x 1	√ Remote Power On/Off Terminal Block Connector x 1
√ Utility DVD Driver x 1	√ Fan Terminal Block Connector x 2
√ CPU Heat Sink and Thermal Pad x 1	√ DVI-I to VGA Adaptor
√ Screw Pack x1	√ Wall Mount Kit x1
√ Power Terminal Block Connector x 2

Optional MXM GPU Module

Model No.	Description
MXM-RTX3000-R10	Nvidia Quadro Embedded RTX3000 MXM Kit with Heatsink and Thermal Pad
MXM-T1000-R10	Nvidia Quadro Embedded T1000 MXM Kit with Heatsink and Thermal Pad
MXM-P2000-01	Nvidia Quadro Embedded P2000 MXM Kit with Heatsink and Thermal Pad

Optional Accessories

Model No.	Description
CB-DP01-R10	Carrier Board Module with 1x MXM 3.1 Interface and 4x DisplayPort Output / 1x Universal Bracket with 4x DP Cutout
CMI-LAN01-R12/UB1312	CMI Module with 4x Intel® I210 GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout for GM Series
CMI-10GLAN01-R10/UB1328	CMI Module with 2x Intel® X550 10GbE LAN, RJ45 Port / 1x Universal Bracket with 2x RJ45 Cutout for GM Series
CMI-M12LAN01-R12/UB1310	CMI Module with M12 Connector, 4x Intel® GbE LAN / 1x Universal Bracket with 4x M12 Cutout for GM Series
CMI-DIO01/UB1318	CMI Module with 16DIO (8in 8out) / 1xUniversal Bracket with DIO Cutout for DX & GM Series
CMI-COM01/UB1303	CMI Module with 2x RS232/422/485 (Support 5V/12V) / 1x Universal Bracket with 2x DB9 Cutout for DX & GM Series
CMI-LAN01-R12/UB1312/CFM-PoE01	CMI Module with 4x Intel® I210 GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout for GM Series / CFM Module with PoE Control Function, Individual Port 25.5W
CMI-M12LAN01-R12/UB1310/CFM-PoE01	CMI Module with M12 Connector, 4x Intel® GbE LAN / 1x Universal Bracket with 4x M12 Cutout for GM Series / CFM Module with PoE Control Function, Individual Port 25.5W
CFM-IGN01	CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable
MEC-COM-M212-TDB9/UB1303	Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Thin DB9 Cable / 1x Universal Bracket with 2x DB9 Cutout for DX & GM Series
MEC-COM-M334-TDB9/2xUB1303	Mini-PCIe Module with 4x RS232/422/485 Serial Ports, 2x Thin DB9 Cable / 2x Universal Bracket with 2x DB9 Cutout forDX & GM Series
MEC-LAN-M102-30/UB1311	Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout for DX & GM Series
MEC-USB-M102-15/UB1314	Mini-PCIe Module with 2x USB Ports, 1x 15cm cable / 1x Universal Bracket with 2x USB Cutout for DX & GM Series
FAN-EX102	External Fan Kit with 2x 4pin Terminal Block Plug for GM Series, Support Smart Fan Function
SIDE-GM	GM Series side mount kit
DIN01	DIN-RAIL Mount Kit, KMRH-K175
GST220A24-CIN	Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

Cincoze GM-1000 Datasheet (PDF)

0.97MB

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Model Name		GM-1000
System	Processor	• 9th Generation Intel Coffee Lake-R CPU: – Intel Xeon E-2278GE 8 Cores Up to 4.7 GHz, TDP 80W – Intel Xeon E-2278GEL 8 Cores Up to 3.9 GHz, TDP 35W – Intel Core i7-9700E 8 Cores Up to 4.4 GHz, TDP 65W – Intel Core i5-9500E 6 Cores Up to 4.2 GHz, TDP 65W – Intel Core i3-9100E 4 Cores Up to 3.7 GHz, TDP 65W – Intel Core i7-9700TE 8 Cores Up to 3.8 GHz, TDP 35W – Intel Core i5-9500TE 6 Cores Up to 3.6 GHz, TDP 35W – Intel Core i3-9100TE 4 Cores Up to 3.2 GHz, TDP 35W • 8th Generation Intel Coffee Lake CPU: – Intel Xeon E-2176G 6 Cores up to 4.7 GHz, TDP 80W – Intel Xeon E-2124G 4 Cores up to 4.5 GHz, TDP 71W – Intel Core i7-8700 6 Cores up to 4.6 GHz, TDP 65W – Intel Core i5-8500 6 Cores, up to 4.1 GHz, TDP 65W – Intel Core i3-8100 4 Cores 3.6 GHz, TDP 65W – Intel Core i7-8700T 6 Cores up to 4.0 GHz, TDP 35W – Intel Core i5-8500T 6 Cores up to 3.5 GHz, TDP 35W – Intel Core i3-8100T 4 Cores 3.1 GHz, TDP 35W – Intel Pentium G5400 2 Cores 3.7 GHz, TDP 58W – Intel Pentium G5400T 2 Cores 3.1 GHz, TDP 35W – Intel Celeron G4900 2 Cores 3.1 GHz, TDP 54W – Intel Celeron G4900T 2 Cores 2.9 GHz, TDP 35W
	Chipset	Intel C246
	Memory	• 2x DDR4-2666/2400 MHz SO-DIMM Sockets • Support up to 64 GB (Un-buffered and non-ECC type) * Xeon/i7/i5: Up to DDR4 2666MHz * i3/Pentium/Celeron: Up to DDR4 2400MHz
	Graphics	• Integrated Intel UHD Graphics (Xeon/i7/i5/i3: UHD 630; Pentium/Celeron: UHD 610) • Supports Triple Independent Display (DVI-I/DisplayPort/HDMI)
	Audio	Realtek ALC888, High Definition Audio
	BIOS	AMI BIOS
I/O Interface	DVI	1x DVI-I Connector (VGA: 1920 x1080 @ 60 Hz; DVI-D: 1920 x1200 @ 60Hz)
	DP	1x DisplayPort Connector (4096 x 2304 @ 60Hz)
	HDMI	1x HDMI Connector (4096 x 2160 @ 30Hz)
	LAN	2x GbE LAN Ports (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 – GbE1: Intel I219-LM – GbE2: Intel I210
	Serial Port	4x RS-232/422/485 Ports with Auto Flow Control (Support 5V/12V), DB9
	USB	4x 10Gbps USB3.2 Gen2 Ports, Type-A 4x 5Gbps USB3.2 Gen1 Ports, Type-A
	Line-Out	1x Line-Out, Phone Jack 3.5mm
	Mic-In	1x Mic-In, Phone Jack 3.5mm
	Power Button	1x ATX Power On/Off Button
	AT/ATX Switch	1x AT/ATX Mode Switch
	Rest Button	1x Rest Button
	Clear CMOS Switch	1x Clear CMOS Switch
	Remote Power On/Off Connector	1x Remote Power On/Off Connector, 2-pin Terminal Block
	External FAN Connector	2x External Fan Connectors, 4-pin Terminal Block (Supports Smart Fan by BIOS)
Storage	SSD/HDD	2x SATA III (6Gbps) Front Accessible 2.5” HDD/SSD Trays (up to 15mm in Height)
	mSATA	3x mSATA Socket (SATA 3.0, shared by Mini-PCIe socket)
	RAID	Supports S/W RAID 0, 1, 5 & 10
	PCIe	1x PCIe x4 M.2 Key M 2280 Socket, Supports NVMe SSD
Expansion	MXM Socket	1x MXM Carrier Board Interface for MXM GPU Module Expansion
	CFM (Control Function Module) Interface	1x CFM Interface for CFM Modules – CFM-IGN01: Ignition Sensing Function
	CMI (Combine Multiple I/O) Interface	1x High Speed CMI Interface for I/O Expansion – CMI-10GLAN01 : 2x 10G Intel® X550 RJ45 LAN – CMI-LAN01 : 4x 1G Intel® I210 RJ45 LAN – CMI-M12LAN01 : 4x 1G Intel® I210 M12 LAN 1x Low Speed CMI Interface – CMI-COM01 : 2x RS232/422/485, Support 5V/12V – CMI-DIO01 : 16x DIO (8 in, 8 out)
	Mini PCI Express	3x Full-size Mini-PCIe Sockets
	M.2 Socket	1x M.2 2230 Socket (Key E), support Intel CNVi Module
	SIM Socket	2x SIM Socket
	Antenna Holes	2x Antenna Holes
Other	Instant Reboot	Support 0.2sec
	Power Ignition Sensing	Optional Module ．CFM with Delay Time Management and Selectable 12V/24V, Dip Switch
	Super Cap	SuperCap Integrated for CMOS Battery Maintenance-free Operation
	Watchdog Timer	Software Programmable Supports 256 Levels System Reset
Power Requirement	Power Type	AT/ATX
	Total Power Budget	360W
	Power Input Voltage	9-48 VDC, Single Power Source
	Connector	2x 3-pin Terminal Block, Each Terminal Block Current Limitation is 15A Power input voltage from 9V to 23V must use dual power connectors, power input voltage from 24V to 48V can use single power connector
	Power Adapter	Optional AC/DC Adapter – AC/DC 24V Power Adapter, 220W
Physical	Dimension (WxDxH)	260 x 200 x 85 mm
	Weight Information	4.6 kg
	Mechanical Construction	Extruded Aluminum with Heavy Duty Metal
	Mounting	Wall / VESA / DIN Rail / Side
	Unibody Design	Yes
	Fanless Design	Yes
	Jumper-less Design	Yes
	Cable-less Design	Yes
Protection	Reverse Power Input Protection	Yes
	Over Voltage Protection	Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover
	Over Current Protection	30A
	ESD Protection	+/-8kV (air), +/-4kV (contact)
	Surge Protection	3.84 kV (impedance 12 ohm 1.2/50us waveform)
Operating System	Windows	Windows 10
Operating System	Linux	Support by project
Environment	Operating Temperature	– 35W CPU: -40°C – 70°C – 65W CPU + FAN: -40°C – 60°C – 80W CPU + FAN: -40°C – 55°C * PassMark BurnInTest: 100% CPU, 2D Graphics (without thermal throttling) * For GM-1000 + MXM GPU Module operating temperature, please refer to product datasheet * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
	Storage Temperature	-40°C to 85°C
	Relative Humidity	95% RH @ 70°C (Non-condensing)
	Shock	Operating, 50 Grms, Half-sine 11 ms Duration * w/ SSD, according to IEC60068-2-27
	Vibration	Operating, 5 Grms, 5-500 Hz, 3 Axes * w/ SSD, according to IEC60068-2-64
	EMC	CE/FCC Class A, EN 50121-3-2, E-mark (E13 No. 10R-0615566)
	Safety	LVD (EN62368-1)
	MTBF	331,596 Hours Database: Telcordia SR-332 Issue 3, Method 1, Case 3

Processor Type	Intel Celeron, Intel Core, Intel Pentium, Intel Xeon
Memory Capacity	Up to 64GB
Cooling Type	Fanless
Serial Ports (COM)	4x RS-232/422/485, 4 Ports
USB Ports	8x USB 3.2
Ethernet Ports (LAN)	2x 1G
Power Over Ethernet (PoE)	PoE Ports
Wireless	Cellular, Wi-Fi
Video Ports	1x HDMI, 1x DVI, 1x DisplayPort, DisplayPort, DVI
Digital I/O	16 DIO
Audio	Yes
Storage Type	1, 2x 2.5", 2.5", 3, 6, PCIe
Expansion Type	3x Mini PCI Express
Input Voltage	9-48 VDC
Mounting Options	DIN-mount, VESA-mount, Wall-mount
Operating Temperature	-40°C to 55°C, -40°C to 60°C, -40°C to 70°C
Market Certifications	CE/FCC, E-Mark
OS Support	Windows 10

Warranty & Service Information for Cincoze Products (United States)

We offer a comprehensive 2 year warranty on all Cinzone products sold and distributed within the USA when purchased directly from Assured Systems. We are proud to be an official Cinzone partner and can distribute products with secure and certified delivery directly from our US centre.
