Cincoze DS-1302 10th Gen Intel Xeon/Core Expandable Rugged PC with 2x PCI/PCIe
DS-1302
- 10-core 10th-gen Intel Xeon and Core i9/i7/i5/i3 CPU (max 80 W TDP)
- 2x GbE LAN and optional 2x 10GbE LAN
- 2x 2.5″ SATA storage, 3x mSATA sockets, 1x M.2 key M for NVMe SSD
- 2x PCI/PCIe expansion slots
- 3x full-size Mini PCIe sockets, 2x SIM card slots
- Optional CMI modules for I/O expansion
- Optional CFM modules for ignition sensing & PoE
- Wide operating temperature -40°C to 70°C
- MIL-STD-810G military standard and EN50155 (EN 50121-3-2 only)
DS-1302
Certified, Certified Computers, Cincoze, Embedded Box PCs, Expandable Computer Systems, Fanless Industrial PCs, In Vehicle Computers, Rugged Computers, Transportation
Details
The DS-1302 is a powerful embedded computer and brings unrivalled performance. It has versatile functionalities and rich industrial I/O. And most importantly, it has dual PCI/PCIe expansion capability. Equipped with Cincoze’s CMI, CFM, MEC modular expansion, customization for additional I/O or other functionality to fulfill different applications couldn’t be easier. The DS-1302 meets the requirements of industrial environments and is certified with industry standards. It delivers ultimate and reliable performance for factory automation, industrial automation and rolling stock applications.
10-Core, Up To 80W CPU
The DS-1300 series, powered by a workstation-grade 10th-gen Intel Xeon or Core i9/i7/i5/i3 CPU with up to 10-core architecture, provides superior processing performance. The DS-1300 supports Xeon CPU up to 80 W TDP. It incorporates DDR4 2933/2666 MHz memory up to 64 GB, delivering unparalleled performance in a rugged, fanless system.

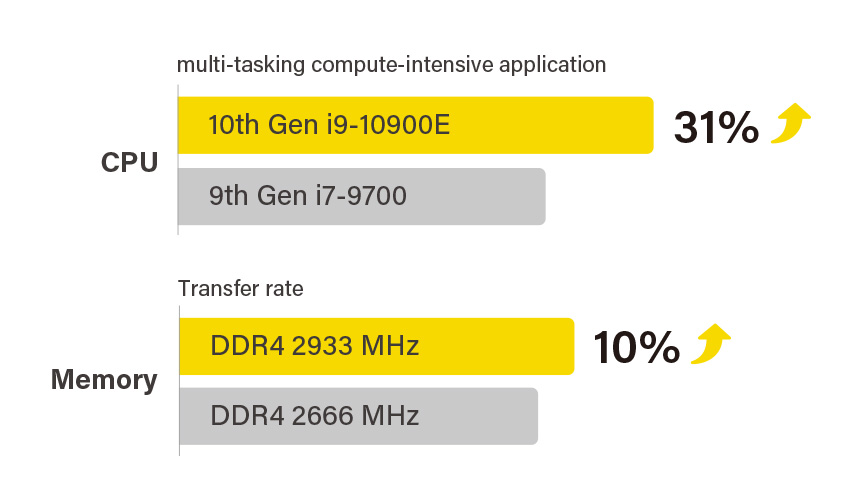

More Powerful & Faster Multiplies Productivity
The DS-1300 series's 10th-gen CPU brings to 31% better integer multi-tasking for compute-intensive application performance than 9th-gen CPUs*. DDR4 2933 MHz memory further increases speed by 10%**. The processing platform delivers the performance required to consolidate multiple workloads for intelligent devices and applications.
* 31% increase for 10th-gen i9-10900E 65W vs 9th-gen i7-9700 65W CPU** 10% increase for 2933 MHz of DS-1300 vs 2666 MHz of DS-1200.

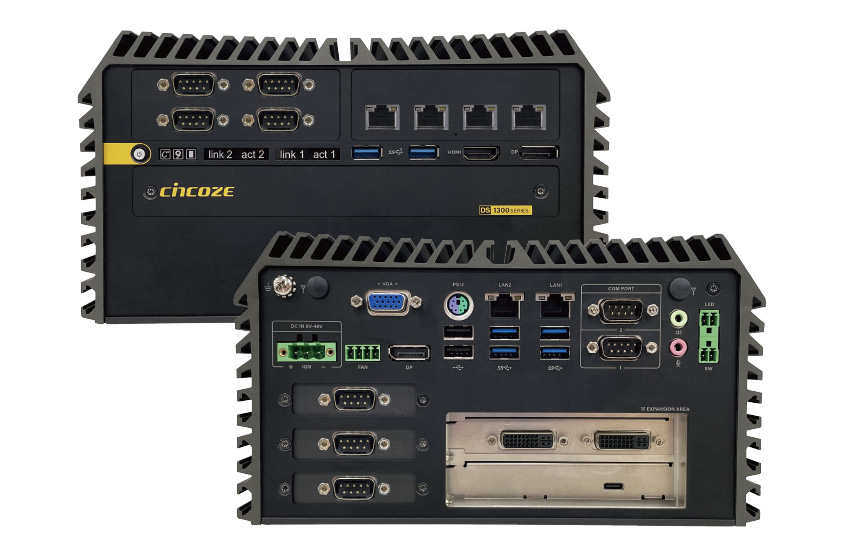

Industrial I/O and Modular Expansion
The DS-1300 series offers a vast array of industrial-focused I/O including up to 2x GbE LAN, 6x USB 3.2, and 2x USB 2.0, 2x RS232/422/485, 2x 2.5" SATA, 3x mSATA, 1x M.2 key M for NVMe SSD, 2x SIM card slots, 3x full-size Mini-PCIe and triple independent displays (DisplayPort, HDMI, VGA). It also features modular expansion through Cincoze’s CMI/CFM modules, adding additional I/O or other functionality such as high-speed 10GbE LAN, PoE, and ignition sensing.

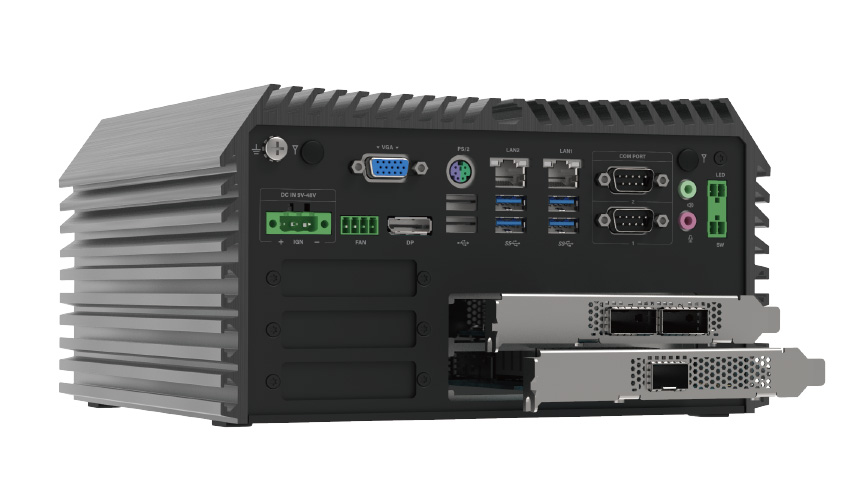

PCI/PCIe Add-on Cards
DS-1302 can accommodate dual PCI/PCIe add-on cards up to 110 mm x 237 mm (combined max 110 W). Flexible PCI/PCIe expansion allows the addition of I/O, GPU, image capture, data acquisition, and motion control cards for specific applications.

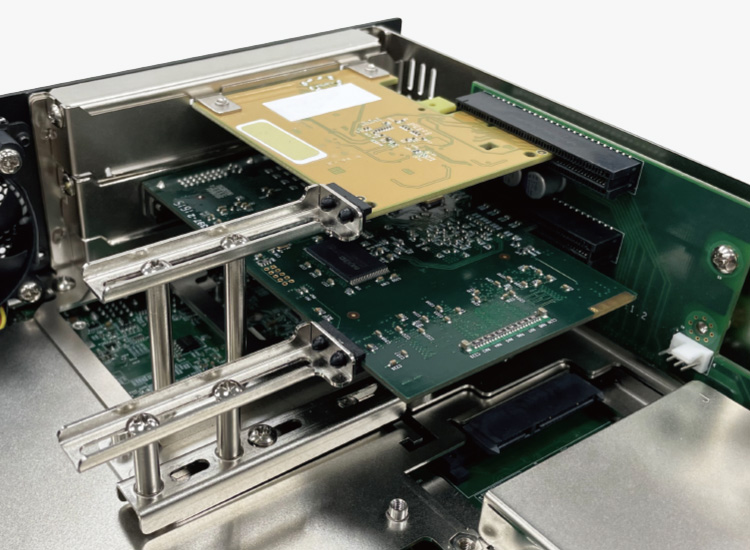

Adjustable PCIe Card Retainer
The PCI/PCIe expansion slots include two adjustable card retainers that firmly secure the PCI/PCIe add-on cards. The retainer is a cool feature that provides the extra protection needed to prevent add-on cards from shaking loose in high-vibration environments like rolling stock.

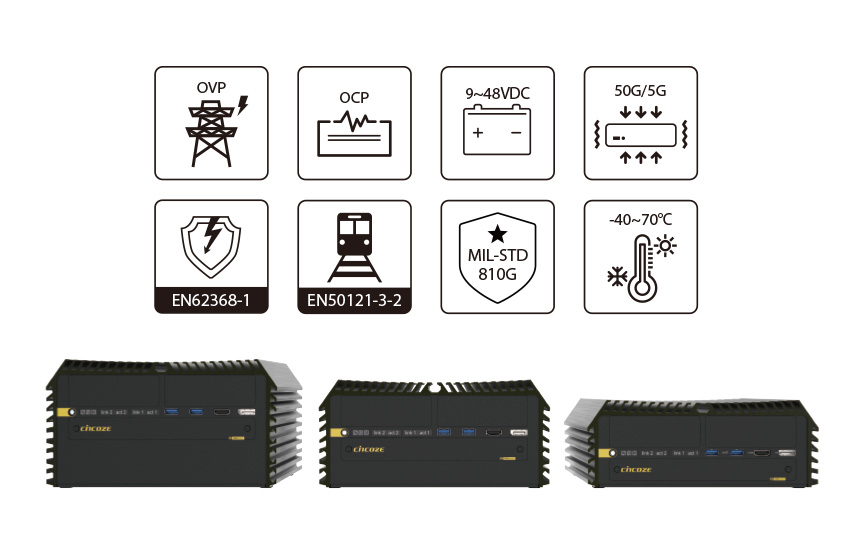

Rugged Reliability Against Rigorous Environments
The DS-1300 series's fanless and cableless industrial-grade design can withstand rigorous environments. Its unique thermal design supports an extended operating temperature range from -40°C to 70°C. It has also passed stringent industry standards, including MIL-STD-810G military standard and EN50155 (EN 50121-3-2 only) for rolling stock environments.
Ordering Info
| Package Checklist | |
| √ DS-1302 Embedded System x1 | √ Heatsink Pack x1 |
| √ Utility DVD Driver x1 | √ Screw Pack x1 |
| √ Wall Mount Kit x1 | √ Power Terminal Block Connector x1 |
| √ Remote Function Terminal Block Connector x 2 | √ Fan Terminal Block Connector x 1 |
| Optional I/O Modules | |
| Model No. | Description |
| CMI-LAN01-R12/ UB1012 | CMI Module with 4x Intel I210 GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout |
| CMI-M12LAN01-R12 /UB1010 | CMI Module with M12 Connector, 4x Intel GbE LAN / 1x Universal Bracket with 4x M12 Cutout |
| CMI-10GLAN03-R10/UB1028 | CMI Module with 2x Intel X550 10GbE LAN, RJ45 Port / 1x Universal Bracket with 2x RJ45 Cutout |
| CMI-COM02/UB1004 | CMI Module with 4x RS232/422/485 Ports (Support 5V/12V) / 1x Universal Bracket with 4x DB9 Cutout |
| CMI-ICOM01/UB1004 | CMI Module with 4x Isolated RS232 Ports (Support 5V/12V) / 1x Universal Bracket with 4x DB9 Cutout |
| CMI-DIO02/UB1018 | CMI Module with 16DIO (8in 8out) / 1x Universal Bracket with DIO Cutout |
| MEC-COM-M212-DB9 /UB0303 | Mini-PCIe Module with 2x RS-232 Ports, 1x Standard DB9 Cable / 2x Universal Bracket each with 1x DB9 Cutout |
| MEC-USB-M102-15 /UB0314 | Mini-PCIe Module with 2x USB 3.0 Ports, 1x 15cm cable / 1xUniversal Bracket with 2x USB Cutout |
| MEC-LAN-M002-30 /UB0311 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout |
| Optional I/O Modules | |
| Model No. | Description |
| CMI-LAN01-R12/ UB1012 | CMI Module with 4x Intel I210 GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout |
| CMI-M12LAN01-R12 /UB1010 | CMI Module with M12 Connector, 4x Intel GbE LAN / 1x Universal Bracket with 4x M12 Cutout |
| CMI-10GLAN03-R10/UB1028 | CMI Module with 2x Intel X550 10GbE LAN, RJ45 Port / 1x Universal Bracket with 2x RJ45 Cutout |
| CMI-COM02/UB1004 | CMI Module with 4x RS232/422/485 Ports (Support 5V/12V) / 1x Universal Bracket with 4x DB9 Cutout |
| CMI-ICOM01/UB1004 | CMI Module with 4x Isolated RS232 Ports (Support 5V/12V) / 1x Universal Bracket with 4x DB9 Cutout |
| CMI-DIO02/UB1018 | CMI Module with 16DIO (8in 8out) / 1x Universal Bracket with DIO Cutout |
| MEC-COM-M212-DB9 /UB0303 | Mini-PCIe Module with 2x RS-232 Ports, 1x Standard DB9 Cable / 2x Universal Bracket each with 1x DB9 Cutout |
| MEC-USB-M102-15 /UB0314 | Mini-PCIe Module with 2x USB 3.0 Ports, 1x 15cm cable / 1xUniversal Bracket with 2x USB Cutout |
| MEC-LAN-M002-30 /UB0311 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout |
| Optional Function Modules | |
| Model No. | Description |
| CFM-PoE03 | CFM Module with PoE Function, Individual Port 25.5W |
| CFM-IGN101 | CFM Module with Power Ignition Sensing Function, 12V/24V Selectable |
| Optional Riser Cards | |
| Model No. | Description |
| RC-E8E8-01 | Riser Card with 2 x PCIex8 Slots |
| RC-E16E1-01 | Riser Card with 1x PCIex16 and 1x PCIex1 Slots |
| RC-E16PI-01 | Riser Card with 1x PCIex16 and 1x PCI Slots |
| RC-PIPI-01 | Riser Card with 2x PCI Slots |
| Optional Accessories | |
| Model No. | Description |
| FAN-EX101 | External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support Smart Fan |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI |
Downloads
Assured Systems Datasheet (PDF)
A PDF edition of this page with supporting manufacturer datasheets
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| Processor | Intel Xeon Series Processor ( 80W / 35W ): • Intel Xeon W-1270E 8 Cores Up to 4.8 GHz, TDP 80W • Intel Xeon W-1250E 6 Cores Up to 4.7 GHz, TDP 80W • Intel Xeon W-1290TE 10 Cores Up to 4.5 GHz, TDP 35W • Intel Xeon W-1270TE 8 Cores Up to 4.4 GHz, TDP 35W • Intel Xeon W-1250TE 6 Cores Up to 3.8 GHz, TDP 35W Intel Core Series Processor ( 65W / 35W ): • Intel Core i9-10900E 10 Cores Up to 4.7 GHz, TDP 65W • Intel Core i7-10700E 8 Cores Up to 4.5 GHz, TDP 65W • Intel Core i5-10500E 6 Cores Up to 4.2 GHz, TDP 65W • Intel Core i3-10100E 4 Cores Up to 3.8 GHz, TDP 65W • Intel Core i9-10900TE 10 Cores Up to 4.5 GHz, TDP 35W • Intel Core i7-10700TE 8 Cores Up to 4.5 GHz, TDP 35W • Intel Core i5-10500TE 6 Cores Up to 3.7 GHz, TDP 35W • Intel Core i3-10100TE 4 Cores Up to 3.6 GHz, TDP 35W Intel Pentium Series Processor ( 58W / 35W ): • Intel Pentium G6400E 2 Cores Up to 3.8 GHz, TDP 58W • Intel Pentium G6400TE 2 Cores Up to 3.2 GHz, TDP 35W • Intel Celeron Series Processor ( 58W / 35W ): • Intel Celeron G5900E 2 Cores Up to 3.2 GHz, TDP 58W • Intel Celeron G5900TE 2 Cores Up to 3.0 GHz, TDP 35W] |
| Chipset | Intel® W480E Chipset |
| Memory | • 2x DDR4 SO-DIMM Socket, Support Up to 64GB ( Un-buffered and non-ECC) • Xeon / i9 / i7 Processor Supports Up to 2933MHz • i5 / i3 Processor Supports Up to 2666 MHz • Pentium / Celeron Processor Supports Up to 2400MHz |
| BIOS | AMI BIOS |
| Graphics Engine | Integrated Intel UHD-630 Graphics |
| Maximum Display Output | Supports Triple Independent Display |
| HDMI | 1 x HDMI Connector (4096 x 2160@30Hz) |
| DP | 2 x DisplayPort Connector (4096 x 2340@60Hz) |
| VGA | 1 x VGA Connector (1920 x 1200 @60Hz) |
| Audio Codec | Realtek ALC888, High Definition Audio |
| Line-out | 1 x Line-out, Phone Jack 3.5mm |
| Mic-in | 1 x Mic-in, Phone Jack 3.5mm |
| LAN | • 2 x GbE LAN, RJ45 – GbE1: Intel I219 – GbE2: Intel I210 |
| COM | 2 x RS-232/422/485 with Auto Flow Control ( Supports 5V / 12V ), DB9 |
| USB | • 2 x 10Gbps USB 3.2 Gen2, Type A • 4 x 5Gbps USB 3.2 Gen1, Type A • 2 x 480Mbps USB 2.0, Type A |
| PS/2 | 1 x PS/2, 6 Pin Mini-DIN Female Connector |
| SSD/HDD | • 1x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA 3.0 ) • 1x 2.5” Internal SATA HDD/SSD Bay ( SATA 3.0 ) |
| mSATA | 3x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket ) |
| M.2 SSD | 1x M.2 Key M Type 2280 Socket, Support PCIe x4 NVMe SSD or SATA SSD ( SATA 3.0 ) |
| RAID | Support RAID 0/1/5/10 |
| PCI Express | • 2 x PCI/PCIe Expansion Slot with Optional Riser Card * Supports maximum dimensions of add-on card (H x L): 110 x 237 mm |
| Mini PCI Express | 3 x Full-size Mini-PCIe Socket |
| SIM Socket | 2 x SIM Socket |
| CMI (Combined Multiple I/O) Interface | • 2 x High Speed CMI Interface for optional CMI Module Expansion • 2 x Low Speed CMI Interface for optional CMI Module Expansion |
| CFM (Control Function Module) Interface | 1 x CFM IGN Interface for optional CFM-IGN Module Expansion |
| External FAN Connector | 1 x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS) |
| Power Ignition Sensing | Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module) |
| Clear CMOS Switch | 1 x Clear CMOS Switch |
| Rest Button | 1 x Rest Button |
| Instant Reboot | Support 0.2sec Instant Reboot Technology |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset |
| Power Button | 1 x ATX Power On/Off Button |
| Power Mode Switch | 1 x AT/ATX Mode Switch |
| Power Input | 9 – 48VDC, 3-pin Terminal Block |
| Remote Power On/Off | 1 x Remote Power On/Off, 2-pin Terminal Block |
| Remote Power LED | 1 x Remote Power LED, 2-pin Terminal Block |
| Total Power Budget | 180W |
| Dimension ( W x D x H ) | 227 x 261 x 128 mm |
| Weight Information | 5.4 KG |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting | Wall Mount |
| Physical Design | • Fanless Design • Cableless Design • Jumper-less Design • Unibody Design |
| Reverse Power Input Protection | Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover |
| Over Current Protection | 15A |
| Surge Protection | 3.84 kV (impedance 12 ohm 1.2/50us waveform) |
| CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation |
| MTBF | • 371,393 Hours – Database: Telcordia SR-332 Issue 3, Method 1, Case 3 |
| Windows | Windows 10 |
| Linux | Supports by project |
| Operating Temperature | • 35W TDP Processor: -40°C to 70°C • 58W – 65W TDP Processor: -40~50°C (With External Fan Kit) • 80W TDP Processor: -40~40°C (With External Fan Kit) * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 95%RH @ 70°C (non-Condensing) |
| Shock | MIL-STD-810G |
| Vibration | MIL-STD-810G |
| EMC | CE, FCC, ICES-003 Class A, EN50121-3-2 (Railway) |
| Safety | IEC/EN 62368-1 |
| Processor Type | Intel Pentium, up to 2 Cores, Intel Celeron, up to 2 Cores, Intel Core, up to 10 Cores, Intel Xeon, up to 10 Cores |
|---|---|
| Memory Capacity | Up to 64GB |
| Cooling Type | Fanless |
| Serial Ports (COM) | 2x RS-232/422/485 |
| USB Ports | 2x USB 2.0, 6x USB 3.2 |
| Ethernet Ports (LAN) | 2x 1G |
| Power Over Ethernet (PoE) | PoE Ports |
| Wireless | Cellular, Wi-Fi |
| Video Ports | 1x VGA, 1x HDMI, 2x DisplayPort |
| Audio | Yes |
| Storage Type | 1x M.2 PCIe, 2x 2.5", 3x mSATA |
| Expansion Type | 2x PCI, 2x PCI Express, 3x Mini PCI Express, 5 |
| Input Voltage | 9-48 VDC |
| Mounting Options | Wall-mount |
| Operating Temperature | Extra-Wide OT: -40°C to 40°C, Extra-Wide OT: -40°C to 50°C, Extra-Wide OT: -40°C to 70°C |
| Market Certifications | CE/FCC, MIL-STD |
| OS Support | Windows 10 |
