ViTAM-119

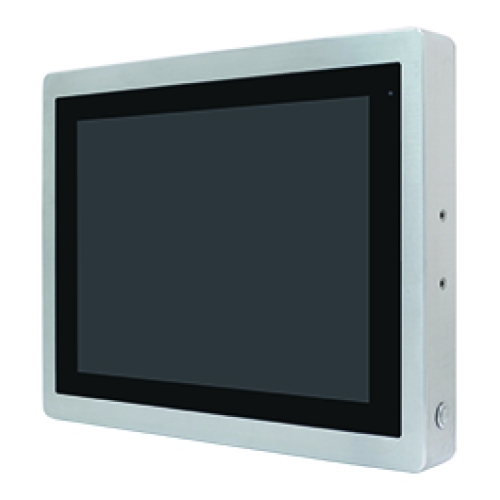

Aplex Technology ViTAM-119 19″ TFT-LCD IP66/IP69K Stainless Steel Display

ViTAM-119

19" TFT-LCD IP66/IP69K Waterproof Stainless Steel Monitor with Optional High Bright Display, PCAP Touch Screen and HDMI Input (1280×1024)

  • 19″ TFT-LCD Projected Capacitive Touch.
  • True Flat Front Bezel and Grade 304 Stainless Steel Enclosure (Grade 316 for Option).
  • IP66/IP69K Rated with M12 Connectors.
  • Touch on/off Button on the Side Edge for Hygienic Cleaning.
  • Support Ergonomic Versatile Mounting: Yoke Mounting / Space-saving VESA 100 x 100 mm Mounting
-
+

Details

The Aplex Technology ViTAM-119 is a 19" TFT-LCD New Generation Display with a true flat front bezel design and grade 304 stainless steel enclosure. This Stainless Steel Display comes with Projective Capacitive Touch, Resistive Touch, Anti-Reflection Coating Glass and High Brightness options.

Ordering Info

ViTAM119P P-CAP Touch
ViTAM119R Resitive Touch
ViTAM119G Anti-Reflection Coating Glass
ViTAM119PH P-CAP Touch/High Brightness
ViTAM119RH Resitive Touch/High Brightness
ViTAM119GH Anti-Reflection Coating Glass/High Brightness

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

VGA 1 x M12 VGA by 12-pin cable with waterproof cap
HDMI 1 x waterproof HDMI with with waterproof cap
OSD Control Membrane  OSD on the rear side
Others 1 x M12 for USB touch with waterproof cap
Power 1 x Power input, 1 x Touch on/off button on the side
LCD Size 19″ TFT-LCD
Max. resolution 1280 x 1024
Max. color 16.7M
Luminance(cd/m²) 350
Viewangle(H°/V°) 170/165
Contrast 1000:1
Backlight lifetime(hrs) 50000
Interface  USB
Light transmission(%)  Over 90%
Power input 9~36V DC
Construction Stainless steel enclosure
IP rating IP66/IP69K
Mounting VESA 75 x 75, Yoke mount
Dimension(mm) 470 x 388.6 x 60
Net weight(Kgs) 8.8 Kg
Operating temperature(°C) 0~50°C (-20~60°C option)
Storage temperature(°C) -30~70°C
Storage humidity 10 to 90% @ 40°C, non- condensing
Certification CE / FCC CLASS A
Video Ports >>> 1 Port
Screen Size 11" to 20", 19"
Touch Technology Projected Capactive, Resistive
Ingress Protection IP66, IP69K
Stainless Steel Yes
Brightness 1000nit, 350nit, High, Standard
