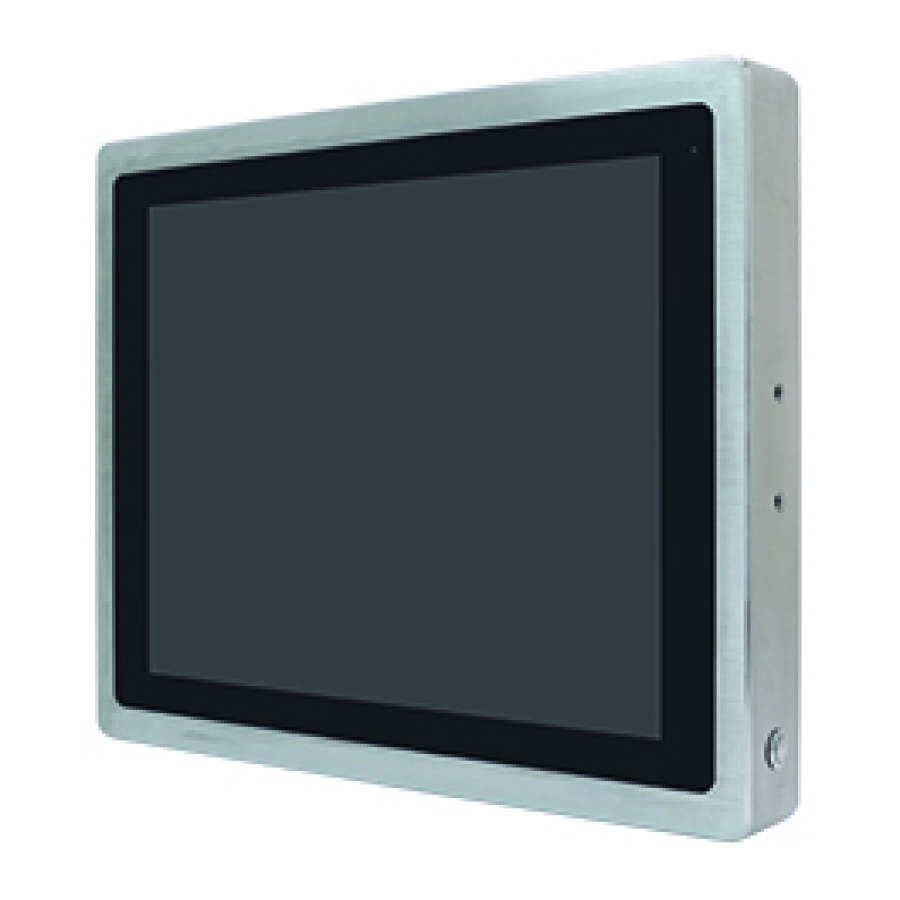

Aplex Technology ViTAM-117 17″ TFT-LCD IP66/IP69K Stainless Steel Display
Aplex Technology ViTAM-117 17″ TFT-LCD IP66/IP69K Stainless Steel Display
ViTAM-117
17" TFT-LCD IP66/IP69K Waterproof Stainless Steel Monitor with Optional High Bright Display, PCAP Touch Screen and HDMI Input (1280×1024)
- 17″ TFT-LCD Projected Capacitive Touch.
- True Flat Front Bezel and Grade 304 Stainless Steel Enclosure (Grade 316 for Option).
- IP66/IP69K Rated with M12 Connectors.
- Touch on/off Button on the Side Edge for Hygienic Cleaning.
- Support Ergonomic Versatile Mounting: Yoke Mounting / Space-saving VESA 75 x 75 mm Mounting
Details
The Aplex Technology ViTAM-117 is a 17″ TFT-LCD New Generation Display with a true flat front bezel design and grade 304 stainless steel enclosure. This Stainless Steel Display comes with Projective Capacitive Touch, Resistive Touch, Anti-Reflection Coating Glass and High Brightness options.
Ordering Info
| ViTAM117P | P-CAP Touch |
| ViTAM117R | Resitive Touch |
| ViTAM117G | Anti-Reflection Coating Glass |
| ViTAM117PH | P-CAP Touch/High Brightness |
| ViTAM117RH | Resitive Touch/High Brightness |
| ViTAM117GH | Anti-Reflection Coating Glass/High Brightness |
Downloads
Assured Systems Datasheet (PDF)
A PDF edition of this page with supporting manufacturer datasheets
System Integration
Please ask about how we can configure your solution
Global Operations
We ship and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| VGA | 1 x M12 VGA by 12-pin cable with waterproof cap |
| HDMI | 1 x waterproof HDMI with with waterproof cap |
| OSD Control Membrane | OSD on the rear side |
| Others | 1 x M12 for USB touch with waterproof cap |
| Power | 1 x Power input, 1 x Touch on/off button on the side |
| LCD Size | 17″ TFT-LCD |
| Max. resolution | 1280 x 1024 |
| Max. color | 16.7M |
| Luminance(cd/m²) | 350 |
| Viewangle(H°/V°) | 170/170 |
| Contrast | 1000:1 |
| Backlight lifetime(hrs) | 50000 |
| Interface | USB |
| Light transmission(%) | Over 90% |
| Power input | 9~36V DC |
| Construction | Stainless steel enclosure |
| IP rating | IP66/IP69K |
| Mounting | VESA 75 x 75, Yoke mount |
| Dimension(mm) | 432 x 358 x 55.3 |
| Net weight(Kgs) | 7.5 Kg |
| Operating temperature(°C) | 0~50°C (-20~60°C option) |
| Storage temperature(°C) | -30~70°C |
| Storage humidity | 10 to 90% @ 40°C, non- condensing |
| Certification | CE / FCC CLASS A |
| Screen Size | 17" |
|---|
Warranty & Service Information for Aplex Technology Products (United States)
All Apex Technology products, including customized hardware, purchased from Assured Systems in the USA comes with a 2 year warranty as standard. Warranties can be extended upon request, please contact our team for further information.
