8 Port EN50155 Industrial PoE Unmanaged Ethernet Switch
8 Port EN50155 Industrial PoE Unmanaged Ethernet Switch
LNP-800-M12-T
- Brand: Antaira
- 4 x 10/100Tx PoE ports plus 4 x 10/100Tx ports
- M12 connectors on all ports
- EN50155 certified
- Extended operating temperature -40° ~ 75° C
- Size: 92mm x 180mm x 42mm
Details
The LNP-800-M12-T Ethernet switch provides 8 fast Ethernet M12 ports with 4 IEEE 802.3af compliant PoE (Power-over-Ethernet) ports. The switches are classified as power source equipment (PSE) and provide up to 15.4 watts of power per port. Compliant with EN50155/50121-3-2/50121-4 this ethernet switch is perfect for rail applications as well as industrial projects in harsh environments.

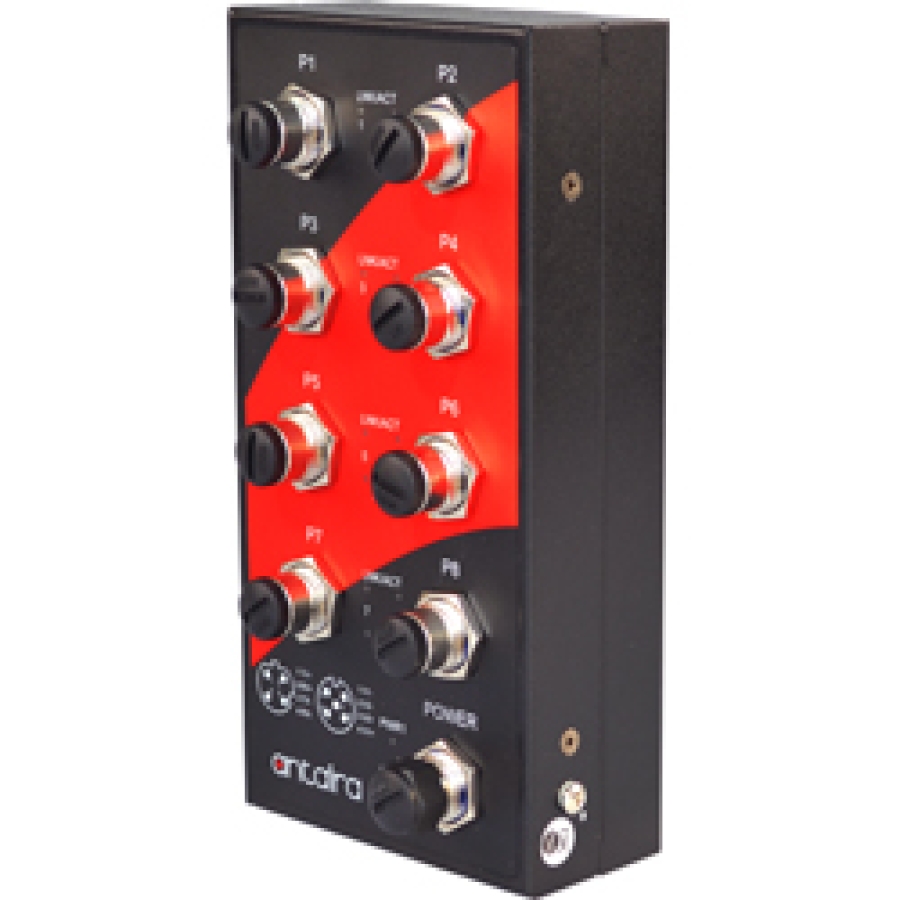

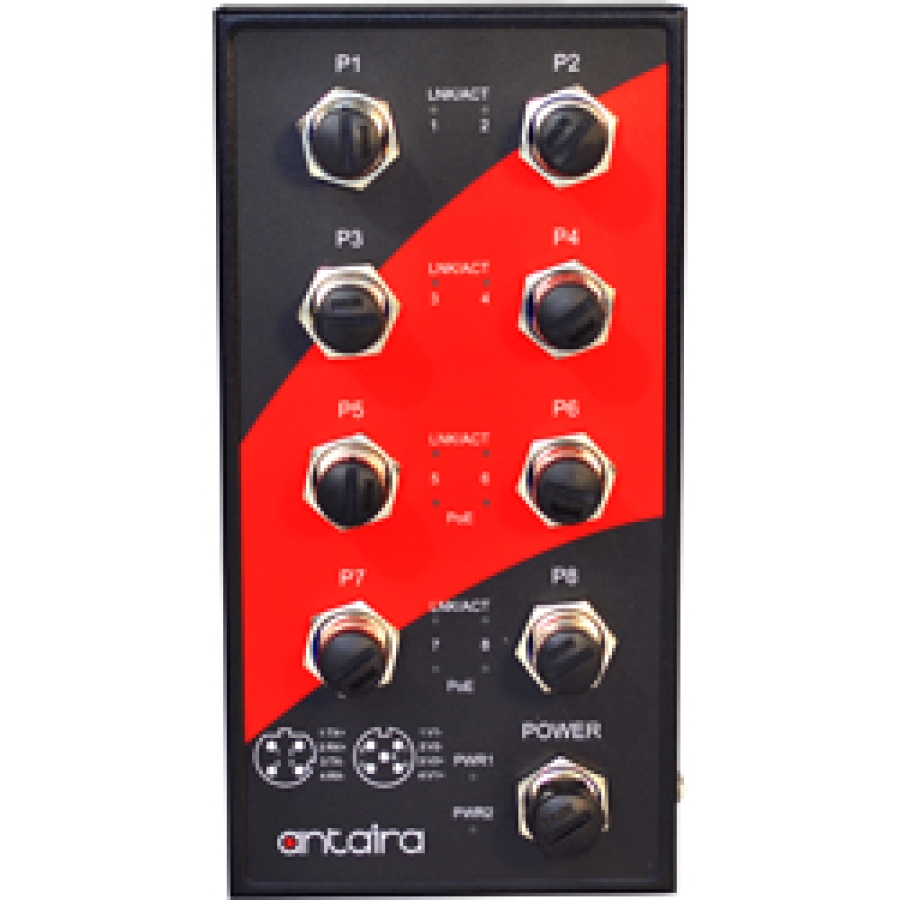

The LNP-800-M12-T features a wide operating temperature of -40° to 75° C with M12 connectors ensuring a tight, robust connection, guaranteeing reliable operation on applications that are subject to high vibration and shock.
Ordering Info
- LNP-800-M12-T – 8 Port EN50155 Industrial PoE Unmanaged Ethernet Switch
Downloads
Assured Systems Datasheet (PDF)
A PDF edition of this page with supporting manufacturer datasheets
System Integration
Please ask about how we can configure your solution
Global Operations
We ship and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
- Back Plane: 1.6Gbps
- Buffer: 448Kbits
- Dimensions: 92 x 180 x 42 mm (3.62 x 7.09 x 1.65 in.)
- EMI
- FCC Class A
- CE EN61000-6-2
- CE EN61000-6-4
- CE EN61000-4-2
- CE EN61000-4-3
- CE EN61000-4-4
- CE EN61000-4-5
- CE EN61000-4-6
- CE EN61000-4-8
- Ethernet Port: 8 x M12, 4-pole D-coded, Female with Auto MDI/MDI-X Function
- Flow Control:
- Flow Control for Full-Duplex
- Back Pressure for Half-Duplex
- Free Fall: IEC 60068-2-32
- Humidity: 5% ~ 95% non-condensing
- IEEE:
- IEEE 802.3 10BaseT Ethernet
- IEEE 802.3u 100BaseTX / 100BaseFX
- IEEE 802.3x Flow Control and Back-Pressure
- IEEE 802.3af Power over Ethernet (PoE)
- LED: Unit: Power 1, Power 2
- Ethernet Port: Link/Activity, PoE
- Mac Address Table: 2K MAC Address Table
- Method: Store and Forward
- Operating Temperature: -40° C to 75° C (-40° F to 167° F)
- Power Consumption: 72 Watts Max. @ 24VDC
- Power Input: DC 24 ~ 48V, Redundant Power Inputs
- Power Output: 15.4 Watts (per PoE Port)
- Power Over Ethernet: Yes, 4 x IEEE 802.3af (PSE) Compliant PoE Ports
- Power Redundancy: Yes
- Protocols: CSMA/CD
- Rail Train:
- EN50155
- EN50121-3-2
- EN50121-4
- Reverse Polarity: Yes
- Safety: UL, cUL 60950
- Shock: IEC 61373
- Storage Temperature: -40° ~ 85° C
- Transfer Rate:
- 14,880pps for Ethernet Port
- 148,800pps for Fast Ethernet Port
- Vibration: IEC 61373
- Warranty: 5 Years
