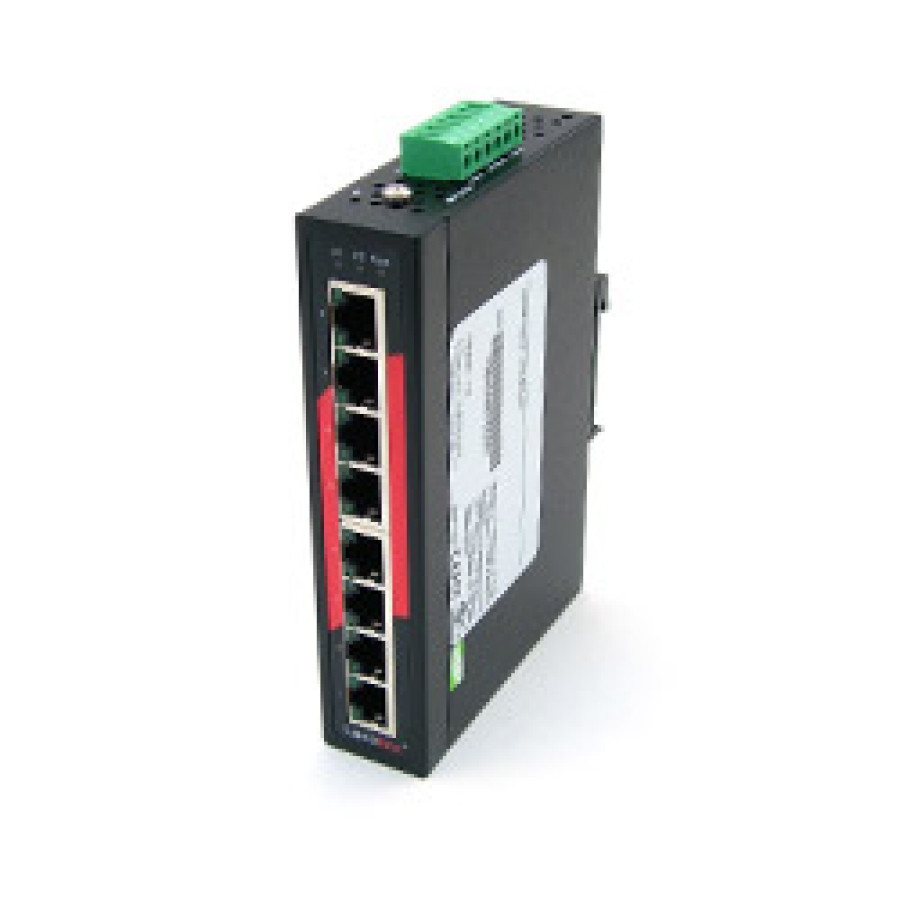

8 Port 10/100/1000TX Industrial Ethernet Switch Unmanaged
8 Port 10/100/1000TX Industrial Ethernet Switch Unmanaged
LNX-800AG Price: $POA
- Brand: Antaira
- 8 x 10/100/1000TX Ports
- Class 1 Division 2 certified
- Wide DC power input (12 – 48VDC)
- Wide Operating Temperature -10° ~ 70° C

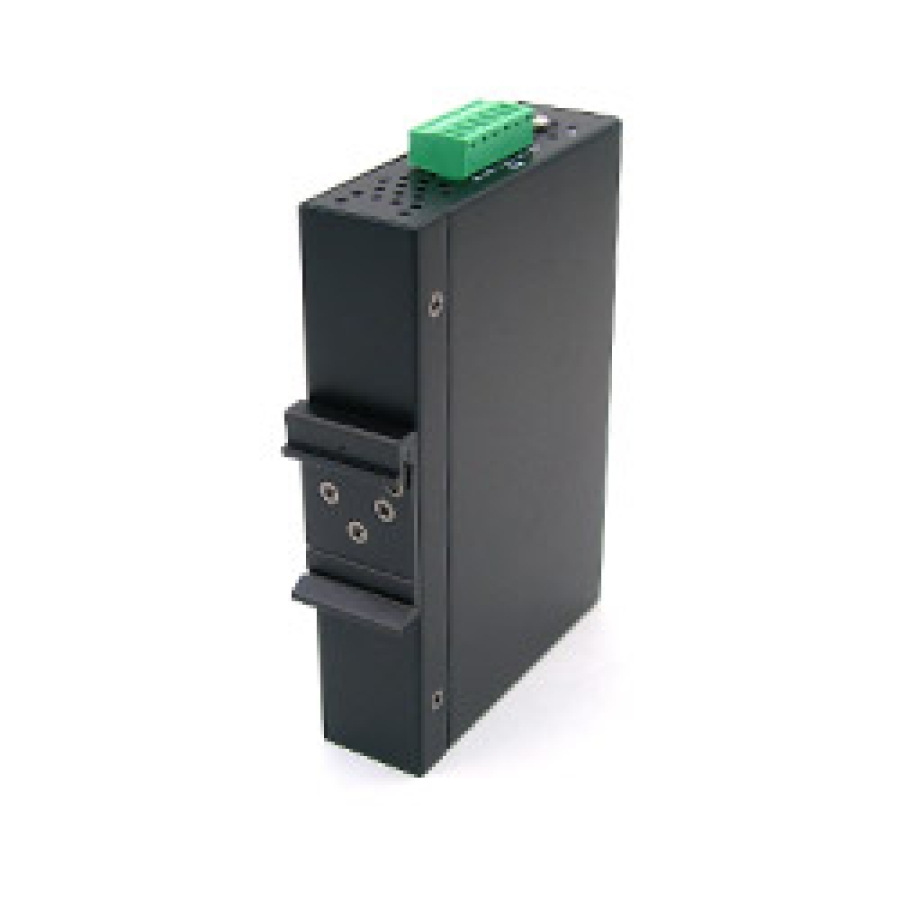

- DIN-rail ready
- Size: 30mm x 140mm x 95mm
For more information please click “Add to Inquiry”. Alternatively you can contact our US sales team on +1 347 719 4508.
LNX-800AG
Assured Systems USA
Antaira, Industrial Ethernet Switches, Industrial Ethernet/Wireless
USD
Details
8-Port 10/100/1000Tx Industrial Gigabit Unmanaged Ethernet Switch.
Ordering Info
- LNX-800AG – 8 Port 10/100/1000TX Industrial Ethernet Switch
Downloads
Assured Systems Datasheet (PDF)
A PDF edition of this page with supporting manufacturer datasheets
System Integration
Please ask about how we can configure your solution
Global Operations
We ship and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
- Ambient Relative Humidity: 5% ~ 95% non-condensing
- Certifications: FCC, CE, UL Class 1 Div. 2, UL 61010-1, UL 61010-2-201, Class 1 Div 2
- Dimensions: 30 x 140 x 95 mm
- EMS: EN61000-4-2,3,4,5,6,8 / EN61000-6-2,4
- Flow Control: IEEE 802.3x back pressure flow control
- Free Fall: IEC 60068-2-32
- Housing: Metal, IP30 protection
- Input Voltage: 12 ~ 48 VDC, Redundant Input
- Jumbo Frame: 9.6Kbytes
- Operating Temperature: -10° ~ 70°C
- Overload Current Protection: Present
- Power Connection: 1 removable 6-contact terminal block
- Power Consumption: 7.5 Watts
- Processing Type: Store and Forward
- Protocols: CSMA/CD
- Reverse Polarity Protection: Yes
- Shock: IEC 60068-2-27
- Standards:
- IEEE 802.3 10BaseTx Ethernet
- IEEE 802.3u 100BaseTx Fast Ethernet
- IEEE 802.3az Gigabit Fiber
- Storage Temperature: -40° ~ 85°C
- Switching Architecture: Back-Plane (Switching Fabric): 16Gbps
- Vibration: IEC 60068-2-6
- Warranty: 5 Years
- WeightUnit Weight: 1-lbs. Shipping Weight: 1.5 lbs
