8 Port 10/100/1000Tx PoE+ Unmanaged Ethernet Switch Ext Temp

8 Port 10/100/1000Tx PoE+ Unmanaged Ethernet Switch Ext Temp


  • Brand: Antaira
  • 8 x PoE+ 10/100/1000TX Ports
  • Class 1 Division 2 certified
  • 24VDC Relay output
  • Extended operating temperature -40° ~ 75° C
  • DIN-rail ready
  • Size: 41mm x 144.3mm x 94.9mm

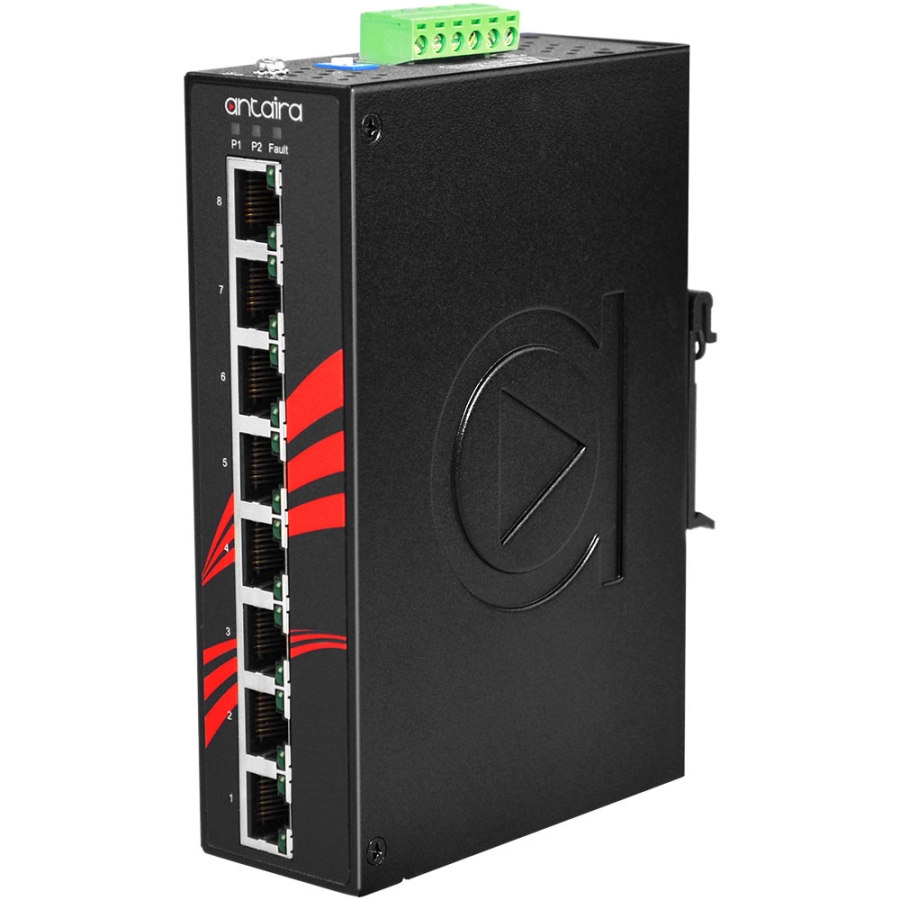

The LNP-800AGH-24-T is an unmanaged PoE Ethernet switch with P.S.E. function and a relay output of 24VDC at 1A. The switch supports PoE+ and wide-range 12~36VDC power inputs which generates up to 30W P.S.E. power output per port plus an extended operating temperature of between -40° ~ 75° C.

The LNP-800AGH-24-T switch has 8 X 10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE setup.

Ordering Info

  • LNP-800AGH-24-T – 8 Port 10/100/1000Tx PoE+ Unmanaged Ethernet Switch


Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?


  • Certifications: FCC, CE, UL/cUL 508, ISA 12.12.01, Class 1 Div 2
  • Dimensions: 41.0 x 94.9 x 144.3 mm (1.61 x 3.74 x 5.68 inches)
  • EMI: FCC Part 15, CISPR (EN55022) Class A, E-MARK, CE-EN6100-4-2/3/4/5/6/8/11
  • Ethernet Port: 8 x 10/100/1000BaseT(X) Ports in RJ45 Auto MDI/MDIX with PSE
  • Fault Output: Realy Output to Carry Capacity of 1A @ 24VDC
  • Flow Control:
    • Flow Control for Full-Duplex
    • Back Pressure for Half-Duplex
  • Free Fall / Shock / Vibration: IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
  • Gigabit Ethernet Port: Yes
  • Humidity: 5% ~ 95% non-condensing
  • IEEE:
    • IEEE 802.3 for 10BaseT
    • IEEE 802.3u for 100BaseT(X)
    • IEEE 802.3ab for 1000BaseT
    • IEEE 802.3x for Flow Control
    • IEEE 802.3at PoE Specification (Up to 30 Watts per Port for PSE)
  • LED: Power, Fault, 10/100/1000T(X) RJ45 Port and POE
  • Mac Address Table: 2048 MAC Addresses
  • Method: Store and Forward
  • Operating Temperature: -40° ~ 75° C
  • Overload Current: Yes
  • Power Consumption: 7.8 Watts (Power Device Not Included)
  • Power Input: Dual DC Inputs, 12~36VDC on 6-Pin Terminal Block
  • Power Output:
    • Up to 30 Watts per PoE port
    • @12VDC for 90W PoE Power Budget
    • @24-36VDC for 200W PoE Power Budget
  • Power Over Ethernet: RJ-45 Ports 1 – 8 Supports IEEE 802.3at Standard up to 30 Watts per Port
  • Power Redundancy: Yes
  • Protocols: CSMA/CD
  • Reverse Polarity: No
  • Storage Temperature: -40° ~ 85° C (-40° ~ 185° F)
  • Transfer Rate:
    • 14,880pps for Ethernet Port
    • 148,800pps for Fast Ethernet Port
    • 1,488,000pps for Gigabit Ethernet Port
  • Warranty: 5 Years
