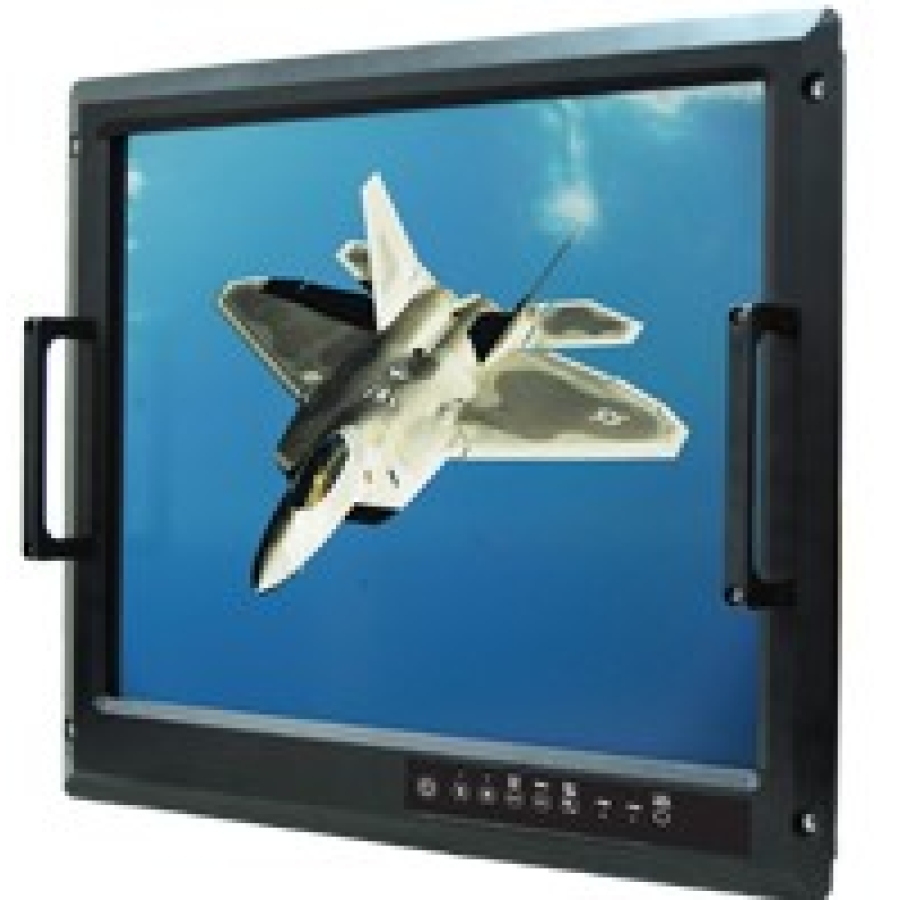

Winmate R19L100-RKA3ML 19″ Rackmount Military Grade Display w/ Optional Touch
Winmate R19L100-RKA3ML 19″ Rackmount Military Grade Display w/ Optional Touch
R19L100-RKA3ML
- Anti-Corrosion Housing / Fanless
- Compliant with MIL-STD-810F
- Flush Rack / Rack Mount Mechanical Design
- Convenient On-Screen Display Controls
- AC built-in Power input / Isolation DC 9~36V Power input (Optional)
- Built-in Light Sensor for auto brightness control
- Military Grade Power Connector
- Standard AR Glass
- EMI ITO Glass (Optional)
- 5-wire Resistive Touch with EMI Mesh Coating (Optional)
R19L100-RKA3ML
Industrial Monitors, Rackmount LCD Monitors, Rugged Military Displays, Specialist Monitors, Winmate
Details
The Winmate R19L100-RKA3ML is a 19″ Rackmount Military Grade Display which comes with optional 5-wire resistive touch with EMI Mesh Coating. It consists of a panel brightness of 350 nits and a resolution of 1280 x 1024. This military display operates at a wide temperature of -20°C ~ 60°C or an optional extended temperature of -40°C ~ 70°C.
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We ship and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| Model Name | R19L100-RKA3ML |
| Size | 19″ |
| Active Display Area | 376.32(H) x 301.06(V) |
| Pixel Pitch | 0.294(H) x 0.294(V) |
| Resolution | 1280×1024 |
| Contrast Ratio | 41.66736111 |
| Panel Brightness | 350(typ.) |
| Display Color | 16.7M colors |
| Viewing Angle | -85~85(H); -80~80(V) |
| Synchronization Range | 31.5~80.0KHz / 60~75Hz |
| Recommended Resolution | 1280×1024@60HZ,75HZ |
| Signal Connector | 15 pin D-Sub, 5 x BNCs, DVI-D, RS232 |
| Plug & Play | VESA DDC 1/2B |
| Back Panel I/O Port | 1 x AC Power input (Military grade), 5 x BNCs (R,G,B,H,V), 1 x VGA, 1 x DVI-D, 1 x RS-232 Touch Interface (Optional) |
| Power Input | AC 100~240V, Universal, ±10%; DC 9~36V, ±10% (Optional) |
| Power Consumption | 41W typical, normal operation |
| Power Management | VESA DPMS Compliant |
| Vibration* | MIL-STD-810F Method 514.5 |
| Humidity* | MIL-STD-810F Method 507.4 |
| Transit Drop* | MIL-STD-810F Method 516.5 |
| Storage Temperature | -30℃ ~ 70℃ |
| Operating Temperature | -20℃ ~ 60℃ ; -40℃ ~ 70℃ (optional) |
| Screen Size | 19" |
|---|
