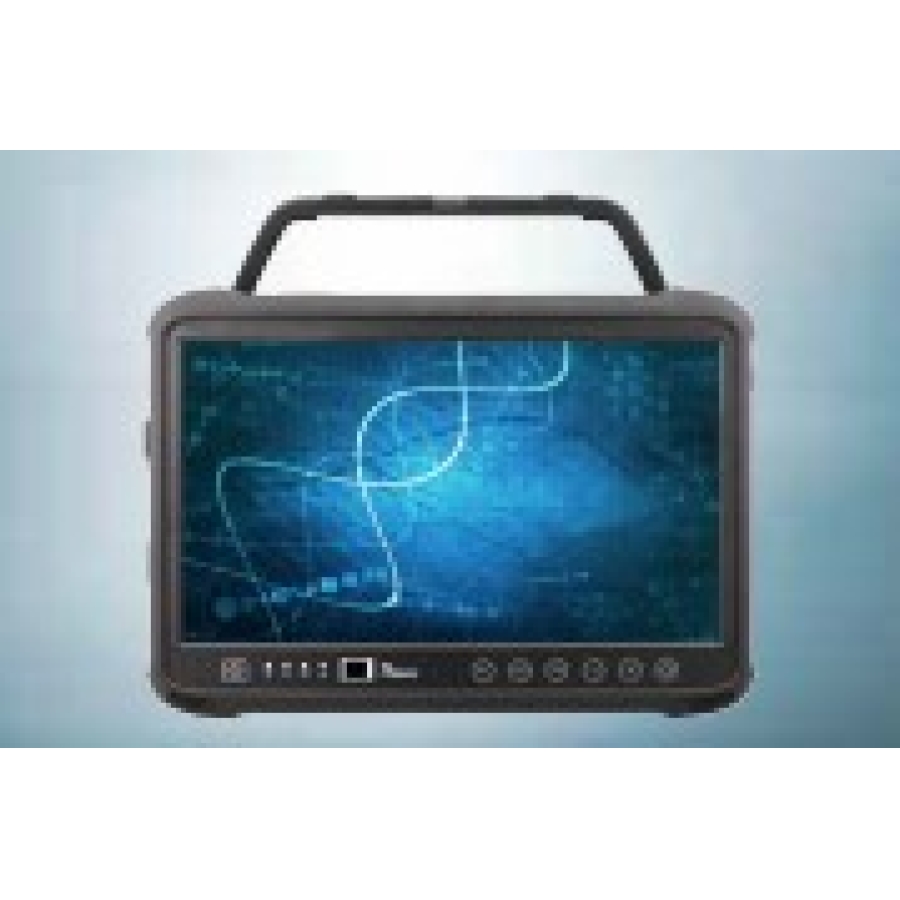

Winmate M133WK-ME 13.3″ Intel Core i5-8265U Rugged Tablet PCAP Touchscreen PC

Winmate M133WK-ME 13.3″ Intel Core i5-8265U Rugged Tablet PCAP Touchscreen PC


  • Intel Core i5-8265U Whiskey Lake Processor
  • 13.3” 1920 x 1080 wide viewing-angle LED Panel with direct optical bonding
  • Magnesium alloy housing with all-around elastomeric rubber
  • Built-in kickstand
  • IP65 waterproof and dustproof
  • Optional antimicrobial surface coating
  • Housing enhanced with antimicrobial properties
  • Optional fingerprint scanner for security


The Winmate M133WK-ME is a rugged tablet PC with robust set of features designed to withstand industrial use while providing high tech solutions that increase productivity, improve safety, and reduce operationalcosts. The processing power comes from Intel’s Core i5-8265U processor paired with genuine Intel graphics for high performance. The tablet features a brilliant, wide viewing-angle panel with direct optical bonding, projective capacitive touch screen, which is outdoor viewable and offers 1920 x 1080 pixel resolution. Equipped with a built-in kickstand, the M133WK-ME is a powerful workstation with reliable performance in a mobile and ultra-rugged design.


Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?



Brightness 500 nits with Optical Bonding
Resolution 1920 x 1080
Contrast Ratio 1000:1 (typ.)
Touch Multi-touch Projected Capactive with Glove/Rain/Stylus Modes Support
Viewing Angle 89/89/89/89


Intel® Core™ i5-8265U, 1.60 GHz (up to 3.90 GHz)
Memory 4GB SODIMM DDR4-2400 (up to 16GB)
Storage 1 x 128GB M.2 SSD (up to 512GB) Optional M.2 SSD (up to 512GB)
Audio 1 x Built-in Mic, 1 x Earphone, 1 x 1.2W Speaker


802.11 a/b/g/n/ac
Bluetooth Bluetooth 5.0
WWAN 4G LTE (Optional)

Control Button

1 x Volume – +, 1 x Power button, 1 x Function button, On-screen QWERTY keyboard 7 membrane keys: 1 x power, 1 x menu, 3 x function key (Programmable function key)
LED indicator Power, Battery, SSD, RF

Dimensions (W x L x H)

338.2 x 240 x 30 mm (13.3 x 9.4 x 1.18 inches)
Operating Temperature -10°C to 50°C (14°F to 122°F)
IP Proof IP65
Certifications CE, FCC, CCC
Gross Weight(kg) 2.2kg (w/ kickstand)
Shock MIL-STD-810G Method 516.6 Procedure I
Vibration MIL-STD-810G Method 514.6 Procedure I
Drop MIL-STD-810G Method 516.6, 4 ft to concrete
Housing Rear Magnesium Alloy Die-Casting Design

Power Input

19V DC
Battery 14.8V, typ. 5900 mAh Li-Polymer Battery (4S1P)
Adapter 100-240V, 50-60Hz / 19V DC
Battery Operating Time More than 10 hours (BAPCo Tabl etMark v3)


2 x USB 3.0 Type A 2 x USB 3.0 Type A 1 x USB 3.1 Type-C (Gen1)
OS Windows 10 IoT Enterprise
Barcode 1D/2D Barcode Reader
Screen Size 13.3"
