Syslogic RPC/RS-A2 NVIDIA Jetson TX2/TX2i, IP67/IP69 AI Rugged PC with USB & LAN

Name: Syslogic RPC/RS-A2 NVIDIA Jetson TX2/TX2i, IP67/IP69 AI Rugged PC with USB &amp; LAN
SKU: RPC/RS-A2
Availability: InStock

Syslogic

Syslogic RPC/RS-A2 NVIDIA Jetson TX2/TX2i, IP67/IP69 AI Rugged PC with USB & LAN

RPC/RS-A2

NVIDIA Jetson TX2/TX2i Outdoor Ultra Rugged Computer with IP67/IP69 Waterproof Sealed Wide Temp Chassis with GORE Ventilation, 2 LAN, 2 CAN, USB, MIPI CSI-2, LTE/WiFi Connectivity

IP67 protection
Shock and vibration resistant
Dust and waterproof
Extended AI computing
24/7 continuous operation
Ultra rugged
256-core NVIDIA Pascal GPU
Dual-Core NVIDIA Denver 2 64-Bit CPU
Quad-Core ARM Cortex-A57 MPCore
8GB 128-bit LPDDR4 RAM soldered on board
Socket for CFast
Ethernet, USB, CAN

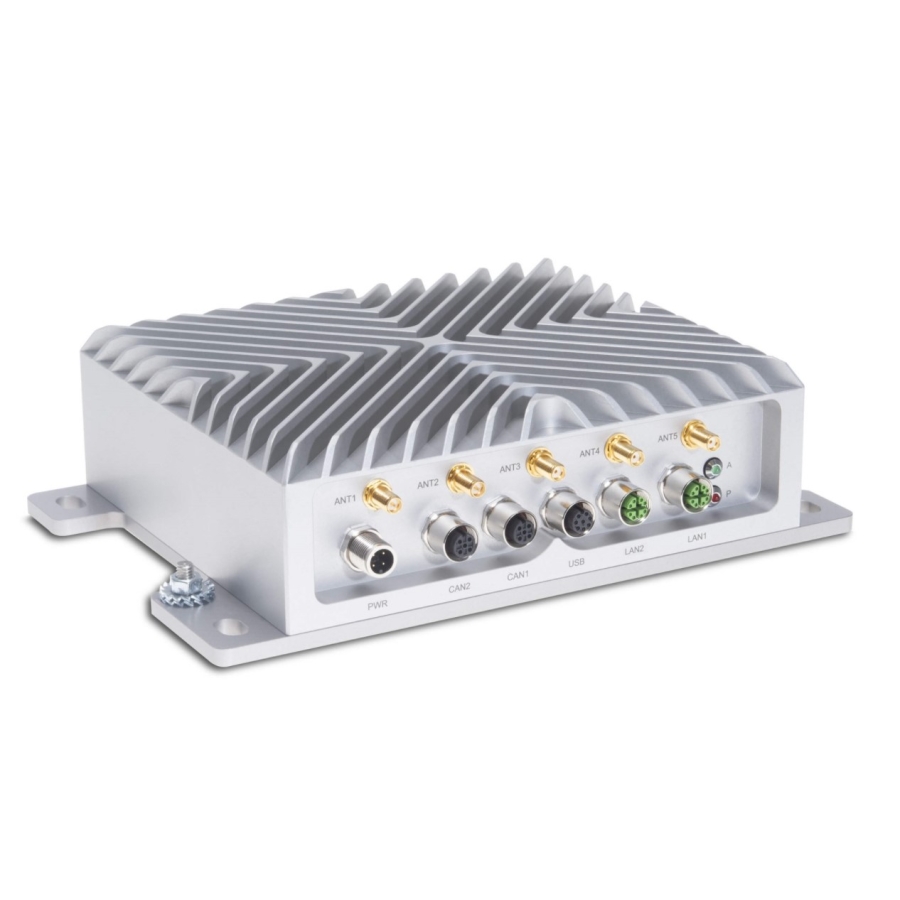

Field M12 connectors

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: RPC/RS-A2

Categories: Edge AI & GPU Computers, Embedded NVIDIA Jetson Systems, NVIDIA Jetson Systems, NVIDIA Jetson TX2 Systems, Syslogic

Range: Syslogic

Details

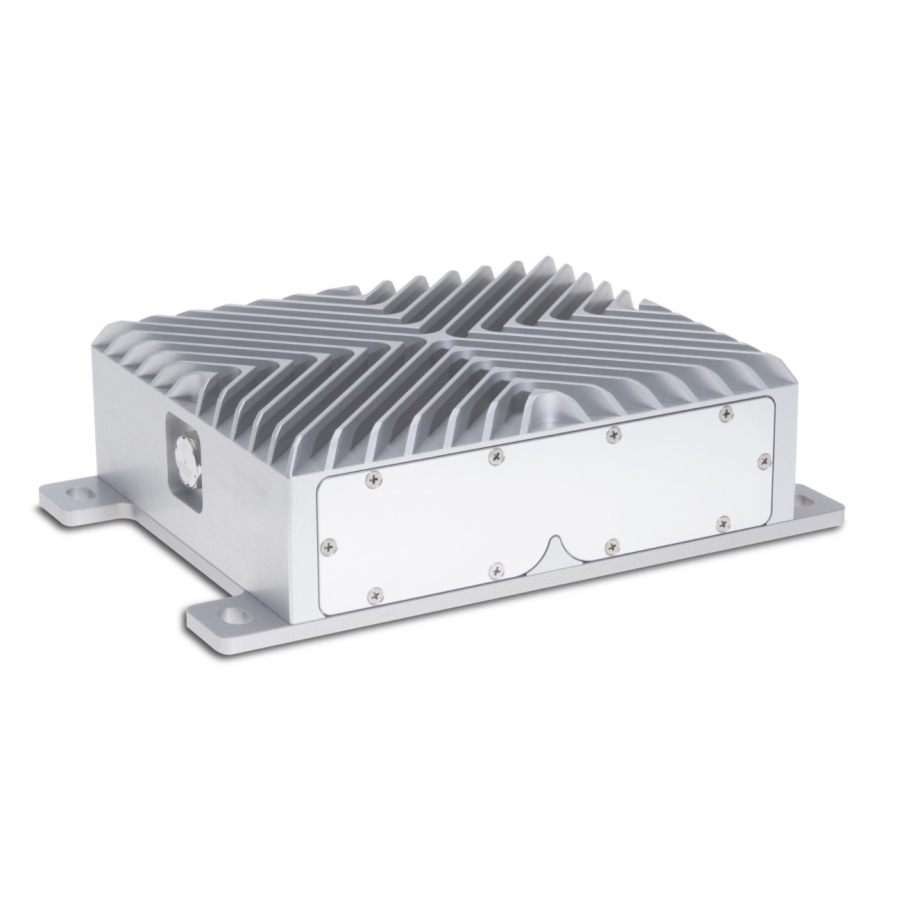

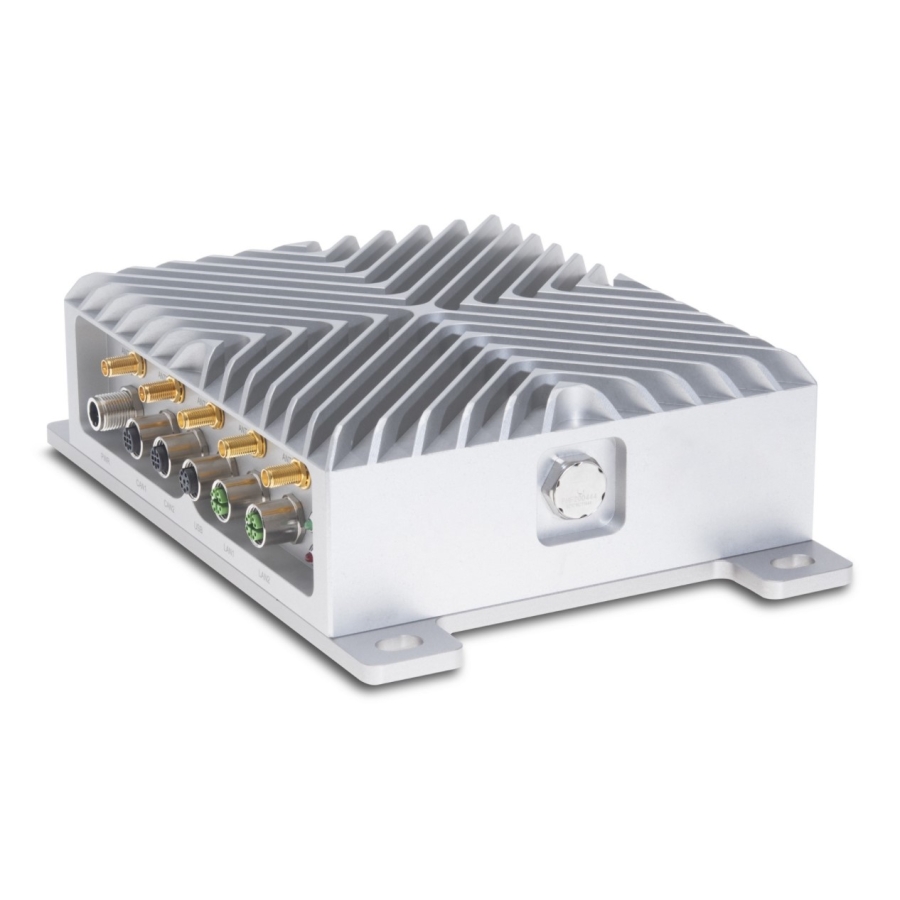

Artificial intelligence (AI) in exceptionally harsh and demanding conditions, this is what the IP67/69 protected AI Rugged Computer RS A2 is designed for. The box PC is based on a TX2(i) module from NVIDIA’s Jetson series. Like with all of its embedded systems, Syslogic combines the Jetson module with its very own carrier board, which meets high shock and vibration requirements. To protect the electronics against moisture, water and dust, the rugged PC has an extremely robust housing and screwable M12 connectors. In addition, a GORE ventilation element ensures pressure equalization in the device. The rugged computer can be integrated into ISOBUS systems. Therefore the Box PC is often used for smart farming applications in agricultural vehicles. Furthermore, the AI Rugged computer RS A2 is suitable for construction machines, mining vehicles or general outdoor applications where the computer is mounted outside without protection. With Jetson TX2(i), the Rugged PC powers intelligent vision and perception applications.

Downloads

Syslogic IPC/RS-A2 Datasheet (PDF)

0.76MB

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

(Order Code)	RPC/RSA2I20-A104S	RPC/RSA2I20-C104S
Processor module/ Performance
Processor module	NVIDIA Jetson TX2 \| 256-core NVIDIA Pascal GPUNVIDIA Jetson TX2i \| 256-core NVIDIA Pascal GPU (Optional)NVIDIA Jetson TX2 4GB \| 256-core NVIDIA Pascal GPU (On Request)Dual-Core NVIDIA Denver 2 64-Bit CPU and Quad-Core ARM Cortex-A57 MPCore
AI Performance	1.3 TOPs
Memory/ Storage
Data Cache Size	2MB
4ch x 32-bit LPDDR4 RAM soldered on board	8GB
eMMC 5.1 Flash Storage on board	32GB
microSD Card socket	1
CFast socket with retention frame	1
Features
Real time clock PC compatible battery backup (Renata CR2477N (950mAh)	Yes
Hardware Watchdog & Temperature supervisor	Yes
Intelligent power management	Yes
Inertial measurement unit (IMU) (STMicroelectronics ISM330DLCTR)	Yes
Communication Interfaces
Graphic Interface	DisplayPort 1.2
Internal USB version 2.0 OTG(Behind the cover)	1 x (Micro USB Type AB)
USB version 2.0 (behind the cover)	2 x (Type A)
USB version 2.0 (1x M12 female a-coded)	2	None
Ethernet 10/100/1000Mbit (1x native, 1x I210-IT)	2 x (M12 female x-coded LAN)
Active/passive-CAN ESD protected, isolated (M12 female a-coded)	2 (2x M12 5P)	2 (1 x M12 8P)
Mini PCIe socket	1
I2C bus	Yes
Buzzer	Yes
MIPI CSI-2 Camera Interface	Yes
USB version 3.0	On Request
Wireless Connectivity
Cellular 4G Module (LTE/UMTS/GSM)( Sierra Wireless MC7455 – M2M only!, uses mini PCIe socket)	3x SMA	none
Dual SIM Support (nanoSIM to mPCIe slot)	Yes
Wireless LAN IEEE 802.11a/b/g/n/ac dual-band 2×2 MIMO & Bluetooth 4.1	2x RP-SMA
Technical Data
Dimensions mm (housing, excl. mounting)	w245 x h75 x d165 mm
Net weight in gram	~3000
Non isolated Input voltage, with Ignition controller, reverse polarity protected (M12 4P male a-coded)	9 … 45VDC
16.8…45VDC Input voltage, isolated with Ignition controller, reverse polarity protected	Optional
Current consumption typ. in mA @ 24V without Add-Ins, idle	~400
Power consumption typ. in Watt @ 24V without Add-Ins, idle	~10
Environmental Conditions
Operating Temperature	–25°C … +70°C
Storage temperature	–25°C … +80°C
Extended operating temperature (with TX2i)	–40°C … +70°C
Extended storage temperature (with TX2i)	–40°C … +85°C
Ingress protection standard according to EN60529 (ISO 20653)	IP67 / IP69
Conformal coating	on request
UN/ECE R10 (E-mark) certification	on request
Shock	EN60068-2-27
Vibration	EN60068-2-64
EMI-Conformity	EN55032 / EN55035
Safety (designed to meet)	EN62368-1
Radio and Telecommunication (designed to meet)	RED
MTBF @ 25°C ambient(according to Telcordia SR-332, Environment GB, excluding battery)	~490 000h	~700 000h
