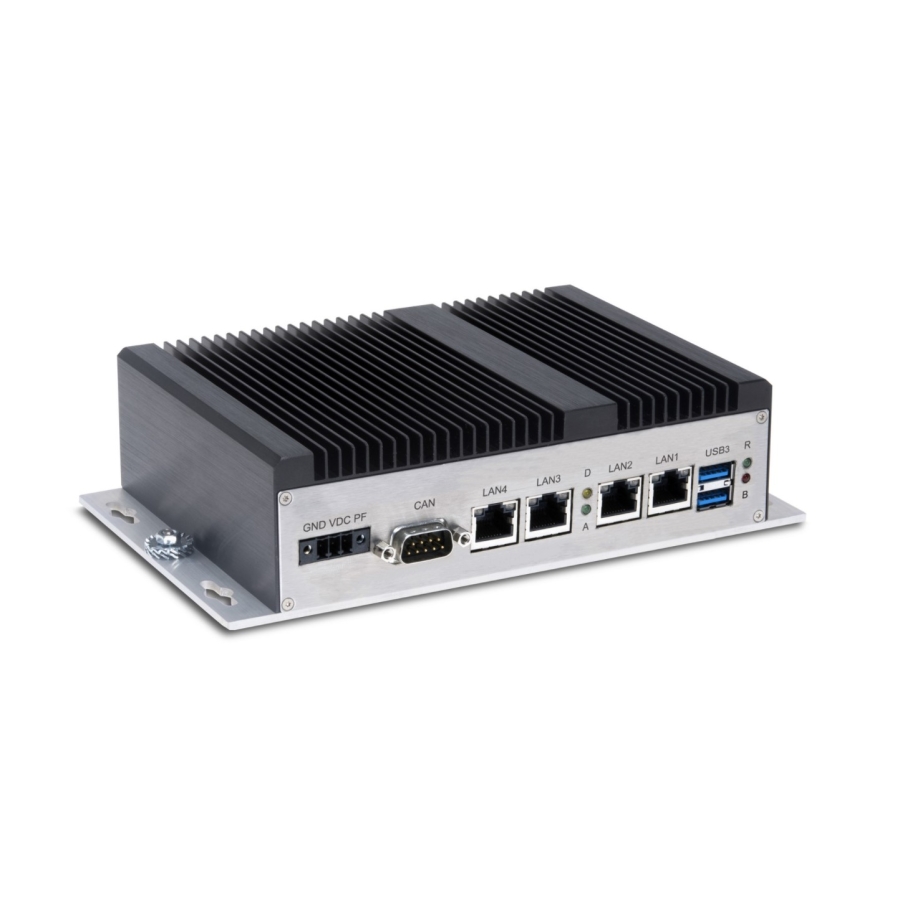

IPC/S-A2
NVIDIA Jetson TX2/TX2i Fanless AI Edge Computer with 4 Independent NIC for Latency Free Sensor Operation, 2 CAN, 2 USB3, Active/Passive CAN, MIPI CSI-2 Camera Interface, Wide Temp
- 24/7 continuous operation
- Extended AI Computing
- No moving parts
- Product lifecycle management
- Long term availability with fixed BOM
- NVIDIA Pascal architecture GPU
- Dual-core Denver 2 64-bit CPU
- Quad-core ARM A57 Complex
- 8GB 128-bit LPDDR4 RAM soldered on board
- Socket for CFast
- Graphic resolution
- Ethernet, USB, Passive-CAN
- Protection class IP40
Details
The AI Edge Computer IPC/S-A2 combines an NVIDIA Jetson TX2 module with a Syslogic carrier board. NVIDIA’s JetPack is pre-installed on the AI-enabled embedded box PC. This development environment (SDK) includes the Linux operating system (L4T) and AI libraries for deep learning, machine vision, accelerated computing and multimedia. The IPC/S-A2 has four Ethernet interfaces, each with its own NIC for latency-free sensor operation making the box PC ideal for intelligence edge applications such as inference or perception. The AI edge computer is often used for surveillance camera systems (CCTV), for camera-based quality control, for driverless transport systems (AGV) or for traffic engineering.
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We ship and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| (Order Code) | IPC/SA2I20-TBD |
| Processor module/ Performance | |
| Processor module | NVIDIA Jetson TX2 | 256-core NVIDIA Pascal GPU NVIDIA Jetson TX2i | 256-core NVIDIA Pascal GPU optional NVIDIA Jetson TX2 4GB | 256-core NVIDIA Pascal GPU on request Dual-Core NVIDIA Denver 2 64-Bit CPU and Quad-Core ARM Cortex-A57 MPCore |
| AI Performance | 1.3 TOPs |
| Memory/ Storage | |
| Data Cache Size | 2MB |
| 4ch x 32-bit LPDDR4 RAM soldered on board | 8GB |
| eMMC 5.1 Flash Storage on board | 32GB |
| microSD Card socket | 1 |
| CFast socket with retention frame | 1 |
| Features | |
| Real time clock (RTC) with battery backup (Renata CR2477N (950mAh) | Yes |
| Real time clock (RTC) with goldcap backup (charge holds 48h) | Optional |
| Hardware Watchdog & Temperature supervisor | Yes |
| Intelligent power management | Yes |
| Communication Interfaces | |
| Graphic Interface | DisplayPort 1.2 |
| USB Version 3.0 | 2 x (Type A) |
| Internal USB version 2.0 OTG (Behind the cover) | 1 x (Micro USB Type AB) |
| Ethernet 10/100/1000Mbit (1x native, 3x I210-IT) | 4 x (RJ45 LAN) |
| Active/passive-CAN ESD protected, isolated | 2 (1x DSUB9 CAN) |
| Serial RS232/ RS422/ RS485 (DSUB9) | Optional |
| Mini PCIe socket | 1 |
| I2C bus | yes |
| Buzzer | yes |
| MIPI CSI-2 Camera Interface | yes |
| Wireless Connectivity | |
| Cellular Module (LTE/UMTS/GSM) with GNSS positioning functionality (Sierra Wireless MC7455 – M2M only!) | 3x SMA (Optional) |
| Dual SIM Support (nanoSIM to mPCIe slot 2) | yes |
| Inertial measurement unit (IMU) (STMicroelectronics ISM330DLC) | yes |
| Wireless LAN IEEE 802.11a/b/g/n/ac dual-band 2×2 MIMO & Bluetooth 4.1 | 2x RP-SMA |
| Technical Data | |
| Dimensions mm (housing, excl. mounting) | w174 x h52 x d127 mm |
| Net weight in gram | ~950 |
| Non isolated input voltage, with Ignition controller, reverse polarity protected | 9… 45VDC |
| Power consumption typ. in Watt @ 24V without Add-Ins, idle | ~10 |
| Environmental Conditions | |
| Operating Temperature | –25°C … +65°C |
| Storage temperature | –25°C … +80°C |
| Extended operating temperature (with TX2i) | –40°C … +70°C |
| Extended storage temperature (with TX2i) | –40°C … +85°C |
| Ingress protection standard | IP40 |
| Conformal coating | tbd |
| Shock | EN60068-2-27 / EN61373 |
| Vibration | EN60068-2-64 / EN61373 |
| EMI-Conformity | EN-50121-3-2 |
| Safety (designed to meet) | EN62368-1 |
| Radio and Telecommunication (designed to meet) | RED |
| MTBF (17.1 Years) @ 25°C (exluding battery) | ~150 000h |
| Processor Type | NVIDIA Jetson TX2, RISC |
|---|---|
| Memory Capacity | Up to 32GB |
| Cooling Type | Fanless |
