Syslogic IPC/RS-A2N Waterproof NVIDIA Jetson TX2 NX AI Rugged Box PC

Syslogic IPC/RS-A2N Waterproof NVIDIA Jetson TX2 NX AI Rugged Box PC


NVIDIA Jetson TX2/TX2i Compact IP65 Edge Computer with Jetpack SDK, Dual SIM LTE, WiFi, Waterproof USB, Waterproof HDMI, CAN, 2 LAN and Extended Operating Temperature

  • 256-core NVIDIA Pascal GPU Dual-Core
  • NVIDIA Denver 2 64-Bit CPU Quad-Core
  • ARM Cortex-A57 MPCore
  • 4GB 128-bit LPDDR4x RAM soldered on board
  • M.2 slot for storage expansion
  • Ethernet, USB, Passive or Active CAN
  • LTE, GNSS & WiFi options
  • Aluminum & Stainless steel housing
  • Protection class IP65

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.



Syslogic’s RS A2N AI-powered vehicle computer is built on the NVIDIA Jetson TX2 NX module. This combines the performance of the TX2 with the form factor of the Nano (70x45mm). The TX2 NX module features a dual-core 64-bit NVIDIA Denver CPU, a quad-core ARM CPU and a 256-core NVIDIA Pascal GPU.

Syslogic integrates the TX2-NX module into a rugged embedded system. The RS A2N AI computer meets the IP65 protection class and is suitable for 24/7 operation under increased requirements. The embedded PC is ideal for inferencing or intelligent vision. This involves creating an overall image from data from sensors such as radar, lidar and camera. In conjunction with AI algorithms, the embedded PC independently derives intelligent decisions.

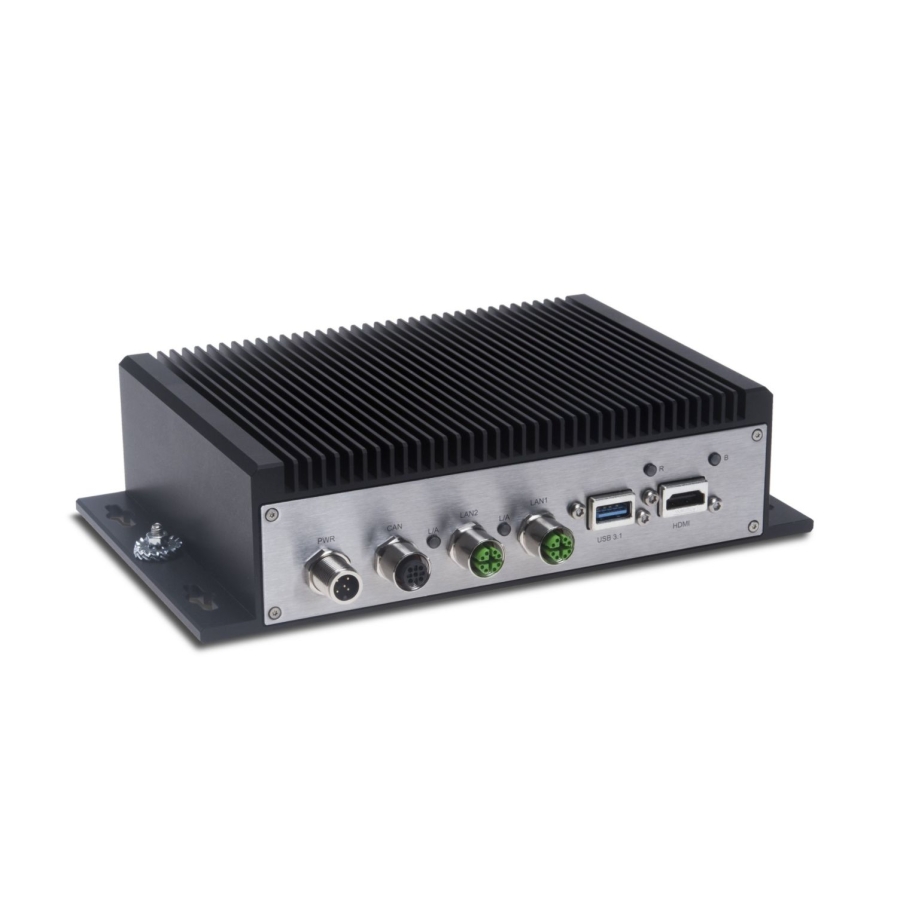

The RS A2N AI Vehicle Computer is frequently used in agricultural vehicles, construction machinery, automated guided vehicles (AGVs) and smart city applications. The embedded computer supports the CAN-based SAE J1939 network protocol. For reliable use in vibrations, CAN and Ethernet interfaces are designed with M12 connectors.


System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?


Processor Module/ Performance NVIDIA Tetson TX2 NX | 256-core NVIDIA Pascal GPU 1.33 TFLOPSs AI Performance
Memory/ Storage 2MB Data Cache Size 4GB 128-bit LPDDR4 RAM soldered on board 16GB Emmc 5.1 Flash Storage on board 1x M.2 2280 slot for SSD storage up to 2TB 1x microSD card socket
Communication Interfaces Display Port 1.4 Graphic Interface 1x Internal USB version 2.0 OTG 2x USB version 2.0 HDMI 2.0 graphic interface 1x USB version 3.1, optional USB version 2.0 2x Ethernet 10/100/1000Mbit 1x Active/Passive-CAN ESD protected, isolated 2x Serial RS232 2x Mini PCIe socket 1x I2C bus 1x Buzzer MIPI CSI-2 / GMSL2 / FPDLinkIII Camera interface on request
Environmental Conditions –25°C … +70°C Operating Temperature –25°C … +85°C Storage Temperature IP65 EN60068-2-27 – shock EN60068-2-64 – vibration EN55032 / EN55035 – EMI conformity EN62368-1 – Saftey
Processor Type NVIDIA Jetson TX2, RISC
Memory Capacity Up to 4GB
