Syslogic IPC/RM-A2 NVIDIA Jetson TX2/TX2i, IP40, Compact AI Railway Computer

Name: Syslogic IPC/RM-A2 NVIDIA Jetson TX2/TX2i, IP40, Compact AI Railway Computer
SKU: IPC/RM-A2
Availability: InStock

Syslogic

Syslogic IPC/RM-A2 NVIDIA Jetson TX2/TX2i, IP40, Compact AI Railway Computer

IPC/RM-A2

NVIDIA Jetson TX2i Compact Railway AI Computer with EN50155 Certification for DAS, RCS, RTPI and Condition Monitoring. -40C to +70C Temp Support, Galvanically Isolated Power Supply

24/7 Continuous operation
Extended AI Computing
6 LAN Interfaces with Individual NIC’s
Power Over Ethernet (PoE+), 48VDC out
Long Term availability with fixed BOM
256-core NVIDIA Pascal GPU
Dual-Core NVIDIA Denver 2 64-Bit CPU
Quad-Core ARM Cortex-A57 MPCore
8GB 128-bit LPDDR4 RAM soldered on board

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: IPC/RM-A2

Categories: Certified Computers, Edge AI & GPU Computers, Embedded NVIDIA Jetson Systems, NVIDIA Jetson Systems, NVIDIA Jetson TX2 Systems, Railway Certified Computers, Syslogic

Range: Syslogic

Details

The Syslogic IPC/RM-A2 is an compact AI Railway Computer powered by the NVIDIA Jetson TX2 or TX2i processor module and is also shipped with a pre-installed NVIDIA Jetpack SDK (Software Development Kit) including the Linux operating system (L4T). Meeting high requirements for shock and vibration, the IPC/RM-A2 is designed for use in railway or low-floor vehicles such as busses and trams. Additionally, this computer is designed to operate at an extended temperature range of -40 to +70 degrees alongside meeting railroad standard EN50155, class OT4 and has a galvanically isolated power supply with the electronic components being protected against condensation with conformal coating. The NVIDIA Jetson-based rail computer is used by rolling stock manufacturers and rail operators alike. Typical applications include semi-autonomous driving, DAS (driver advisory systems), RCS (rail control systems), real-time passenger information systems (RTPI), and condition-based monitoring.

Downloads

Syslogic IPC/RM-A2 Datasheet (PDF)

0.45MB

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

(Order Code)	IPC/RMA2I20-A203S	IPC/RMA2I20-B203S
Processor module/ Performance
Processor module	NVIDIA Jetson TX2 \| 256-core NVIDIA Pascal GPU NVIDIA Jetson TX2 4GB \| 256-core NVIDIA Pascal GPU (Optional) NVIDIA Jetson TX2i \| 256-core NVIDIA Pascal GPU (Optional) Dual-Core NVIDIA Denver 2 64-Bit CPU and Quad-Core ARM® Cortex®-A57 MPCore
AI Performance	1.3 TOPs
Memory/ Storage
Data Cache Size	2MB
4ch x 32-bit LPDDR4 RAM soldered on board	8GB
eMMC 5.1 Flash Storage on board	32GB
microSD Card socket	1
CFast socket with retention frame	1
Features
Inertial measurement unit (IMU) (STMicroelectronics ISM330DHCXTR)	Yes
Real time clock (RTC) with battery backup (Renata CR2450N (540mAh)	Yes
Real time clock (RTC) with goldcap backup (charge holds 48h)	Optional
Hardware Watchdog & Temperature supervisor	Yes
Intelligent Power Management	Yes
Communication Interfaces
Graphic Interface	DisplayPort 1.2
USB Version 3.0	2 x (Type A)
Internal USB version 2.0 OTG (Behind the cover)	1 x (Micro USB Type AB)
Ethernet 10/100/1000Mbit (1x native, 1x I210-IT)	2 x (M12 female x-coded LAN)

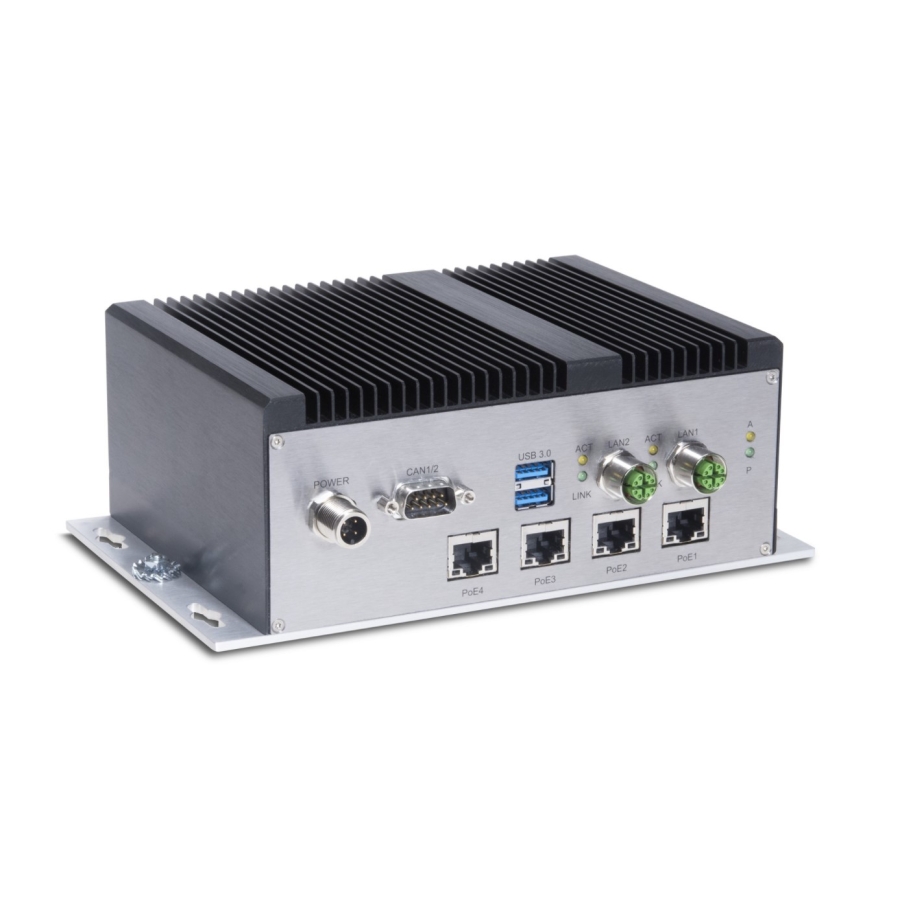

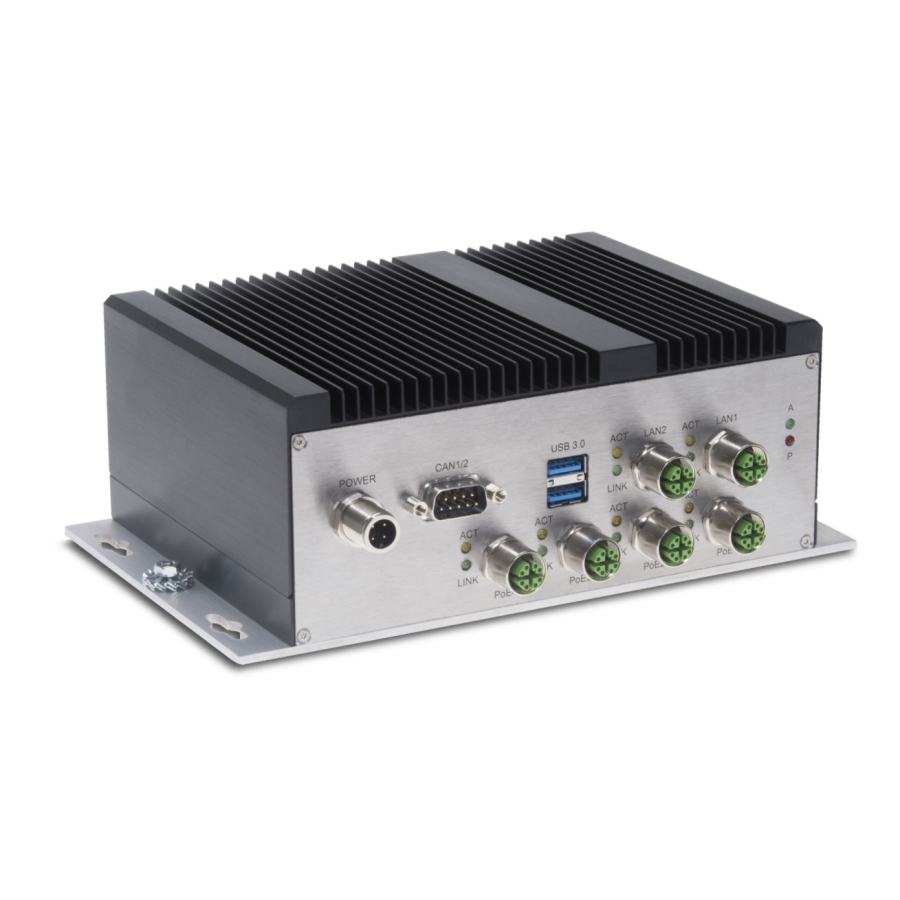

Power Over Ethernet – IEEE802.3at 10/100/1000Mbit (PSE-Power sourcing equipment, producing 48VDC out)	4 x (M12)	4 x (RJ45)
Active/passive-CAN ESD protected, isolated	2 x ( 1x DSUB9 CAN)
RS232 / RS422/485 ESD protected (DSUB9)	Optional
Mini PCIe socket	1
I2C bus	Yes
Buzzer	Yes
MIPI CSI-2 Camera Interface	Yes
Wireless Connectivity

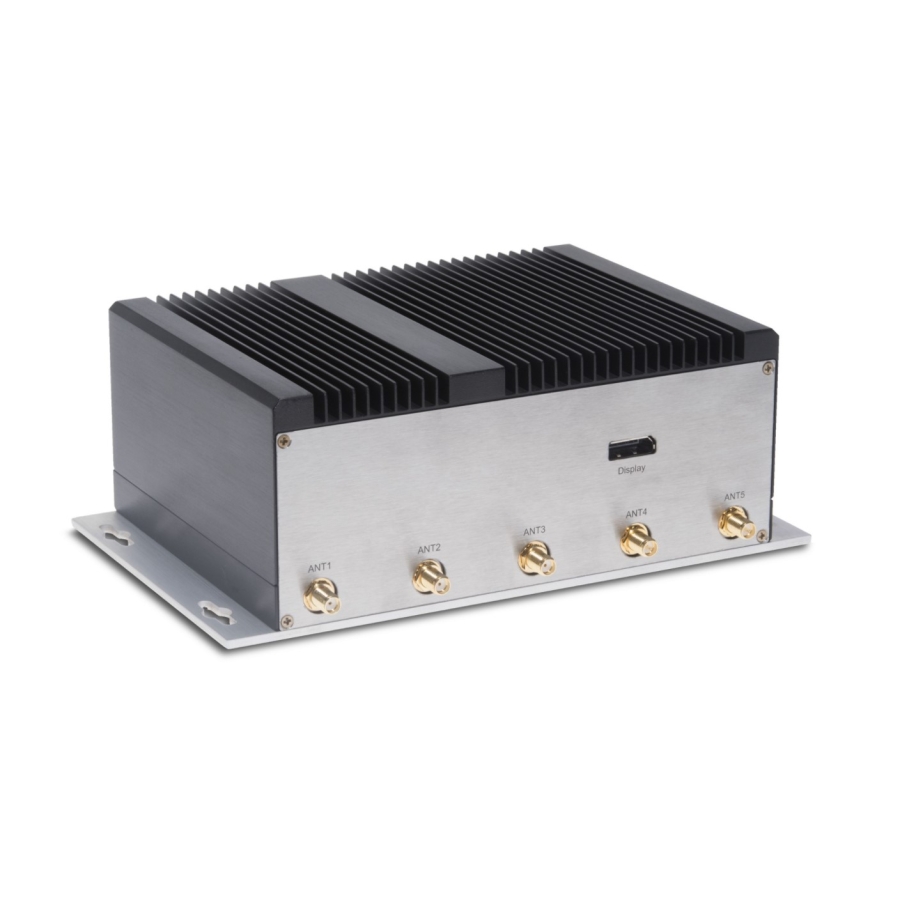

Cellular Module (LTE/UMTS/GSM) with GNSS positioning functionality (Sierra Wireless MC7455 – M2M only!) (3x SMA)	Yes
Dual SIM Support (nanoSIM to mPCIEe slot)	Yes
Wireless LAN IEEE 802.11a/b/g/n/ac dual-band 2×2 MIMO & Bluetooth 4.1 (2 x RP-SMA)	Yes
Technical Data
Dimensions mm (housing, excl. mounting)	w174 x h82 x d127 mm
Net weight in gram	~1100
Non isolated input voltage, with Ignition controller, reverse polarity protected (M12 4P male a-coded)	9… 45VDC
Power consumption typ. in Watt @ 24V without Add-Ins, idle	~15
Environmental Conditions
Operating Temperature	–25°C … +65°C
Storage temperature	–25°C … +80°C
Ingress protection standard	IP40
UN/ECE R10 (E-mark) certification	on request
Conformal coating	on request
Shock	EN60068-2-27
Vibration	EN60068-2-64
EMI-Conformity	EN55032 / EN55035
Safety (designed to meet)	EN62368-1
Radio and Telecommunication (designed to meet)	RED
MTBF @ 25°C ambient (according to Telcordia SR-332, Environment GB, excluding battery and optional interfaces)	~390 000h
