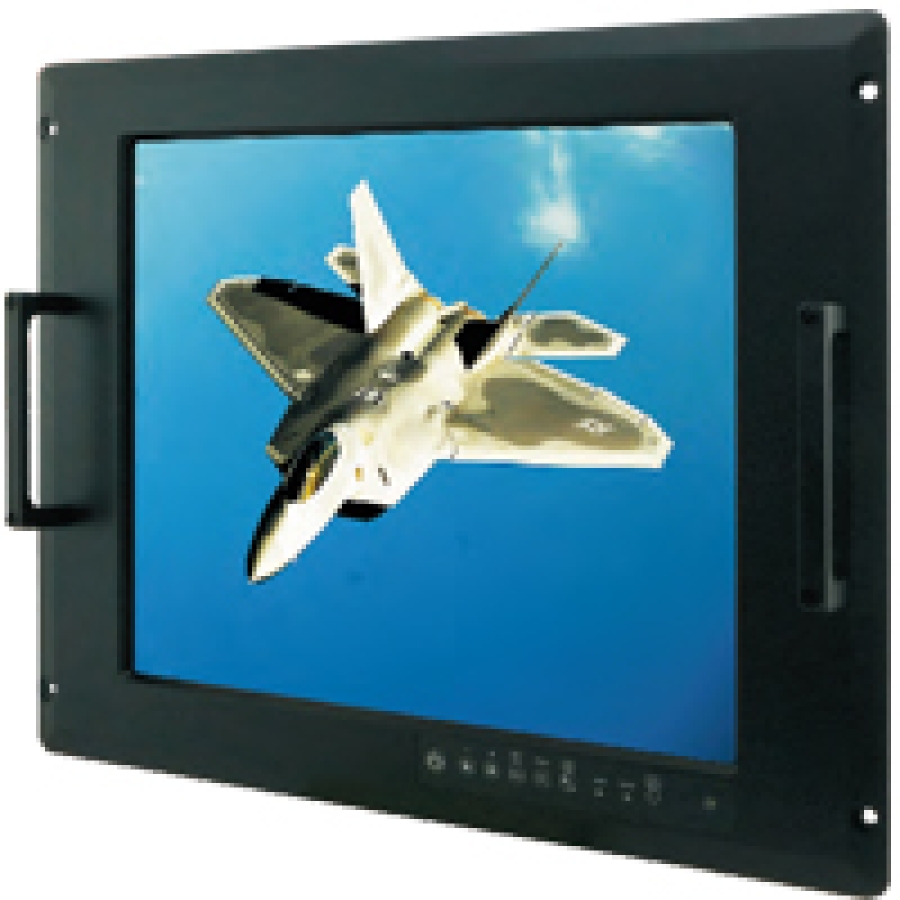

Winmate R17L100-RKA1ML 17″ Rack Mount Military Display, 1280×1024

Winmate R17L100-RKA1ML 17″ Rack Mount Military Display, 1280×1024


  • Anti-Corrosion Housing / Fanless
  • Compliant with MIL-STD-810G/F
  • Flush Rack / Rack Mount Mechanical Design(8U)
  • Convenient On-Screen Display Controls
  • AC 110-240V Power input / Isolation DC 9~36V Power input (Optional)
  • Built-in Light Sensor for auto brightness control
  • Military Grade Power Connector (MIL-DTL-38999/1)
  • Default with Standard AR Glass
  • EMI ITO Glass (Optional)
  • 5-wire Resistive Touch (Optional)
  • 5-wire Resistive Touch with EMI Mesh Coating (Optional)


Winmate R17L100-RKA1ML


System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?


Model Name R17L100-RKA1ML
Size 17″
Active Display Area 337.92 (H) x 270.34 (V)
Pixel Pitch 0.264 (H) x 0.264 (V)
Resolution 1280×1024
Contrast Ratio 1000:1
Brightness 350(typ.)
Display Color 16.7M colors
Viewing Angle -85~85(H); -80~80(V)
Synchronization Range 31.5~80.0KHz / 60~75Hz
Recommended Resolution 1280×1024@60HZ,75HZ
Touch 5-wire Resistive Touch with EMI Mesh Filter
Plug & Play VESA DDC 1/2B
Back Panel I/O Port

1 x AC Power input (Military grade)

5 x BNCs (R,G,B,H,V)

1 x VGA

1 x DVI-D

1 x RS-232 Touch Interface (Optional)

Power Input AC 110~240V, Universal, ±10%; DC 9~36V, ±10% (Optional)
Power Consumption 32W typical, normal operation
Power Management VESA DPMS Compliant
Operation Humidity 95%RH ±3%
Vibration* MIL-STD-810G Method 514.5
Humidity* MIL-STD-810G Method 507.4
Transit Drop* MIL-STD-810G Method 516.5
Storage Temperature -30℃ ~ 70℃
Operating Temperature -20℃ ~ 60℃
Screen Size 17"
