FABS-119

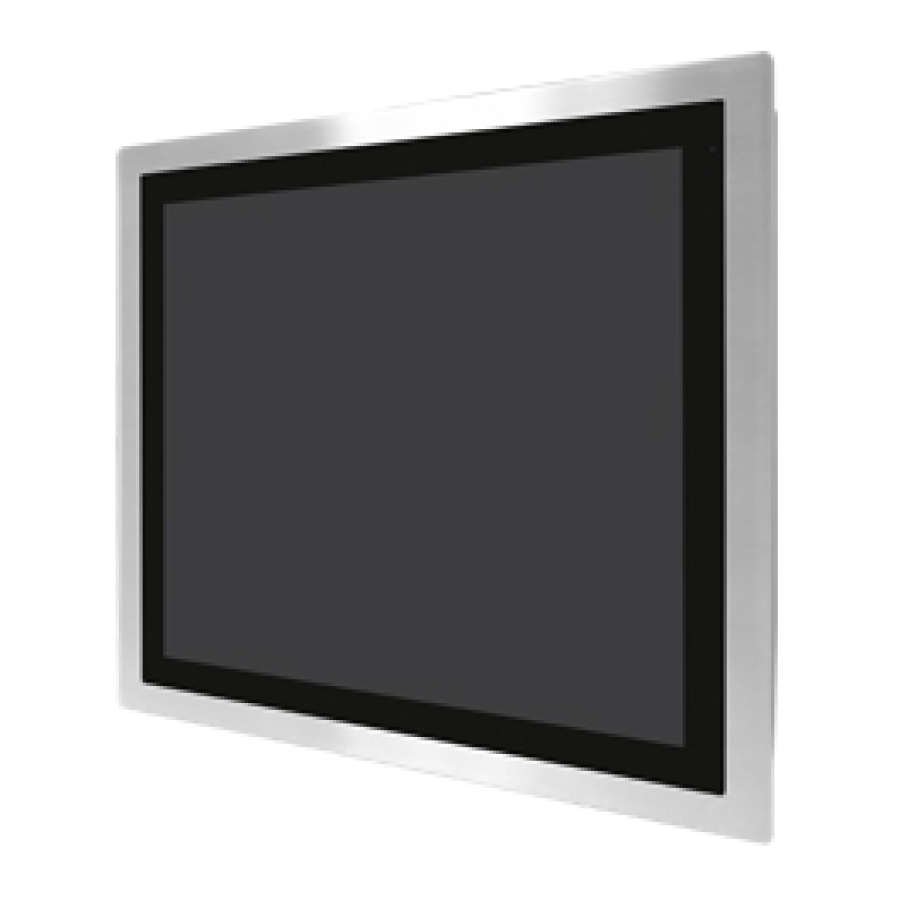

Aplex Technology FABS-119 19″ Flat Front Panel IP66/IP69K Stainless Monitor

FABS-119

  • Stainless steel front bezel Display
  • Flat front panel touch screen
  • Projected Capacitive Touch or Glass (Option)
  • Wide range DC 9~36V power input
  • IP66 compliant front panel / IP69K for option
  • VGA, DP, DVI/HDMI input
  • OSD on the rear side
  • System Power LED light

For further information, please click “Add to Enquiry” or call us on +44 (0) 1785 879050 (UK).

-
+

Details

The Aplex Technology FABS-119 is a 19" Flat Front Panel IP66/IP69K Stainless Steel Monitor. This product has a Standard Operating Temperature at 0-50°C and a Wide range DC 9-36V. In addition to this, the FABS-110 comes with many options available such as: Projected Capacitive Touch, Glass-AR and High Brightness.

Ordering Info

FABS-119P: Projected Capacitive Touch
FABS-119G: Glass AR
FABS-119PH: Projected Capacitive Touch and High Brightness
FABS-119GH: Glass AR and High Brightness

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

VGA   1
DVI   1 x DVI-D
HDMI   1
DP  1
OSD Control Membrane  OSD at rear side On board controller, extendable key pad from connector
Others  1 x USB type B for touch control, 1 x Audio line-in phone jack, Optional I/O: 1 x Speaker
Power   1 x 3-pin terminal block for DC 9~36V power input
LCD Size  19” TFT LCD
Max. resolution  1280 x 1024
Max. color  16.7M
Luminance(cd/m²)  350 (1000 Option)
Viewangle(H°/V°) 170(H) / 160(V)
Contrast  1000:01:00
Backlight lifetime(hrs)  50,000 hrs
Interface  USB Interface
Light transmission(%)  Over 90%
Power input  DC 9~36V
Construction  Aluminum die-casting chassis
IP rating  IP66 compliant front panel / IP69K(option)
Mounting  Panel mount / VESA mount 100 x 100
Dimension(mm)  485 x 398 x 63.8 mm
Operating temperature(°C)  0~50°C
Storage temperature(°C)  -30~70˚C
Storage humidity  10 to 90% @ 40°C, Non-condensing
Certification  CE/FCC, Class A
Screen Size 11" to 20", 19"
Touch Technology Projected Capactive, Resisitive
Ingress Protection IP66, IP69K
Stainless Steel Yes
Brightness 1000nit, 350nit, High, Standard
