10 Port Unmanaged Ethernet Switch with 8 x PoE 10/100/1000TX and 2 x 10G SFP+
10 Port Unmanaged Ethernet Switch with 8 x PoE 10/100/1000TX and 2 x 10G SFP+
LNP-1002G-10G-SFP
- Brand: Antaira
- 8 x 10/100/1000TX plus 2 x 10G SFP+ Ports
- Wide Operating Temperature -40° ~ 60° C

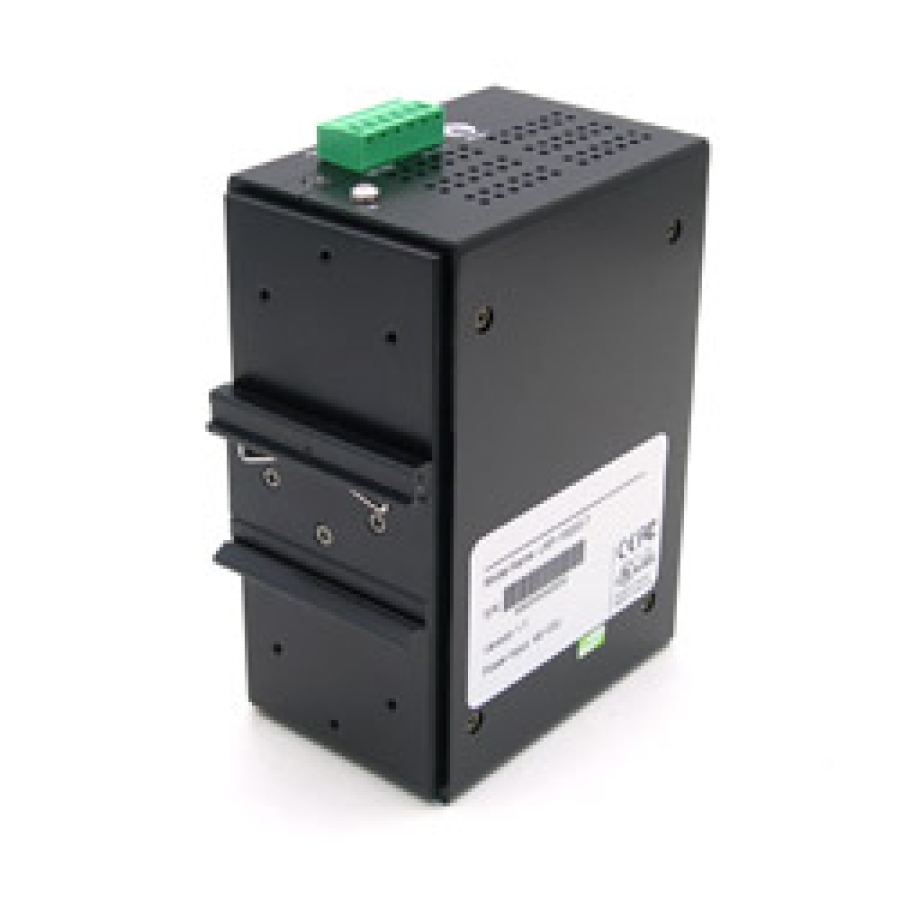

- DIN-rail ready
- Size: 54mm x 142mm x 99mm
Details

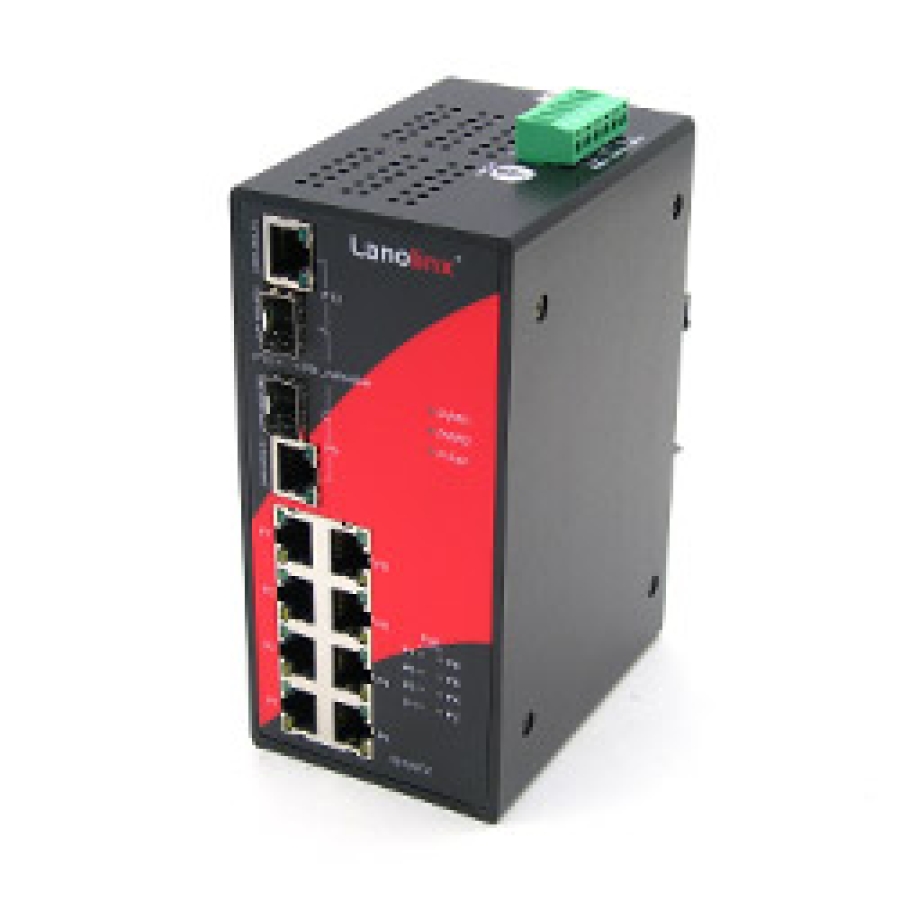

The LNP-1002G-10G-SFP from Antaira compact DIN-Rail industrial gigabit PoE+ unmanaged switch, the LNP-1002G-10G-SFP, features 8 x10/100/1000Tx Ethernet ports that support IEEE 802.3at high power PoE (30W/Port), and 2 x 10G SFP+ slots for long distance fibre connections. The device is designed with high EFT and ESD protection and supports extreme operating temperature environments (-40° to 60° C).The LNP-1002G-10G-SFP provides reliable connectivity for harsh environments such as security surveillance, traffic monitoring, and wide area network infrastructures.
Ordering Info
- LNP-1002G-10G-SFP – 10 Port Unmanaged Ethernet Switch with 8 x 10/100/1000TX and 2 x 10G SFP
Downloads
Assured Systems Datasheet (PDF)
A PDF edition of this page with supporting manufacturer datasheets
System Integration
Please ask about how we can configure your solution
Global Operations
We ship and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
- Certifications: FCC, CE
- Dimensions: 54 x 99 x 142 mm (W*D*H)
- EMI: FCC Class A
- EMS: IEC61000-4-2,3,4,5,6,8
- Ethernet Port: 8 x RJ45 Ports w/10/100/1000Tx (PSE: 30W/Port)
- Fibre Port: 2 x 10G SFP+ slots
- Free Fall / Shock / Vibration:
- EC60068-2-32
- IEC60068-2-27
- IEC60068-2-6
- Green: RoHS Compliant
- Housing / Mounting: Metal, IP30 protection / DIN-Rail, wall mounting (optional)
- Input Voltage: 48~55VDC, Redundant Input
- Jumbo Frame: 9,216 bytes
- MAC Table Size: 16K
- Memory Buffer: 12 Mbits
- Network Cable:
- 10Base Tx: 2-pair UTP/STP Cat. 3,4,5
- 100Base Tx: 2-pair UTP/STP Cat. 5
- 1000Base Tx: 2-pair UTP/STP Cat. 5/5E
- Operating Temperature: -40° to 60° C
- PoE Pin Out: V+, V+, V-, V- for pin s 1,2,3,6, (Endspan, MDI Alternative A)
- PoE Power Output: 30 Watts max per PoE port
- Power Connection: 1 removable 6-contact terminal block
- Power Consumption: 16 Watts for System
- Processing Type: Store and Forward
- Relay: 24VDC, 1A resistive
- Standards:
- IEEE 802.3 10BaseTx Ethernet
- IEEE 802.3u 100BaseTx Fast Ethernet
- IEEE 802.3ab 1000BaseTx
- IEEE 802.3z 1000Base-X Gigabit Fiber
- IEEE 802.3ae 10 Gigabit Ethernet
- IEEE 802.3af/at Power Over Ethernet
- Switching Architecture: Back-Plane: Non-Blocking Switching Fabric
- Transfer Rate:
- 14,880pps for Ethernet Port
- 148,800pps for Fast Ethernet Port
- 1,488,000pps for Gigabit Ethernet Port
- 14,880,000pps for 10 Gigabit Ethernet Port
- Warranty: 5-Years
