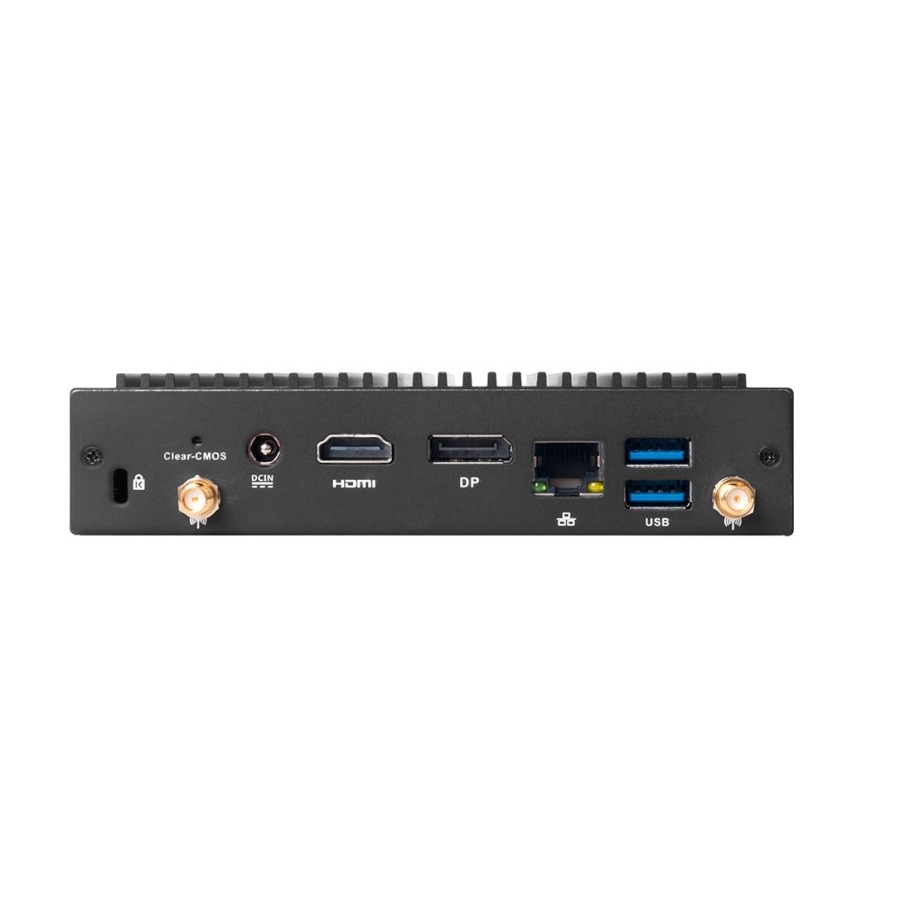

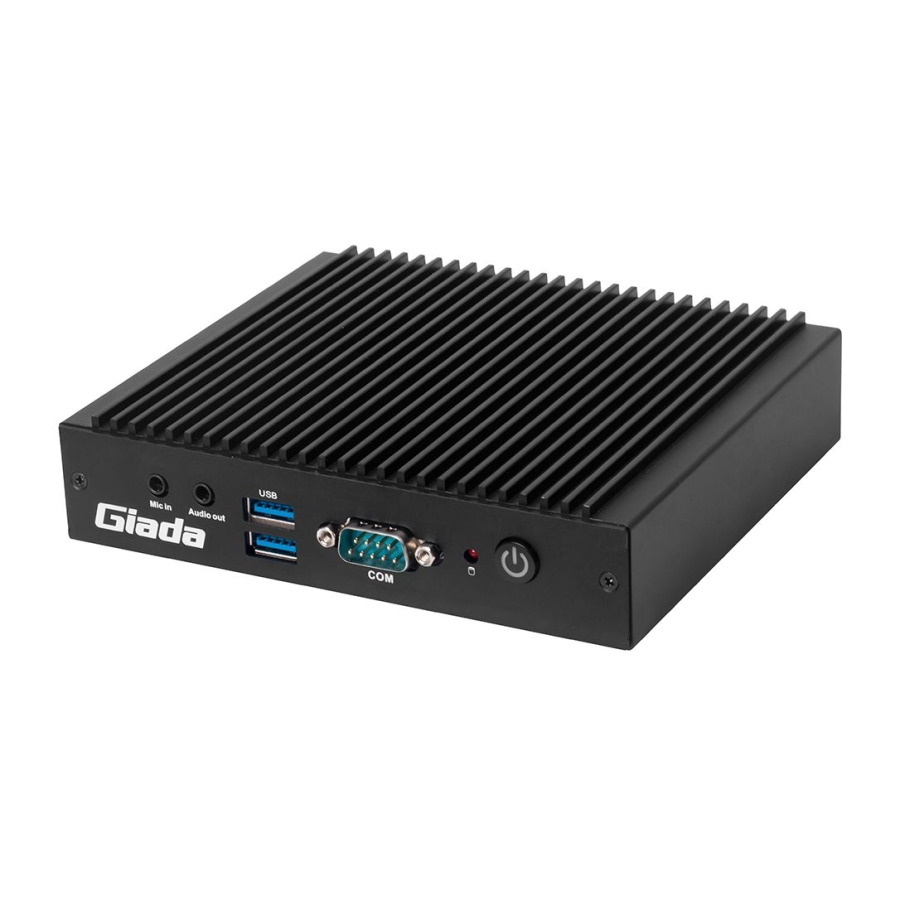

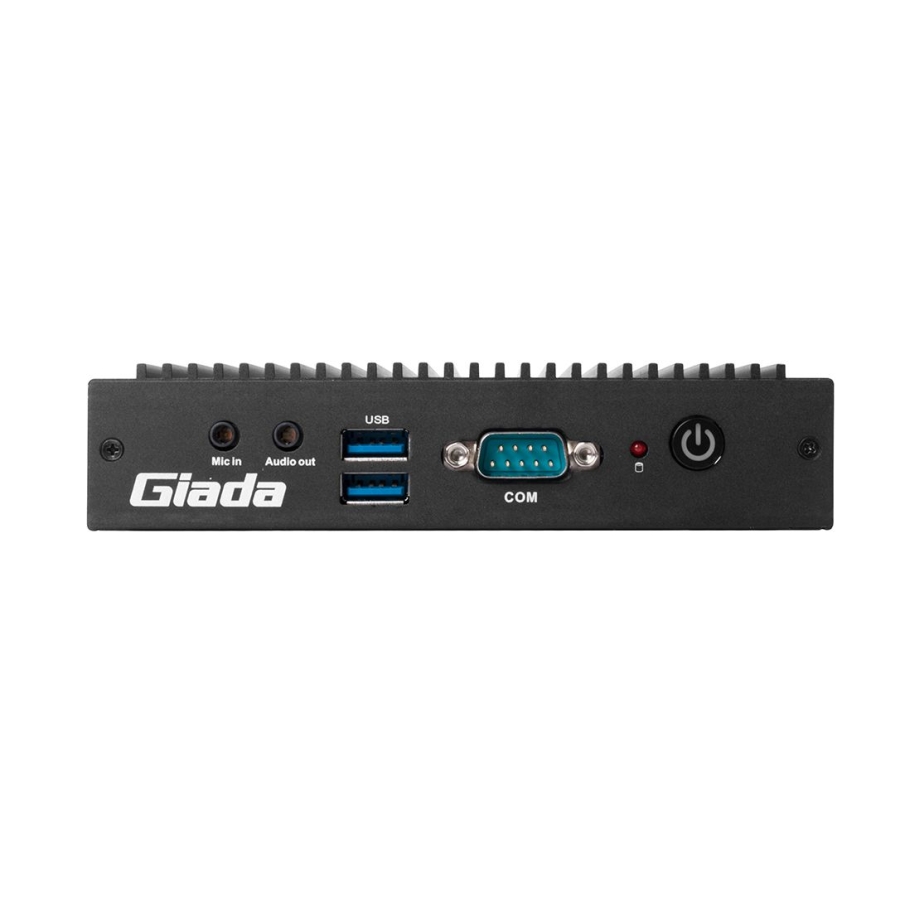

Giada VM27 Intel Celeron N6210 Fanless Embedded Computer w/ 1x Mini PCIe

Giada VM27 Intel Celeron N6210 Fanless Embedded Computer w/ 1x Mini PCIe

VM27

  • 1 x DP, 1 x HDMI, Supporting 4K Display
  • 2 Channel LPDDR4-2666MHz Memory, 4GB / 8GB Optional
  • 1 x Full-size Mini-PCIe for mSATA
  • 1 x M-key M.2 (2230) for WiFi / BT

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

The Giada VM27 is a Fanless Embedded Computer with 2 channel LPDDR4-2666MHz memory with 4GB /  with 8GB being optional, 1 x DP, 1x HDMI supporting 4K display.

Offers a Full-Size Mini-PCIe for mSATA and a M-Key M.2 (2230) for WiFi/BT.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

CPU Intel Celeron N6210 / N6415 Processor
BIOS AMI Source Code
Chipset SOC
Type LPDDR4-2666 MHz
Socket Onboard
Channel 2
Max Size 4GB (Optional: 8GB)
GPU Intel 10th Gen. UHD Graphic
Graphic Engine DirectX 12.0, OpenGL 4.3, OpenCL 1.1
DP 1 x DP (Max.4096 x 2304@60Hz)
HDMI 1 x HDMI (Max.4096 x 2160@60Hz)
Controller Realtek RTL8111H Gigabit Ethernet
Interface 1 x RJ45
USB 4 x USB3.2 Gen2
Serial Port 1 x RS232
Audio 1 x MIC-IN, 1 x AUDIO-OUT
Mini-PCIe 1 x Full-size Mini-PCIe for mSATA
M.2 1 x M.2 (2230) for WiFi/BT
Socket 1 x Full-size Mini-PCIe for SATA
Onboard eMMC5.1 32GB (Optional: 64GB)
WatchDog Timer 0~255 Second Time Out Support
Auto Power On Power Activated Automatically Start
RTC Set Up Independently Every day, A Week as a Cycle
Remote Control Wake on LAN
Windows Windows 10 IoT
Linux Supported
Power Type DC-IN
Input Voltage 12V / 19V
Dimensions (W × D × H) 146mm x 126mm x 33mm(5.74″x4.96″x1.30″)
Fanless Yes
Construction Metal
Mounting(Optional) VESA Mounting Kit JC560
Color Black
Operating Temperature 0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
Relative Humidity 95%@40℃ (non-condensing)
Certification  CE, FCC Class B, CCC
Processor Type Intel Celeron
Memory Capacity Up to 8GB
Cooling Type Fanless
Market Certifications CE/FCC
OS Support Linux, Windows 10
