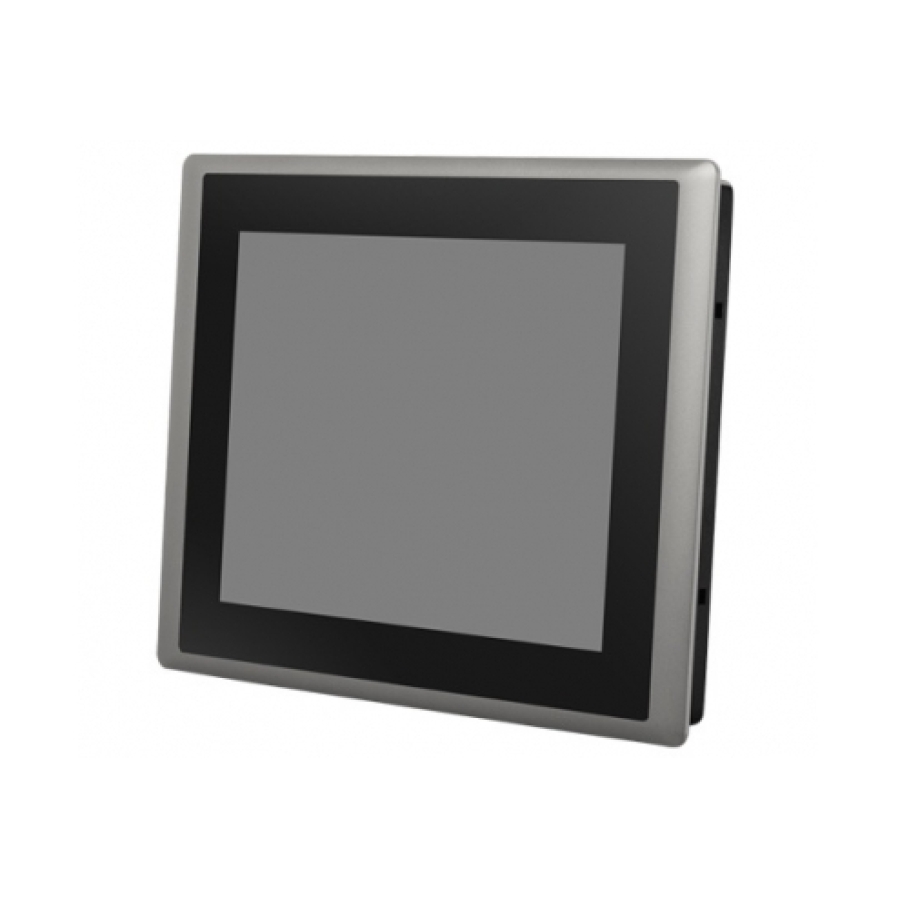

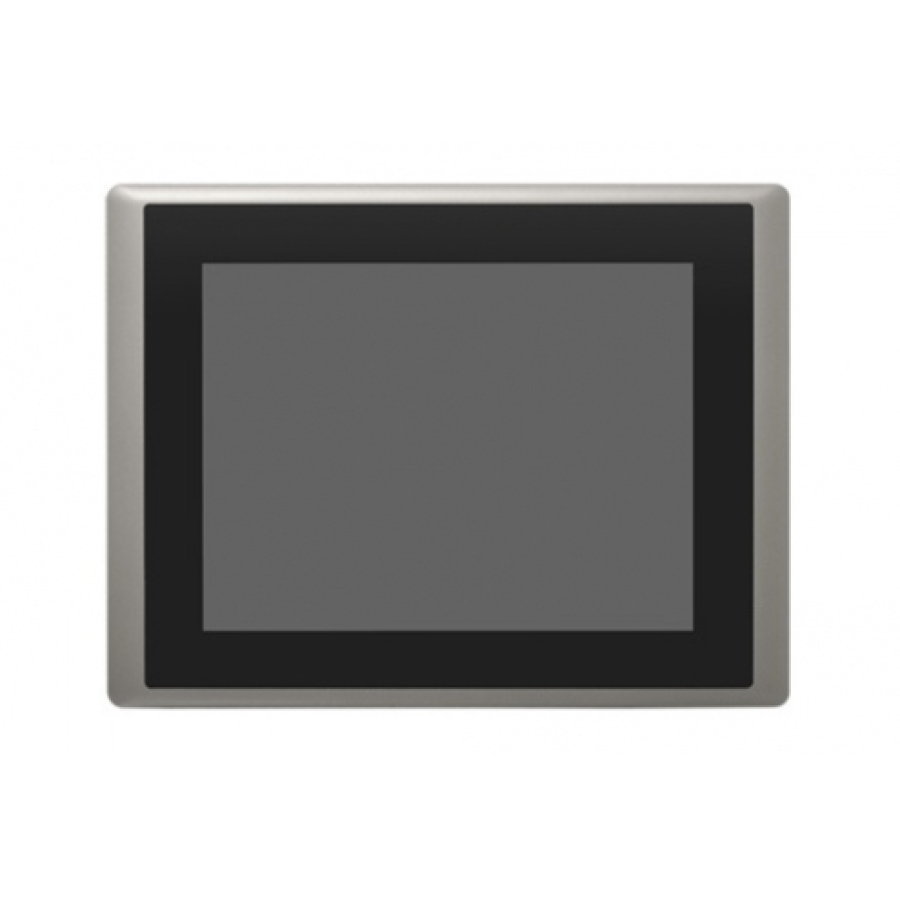

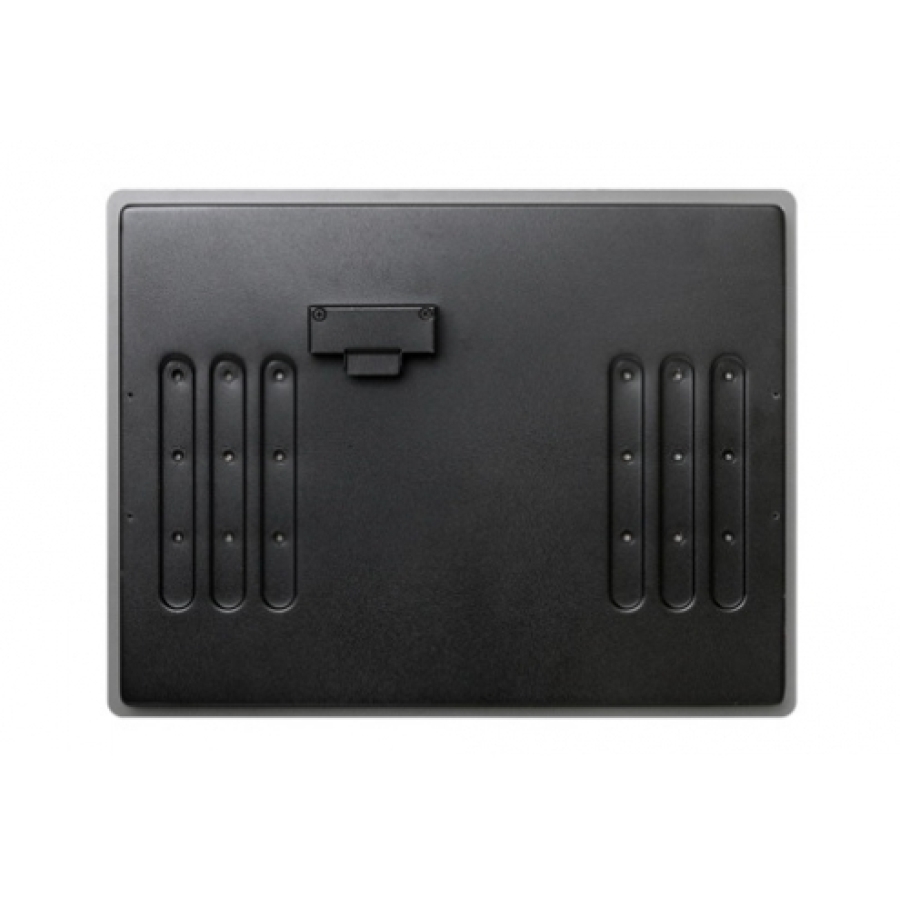

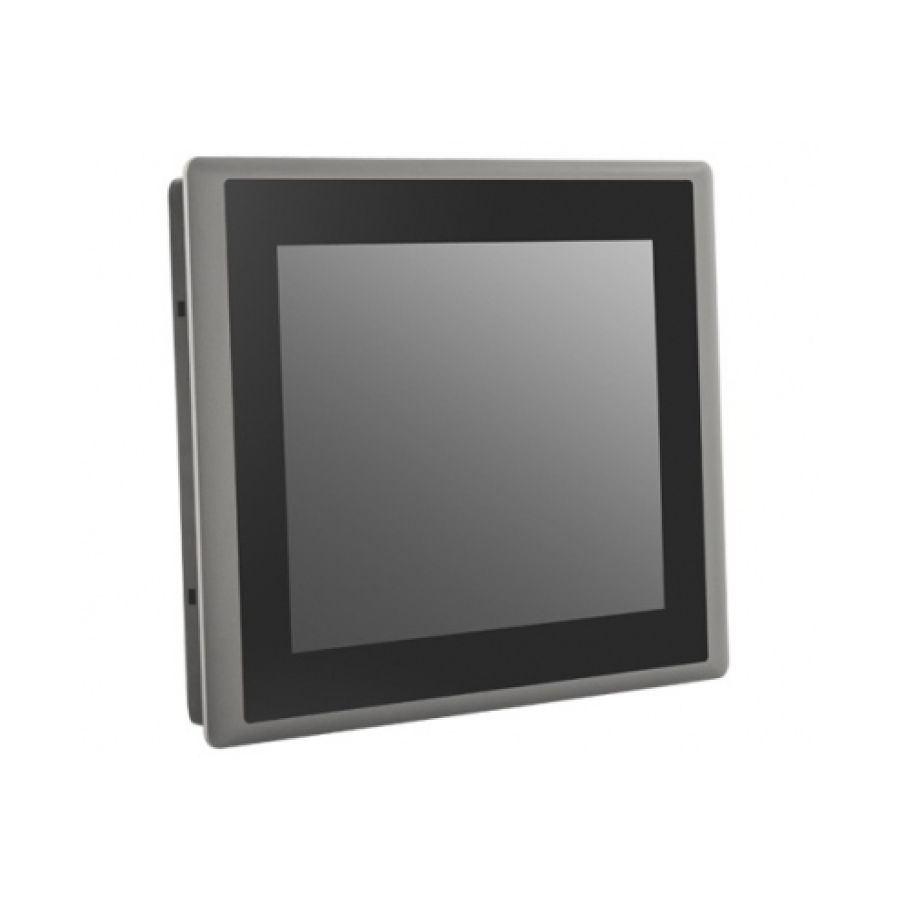

Cincoze CV-112H Industrial Touchscreen Monitor 12.1″ 800 x 600, 450 cd/m2

Cincoze CV-112H Industrial Touchscreen Monitor 12.1″ 800 x 600, 450 cd/m2


  • 12.1″ TFT SVGA 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch
  • 50,000 hrs LED Backlight Life
  • Resolution up to 800 x 600 (SVGA)
  • 450 nits Brightness
  • Designed with Aluminium Die-cast Front Frame
  • IP 65 Compliant Front Panel
  • Convertible Display System (CDS) Supported

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.



CV-112 is 12.1″ LCD display module with resistive 5-wire / projected capacitive touch screen. It offers resolution up to 800×600 (SVGA) and 450 nits brightness. CV-112 features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminium die-cast front frame, it is rugged and reliable for industrial environment. With support for Convertible Display System (CDS) technology, CV-112 allows you to configure, upgrade and maintain your Convertible Display System easily.

Ordering Info

Available Models

Model No. Product Description
CV-112R 12.1″ TFT SVGA 4:3 Display Module with Resistive 5-wire Touch
CV-112C 12.1″ TFT SVGA 4:3 Display Module with Projected Capacitive Touch

 Package Checklist

√ CV-112 Display Module x 1
√ Panel Mounting Kit x 1


System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?


Model Name CV-112
Model No. CV-112R CV-112C
Display LCD Size 12.1″ (4:3)
Max. Resolution 800 x 600
Brightness (cd/m2) 450
Contrast Ratio 800 : 1
LCD Colour 262K
Pixel Pitch (mm) 0.3075 (H) x 0.3075 (V)
Viewing Angle (H-V) 160 / 140
Backlight MTBF 50000 hrs (LED Backlight)
Touch Resistive 5-wire V
Projected Capacitive V
Environment Operating Temperature Ambient with Air flow: -20°C to 70°C (with Industrial Grade Peripherals)
Storage Temperature -30°C to 80°C
Relative Humidity 80% RH @ 40°C (non-condensing)
IP Level IP 65 Compliant Front Panel
Physical Dimension (WxHxD, mm) 345 x 265.3 x 57 mm
Weight 3.16 kg
Construction Front Panel Die-cast Flat Surface
Certification Safety Certifications • CE• FCC Class A
Market Certifications CE/FCC
