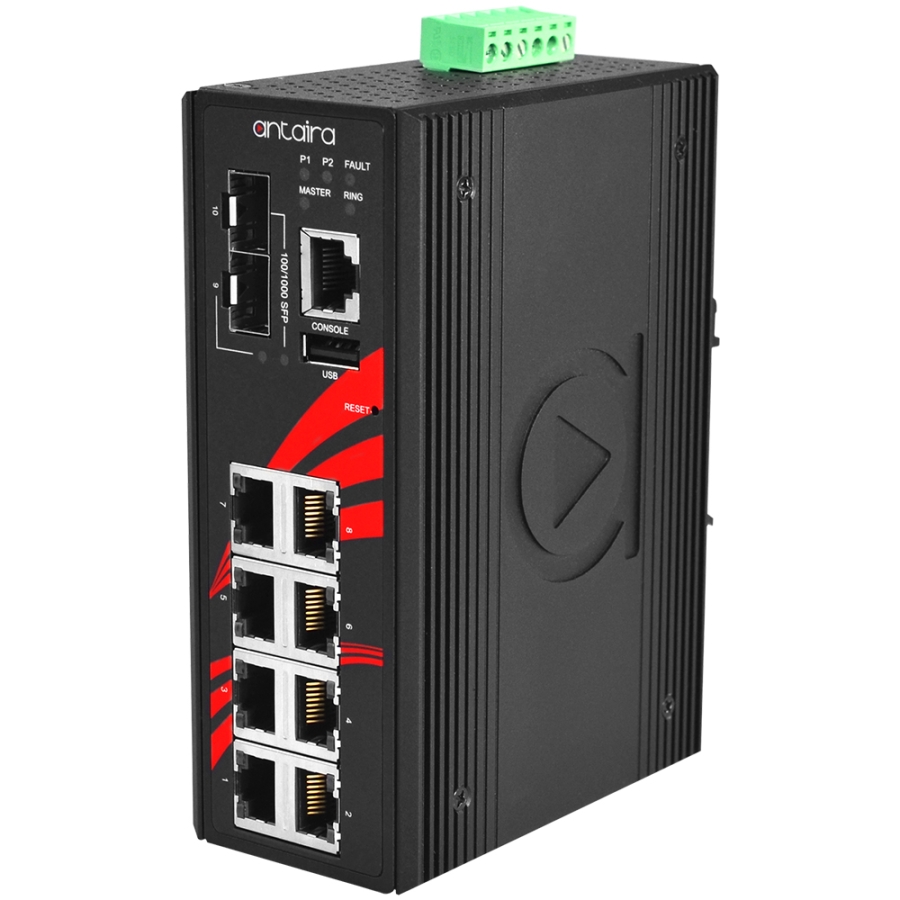

10 Port PoE+ Managed Ethernet Switch 8 x PoE plus 2 x SFP Ext Temp
10 Port PoE+ Managed Ethernet Switch 8 x PoE plus 2 x SFP Ext Temp
LMP-1002G-SFP-T
- Brand: Antaira
- 8 x 10/100/1000Tx (30W/port) + 2 x 100/1000 SFP Slots
- Extended Operating Temperature -40° ~ 75° C
- DIN-rail ready
- Size: 54mm x 142mm x 99mm
Details
Antaira’s LMP-1002G-SFP-T is a 10-port industrial Gigabit PoE+ managed Ethernet switch embedded with 8 x 10/100/1000Tx Ethernet ports that support IEEE802.3at/af for a maximum of 30W/port, and 2 x 100/1000 dual rate SFP slots for Gigabit fibre connections.
It is a fully manageable Layer 2 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as, IGMP, VLAN, QoS, SNMP, RMON, ModbusTCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks. The LMP-1002G-SFP-T is IP30 rated, DIN-rail mountable, and supports an extended operating temperature range of -40°C to 75°C. It also provides high EFT and ESD protection for industrial networking applications, such as, power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS, or any other outdoor or harsh environment application.
Ordering Info
- LMP-1002G-SFP-T – 10 Port PoE+ Managed Ethernet Switch 8 x PoE plus 2 x SFP Ext Temp
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We ship and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
- Certifications: FCC, CE, UL 61010-1, 61010-2-201, NEMA TS2, Class 1 Div 2
- Configuration: Web Console, Telnet, CLI
- Configuration backup: 1 x USB 2.0
- Dimensions: 54 x 142 x 99 mm
- EMI: FCC Class A
- EMS: IEC61000-4-2,3,4,5,6,8 / IEC61000-6-2,4
- Ethernet Ports: 8 x 10/100/1000BaseTx (PSE: 30W/Port) auto negotiation speed, Full/Half duplex mode, and auto MDI connection
- Fiber Port: 2 x 100/1000 SFP Slot
- Green: RoHS Compliant
- Housing / Mounting: Metal IP30 rated / DIN-Rail & Wall-Mount (optional)
- IGMP: Up to 256 Groups
- Input Voltage & Connection: 48~55VDC Redundant Input / 1 removable 6-contact terminal block
- Jumbo Frame: 9.6K
- Operating Temperature EOT: -40 to 75°C
- Power Consumption: 15 Watts (no PD included); 215 Watts @48VDC; 255 Watts @51~55VDC
- Protection: Power line EFT: 2,000VDC; Ethernet ESD: 6,000VDC Overload Current, Power Reverse Polarity, CPU Watchdog
- Protocols: IGMPv1/v2, SNMPv1/v2c/v3, TFTP, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6
- Serial Console: 1 x RS232 in RJ45 connector with console cable, 115.2Kbps, 8,N,1
- Shock/Vibration/Free Fall: IEC60068-2-27 / 2-6 / 2-32
- Standards:
- IEEE 802.3 / 802.3u / 802.3x / 802.3ad,
- IEEE 802.1d / 802.1w / 802.1s / 802.1Q / 802.1X / 802.1p
- ITU-T G.8032/Y.1344 ERPS (Ethernet Ring Protection Switch) Protocol
- VLAN: 1 ~ 4094
- Warranty: 5 Years
- Wavelength: Refer to SFP Module
- Weight Unit: 2.5 lbs; Shipping: 3.3 lbs
