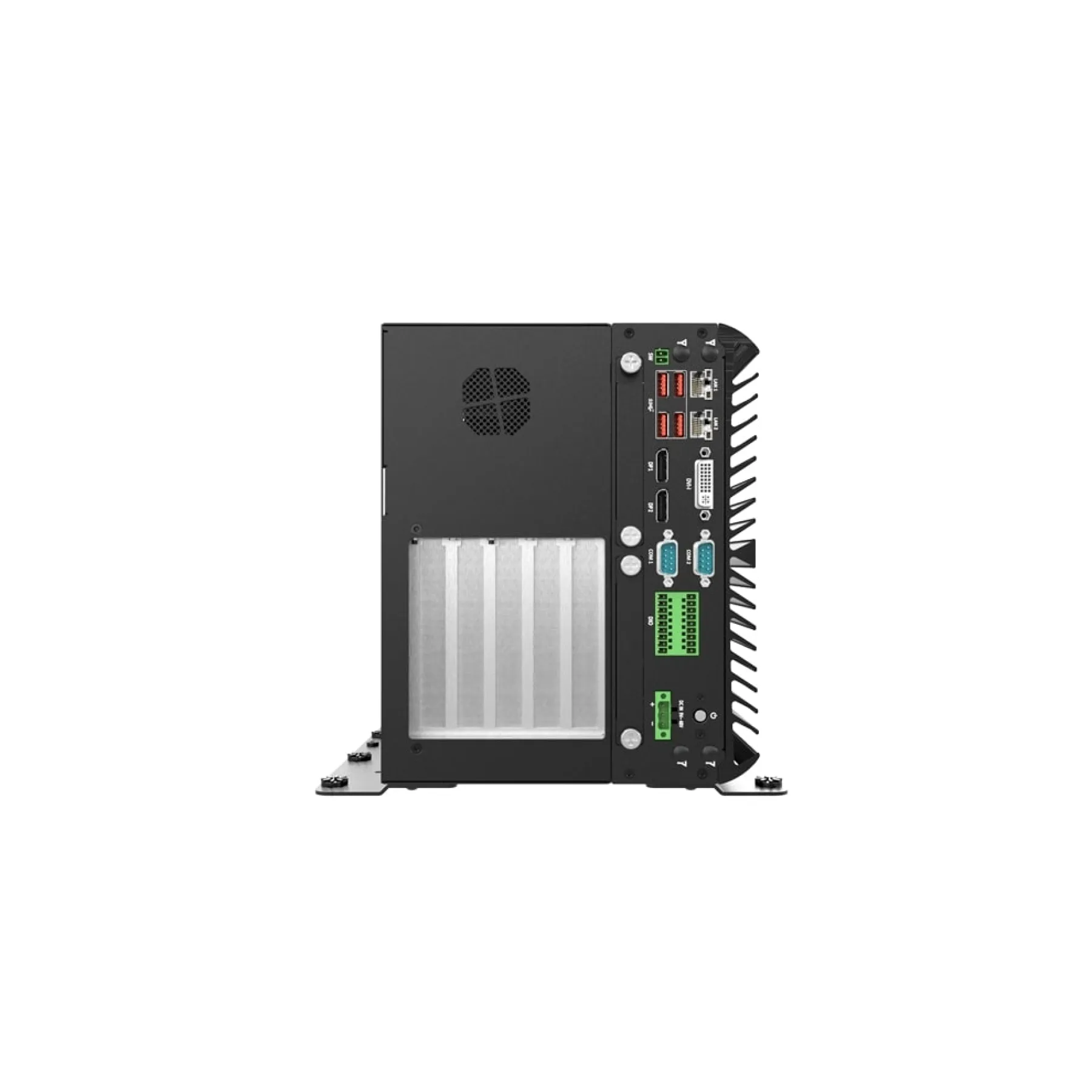

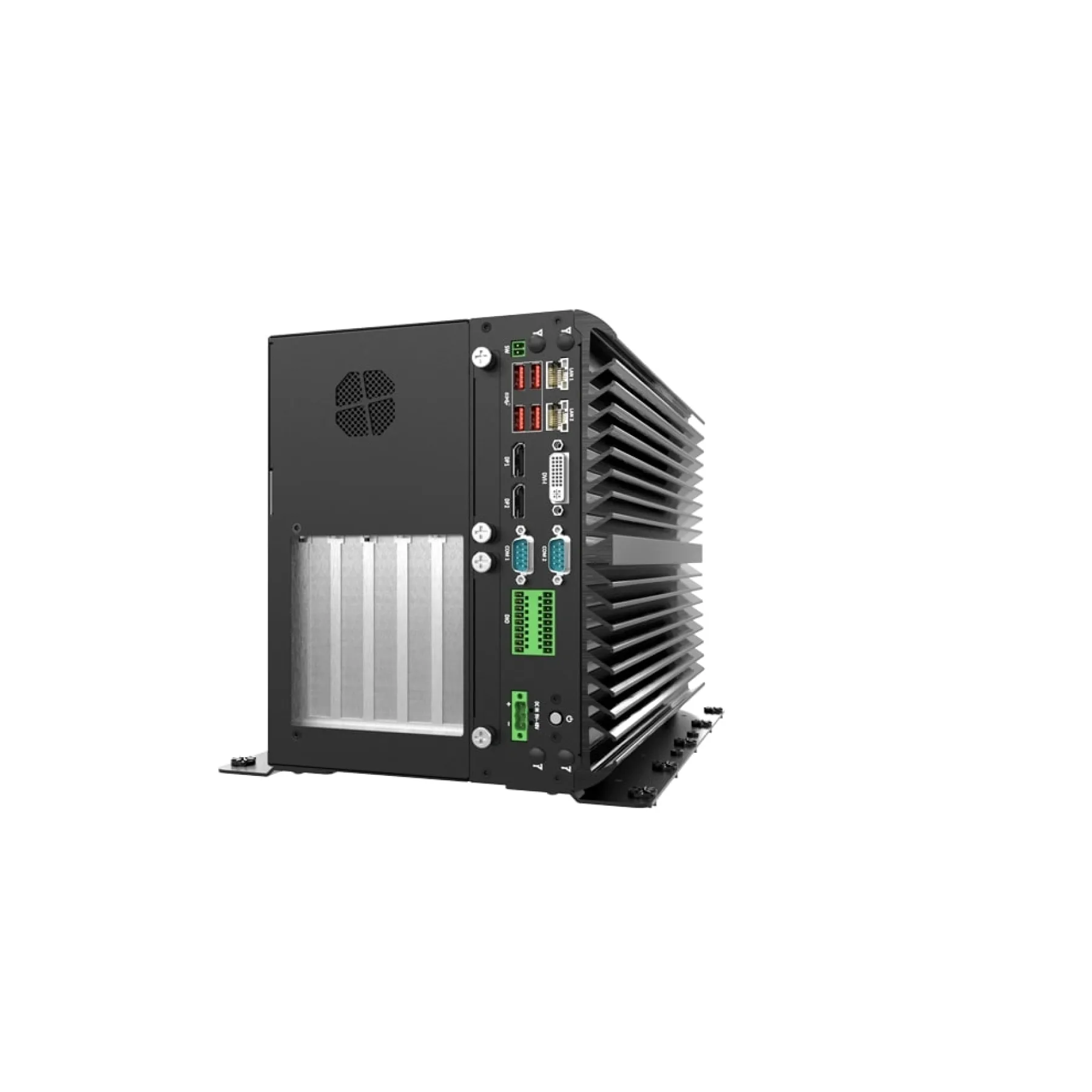

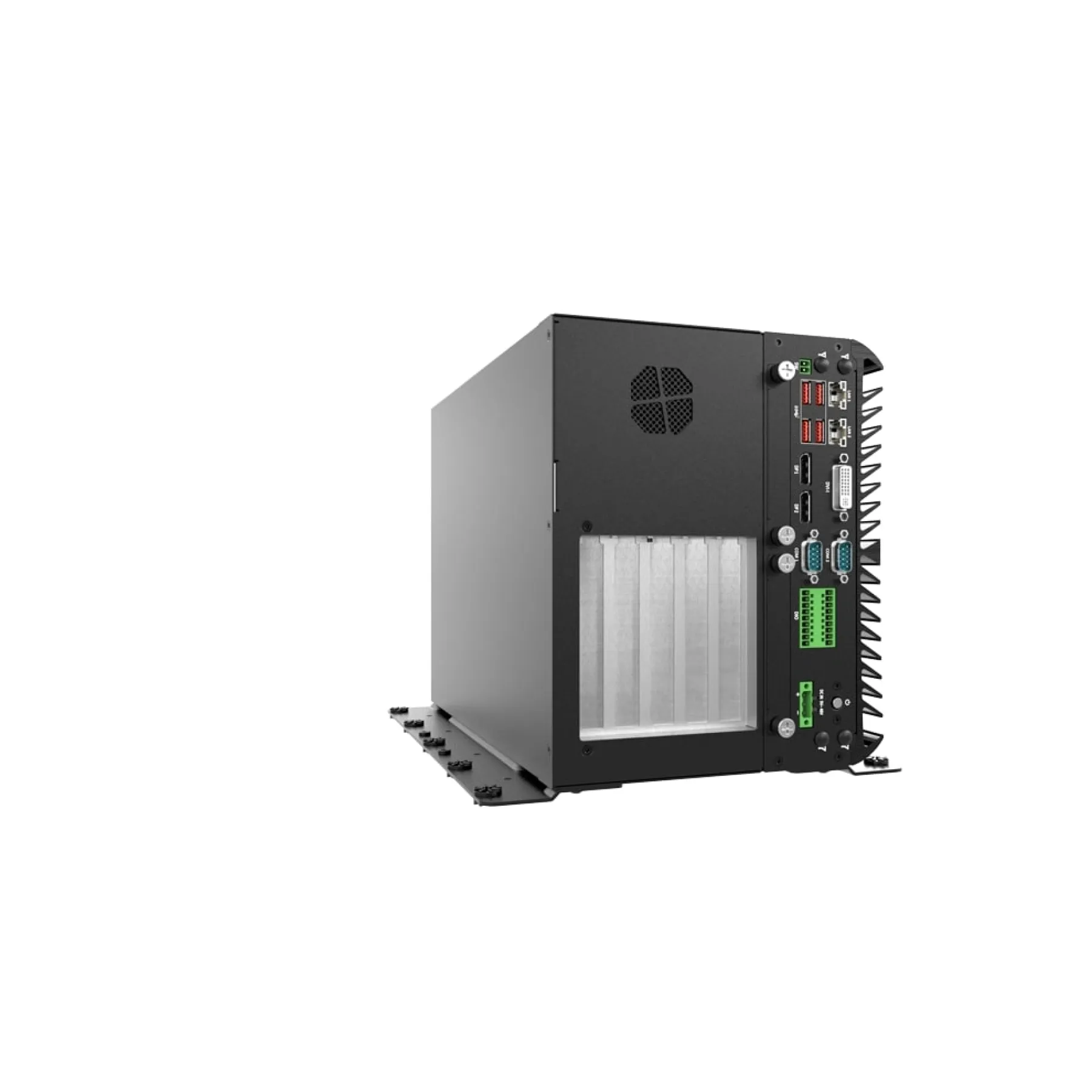

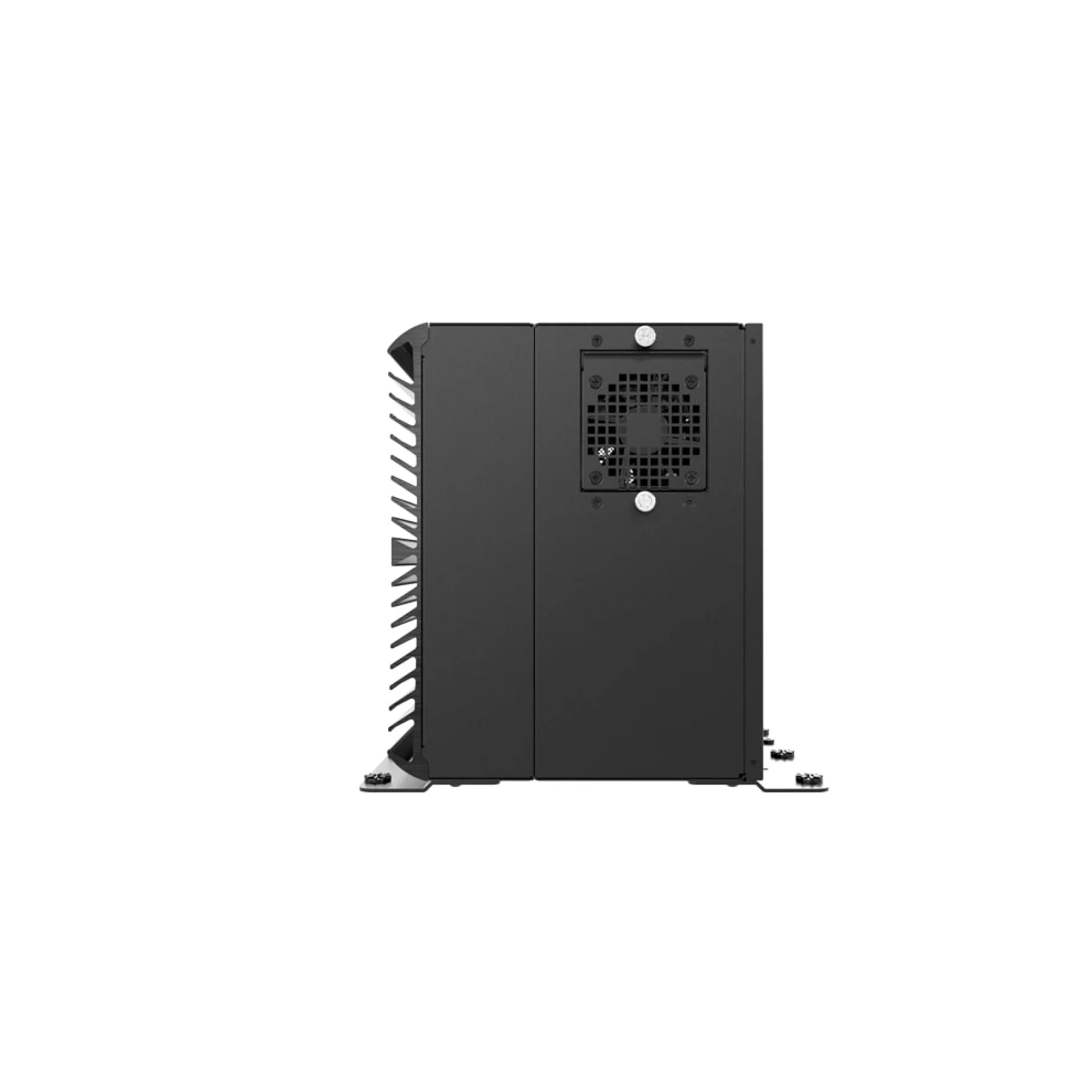

VCO-6155C
C&T Solution VCO-6155C 8th/9th Gen Intel CFL-R S Superior Machine Vision System with 2x PCIe x4, 1x PCIe x16 (8-Lane), 2x PCl
VCO-6155C
- Support 8th/9th Gen Intel CFL-R S Processor (LGA 1151, 65W/35W TDP)
- Intel Q370 Chipset
- Triple Independent Display by 1x DVI-I and 2x DisplayPort
- 2x Intel GbE supporting Wake-on-LAN and PXE
- 2x Full-size mini PCIe (shared by 1x mSATA), and 2x SIM socket
- 4x 2.5” SATA HDD Bay with RAID 0, 1, 5, 10 support, 1x mSATA (Shared by 1x Mini PCIe)
- 1x M.2 (M Key, NVMe PCIe x4, 2280), 1x M.2 (E Key, PCIe x2, 2230, USB 2.0, Support CNVi)
- 6x RS-232/422/485 (4x internal)
- 4x USB 3.2 Gen 2 (10 Gbps), 4x USB 3.2 Gen 1 (5 Gbps, internal)
- 8x DI + 8x DO with isolation
- 9 to 48V DC Wide Range Power Input Supporting AT/ATX Mode
- Wide Operating Temperature (-25°C to 70°C)
- TPM 2.0 Supported
Details
The VCO-6100 series support 9th Gen. Intel Core i7-9700E (4.4GHz, 8 Cores) / i5-9500E (4.2GHz, 6 Cores) / i3-9100E (3.7GHz, 4 Cores) / i7-9700TE (3.8GHz, 8 Cores) / i5-9500TE (3.6GHz, 6 Cores) / i3-9100TE (3.2GHz, 4 Cores) or 8th Gen. Intel Core i7-8700T (4.0GHz, 6 Cores) / i5-8500T (3.5GHz, 6 Cores) / i3-8100T (3.1GHz, 4 Cores) or Pentium G5400T (3.1GHz, Dual Cores)/ Celeron G4900T (2.9GHz, Dual Core) Desktop processor (LGA 1151) which promises breakthrough performance and power efficiency over previous micro-architectures for high performance graphics, dramatic high-resolution video playback, outstanding system performance and responsiveness, and stronger security. It is designed with customers in mind to deliver an excellent system performance, higher reliability and robustness in a compact construction. Delivering rich user experience, the VCO-6100 series implements DVI-I and 2x DisplayPort triple independent display outputs for video and image applications. Moreover, the VCO-6100 series features a fanless design with optional fan module to regulate air flow and sustain optimum internal chassis temperature. It provides isolated DIO, flexible wide voltage range 9V – 48V DC power input and wide operating temperature from -25°C to 70°C so it can really support the add-on cards’ full performances even in harsh condition. With its uncompromising industrial construction, the VCO-6100 series is constructed with extruded aluminum and heavy duty metal which enables it to adapt for continuous operation under adverse condition. In addition, it is engineered to balance the act between higher computational speed and lower power consumption to produce minimal heat which has an optimize effect on its lifespan and functional safety. The VCO-6100 series offers abundant grade features, all-in-one integrated features, various I/O connection, flexible expansion features, and smart manageability to provide customers highly reliable and manageable embedded solution. Moreover, its fanless, noiseless operation, unique thermal solution, and rugged reliability features makes it an excellent solution for multiple applications like machine vision, motion control, digital surveillance and factory automation.Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Processor Type | Intel Celeron, up to 2 Cores, Intel Pentium, up to 2 Cores, Intel Core, up to 4 Cores, Intel Core, up to 6 Cores, Intel Core, up to 8 Cores |
---|---|
GPU | Integrated GPU |
Memory Capacity | Up to 64GB |
Cooling Type | Fanless |
Serial Ports (COM) | 6x RS-232/422/485 |
USB Ports | 8x USB 3.2 |
Ethernet Ports (LAN) | 2x 1G |
Wireless | Wi-Fi |
Video Ports | 1x VGA, 1 Port, 2x DisplayPort, DVI-I |
Digital I/O | 16 DIO |
Audio | Yes |
Storage Type | 1 Port, 2 Ports, 4 Ports |
Expansion Type | 2x PCI, 2 Ports, 3 Ports, Mini PCIe |
Input Voltage | 9 to 48 VDC |
Mounting Options | Book-mount, Wall-mount |
Market Certifications | CE/FCC |
