MPC102-832

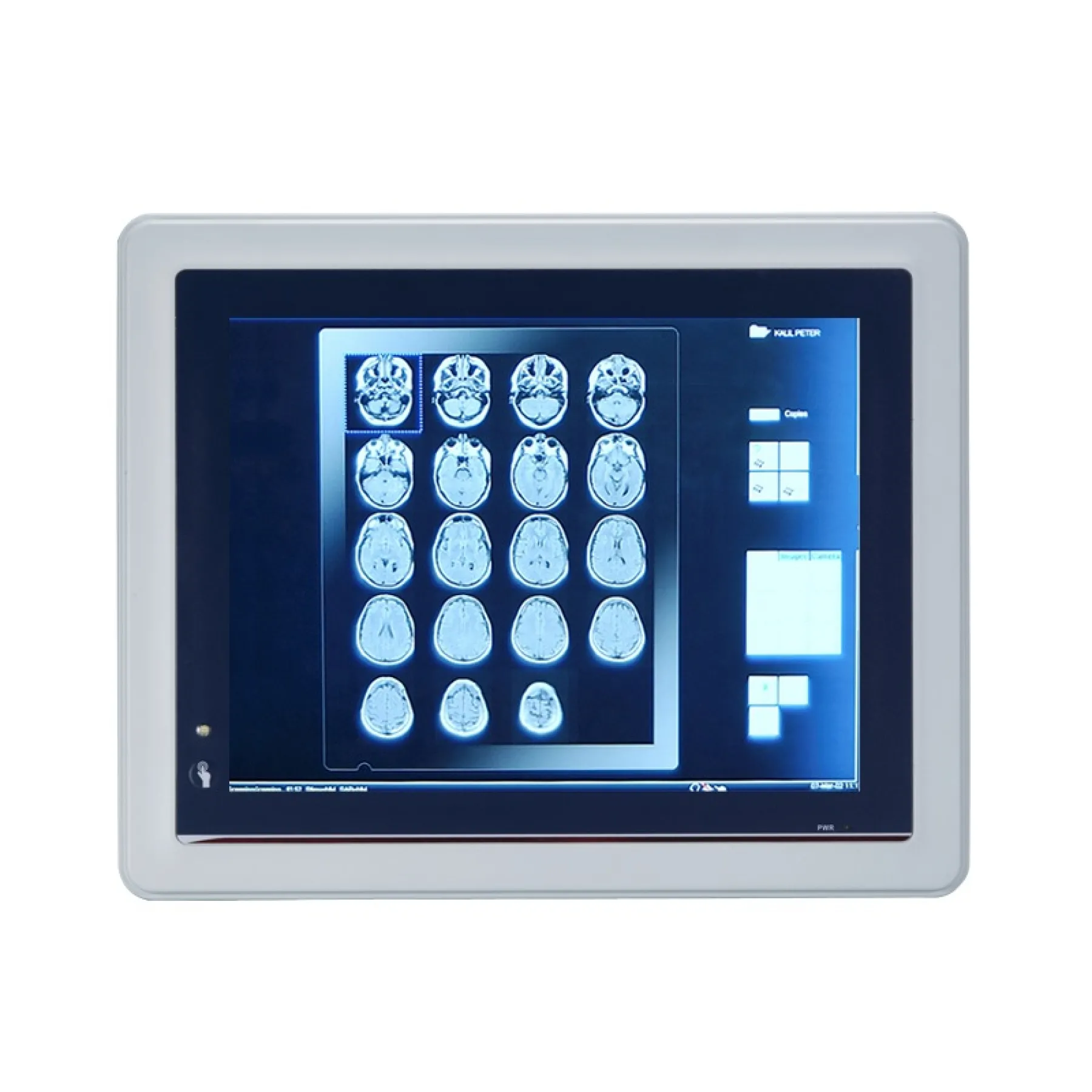

Axiomtek MPC102-832 10.4″ Intel Atom N2600 SVGA TFT Medical Grade Fanless Touch Panel Computer

End of Life

  • 10.4″ SVGA TFT LCD display with LED backlight
  • Fanless cooling system with Intel® Atom™ processor N2600
  • UL 60601-1, EN 60601-1, CE and FCC certified
  • IP65 front bezel and IPX1 full enclosure water/dust proof design
  • One on/off touch key
  • Ultra slim thickness of 45.8 mm
  • Super light weight of 1.8 kg
  • Supports optional panel mount/wall mount/VESA arm/desktop stand

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

Especially designed for the medical environment, the MPC102-832 has UL60601-1/EN60601-1, CE certifications to ensure medical operation safety and adopts IPX1 compliant chassis and IP65 rated spill- and dust-resistant front panel to protect the entire system from outside liquid, preventing system from crashing. The reliable MPC102-832 is powered by the Intel® Atom™ processor N2600 1.6 GHz that enables low-power, stable, quiet and fanless operation. It is equipped with a 10.4-inch SVGA TFT LCD display with high brightness LED backlight (400 nits). The newest medical panel pc, MPC102-832, is ideal for nursing cart, point-of-care terminal, or infotainment terminal use in healthcare environments.

Ordering Info

MPC102-832-J : 10.4″ SVGA medical panel pc with Intel® Atom™ processor N2600, 5-wire resistive touch screen, AC-DC 60 W medical grade power adapter (screw type connector), EMI class B, UL 60601-1 and EN 60601-1 certified

MPC102-832-DC : 10.4″ SVGA medical panel pc with Intel® Atom™ processor N2600, 5-wire resistive touch screen, 10~30 VDC power input (terminal block connector), UL 60601-1 and EN 60601-1 certified

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Touch Technology Resistive
Ingress Protection IP65
Brightness 400nit, Standard
Resolution 800x600, Special/Other
GPU Integrated GPU
Memory Capacity Up to 2GB
Cooling Type Fanless, Yes
Serial Ports (COM) 1 Port, 1 Port, 2 Ports, RS-232, RS-232/422/485
USB Ports 2 Ports, 2 Ports, USB 2.0
Ethernet Ports (LAN) 2 Ports, 2 Ports
Wireless Cellular, Wi-Fi
Audio Yes
Video Ports 1x DisplayPort
Storage Type 1, 1, 2, CFast, SATA
Expansion Type 1, Any Expansion Type, Mini PCI Express
Input Voltage 10-30 VDC, 100-240 VAC-DC
Mounting Options Desktop-stand, Panel-mount, VESA-mount, Wall-mount
Operating Temperature 0°C to 40°C, Standard
Certifications CE/FCC
OS Support Windows 7, Windows XP
