IMB-X1244-WV

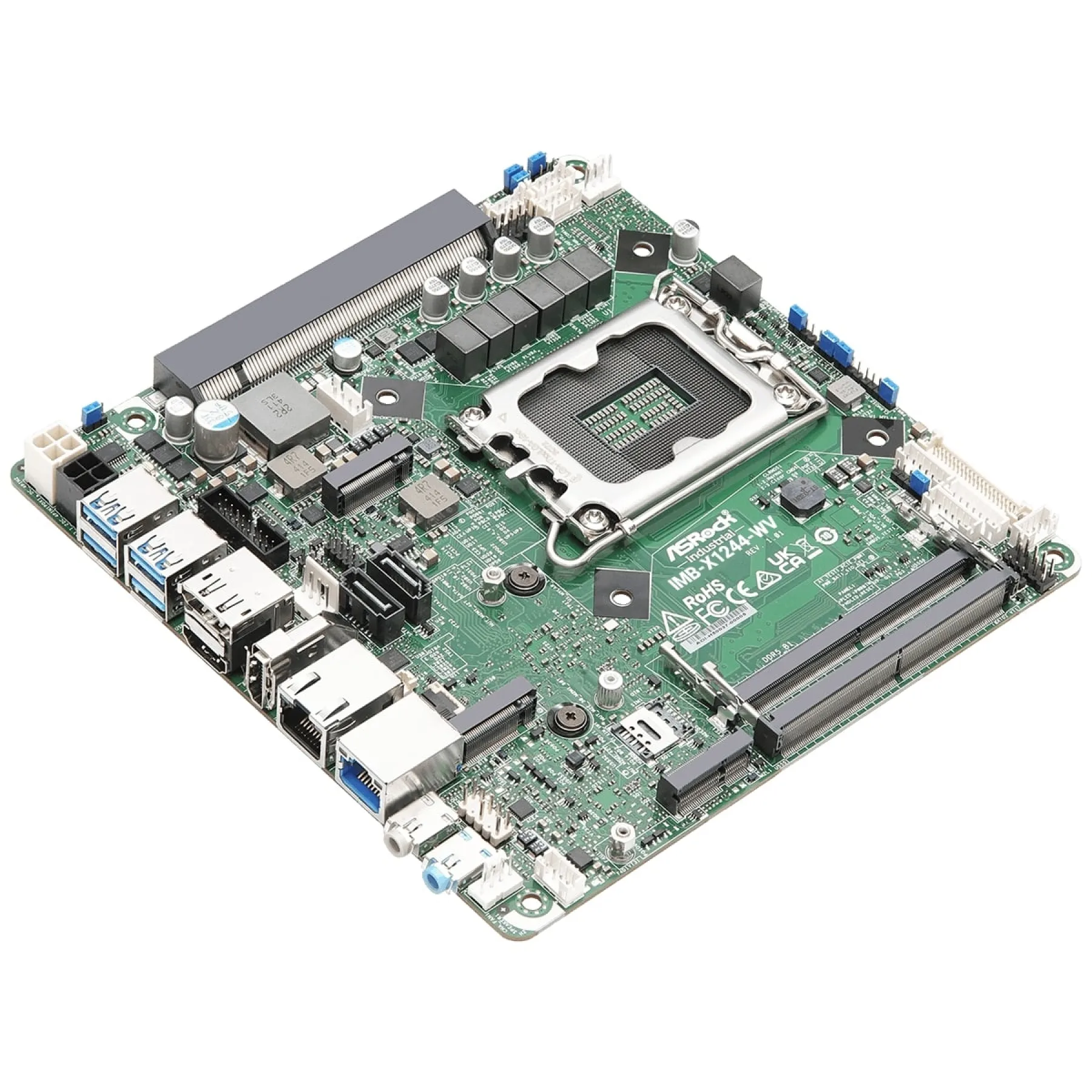

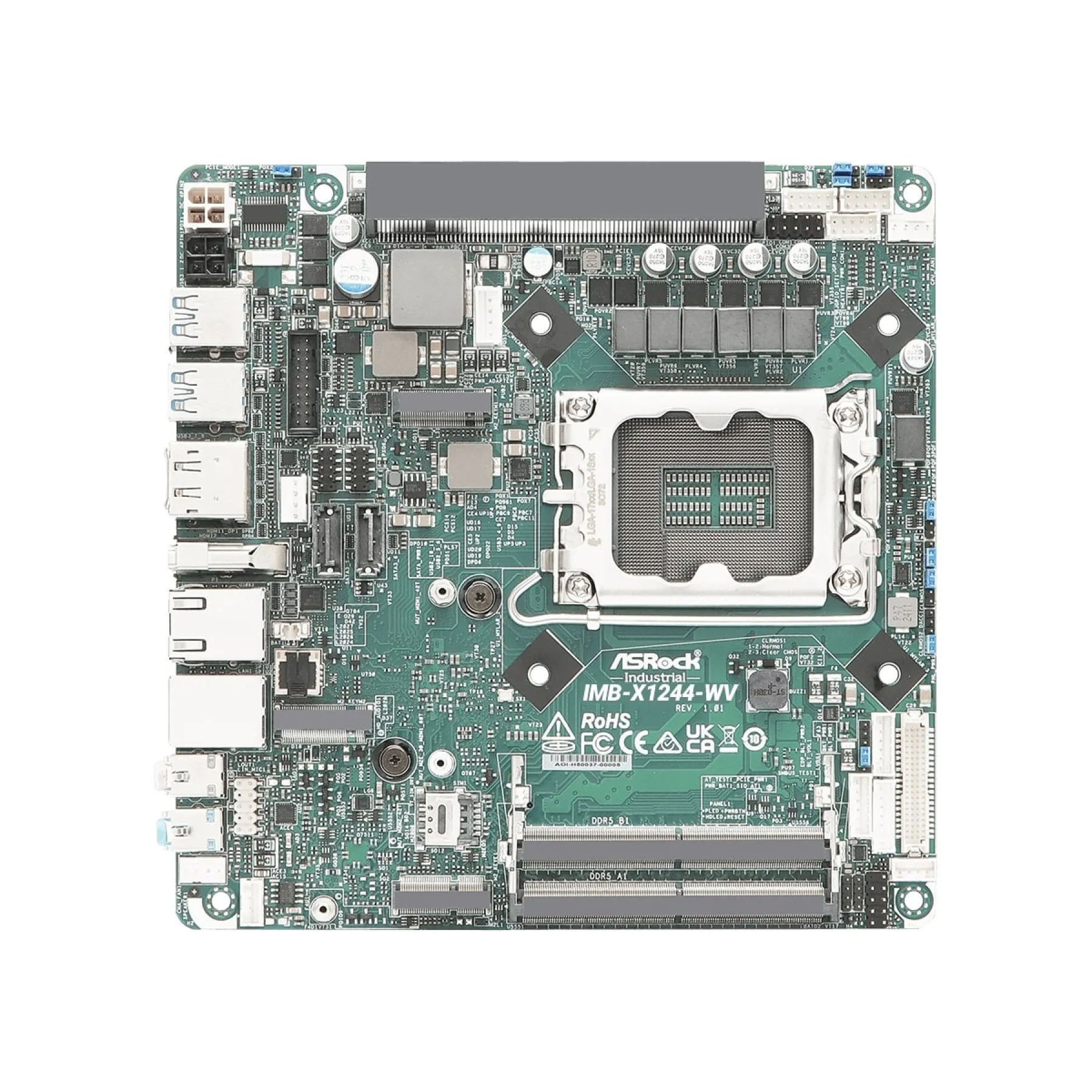

ASRock IMB-X1244-WV Intel Mini-ITX Motherboard with up to 96GB Memory

IMB-X1244-WV

  • Intel 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core Processors with W680 chipset
  • 2 x 262-pin ECC/non-ECC SO-DIMM DDR5 4800/5600 MHz , up to 96GB (48GB per DIMM)
  • 1 x Right Angle PCIe x16 (Gen4)

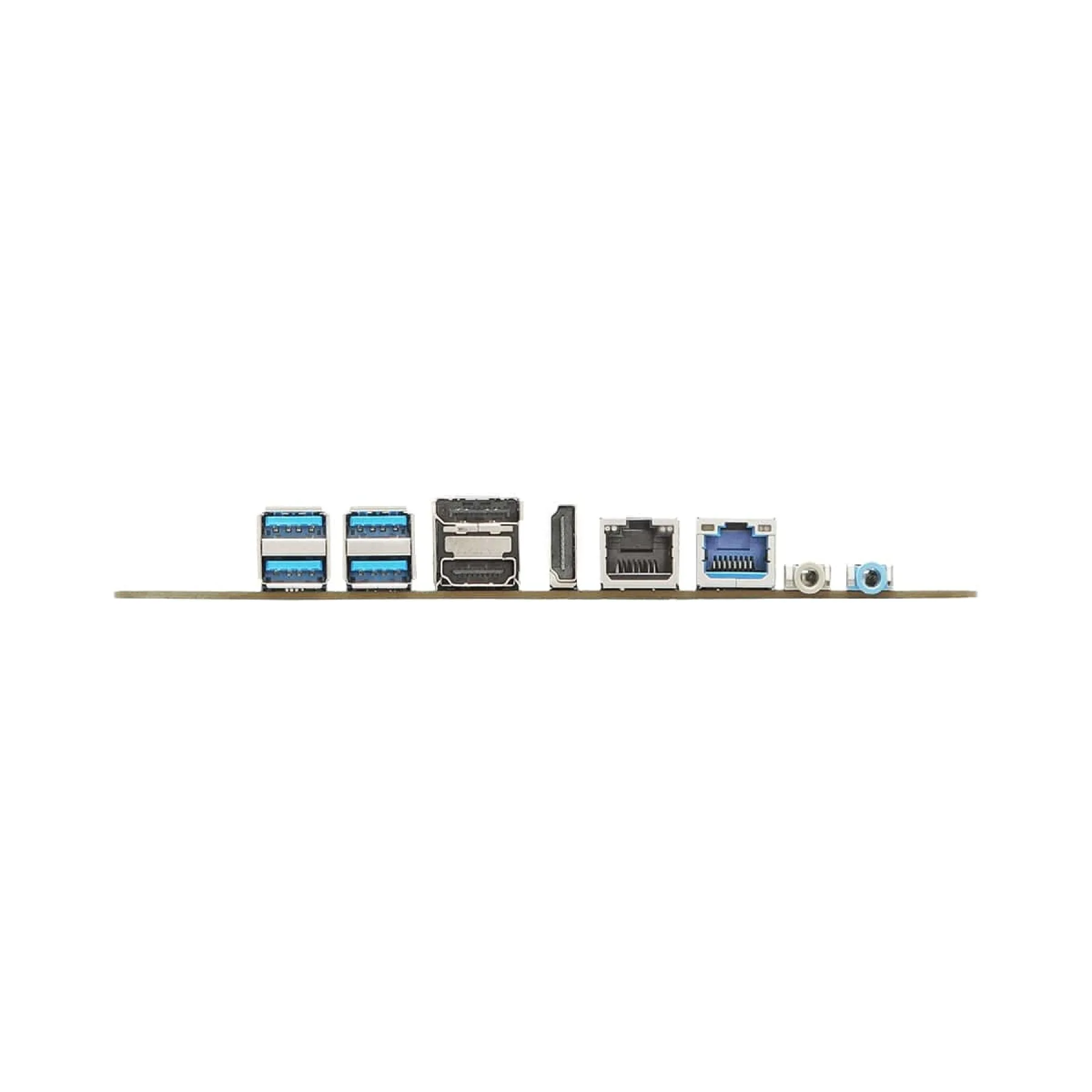

  • 4 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key B, 1 x M.2 Key E, 2 x M.2 Key M, 3 x COM, 2 x SATA3
  • 1 x Intel 2.5 Gigabit LAN, 1 x Intel 1 Gigabit LAN
  • Supports Quad display, 2 x HDMI 2.0b, 1 x DP 1.4a, 1 x LVDS, 1 x eDP 1.4b
  • TPM 2.0 onboard IC
  • Supports Intel vPro, VMD RAID 0/1
  • 12~28V DC-In

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

The ASRock IMB-X1244-WV is a Mini-ITX Motherboard powered by Intel with up to 96GB Memory. The I/O includes 3x COM, 2x LAN and 10x USB ports alongside an operating temperature of -20ºC ~ 70ºC and stores within -40°C ~ 85°C.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Delivery Information

Orders dispatched from Assured Systems USA will be delivered using FedEx.

Payment Methods & Options

Accepted payment methods for US customers include bank transfer, VISA or Mastercard in USD.

ASRock Industrial: Warranty and Service Information

Assured Systems, founded in 2011, are an official EMEA Partner of ASRock Industrial. For all ASRock Industrial products supplied we are proud to offer a comprehensive 2 year warranty, with optional extensions available upon request. Our warranty also covers systems that have been customised by Assured Systems.
