PPC-Z193

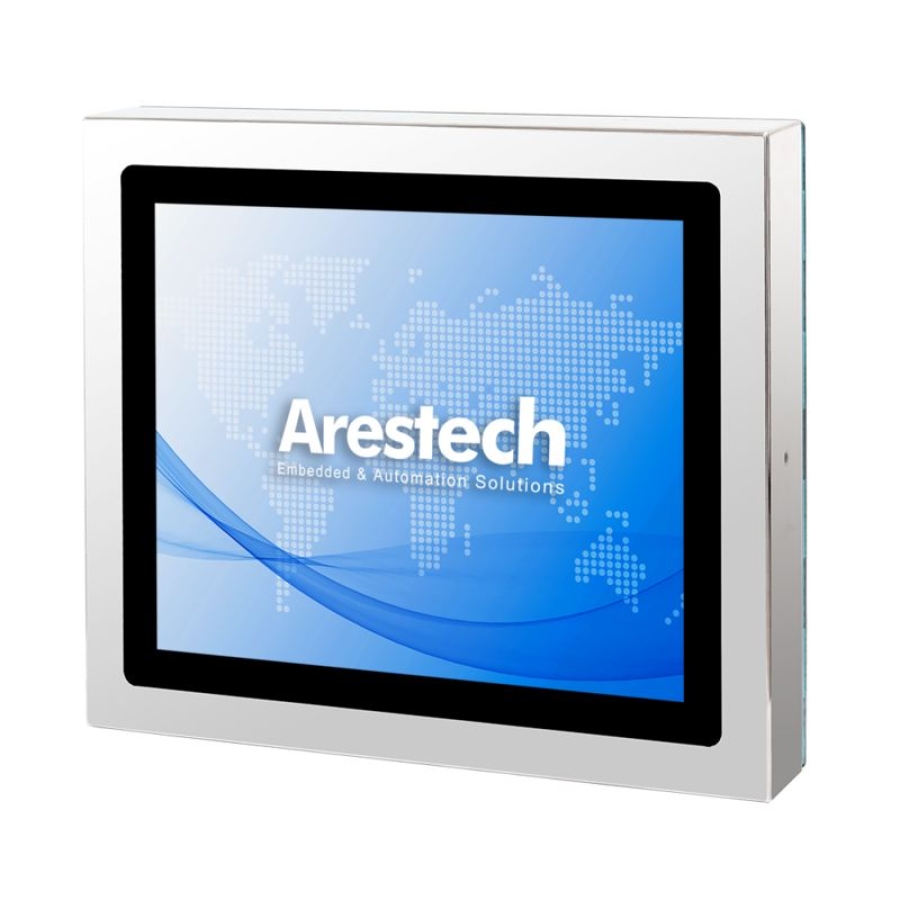

Arestech PPC-Z193 19″ Intel Pentium N4200 IP66/69K Stainless Steel PCAP Touch Panel PC

PPC-Z193

  • 19” SXGA LCD Panel with Projected Capacitive Touch/ Resistive Touch
  • Stainless Steel SUS316, Full IP66/69K Waterproof
  • Support VESA Mounting and Yoke Mounting
  • Completely Flat Front Panel Design
-
+

Details

The Arestech PPC-Z193 is a 19" LCD fanless Panel PC powered by Intel Pentium N4200U processor. This Panel PC consists of a 19" LCD Panel with a brightness of 350nits, a resolution of 1280 x 1024 alongside Projective Capacitive or 5-Wire resistive touchscreen. The PPC-Z193 contains rich I/O including: 4x USB, 2x COM and 2x LAN ports. This VESA Mount Panel PC is built with full IP66/IP69K waterproof protection and operates at a wide operating temperature of -20~60° C making it ideal for industrial applications such as; food & beverage processing, hospitality and catering service, pharmaceutical and biopharmaceutical equipment, animal feed production facility and chemical, gas & oil critical environment and many more.

Ordering Info

PPC-Z193P-B6A1 Projected Capacitive Touch
PPC-Z193R-B6A1 5 Wire Resistive Touch

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

CPU Intel® Pentium® N4200 CPU
Frequency Quad-Core up to 2.5GHz
L2 Cache Intel® Smart Cache 2 MB
System Chipset N/A
BIOS UEFI
Memory 8 GB, DDR3L 1866 MHz SDRAM
Panel Size 19” LCD Panel
Aspect Ratio  4:3
Resolution 1280 x 1024 (SXGA)
Brightness 350 (cd/m2)
Multi Display LCD Panel
Touchscreen Projected Capacitive Touch 5-wire Resistive Touch
USB 4, 2 USB 3.0 , 2 USB 2.0, M12 Connector
Serial Ports 2, COM (1 RS-232, 1 RS-232/422/485), M12 Connector
Digital I/O N/A
Ethernet Dual GbE, 10/100/1000 Mbps (Intel i211AT)
Expansion 1, Mini PCIe (Full-size, PCIe X1 / USB2.0)
Audio N/A
Storage 1, Internal 2.5” HDD/SSD 1, M.2 E Key 2242 (SATAIII)
Power Supply Voltage 9~36 V DC input
Mounting 75mmx 75mm; 100mm x 100mm VESA Mount
Operating Temperature  -20~60° C
Storage Temperature  -40~85° C
Humidity  5~95% @ 40° C, non-condensing
Vibration  5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Shock 20 G, IEC 60068-2-27, half sine, 11 ms duration
Certification TBD
Thermal Dissipation Fanless
Ingress Protection Full IP66/69K Protection
Dimensions 499 X 420 X 66.9mm (16.65″ X 16.54″ X 2.63″)
Weight 10kg (22.04lb)
Operating System Windows 10 IoT 64Bit, Linux kernal 4.0.x or above
Touch Technology Projected Capacitive, Resistive
Ingress Protection IP66, IP69K
Stainless Steel Yes
Brightness 350nit, Standard
Resolution 1280x1024, Special/Other
GPU Integrated GPU
Memory Capacity Up to 8GB
Cooling Type Fanless, Yes
Serial Ports (COM) 1 Port, 1 Port, 2 Ports, RS-232, RS-232/422/485
USB Ports 2 Ports, 2 Ports, 4 Ports, USB 2.0, USB 3.0
Ethernet Ports (LAN) 2 Ports, 2 Ports
Wireless Wi-Fi
Video Ports 1 Port, 1x VGA, 2 Ports, LCD
Storage Type 1, 1, 2, 2.5", M.2 SATA
Expansion Type 1, Any Expansion Type, Mini PCI Express
Input Voltage 9-36 VDC, ATX Powered, Yes
Mounting Options VESA-mount, Yoke-mount
Operating Temperature -20°C to 60°C, Wide
OS Support Linux, Windows 10, Windows 10 IoT, Windows 10 Pro
