GENE-TGU6-A10-0017

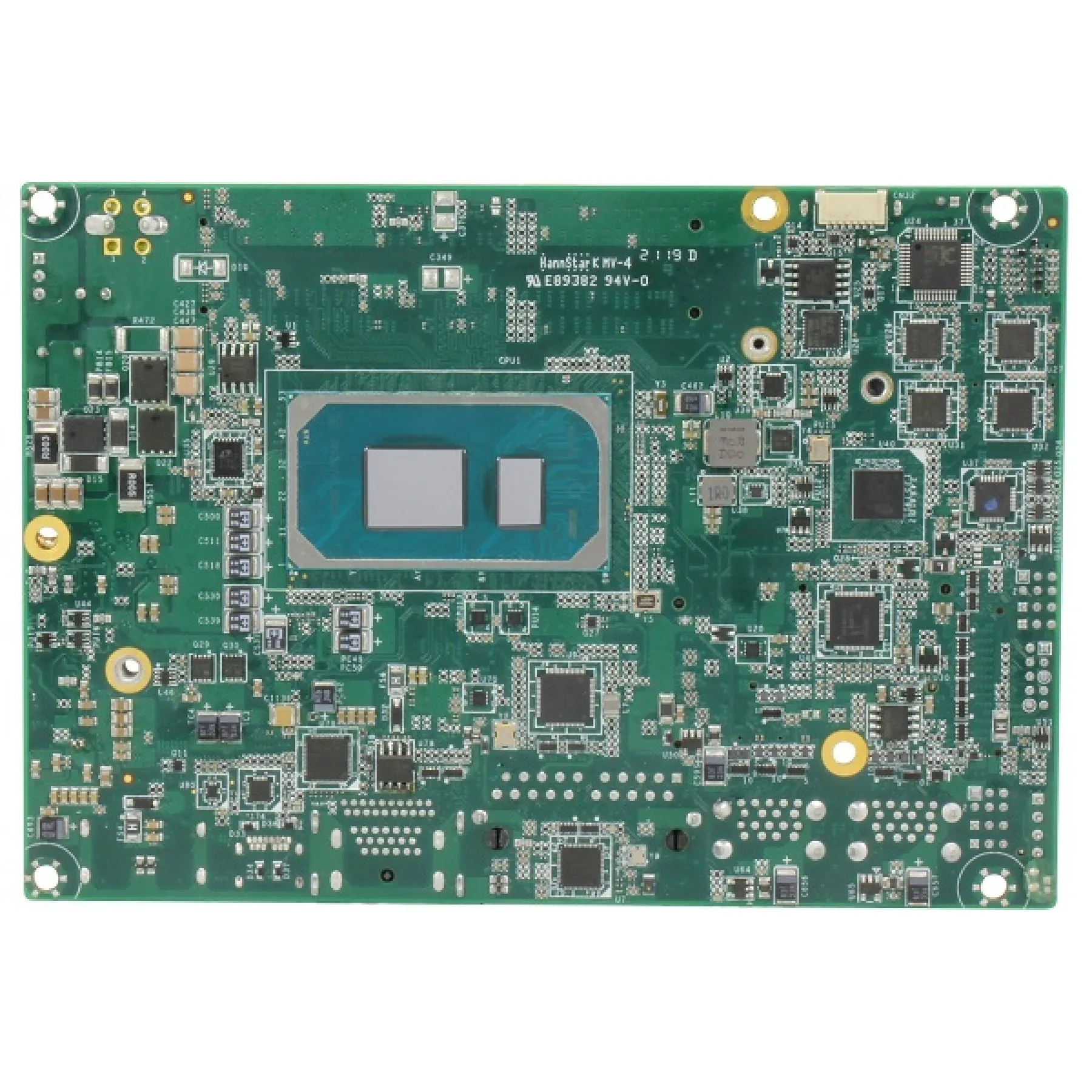

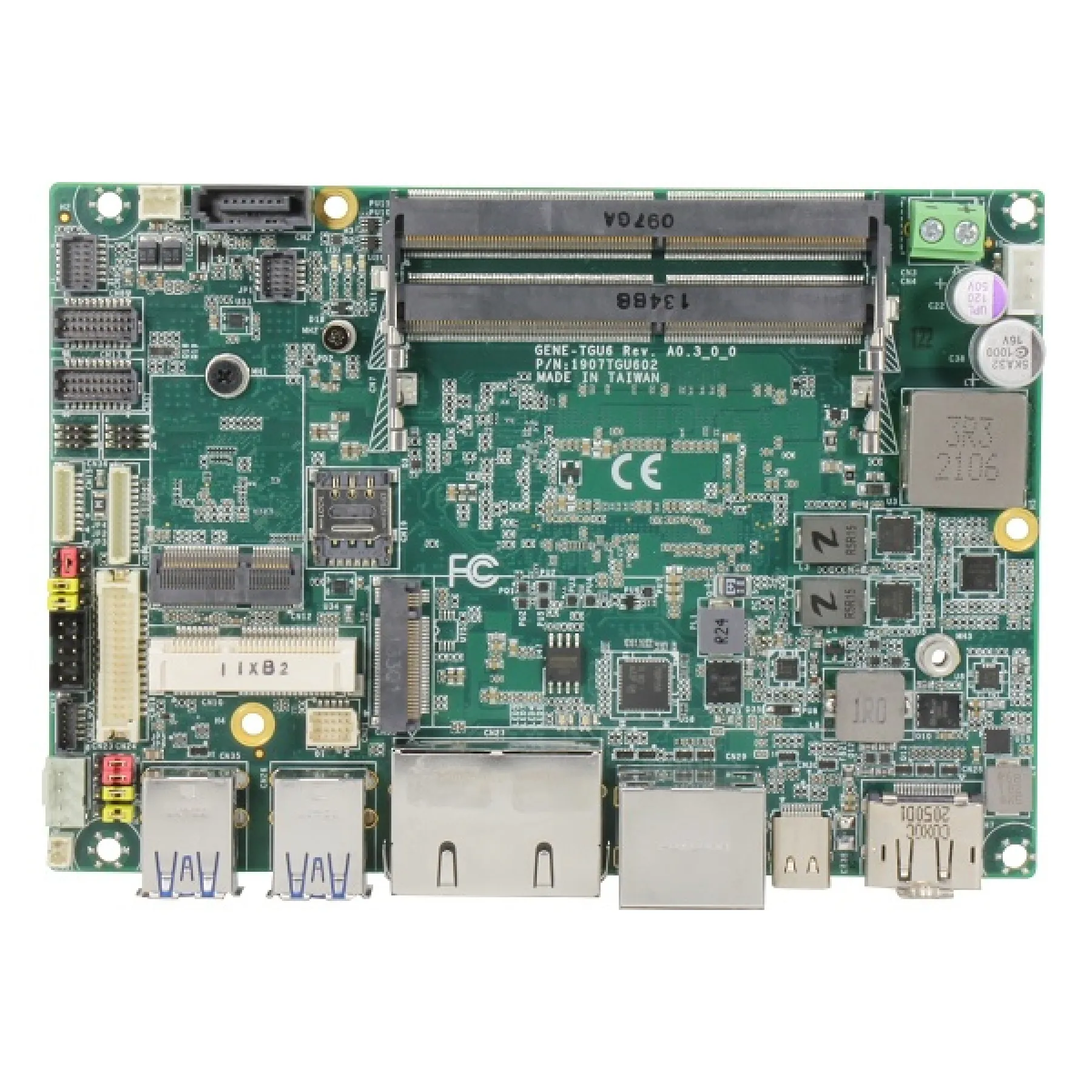

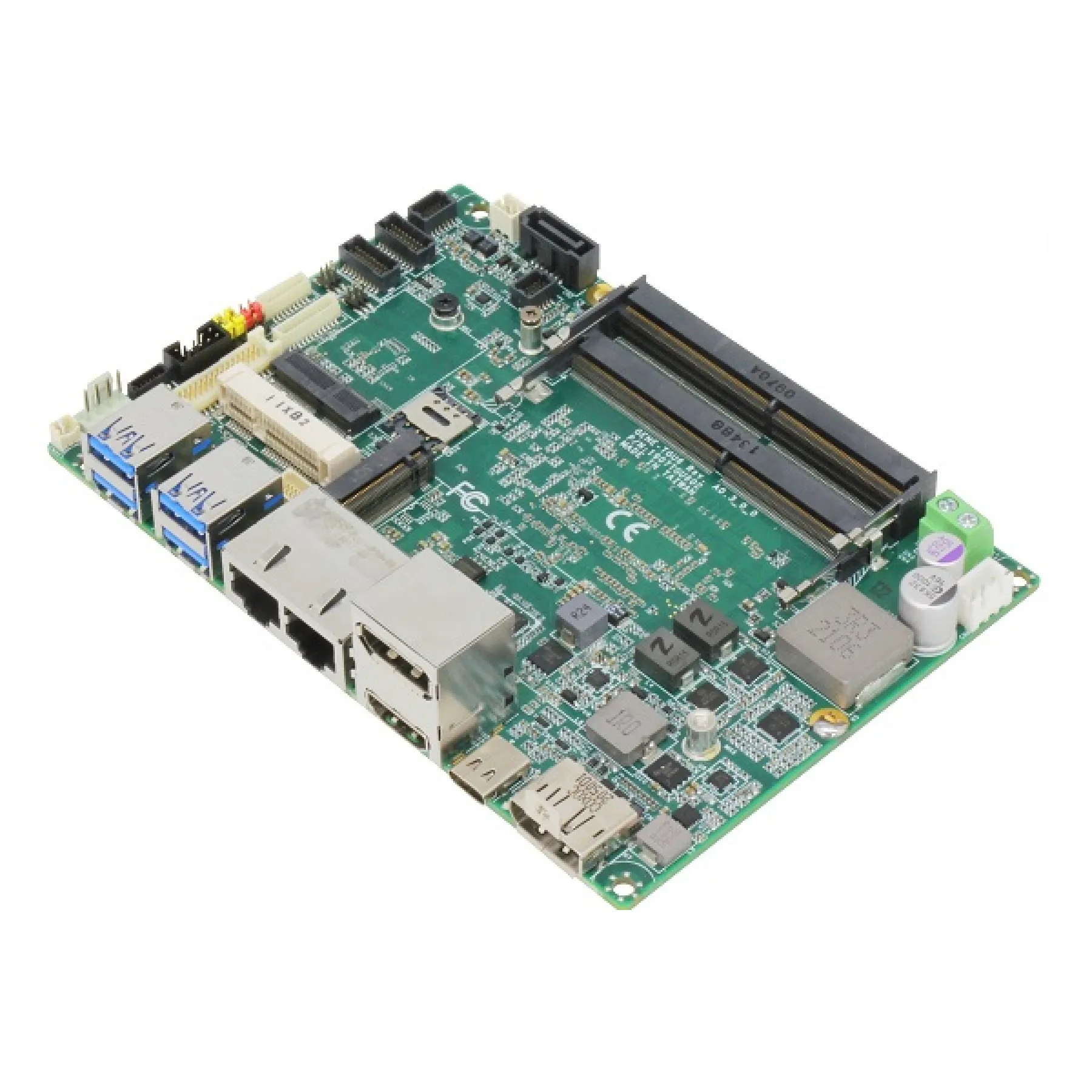

AAEON GENE-TGU6-A10-0017 11th Gen Intel Celeron 6305E 3.5” SubCompact Board

GENE-TGU6-A10-0017

  • DDR4 SODIMM Slot x 2, up to 64GB, support IBECC

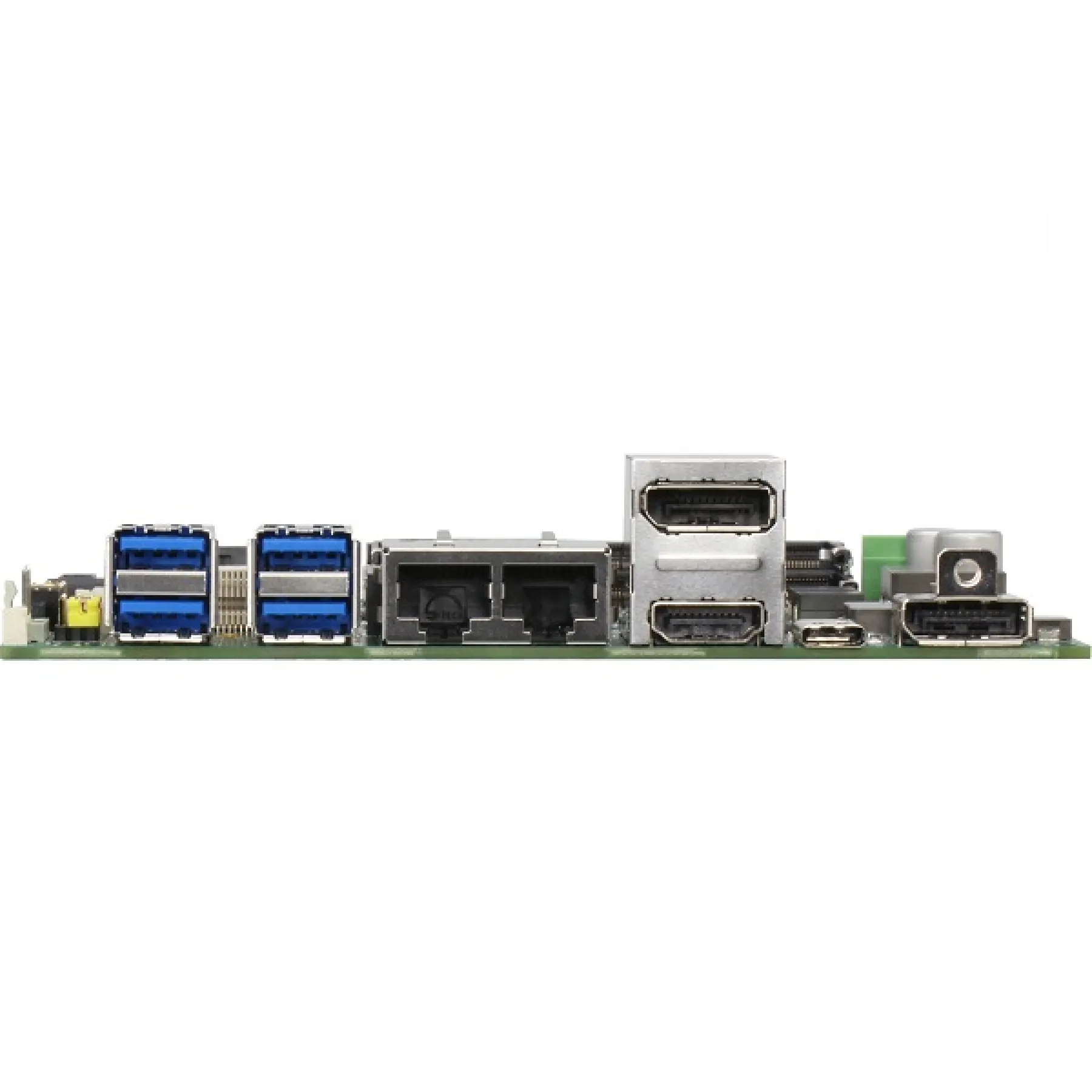

  • HDMI 2.0b x 1, DP1.4 x 2, Type C DP x 1, LVDS/eDP x 1
  • 2.5GbE x 1, GbE x 1
  • USB 3.2 Gen2 x 4, USB2.0 x2, USB Type C x 1
  • M.2 2280 M key x 1, M.2 2230 E key x 1
  • Wide DC Input 9-36V (Optional: 12V Only)

Choose GENE-TGU6 Model:

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

The GENE-TGU6 is built to bring greater performance, more flexibility and support for a broader range of applications than before. The 11th Generation Intel Core U processors (formerly Tiger Lake) deliver up to 20% better performance over previous generations of embedded processors. The embedded Intel Iris Xe graphics powers brilliant high definition video, with the GENE-TGU6 offering five video outputs supporting up to four simultaneous displays up to 4K. With built-in compatibility with the Intel distribution of OpenVINO toolkit, along with Intel Deep Learning Boost, the GENE-TGU6 is capable of AI compute performance 30~40% greater than previous generations. The GENE-TGU6 is built tough to handle harsh industrial and embedded environments with wide operating temperatures (-40°C to 85°C) and wide voltage input (+9V ~ +36V). Additionally, the GENE-TGU comes with a range of important features including TPM2.0, 2.5Gbps LAN and USB Type-C and DP1.4 ports, as well as multiple M.2 expansion slots.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Processor Type Intel Celeron: Up to 2 Cores
Memory Type DDR4
COM Ports 4x RS-232/422/485
LAN Ports 1x 2.5GB, 1x 1GB
USB Ports 2x USB 2.0, 5x USB 3.2
Video Ports 1x LVDS, 1x HDMI, 3x DisplayPort
Storage 1x mSATA, 1x SATA
Operating Temperature 0°C to 60°C

Delivery Information

Orders dispatched from Assured Systems USA will be delivered using FedEx.

Payment Methods & Options

Accepted payment methods for US customers include bank transfer, VISA or Mastercard in USD.

AAEON Technology: Warranty and Service Information

AAEON products purchased in the EMEA from Assured Systems come with a 2 year warranty as standard, with additional extended warranty options available. As an official AAEON partner, we are proud to provide customers with peace of mind and the highest quality products.
